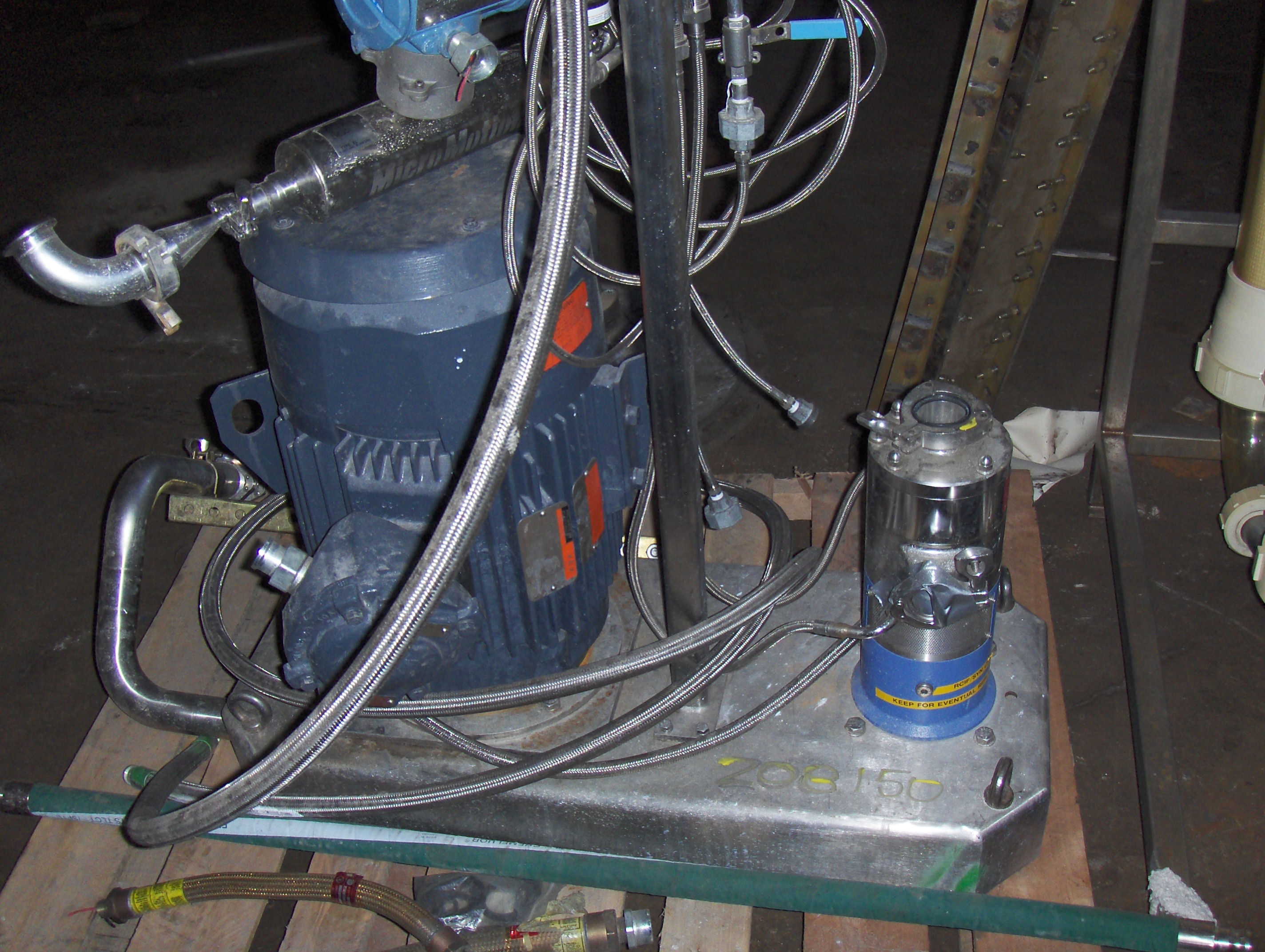

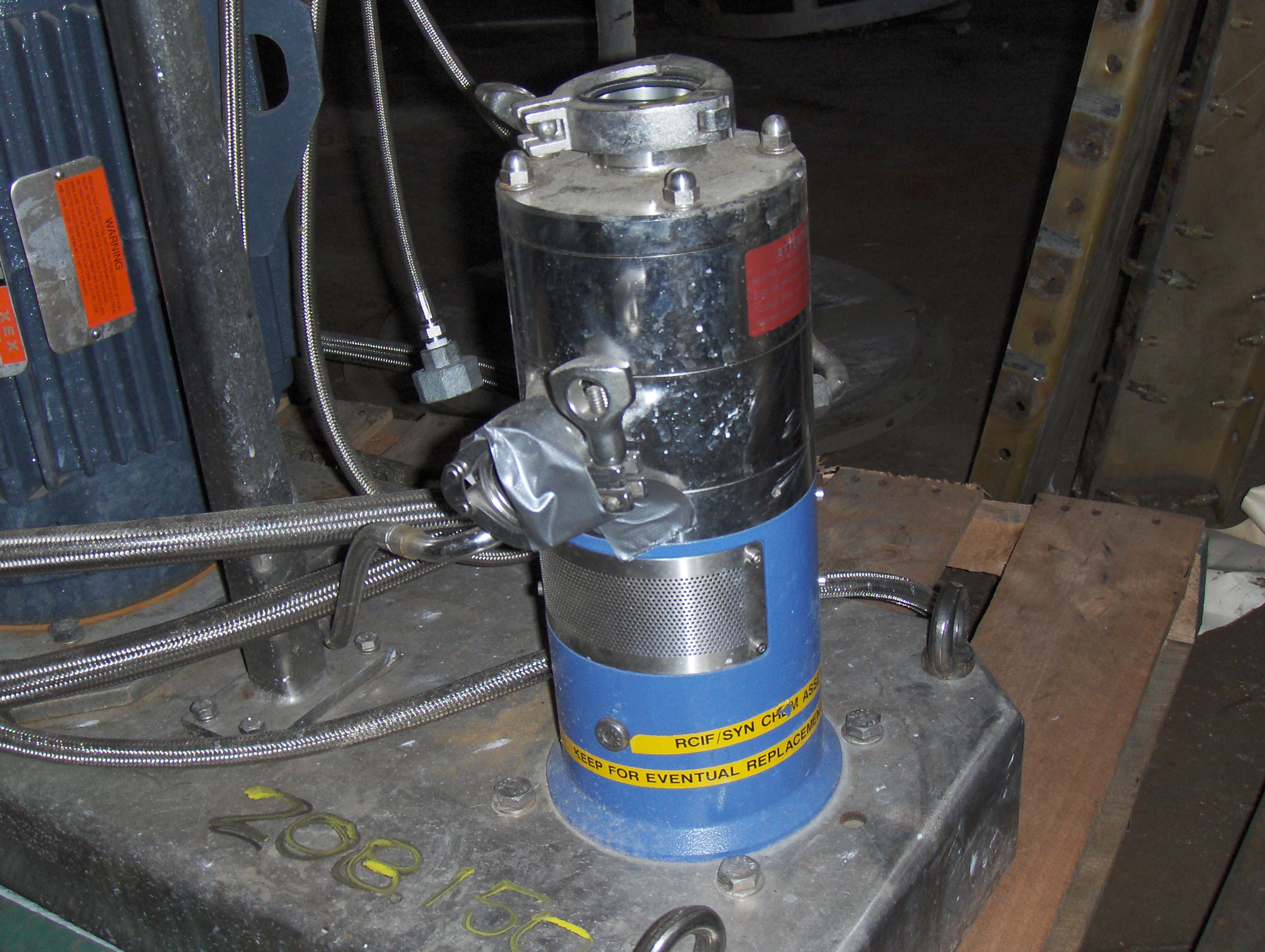

Stainless Steel 316 IKA-Werk W32KAAABAA6660 Colloid Mill - IPP# 208150

Type: Mill

Subtype: Colloid

Manufacturer: Premier Colloid Mills LTD

Model: 5" dispersion mill

Condition: Used

Material: Stainless Steel 316

Diameter: 254 mm (10 in)

Drive Power: 3.73 kW (5 HP)

rotor speed 3000 rpm
3/50/220/380/440 volt
3" bottom diameter
316 s/steel feed chute, 5" x 2" 316 s/steel discharge chute,
built on on/off switch

Drive RPM: 3,000.

Type: Mill

Subtype: Colloid

Condition: Used

Material: Stainless Steel 316

Type: Mill

Subtype: Colloid

Condition: Used

Material: Stainless Steel 316

Drive Power: 2.24 kW (3 HP)

316 SS contact with 304 SS parts
jacketed colloid mill
0.75" inlet and outlet with Tri-Clover style fittings
Jacket inlets and outlets are 0.50"
Dolly stand mounted with on board controls including a GSz Variable Frequency Drive
Machine # 2.2KNE2 Frame4 ND90L
Shipping dimensions: 52" x 18" x 35"

Type: Mill

Subtype: Colloid

Manufacturer: Gale Process Solutions

Model: Multi-Mill

Condition: New

Material: Stainless Steel 316

Capacity (Design): 0.0085 m3 (0.3 ft3)

Diameter: 330 mm (13 in)

• Capacity 300 kg per hour.
• 316SS (product contact), sifter, polished with mirror finish, Multi Mill ,with Bead impact knife blade. Sanitary and cGMP construction.
• 1400 mm height, 330mm diameter, 316 SS perforated screen .5 mm thick, 316SS shaft 38mm diameter x 410mm long,
• 316 SS knife (20 mm x 55 mm x 6 mm thick) frame 304 cladded, (2) 316 ss blade scrapers (20 mm x 20 mm x 50 mm), mechanical seal, w/ charging hopper.
• Hindustan Motor: 2.2KW 3/60/220 w/ VFD Bolted to base plate with caster wheels (4)

Drive Power: 2.2 kW (2.95 HP). Drive RPM: 1,440. Drive Type: Vertical. Powered By: Electric.
