Colloid Mill - IPP# 241097

Type: Mill

Subtype: Colloid

Manufacturer: Premier Colloid Mills LTD

Model: 5" dispersion mill

Condition: Used

Material: Stainless Steel 316

Diameter: 254 mm (10 in)

Drive Power: 3.73 kW (5 HP)

rotor speed 3000 rpm
3/50/220/380/440 volt
3" bottom diameter
316 s/steel feed chute, 5" x 2" 316 s/steel discharge chute,
built on on/off switch

Drive RPM: 3,000.

Type: Mill

Subtype: Colloid

Manufacturer: IKA-Werk

Model: W32KAAABAA6660

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 0.00311 m3 (0.11 ft3)

Drive Power: 11.2 kW (15 HP)

Series 2000
Type: DRS2000/5
Type 139

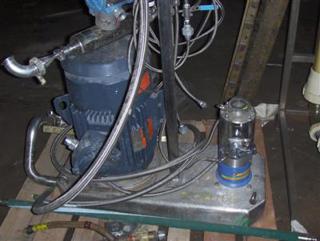

All piping and support equipment stainless steel. Mill and motor mounted on stainless steel base with cooler and micro motion feed control.

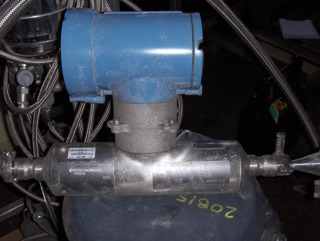

Micro motion complete with transmitter
MDL T050T6215CAUE2222.

Pressure: 25 bar (363 psi). Temperature: 200 °C (392 °F). Powered By: Electric.

Type: Mill

Subtype: Colloid

Condition: Used

Material: Stainless Steel 316

Drive Power: 2.24 kW (3 HP)

316 SS contact with 304 SS parts

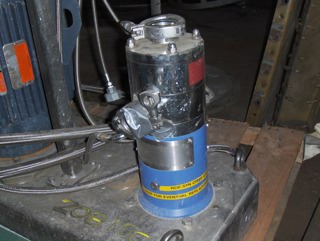

jacketed colloid mill
0.75" inlet and outlet with Tri-Clover style fittings
Jacket inlets and outlets are 0.50"
Dolly stand mounted with on board controls including a GSz Variable Frequency Drive
Machine # 2.2KNE2 Frame4 ND90L
Shipping dimensions: 52" x 18" x 35"

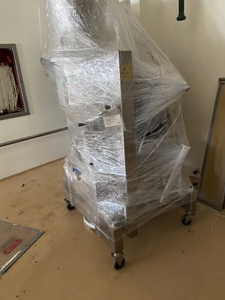

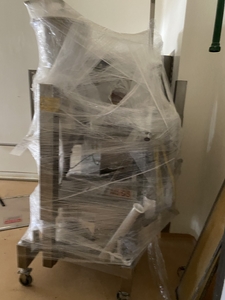

Type: Mill

Subtype: Colloid

Manufacturer: Gale Process Solutions

Model: Multi-Mill

Condition: New

Material: Stainless Steel 316

Capacity (Design): 0.0085 m3 (0.3 ft3)

Diameter: 330 mm (13 in)

• Capacity 300 kg per hour.
• 316SS (product contact), sifter, polished with mirror finish, Multi Mill ,with Bead impact knife blade. Sanitary and cGMP construction.
• 1400 mm height, 330mm diameter, 316 SS perforated screen .5 mm thick, 316SS shaft 38mm diameter x 410mm long,
• 316 SS knife (20 mm x 55 mm x 6 mm thick) frame 304 cladded, (2) 316 ss blade scrapers (20 mm x 20 mm x 50 mm), mechanical seal, w/ charging hopper.
• Hindustan Motor: 2.2KW 3/60/220 w/ VFD Bolted to base plate with caster wheels (4)

Drive Power: 2.2 kW (2.95 HP). Drive RPM: 1,440. Drive Type: Vertical. Powered By: Electric.
