IPP# 208499 - Pressure Leaf Filter 1 m² (10.8 ft²) Stainless Steel 304 For Sale

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Sparkler

Model: HRC-100

Condition: Used

Material: Stainless Steel 304

Filtration Area: 10.9 m² (117 ft²)

Diameter: 1,200 mm (48 in)

(12) 48" long horiz filter plates rotate to vert position for discharge Designed for dry cake discharge via screw conveyor (conveyor and conveyor drive missing) Approx 560 gal volume 18 cu ft cake capacity (1/2" clearance) Designed for pneumatic discharge and hydraulically rotating plates (Vibrators and hydraulic rotating pump missing)

Orientation: Horizontal. Pressure: 5.2 bar (75 psi). Overall Length: 1,650 mm (65 in). Jacket: Yes. Jacket Pressure: 5.5 bar (80 psi). Jacket Type: Half Pipe/Limpet.

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Padovan

Model: TU 5915.85

Condition: Used

Material: Stainless Steel 304

Filtration Area: 15 m² (161.5 ft²)

Orientation: Vertical

Filter type: Ecofilter -10 to 50 deg C Vertical tank, horizontal leaf design with centrifugal cake discharge. Includes feed pump. built on control panel

Pressure: 8 bar (116 psi). Temperature: 50 °C (122 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: SCHORCH

Model: RA

Condition: Used

Material: Stainless Steel 304

Filtration Area: 7 m² (75.3 ft²)

Diameter: 900 mm (35.4 in)

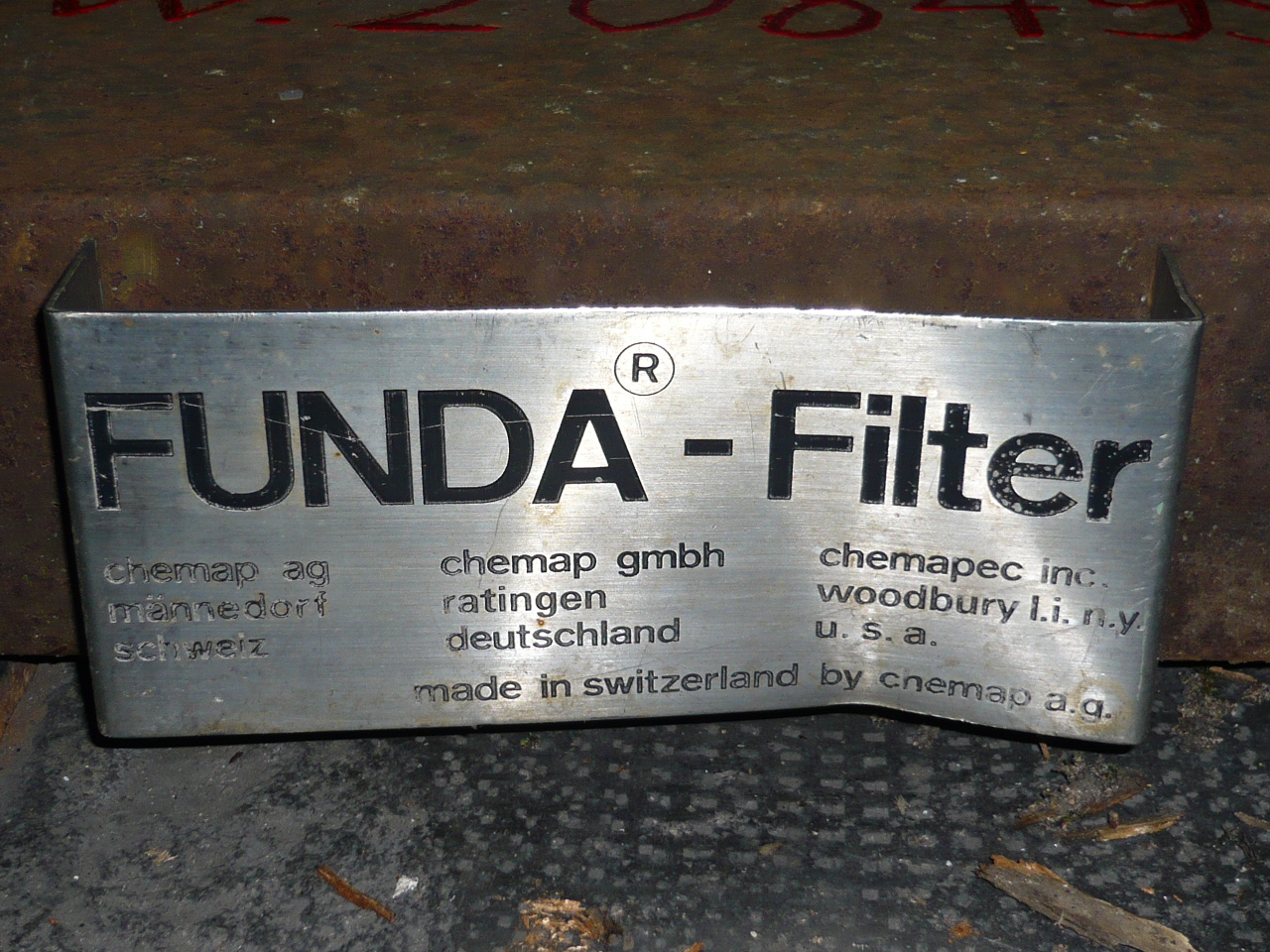

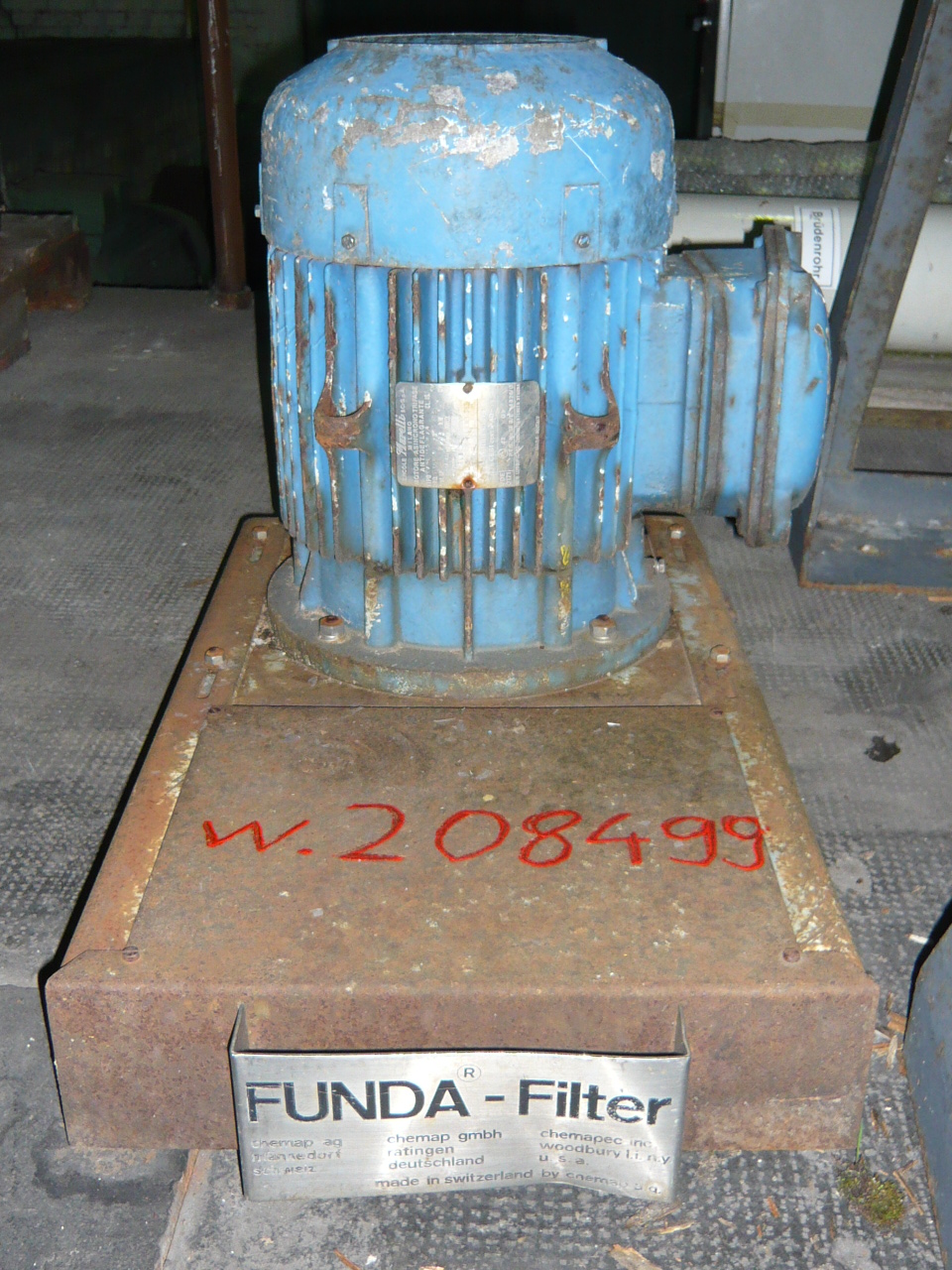

Stawag Funda pressure leaf filter 55°C to 65°C internal 1.5 m³ volume Voltage: 3~380A/660V Current: 11.4A/6.6A Number of plates: 18

Pressure: 6.5 bar (94.3 psi). Temperature: 65 °C (149 °F). Overall Height: 2,000 mm (78.7 in).

Type: Filter

Subtype: Pressure Leaf

Condition: Used

Material: Stainless Steel 304

Diameter: 800 mm (31.5 in)

Overall Length: 1,850 mm (72.8 in)

70 ltr pressure filter Centrifugal discharge packing gland on shaft Motor: 220/480 V

Jacket: Yes. Jacket MOC: Stainless Steel 304.
