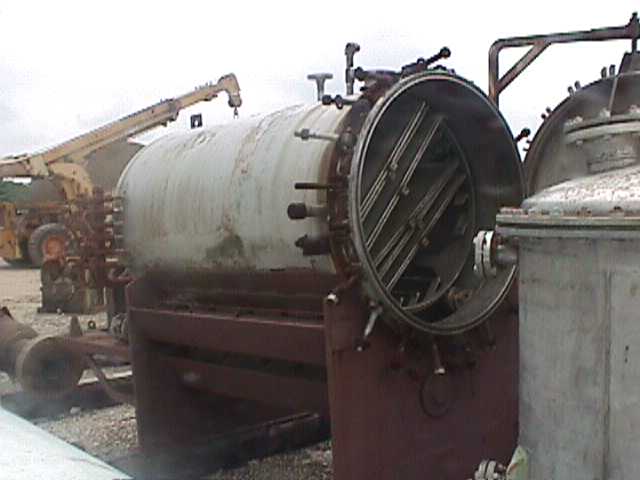

(12) 48" long horiz filter plates rotate to vert position for discharge Designed for dry cake discharge via screw conveyor (conveyor and conveyor drive missing) Approx 560 gal volume 18 cu ft cake capacity (1/2" clearance) Designed for pneumatic discharge and hydraulically rotating plates (Vibrators and hydraulic rotating pump missing)
Type: Filter
Subtype: Pressure Leaf
Manufacturer: Sparkler
Model: 14-S-7
Condition: Used
Material: Stainless Steel 304
Filtration Area: 0.58 m² (6.2 ft²)
Diameter: 406.4 mm (16 in)
Cake capacity: 0.229 cubic feet Has scavenger plate
Orientation: Vertical. Overall Length: 228.6 mm (9 in).
Type: Filter
Subtype: Pressure Leaf
Manufacturer: Sparkler
Model: 18-S-6
Condition: Used
Material: Stainless Steel 304
Filtration Area: 1.02 m² (11 ft²)
Diameter: 508 mm (20 in)
swing bolt top
Orientation: Vertical. Pressure: 4.1 bar (60 psi). Temperature: 21.1 °C (70 °F).
Type: Filter
Subtype: Pressure Leaf
Manufacturer: Sparkler
Model: HRC200
Condition: Used
Material: Stainless Steel 316
Filtration Area: 19.2 m² (206.9 ft²)
Diameter: 1,200 mm (48 in)
ASME #19142 250" thick heads 187" shell Tank has 1100 gal capacity (1) dish head is hinged and has swing bolts Horiz tank, horiz plate design (12) plates, 34.5 cu ft cake capacity Dry cake discharge w/hydraulic cylinder to rotate plates to vert for cake discharge Unit has (12) 1" openings with manifold for filtrate discharge
Pressure: 4.1 bar (60 psi). Temperature: 204.4 °C (400 °F).
Type: Filter
Subtype: Pressure Leaf
Manufacturer: Sparkler
Model: 18-S-7
Condition: Used
Material: Stainless Steel 316
Filtration Area: 1.05 m² (11.3 ft²)
Pressure: 4.1 bar (60 psi)
0.141 " tank thickness with scavenger plate 0.414 CuFt cake capacity 7 plates (number of plates included)
Temperature: 176.7 °C (350 °F).
