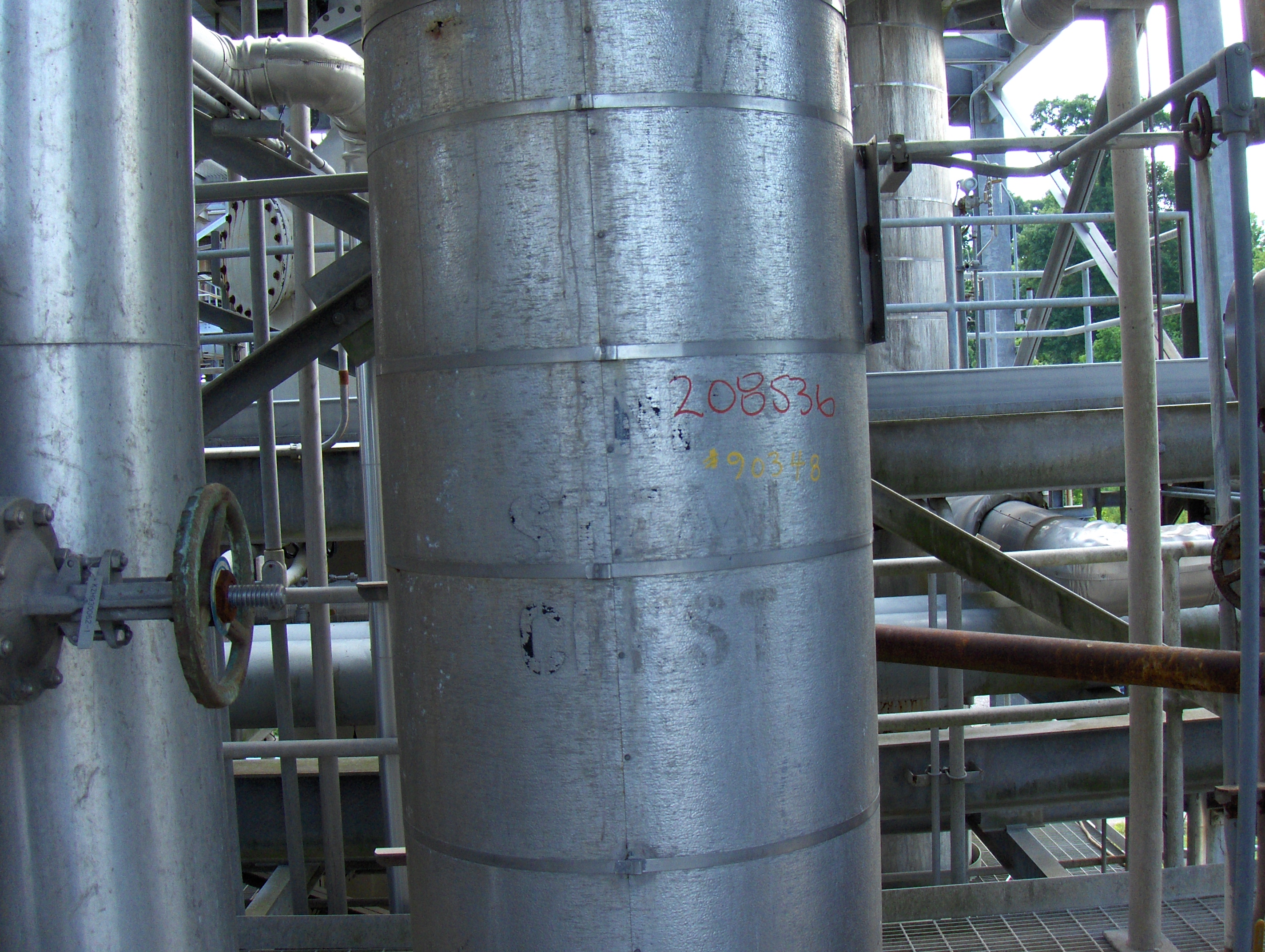

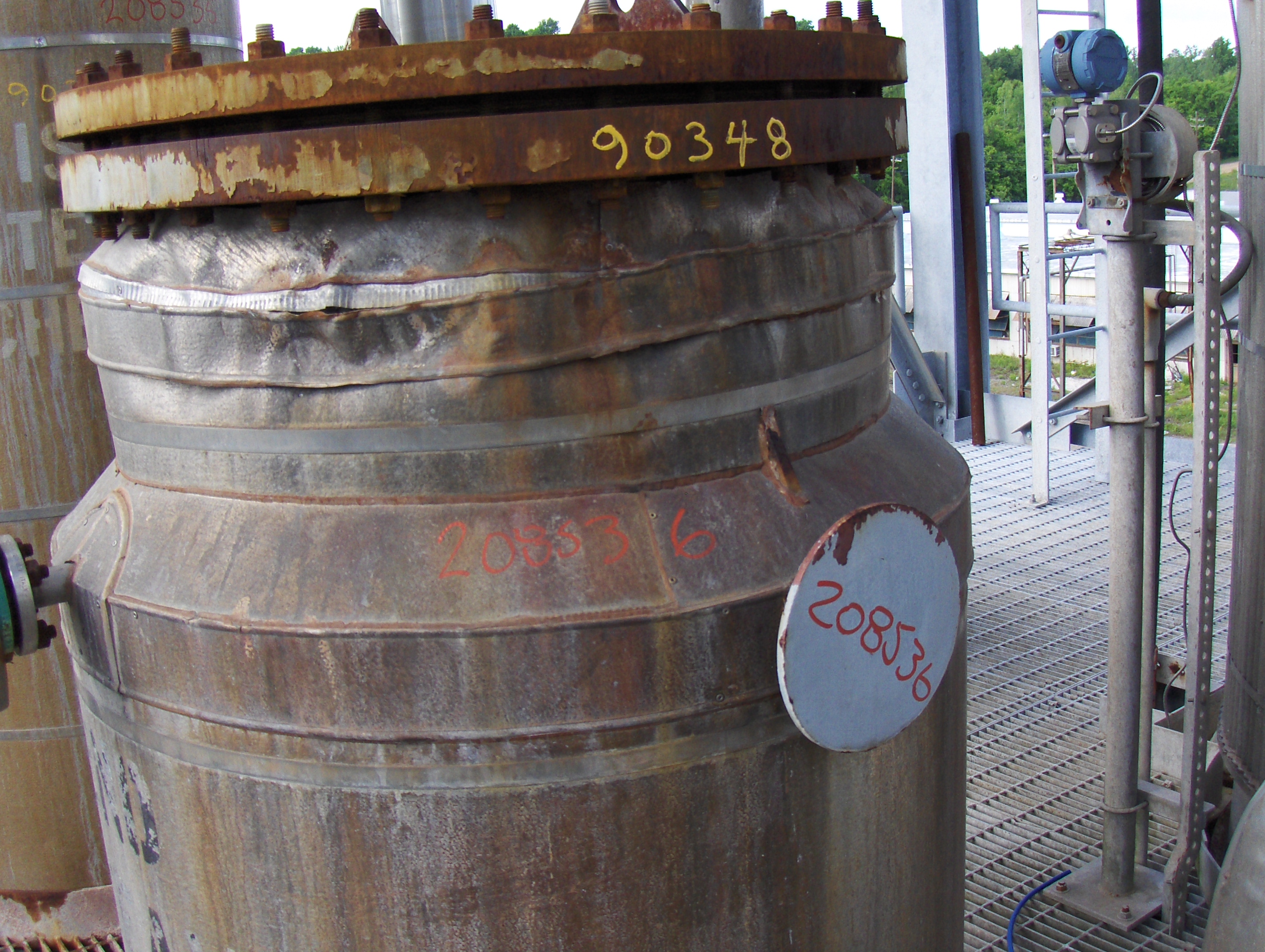

Stainless Steel 316 Shell and Tube Heat Exchanger 142.4 m² (1,533 ft²) For Sale - IPP# 208536

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Industrial Alloy Fabricators

Condition: Used

Material: Titanium

Clad: Yes

Heat Transfer Surface Area: 529.5 m² (5,700 ft²)

Orientation: Horizontal

AL6XN channel heads with R-Stamp(1994)

Shell Pressure: 1.03 bar (15 psi). Shell Temperature: 121.1 °C (250 °F). Shell Material: Stainless Steel 316. Tube Pressure: 1.72 bar (25 psi). Tube Temperature: 121.1 °C (250 °F). Tube Material: Titanium. Tubesheet Material: Stainless Steel 316. Shell Diameter: 1,638 mm (64.5 in). Tube Type: Straight Tube. Tube Number: 1,450. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 3,658 mm (144 in). Tube Thickness: 0.51 mm (0.02 in). Nozzle Schedule: - Nozzle Schedule: - Two 32" tube side nozzles (brine inlet & outlet) - One 18" steam inlet - One 4" condensate outlet - One 3" drain - Two 1" drain/vents.

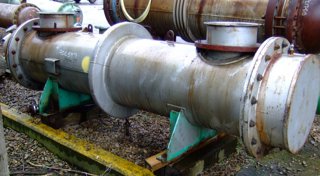

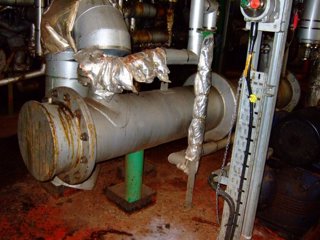

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Bramah Process Plant Ltd

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 25.8 m² (277.7 ft²)

Orientation: Horizontal

Tube side: 10.55 kg/cm2 @ 299 deg C Shell side: 10.55 kg/cm2 @ 399 deg C (2) c/steel flat heads

Shell Pressure: 10.3 bar (150.1 psi). Shell Temperature: 399 °C (750.2 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150.1 psi). Tube Temperature: 299 °C (570.2 °F). Tube Material: Stainless Steel 316. Shell Diameter: 350 mm (13.8 in). Head Material: Carbon Steel. Length: 6,060 mm (238.6 in). Tube-side Passes: 4. Tube Number: 72. Tube Diameter: 19 mm (0.75 in). Tube Length: 6,060 mm (238.6 in).

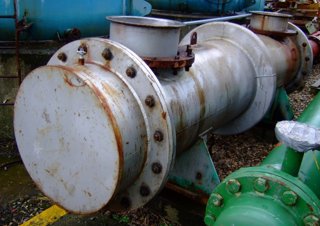

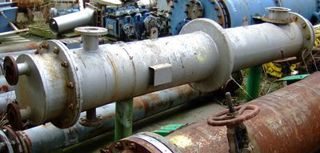

Type: Heat Exchanger

Subtype: Shell and Tube

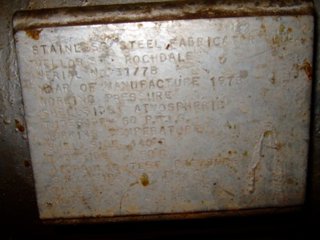

Manufacturer: Stainless Steel Fabrications LTD

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 10 m² (107.6 ft²)

Orientation: Horizontal

Expansion bellow: Yes (2) c/steel channel heads

Shell Pressure: 1.01 bar (14.7 psi). Shell Temperature: 140 °C (284 °F). Shell Material: Stainless Steel 316. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 50 °C (122 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 350 mm (13.8 in). Head Material: Carbon Steel. Length: 2,950 mm (116.1 in). Tube-side Passes: 4. Tube Number: 54. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Nozzle Schedule: Head openings: - Tubeside: 2-50mm, 4-6mm - Shell: 1-150mm, 1-75mm, 1-50mm, 1-6mm.

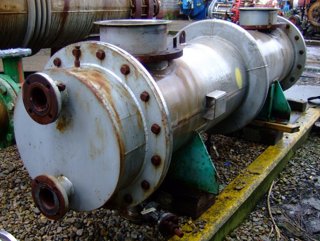

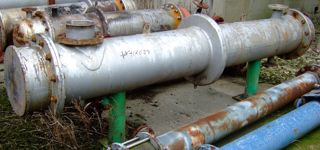

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Stainless Steel Fabrications LTD

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 24 m² (258.3 ft²)

Orientation: Horizontal

Additional features: expansion bellow, (2) carbon steel channel heads,

Shell Pressure: 1.01 bar (14.7 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 316. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 75 °C (167 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 560 mm (22 in). Head Material: Carbon Steel. Length: 3,050 mm (120.1 in). Tube-side Passes: 4. Tube Number: 122. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings tubeside - 2-75mm, 4-6mm, shell - 2-300mm, 1-75mm, 1-20mm.
