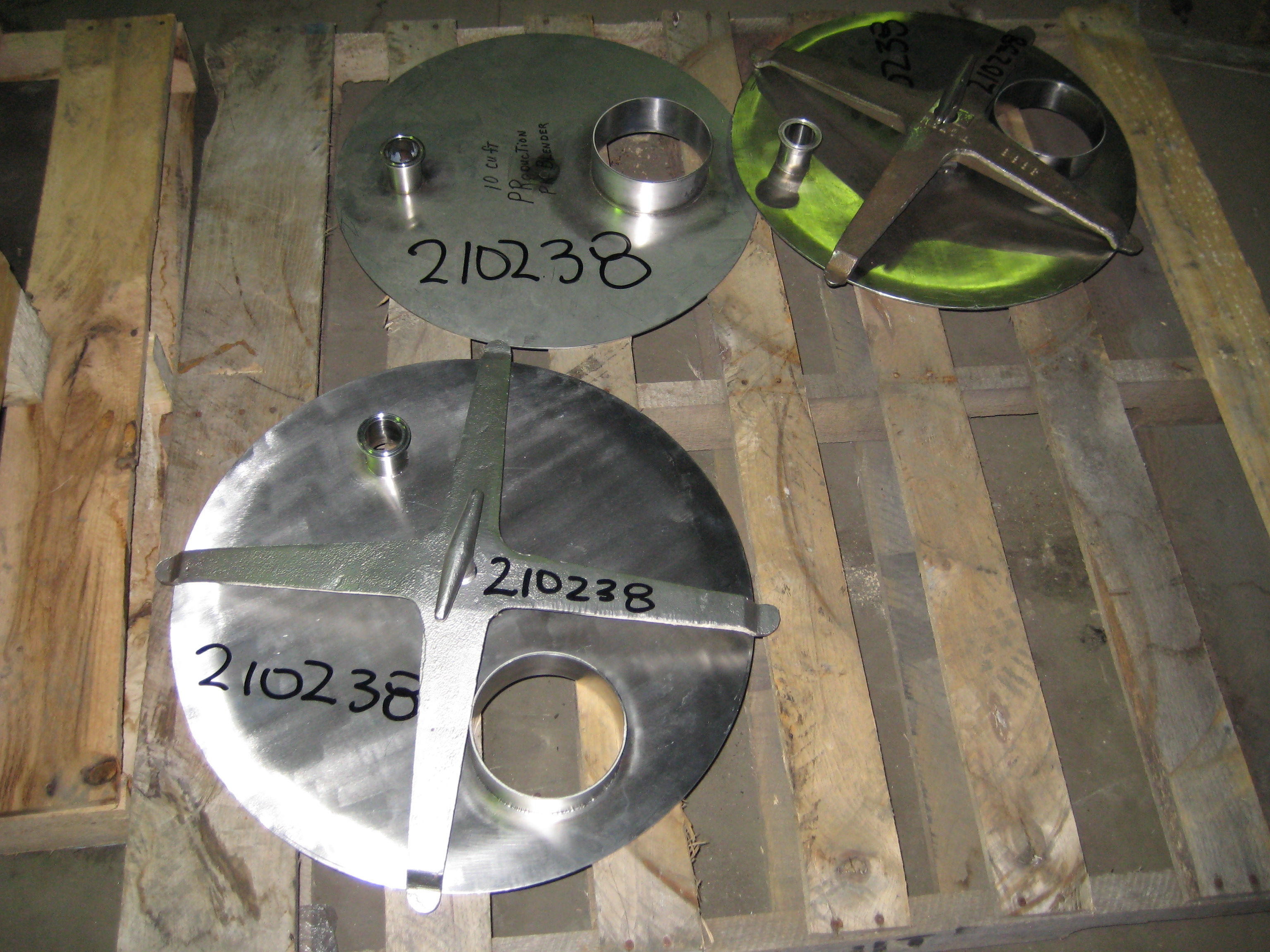

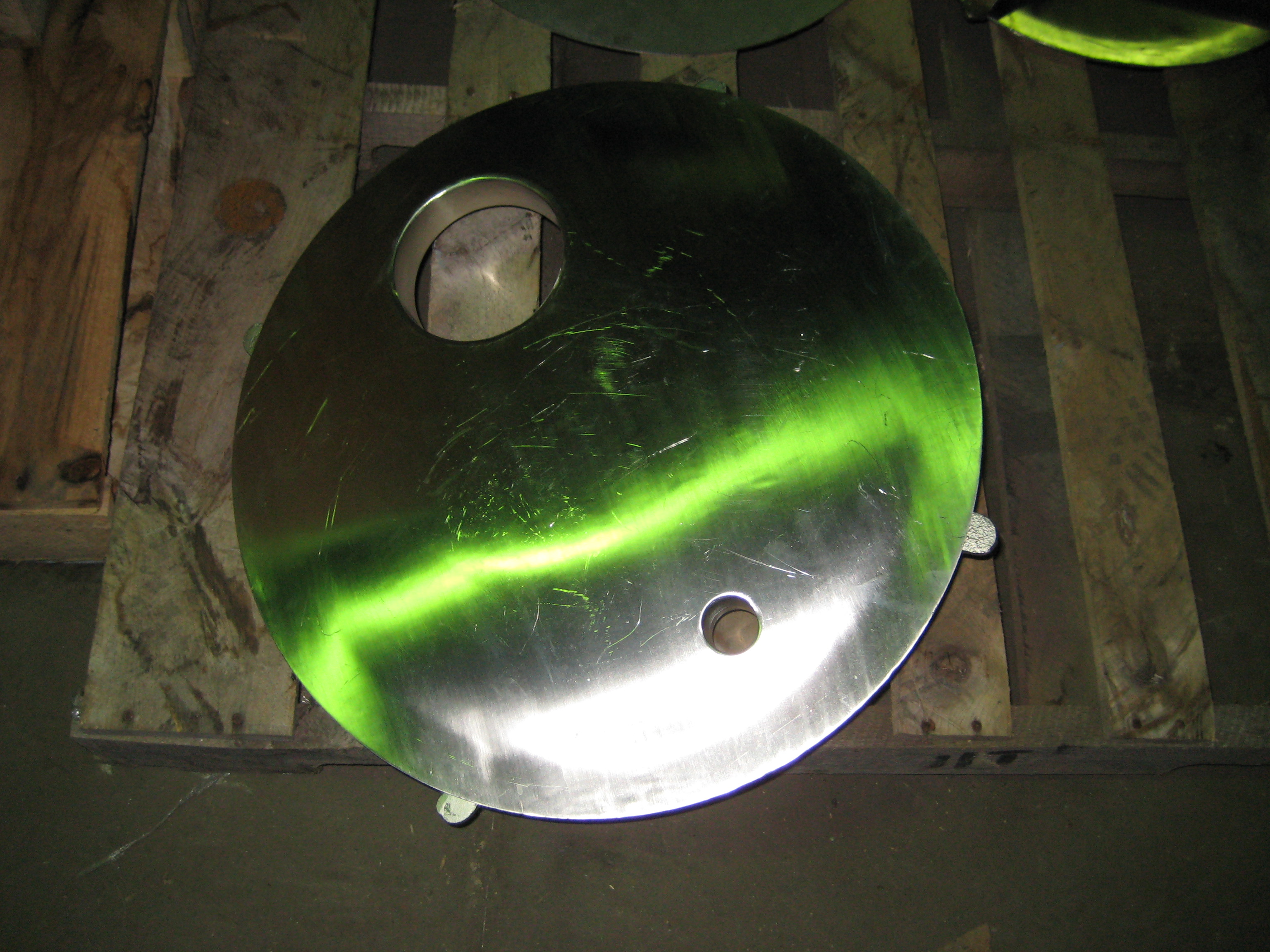

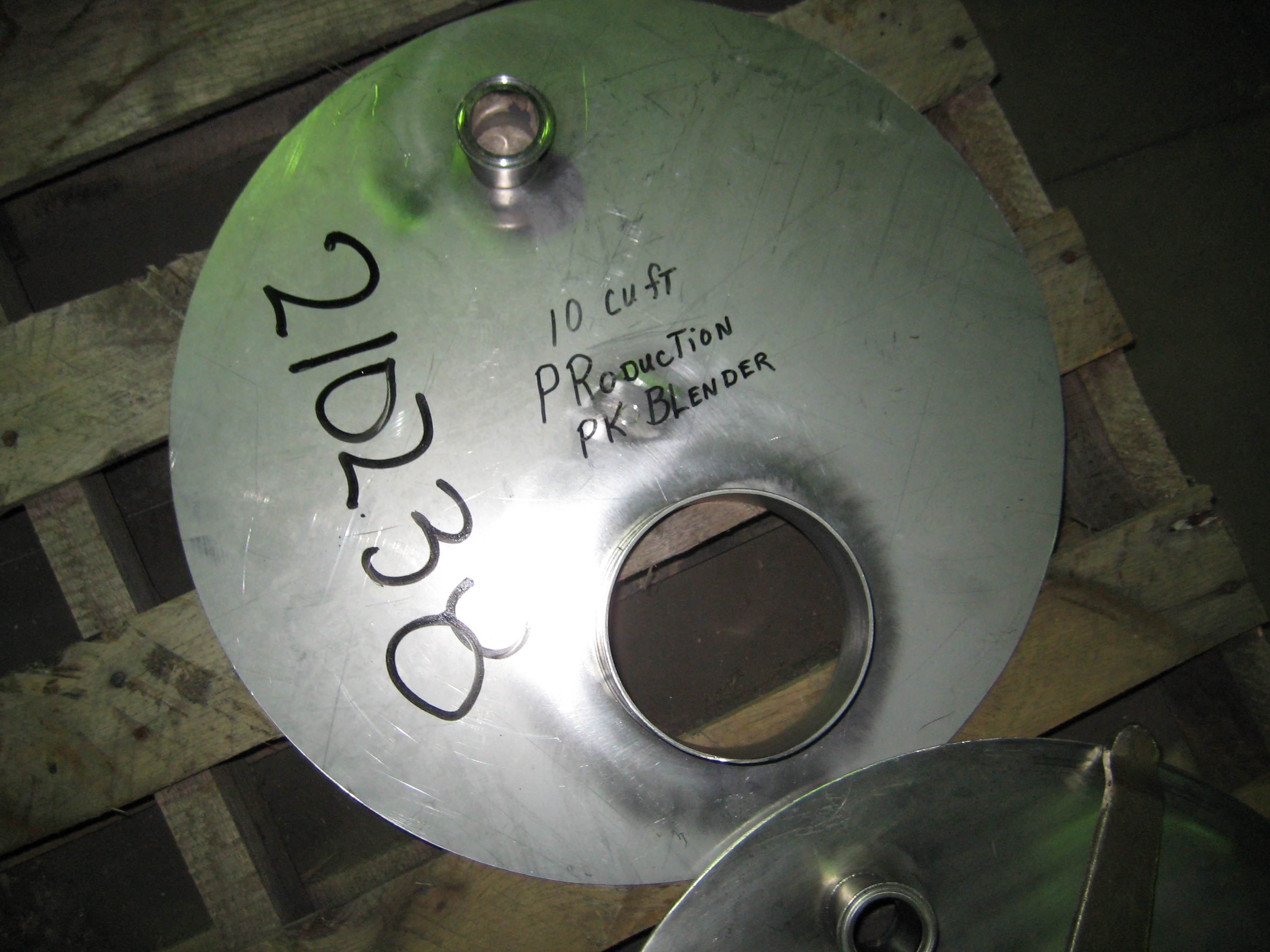

doors for a PK dryer. 21" diameter by 1/8" thick, 2 have clamps. Each door has a five inch opening and a 1.25" sanitary connection. Three doors are available.
Type: Dryer-Twin Shell & Double Cone
Manufacturer: Paul O Abbe
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.71 m3 (25 ft3)
Capacity Operating: 0.57 m3 (20 ft3)
jkt w/sheet metal covering insulation vac arm w/packing gland 14" dia charge port (no cover) 8" discharge w/manual butterfly valve Dryer shell has outboard pillow block bearings 220/440 volt W/electric brake Has rotary joint for jkt Suitable for hot oil or water
Type: Dryer-Twin Shell & Double Cone
Manufacturer: Patterson Kelly
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.57 m3 (20 ft3)
Capacity Operating: 0.37 m3 (13 ft3)
Shell rated full vac @ 200 deg F 3/60/220/440 volt chain and sprocket drive 12" feed port 6" discharge
Vessel Pressure: -0.07 bar (-1 psi). Vessel Temperature: 93.3 °C (200 °F). Jacket Pressure: 1.03 bar (15 psi). Jacket Temperature: 93.3 °C (200 °F). Full Vacuum: Yes. Product Density: 1.67 m3 (59 ft3).
Type: Dryer-Twin Shell & Double Cone
Manufacturer: Gemco
Model: Formulator
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.17 m3 (6 ft3)
Capacity Operating: 0.14 m3 (5 ft3)
type Slant cone Rated 65 Lb/cubic foot Shell 32" diameter x 18" straight side x 12 and 8" long conical section With 18" diameter charge port ,With hydraulic operated valve 3/60/ 230/460V
Product Density: 1.84 m3 (65 ft3).
Type: Dryer-Twin Shell & Double Cone
Manufacturer: Patterson Kelly
Condition: Used
Material: Stainless Steel 304
Capacity Design: 3.8 m3 (133 ft3)
Capacity Operating: 2.8 m3 (100 ft3)
vacuum tumble dryer system. jacket serial number 199161. (Jacket side only built to ASME code). Rated density 75 lbs/ cubic foot. With stainless steel vacuum arm. Top heads have (2) 8" quick opening manways , bottom has an 18" discharge set up for valve mounting. Shell turning speed: 0.86- 73 RPM. Driven by 10 HP 3/60/440 V XP motor V belt driven by Reeves varispeed gear. Skid mounted vacuum system consists of a 168 square foot condenser manufactured by Yula, serial number 9034, rated 100 PSI & 250 degrees F on shell side, 100 PSI @ 250 degrees F on tube side. National Board number 5118. Tubes, tube sheets and heads made of 304LSS; Shell carbon steel. Shell 10" diameter x 4'10" long. With Graham 316 stainless steel two stage liquid ring vacuum pump model 2V5212 ( rated for 199 cfm) ,mechanical seal on shaft, driven by 15/10 HP 3/60/230/460V, 1760 RPM EX Marathon motor. With vertical 225 gallon separator tank. Gas contact area's are stainless steel. Also includes a PK Heating /cooling system (250 degrees F at 30 psi), electric immersion with two Chromalux Immersion elements, Model # TM-126015, 60 Kw, 3 ph, 480 volt., Durco Mark II centrifugal pump 1.5 x 1 x 6/50 driven by a 1 hp electric motor, and a 30 gallon expansion tank. W202092 stored at DW12 (S).JB
Jacket Pressure: 2.1 bar (30 psi). Jacket Temperature: 176.7 °C (350 °F). Full Vacuum: Yes. Product Density: 2.1 m3 (75 ft3).
