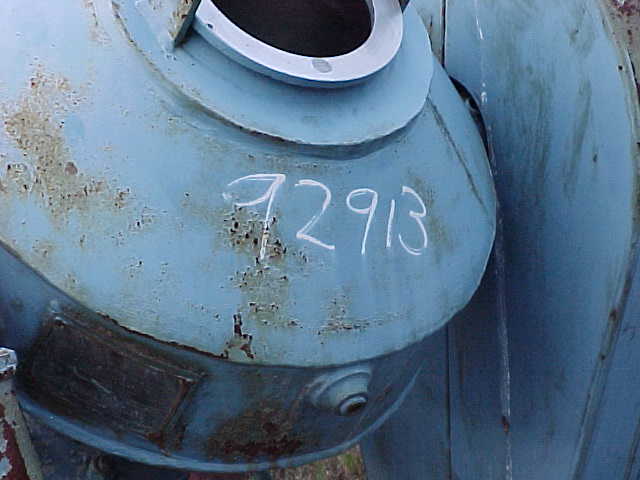

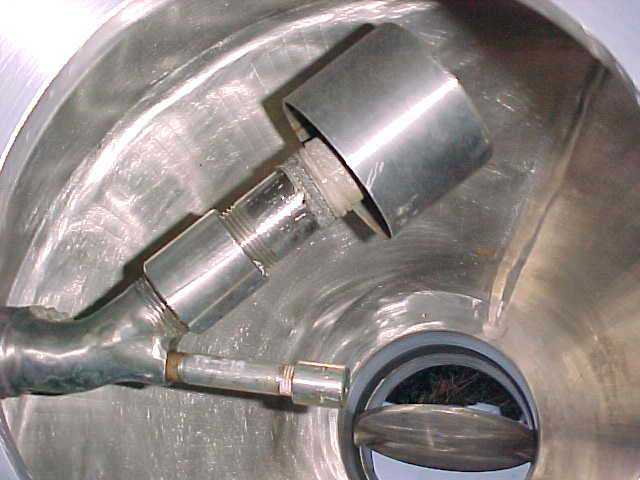

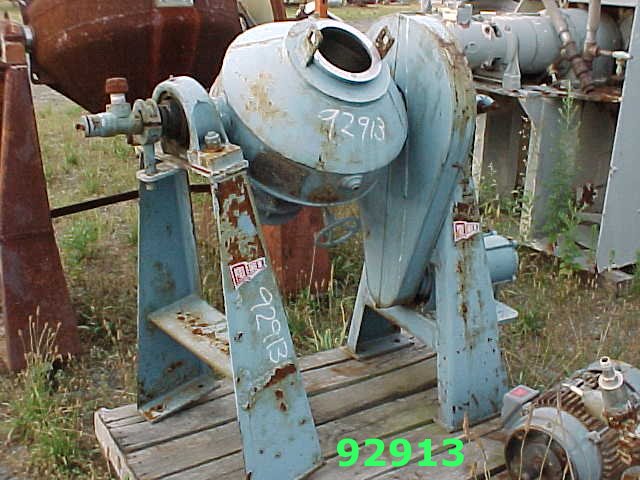

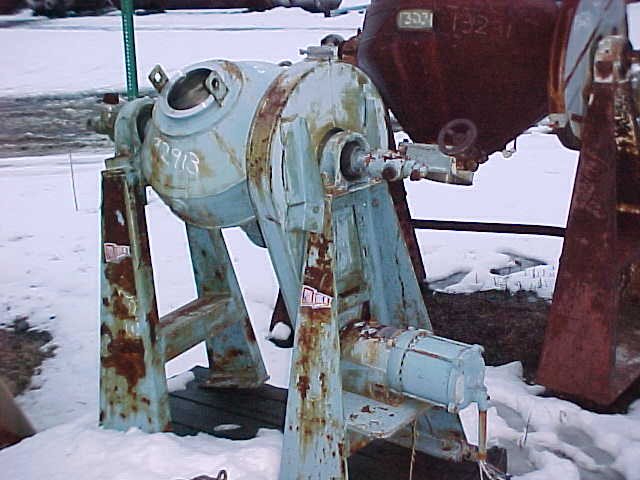

Stainless Steel 304 Dryer-Twin Shell & Double Cone 0.05 m3 (1.7 ft3) For Sale - IPP# 92913

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Paul O Abbe

Condition: Used

Material: Stainless Steel 304

Capacity Design: 0.71 m3 (25 ft3)

Capacity Operating: 0.57 m3 (20 ft3)

jkt w/sheet metal covering insulation vac arm w/packing gland 14" dia charge port (no cover) 8" discharge w/manual butterfly valve Dryer shell has outboard pillow block bearings 220/440 volt W/electric brake Has rotary joint for jkt Suitable for hot oil or water

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Paul O Abbe

Condition: Used

Material: Stainless Steel 316

Capacity Design: 2.8 m3 (100 ft3)

Capacity Operating: 2.1 m3 (75 ft3)

60 degree cones, insulated with 321SS shroud over insulation 18" charge port with cover

Type: Dryer-Twin Shell & Double Cone

Manufacturer: Patterson Kelly

Condition: Used

Material: Stainless Steel 304

Capacity Design: 0.57 m3 (20 ft3)

Capacity Operating: 0.37 m3 (13 ft3)

Shell rated full vac @ 200 deg F 3/60/220/440 volt chain and sprocket drive 12" feed port 6" discharge

Vessel Pressure: -0.07 bar (-1 psi). Vessel Temperature: 93.3 °C (200 °F). Jacket Pressure: 1.03 bar (15 psi). Jacket Temperature: 93.3 °C (200 °F). Full Vacuum: Yes. Product Density: 1.67 m3 (59 ft3).

Type: Dryer-Twin Shell & Double Cone

Condition: Unused

Material: Stainless Steel 304

Capacity Design: 0.28 m3 (10 ft3)

Capacity Operating: 0.19 m3 (6.6 ft3)

doors for a PK dryer. 21" diameter by 1/8" thick, 2 have clamps. Each door has a five inch opening and a 1.25" sanitary connection. Three doors are available.
