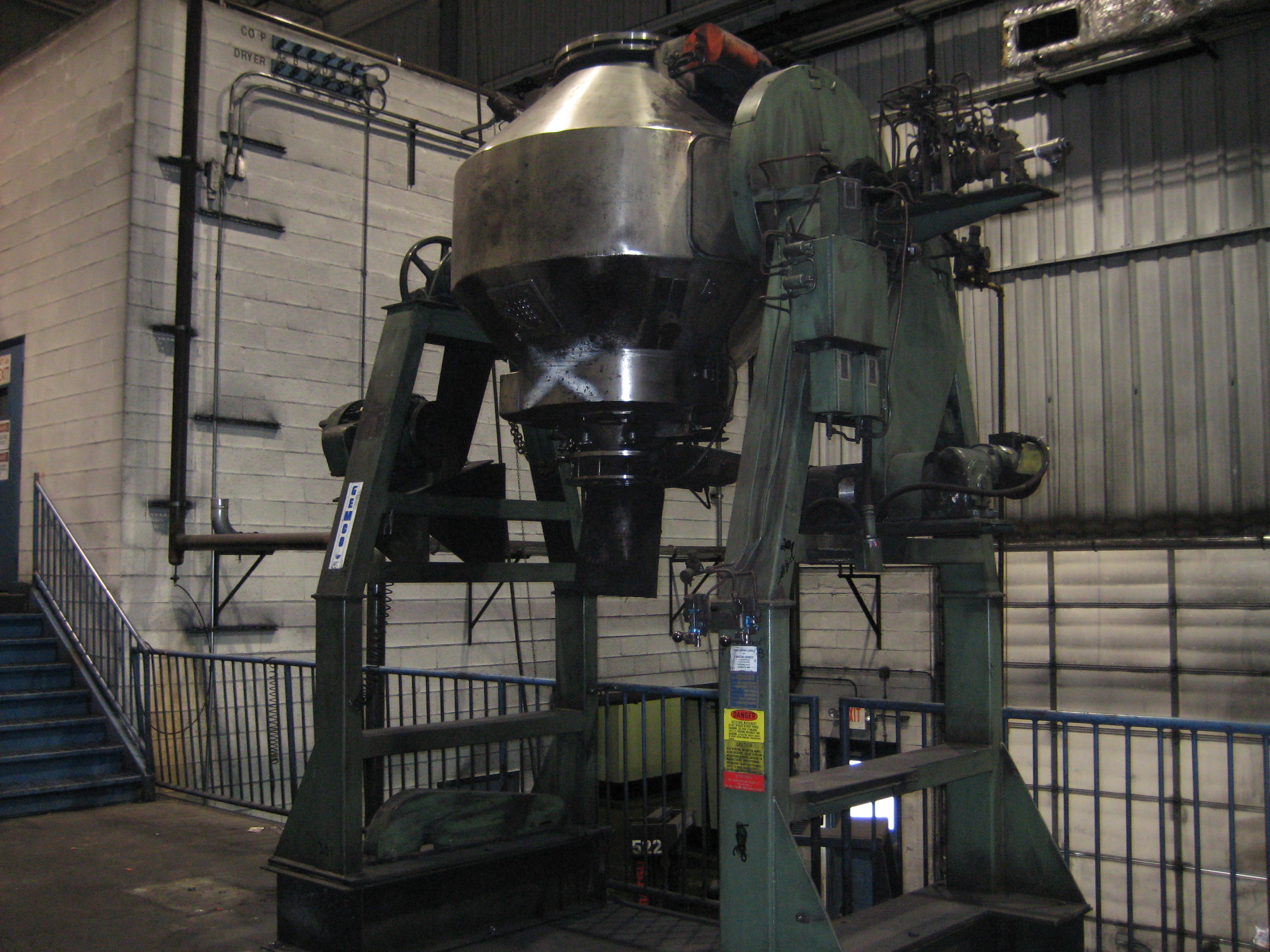

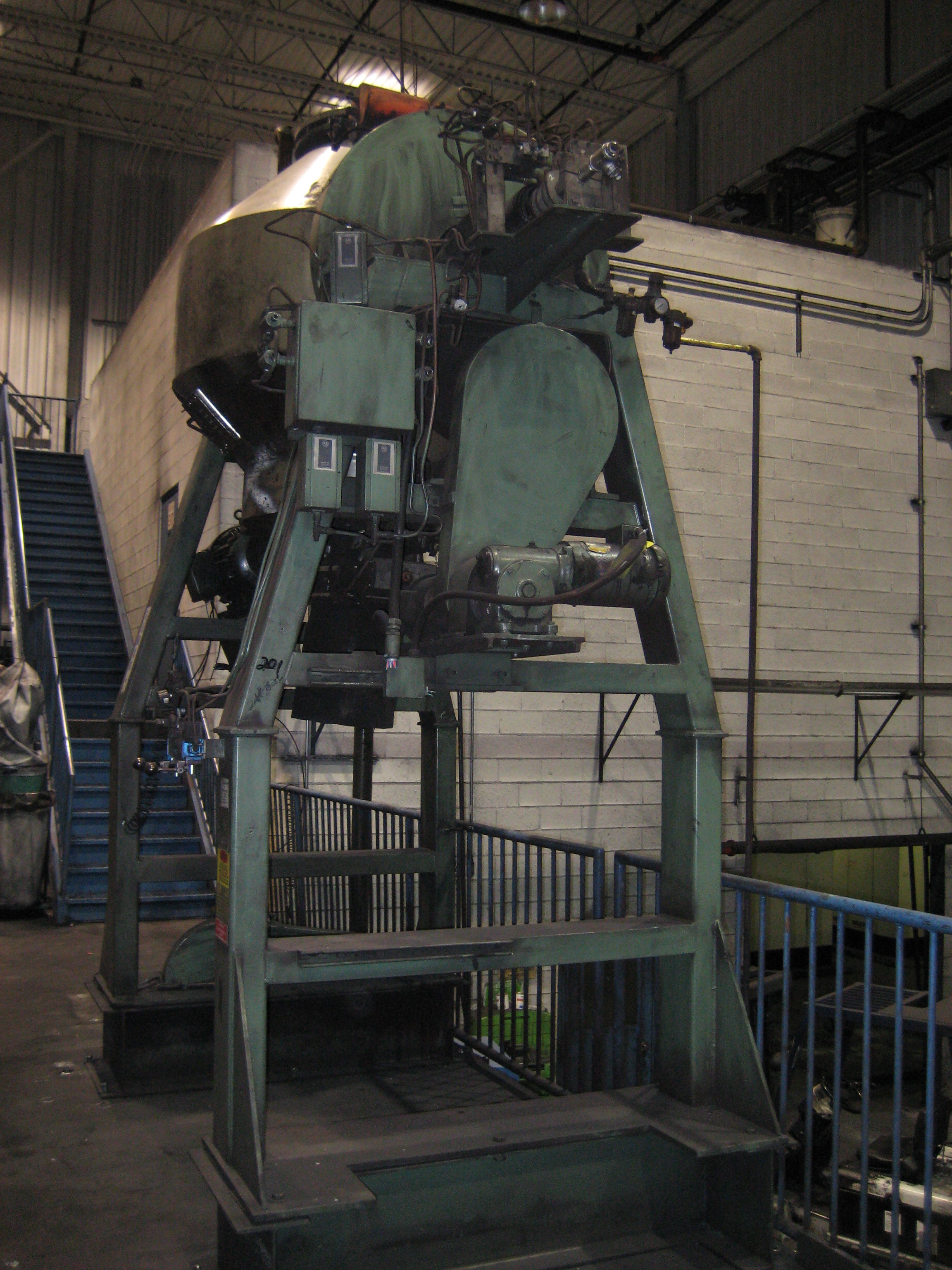

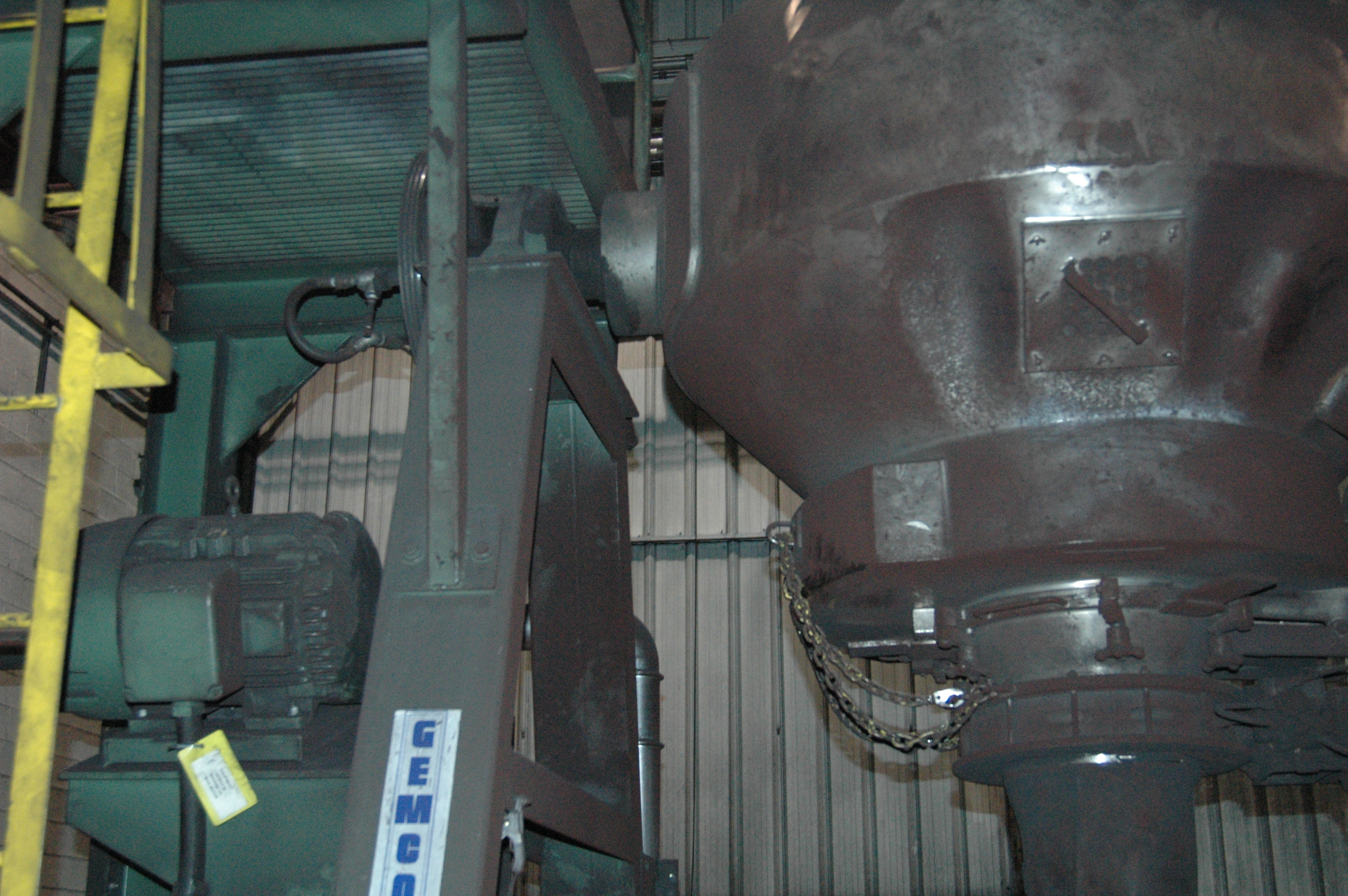

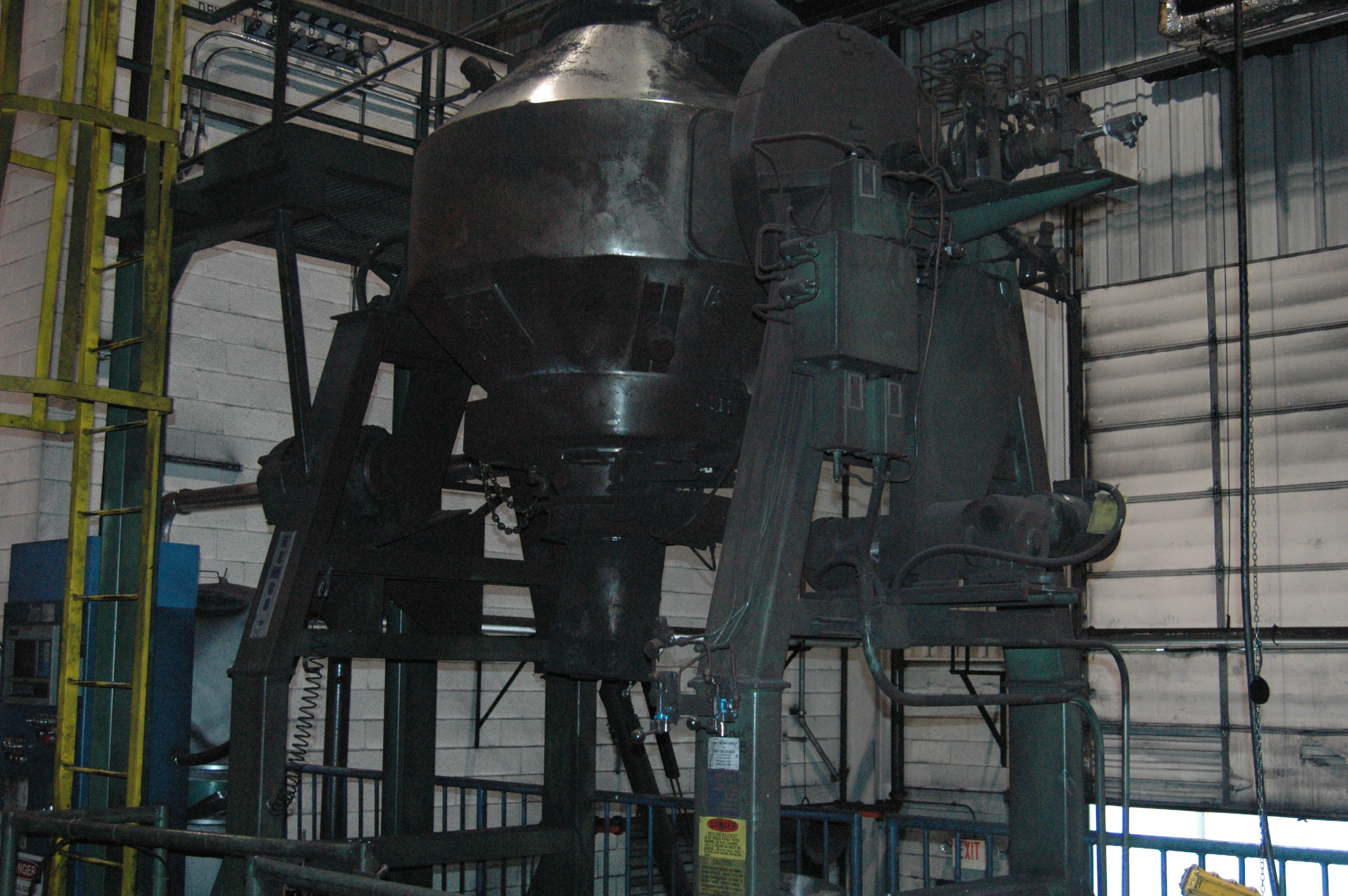

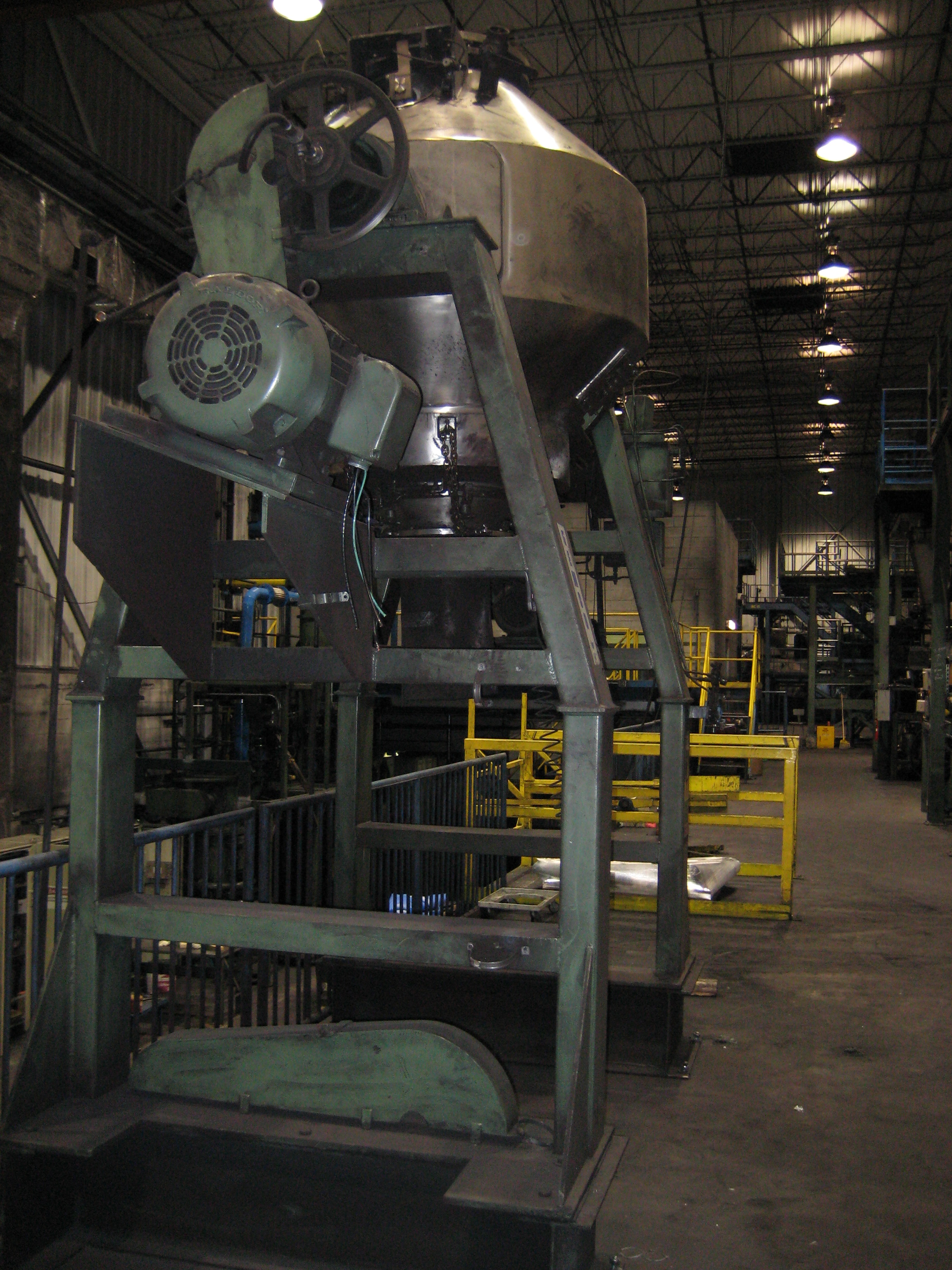

double cone blender with intensifier bar rated 55 lbs/CuFt Has liquid addition capabilities Internal Finish #4 polish (20-25 Micro Inch) Pneumatic valve on blender f eed opening 2 HP gear head motor for blender drive Other general notes: Vessel speed(rpm), 14.6, Positioning speed (rpm) 1.46, Agitator speed (FPM) 4900 approx., Total Volume (CF) 53.3.
Type: Mixer-Twin Shell & Double Cone
Manufacturer: Gemco
Model: HT-SP-AGII
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.85 m3 (30 ft3)
Capacity Operating: 0.57 m3 (20 ft3)
Porta Hopper double cone Blender with intensifier bar with (2) Hopper bottoms. Intesifier bar is set up for dry mixing, has liquid capabilities 56" diameter shell gear head motor for blender drive. Blend speed 13. 4 RPM-Maximum desity of charge 125 lbs./cu.ft.
Intensifier Bar: Yes. Product Density: 1,200 kg/m3 (75 lb/ft3).
Type: Mixer-Twin Shell & Double Cone
Manufacturer: Gemco
Model: HI SP AGIT
Condition: Used
Material: Stainless Steel 304
Capacity Design: 2.1 m3 (75 ft3)
Capacity Operating: 1.98 m3 (70 ft3)
with #4 finish for product contact, sanitary double cone blender, Rated for max. density 70 lbs./cu. ft., Rotation from drive side is clockwise, speed is 11.3 rpm. Agitator speed is 3300 rpm. With sanitary Gemcomatic assembly for discharge to drums. Auto loading, Chopper with out blade. 18" port. With NEMA 12 Control Panel, including circuit breaker and local controls. Agitator motor with 20 HP, 1800 rpm, 3 ph/60 Hz/ 230/460v. TEFC with a 256T frame. Drive motor is 7.5 HP,1800 RPM, 3 ph/60 Hz/ 230/460v. TEFC with a 213T frame main braking motor is 3 HP, 1800 rpm,3 ph/60 Hz/ 230/460v. TEFC with a 213T frame. Both drive and brake are tied in through a Symcyclo gear reduction drive at 17:1 ratio. Sanitary covers over drives and legs.
Internal Finish: #4 Ra50. Product Density: 1,100 kg/m3 (70 lb/ft3).
Type: Mixer-Twin Shell & Double Cone
Manufacturer: Patterson Kelly
Model: 990
Condition: Used
Material: Stainless Steel 304
Capacity Design: 2.1 m3 (75 ft3)
Capacity Operating: 1.98 m3 (70 ft3)
double cone mixer CS Jacket rated 30 psi @ 275 deg F. 72" dia. Has rotary joint Packing gland UL label Has 16" quick open manway and 10" dia swing gate valve.
Type: Mixer-Twin Shell & Double Cone
Manufacturer: Patterson Kelly
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.42 m3 (15 ft3)
Capacity Operating: 0.28 m3 (10 ft3)
polished double cone jacket mixer. Internal rated full vacuum @ 200 degree F; jacket rated 15 psi @ 200 degree F. 59 lbs/cubic feet density. Full CS jkt 16" charge port, 8" discharge w/butterfly valve.
Vessel Pressure: -1.01 bar (-14.7 psi). Vessel Temperature: 93.3 °C (200 °F). Product Density: 945 kg/m3 (59 lb/ft3).
