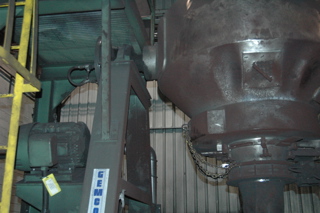

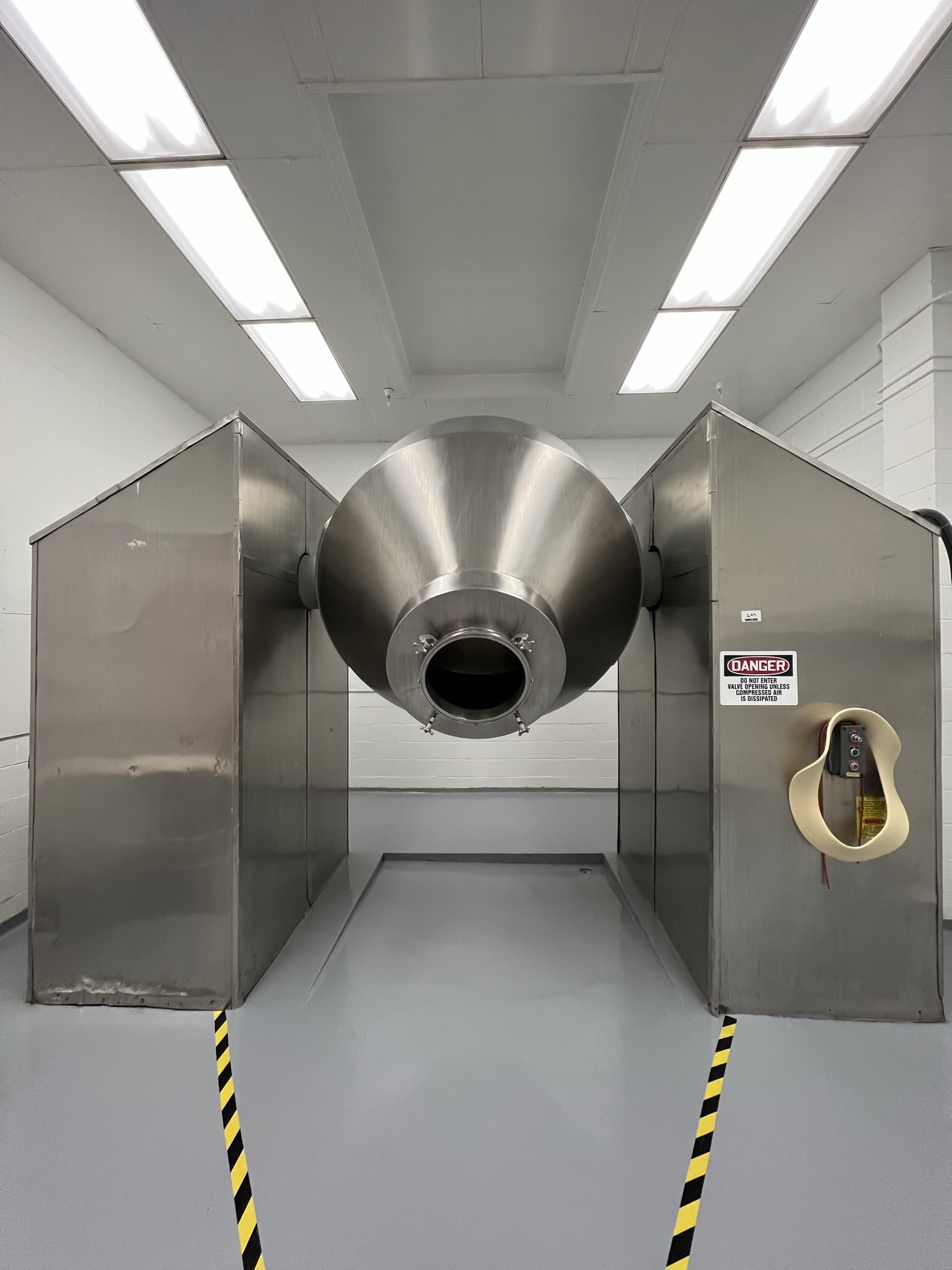

with #4 finish for product contact, sanitary double cone blender, Rated for max. density 70 lbs./cu. ft., Rotation from drive side is clockwise, speed is 11.3 rpm. Agitator speed is 3300 rpm. With sanitary Gemcomatic assembly for discharge to drums. Auto loading, Chopper with out blade. 18" port. With NEMA 12 Control Panel, including circuit breaker and local controls. Agitator motor with 20 HP, 1800 rpm, 3 ph/60 Hz/ 230/460v. TEFC with a 256T frame.
Drive motor is 7.5 HP,1800 RPM, 3 ph/60 Hz/ 230/460v. TEFC with a 213T frame
main braking motor is 3 HP, 1800 rpm,3 ph/60 Hz/ 230/460v. TEFC with a 213T frame. Both drive and brake are tied in through a Symcyclo gear reduction drive at 17:1 ratio. Sanitary covers over drives and legs.
Type: Mixer-Twin Shell & Double Cone
Manufacturer: Gemco
Model: Gemcomatic
Condition: Used
Material: Stainless Steel 304
Capacity Design: 1.51 m3 (53.3 ft3)
Capacity Operating: 1 m3 (35.3 ft3)

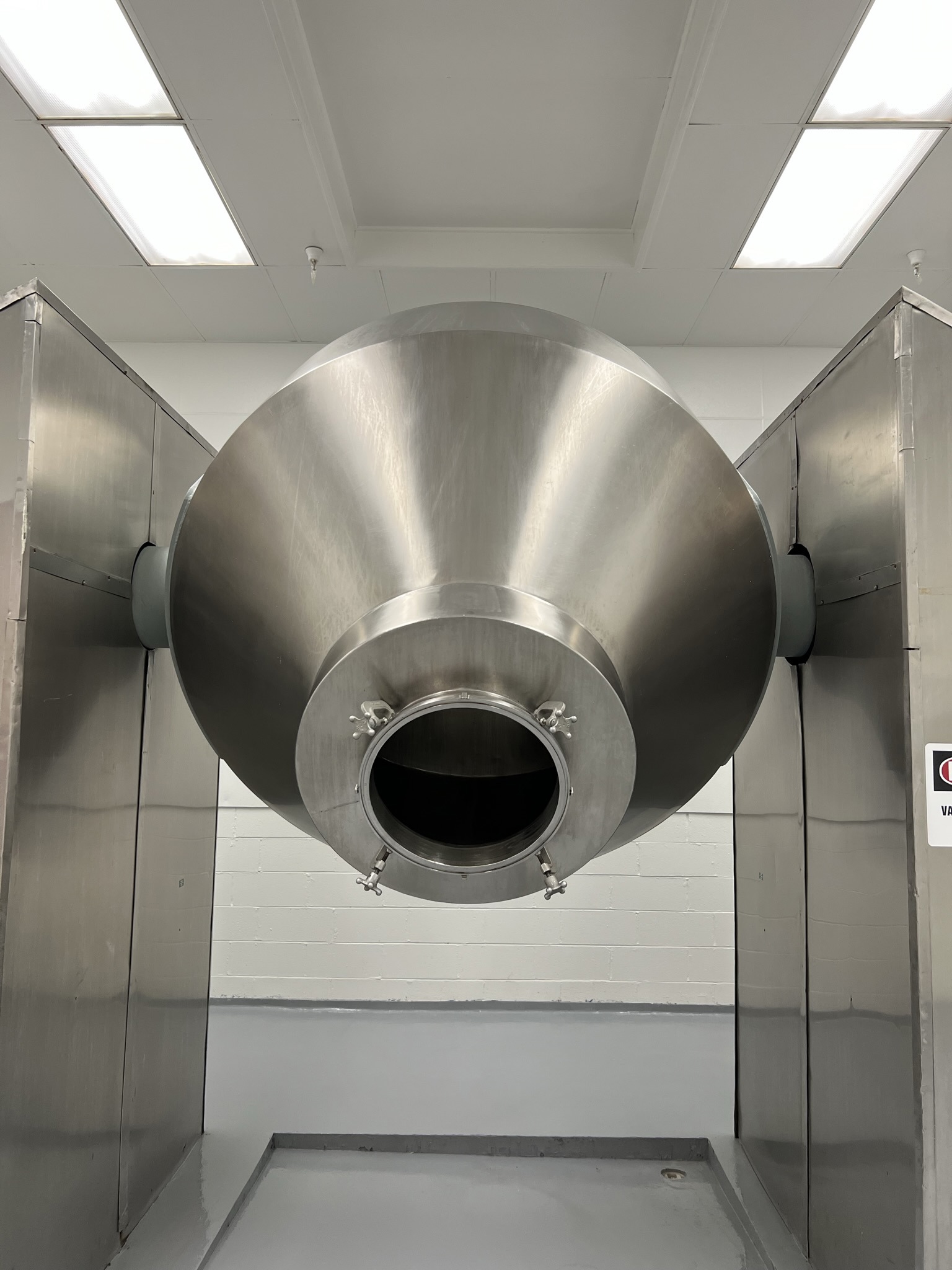

double cone blender

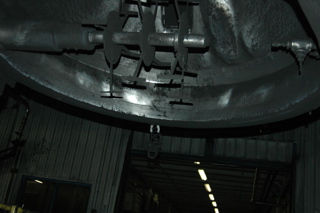

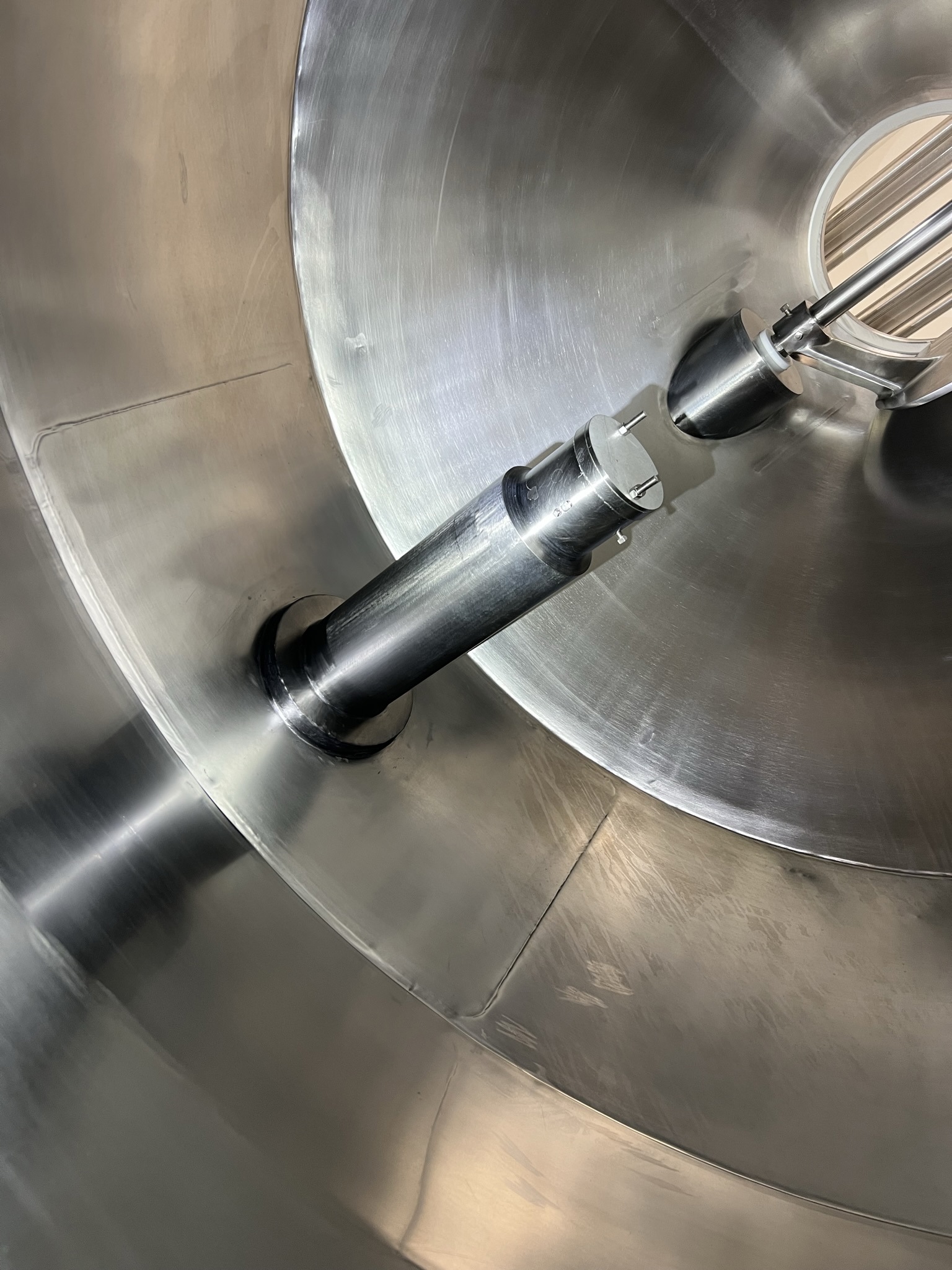

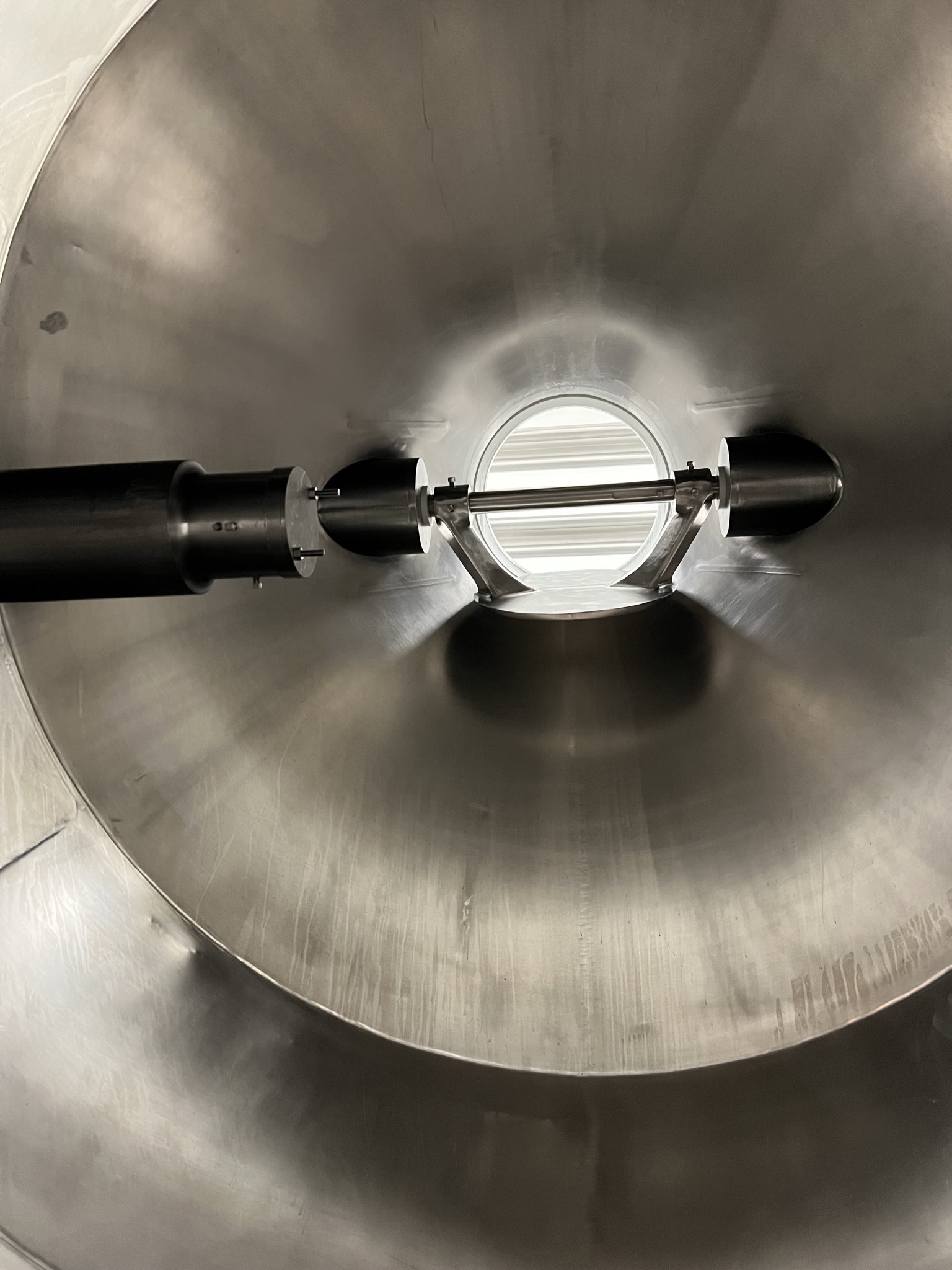

with intensifier bar
rated 55 lbs/CuFt
Has liquid addition capabilities
Internal Finish #4 polish (20-25 Micro Inch)
Pneumatic valve on blender f eed opening
2 HP gear head motor for blender drive
Other general notes: Vessel speed(rpm), 14.6, Positioning speed (rpm) 1.46, Agitator speed (FPM) 4900 approx., Total Volume (CF) 53.3.
Intensifier Bar: Yes. Internal Finish: #4 Ra50. Product Density: 881 kg/m3 (55 lb/ft3).
Type: Mixer-Twin Shell & Double Cone
Manufacturer: Gemco
Model: HT-SP-AGII
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.85 m3 (30 ft3)
Capacity Operating: 0.566 m3 (20 ft3)

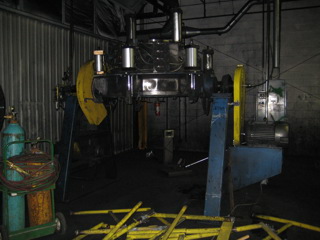

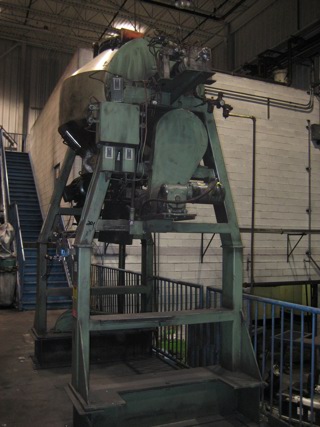

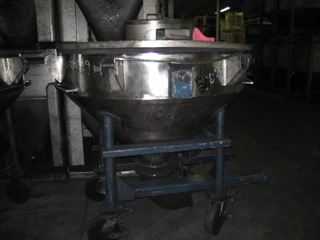

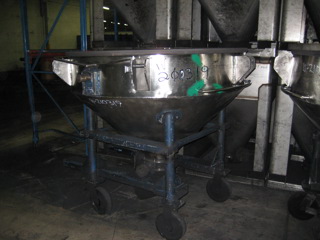

Porta Hopper double cone Blender with intensifier bar
with (2) Hopper bottoms. Intesifier bar is set up for dry mixing, has liquid capabilities
56" diameter shell

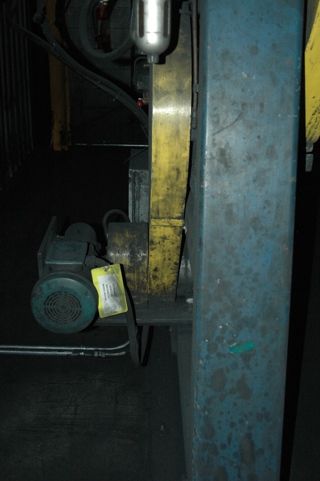

gear head motor for blender drive. Blend speed 13.
4 RPM-Maximum desity of charge 125 lbs./cu.ft.
Intensifier Bar: Yes. Product Density: 1,201 kg/m3 (75 lb/ft3).
Type: Mixer-Twin Shell & Double Cone
Manufacturer: Patterson Kelly
Model: 990
Condition: Used
Material: Stainless Steel 304
Capacity Design: 2.12 m3 (75 ft3)
Capacity Operating: 1.98 m3 (70 ft3)

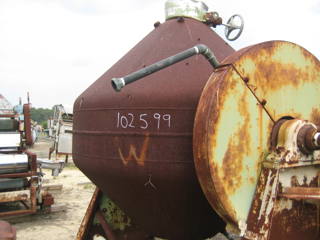

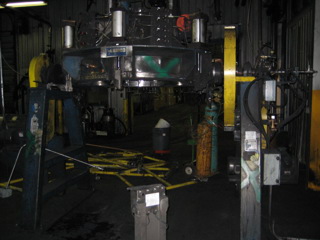

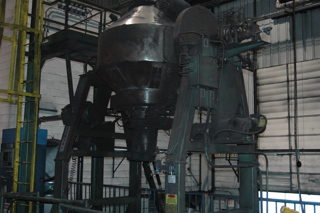

double cone mixer
CS Jacket rated 30 psi @ 275 deg F.
72" dia.
Has rotary joint
Packing gland

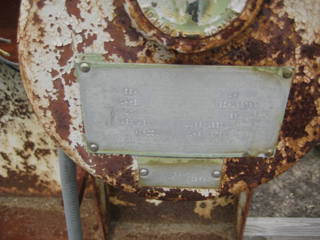

UL label
Has 16" quick open manway
and 10" dia swing gate valve.
Type: Mixer-Twin Shell & Double Cone
Manufacturer: Patterson Kelly
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.425 m3 (15 ft3)
Capacity Operating: 0.283 m3 (10 ft3)

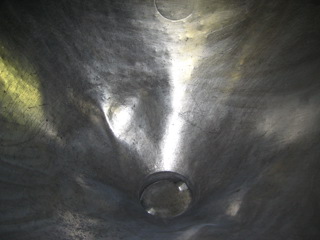

polished double cone jacket mixer.
Internal rated full vacuum @ 200 degree F;
jacket rated 15 psi @ 200 degree F.
59 lbs/cubic feet density.
Full CS jkt
16" charge port, 8" discharge w/butterfly valve.
Vessel Pressure: -1.01 bar (-14.7 psi). Vessel Temperature: 93.3 °C (200 °F). Product Density: 945 kg/m3 (59 lb/ft3).
