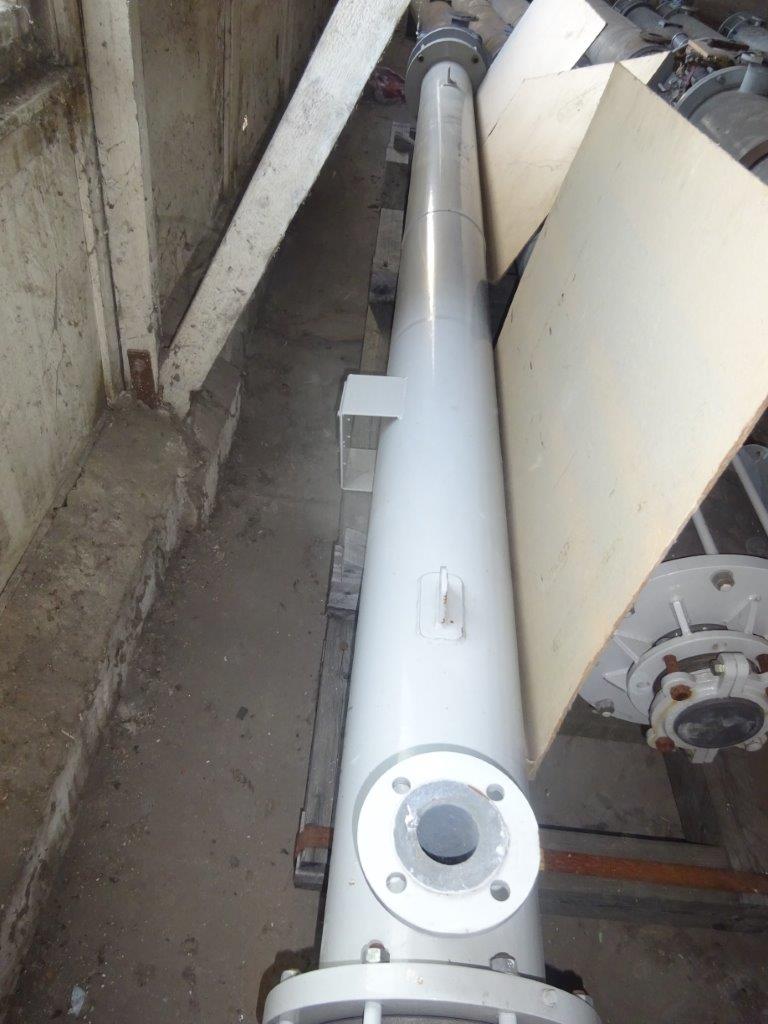

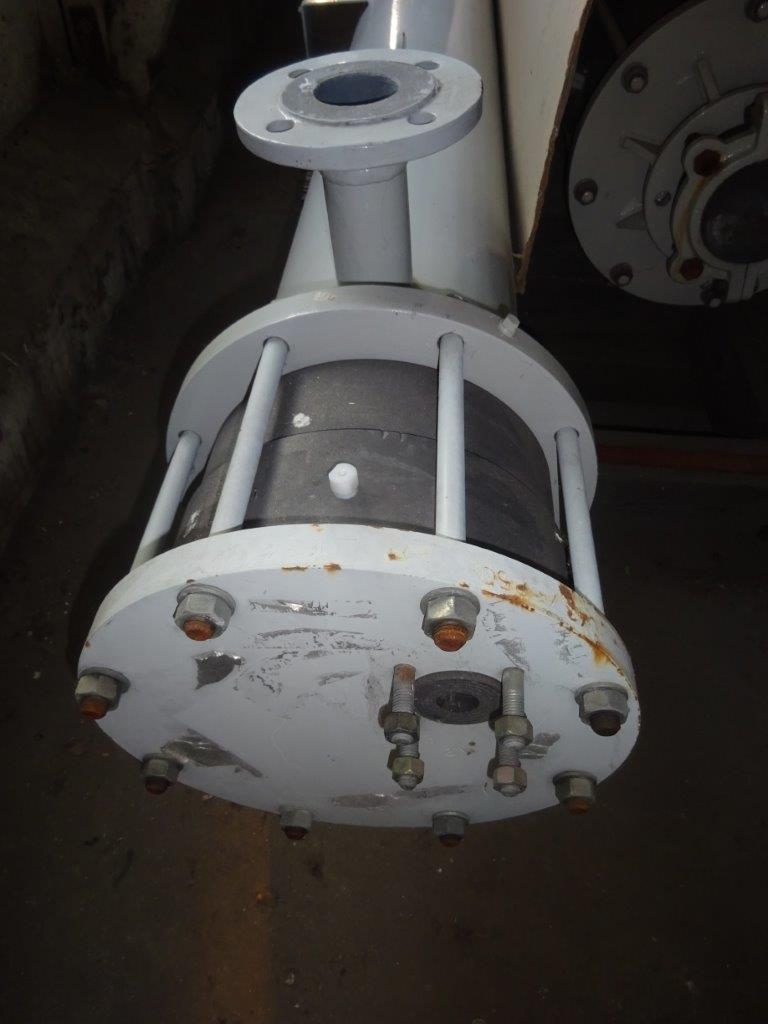

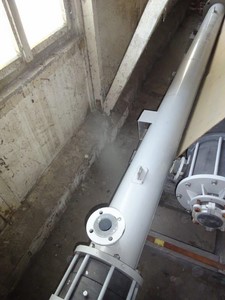

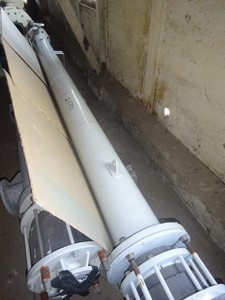

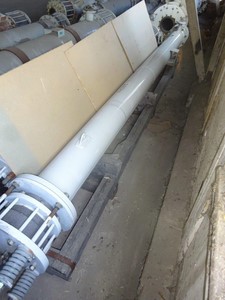

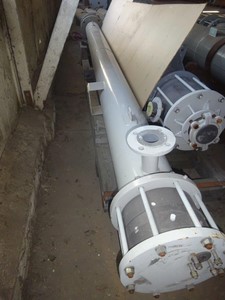

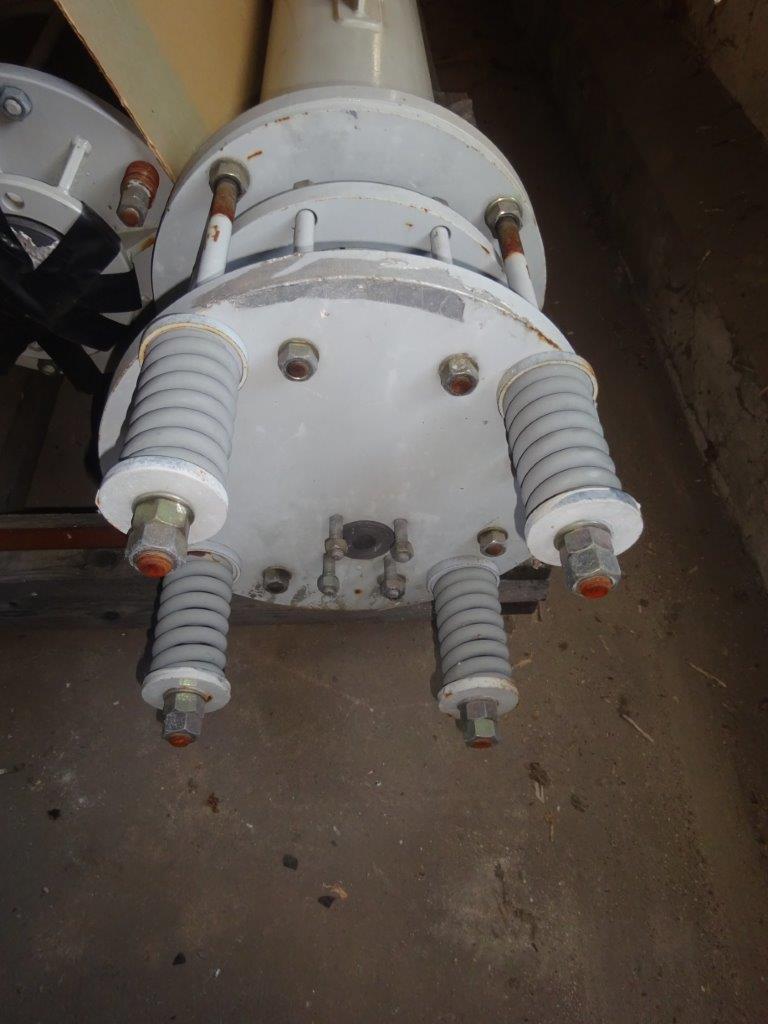

Shell and Tube Heat Exchanger 4.9 m² (52.7 ft²) Graphite For Sale - IPP# 211701

Type: Heat Exchanger

Subtype: Shell and Tube

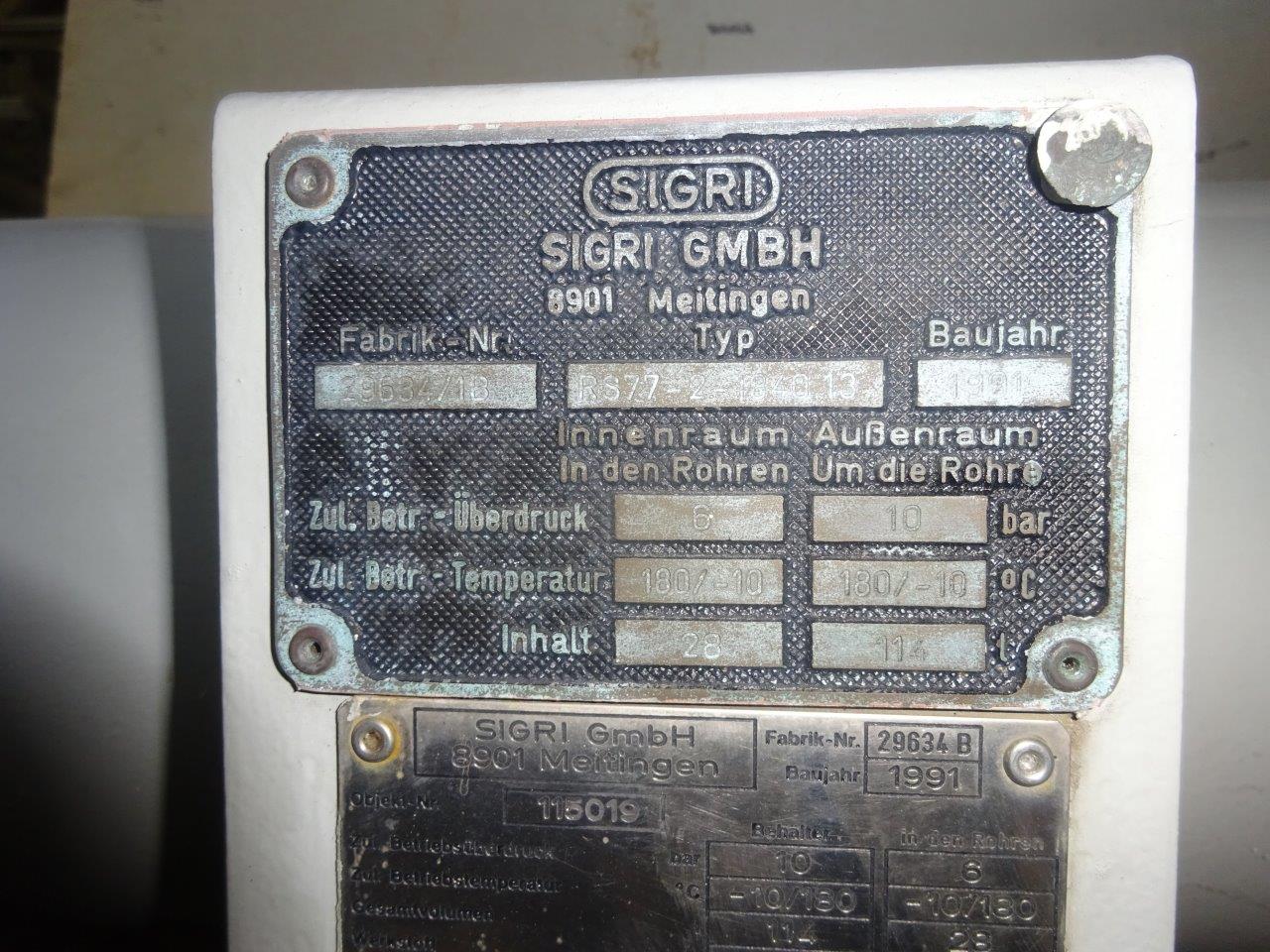

Manufacturer: Sigri

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 1.8 m² (19.4 ft²)

Orientation: Horizontal

condenser rated 6 bar @ 165 degrees C Service Side, volume 60 liters; -1/2 bar @ 165 degrees C process side, volume 11 liters

Shell Pressure: 6 bar (87 psi). Shell Temperature: 165 °C (329 °F). Shell Material: Carbon Steel. Tube Pressure: 2 bar (29 psi). Tube Temperature: 165 °C (329 °F). Tube Material: Graphite. Vacuum: Yes. Nozzle Schedule: - Openings: - Heads: 3 openings of 40mm, 1 opening of 25mm - Shell: 2 openings of 40mm, 1 opening of 25mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Sigri

Model: SD63-0720

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 10 m² (107.6 ft²)

Orientation: Horizontal

condenser rated -1/2 bar bar @ 100 degrees C service side, volume 28 liter; rated 5 bar @ 25 degrees C process side, volume 10 liter

Shell Pressure: 2 bar (29 psi). Shell Temperature: 100 °C (212 °F). Shell Material: Carbon Steel. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 25 °C (77 °F). Tube Material: Graphite. Vacuum: Yes. Nozzle Schedule: openings: heads: 2-50mm, shell: 1-40mm, 1-30mm, 1-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Sigri

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 1.5 m² (16.1 ft²)

Orientation: Horizontal

condenser rated 6 bar @ 165 degrees C Service Side, volume 50 liters; -1/2 bar @ 165 degrees C process side, volume 10 liters

Shell Pressure: 6 bar (87 psi). Shell Temperature: 165 °C (329 °F). Shell Material: Carbon Steel. Tube Pressure: 2 bar (29 psi). Tube Temperature: 165 °C (329 °F). Tube Material: Graphite. Vacuum: Yes. Nozzle Schedule: openings: heads: 3-40mm, shell: 3-30mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Sigri

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 23.1 m² (248.6 ft²)

Orientation: Horizontal

condenser rated -1/2 bar @ 165 degrees C service side, volume 240 liters; rated 6 bar @ 165 degrees C process side, volume 250 liters weight 1400kg

Shell Pressure: 0.14 bar (2 psi). Shell Temperature: 73.9 °C (165 °F). Shell Material: Carbon Steel. Tube Pressure: 6 bar (87 psi). Tube Temperature: 165 °C (329 °F). Tube Material: Graphite. Vacuum: Yes. Nozzle Schedule: - Openings: Heads - 1-300mm, 2-40mm; Shell - 1-75mm, 2-40mm .
