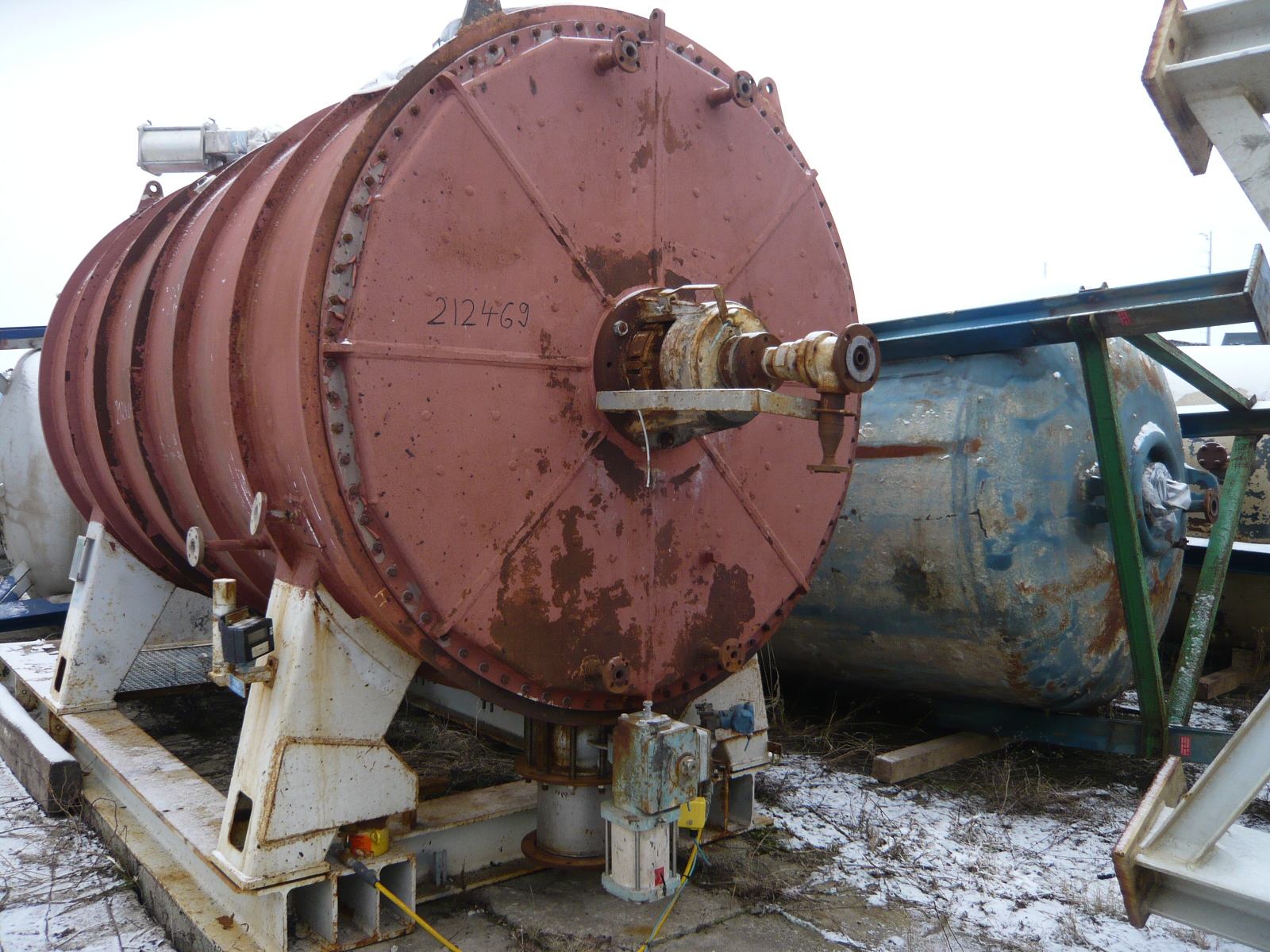

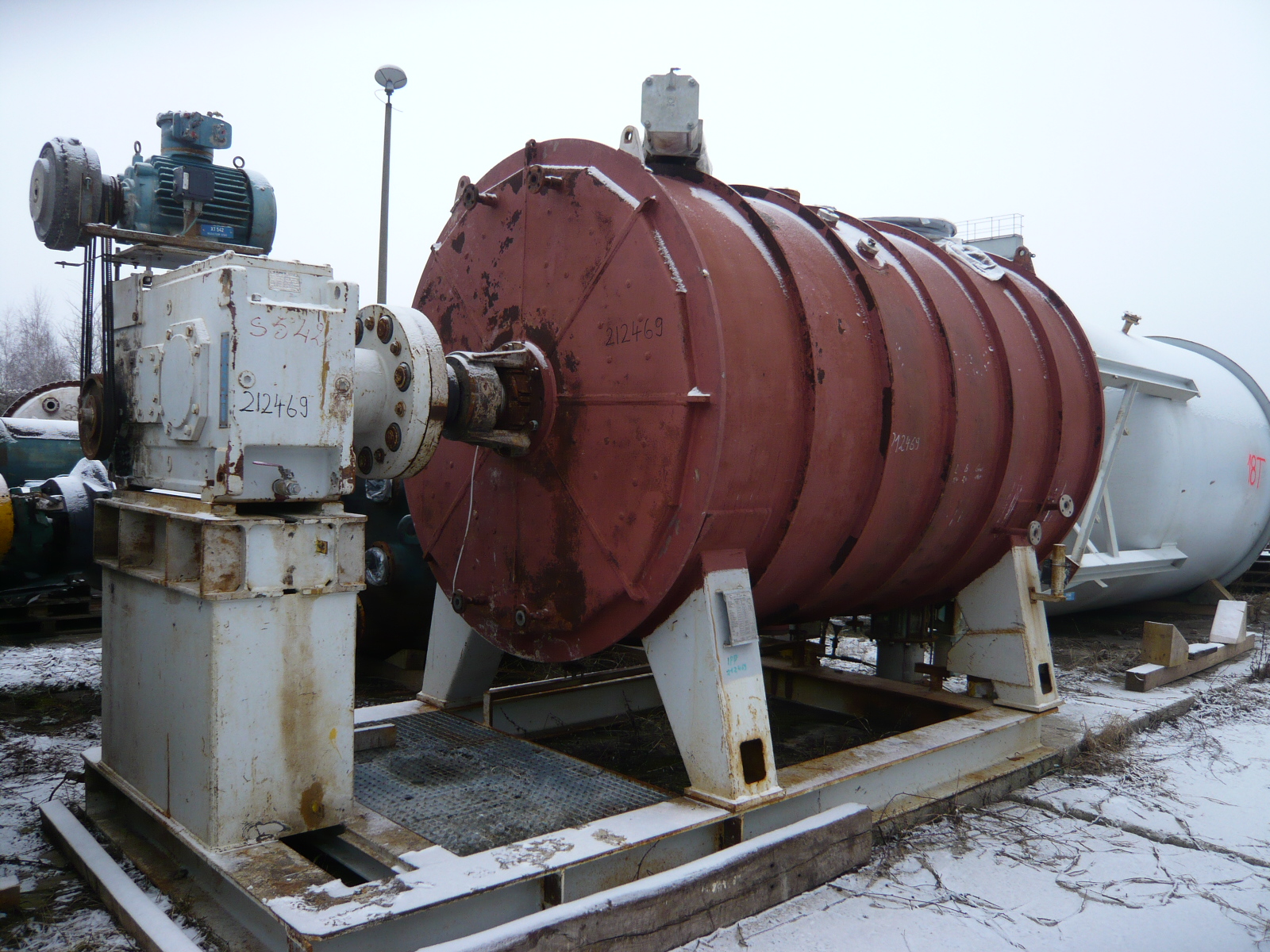

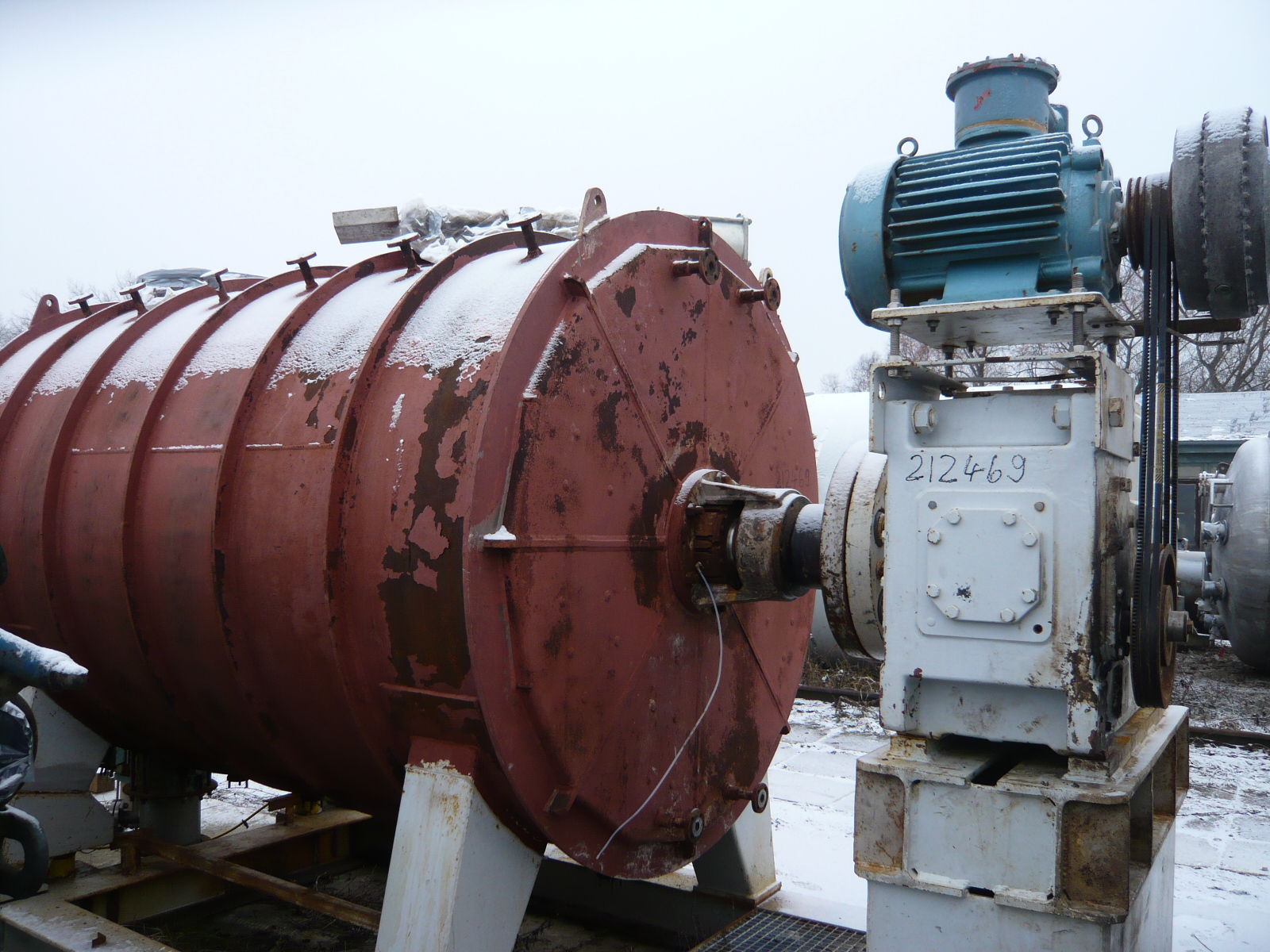

Stainless Steel 316 Berthier S 542 Dryer-Rotary Vacuum - IPP# 212469

Type: Dryer-Rotary Vacuum

Manufacturer: Blaw Knox

Condition: Used

Material: Stainless Steel 316

Capacity Design: 7.9 m3 (280 ft3)

Capacity Working: 5.4 m3 (190 ft3)

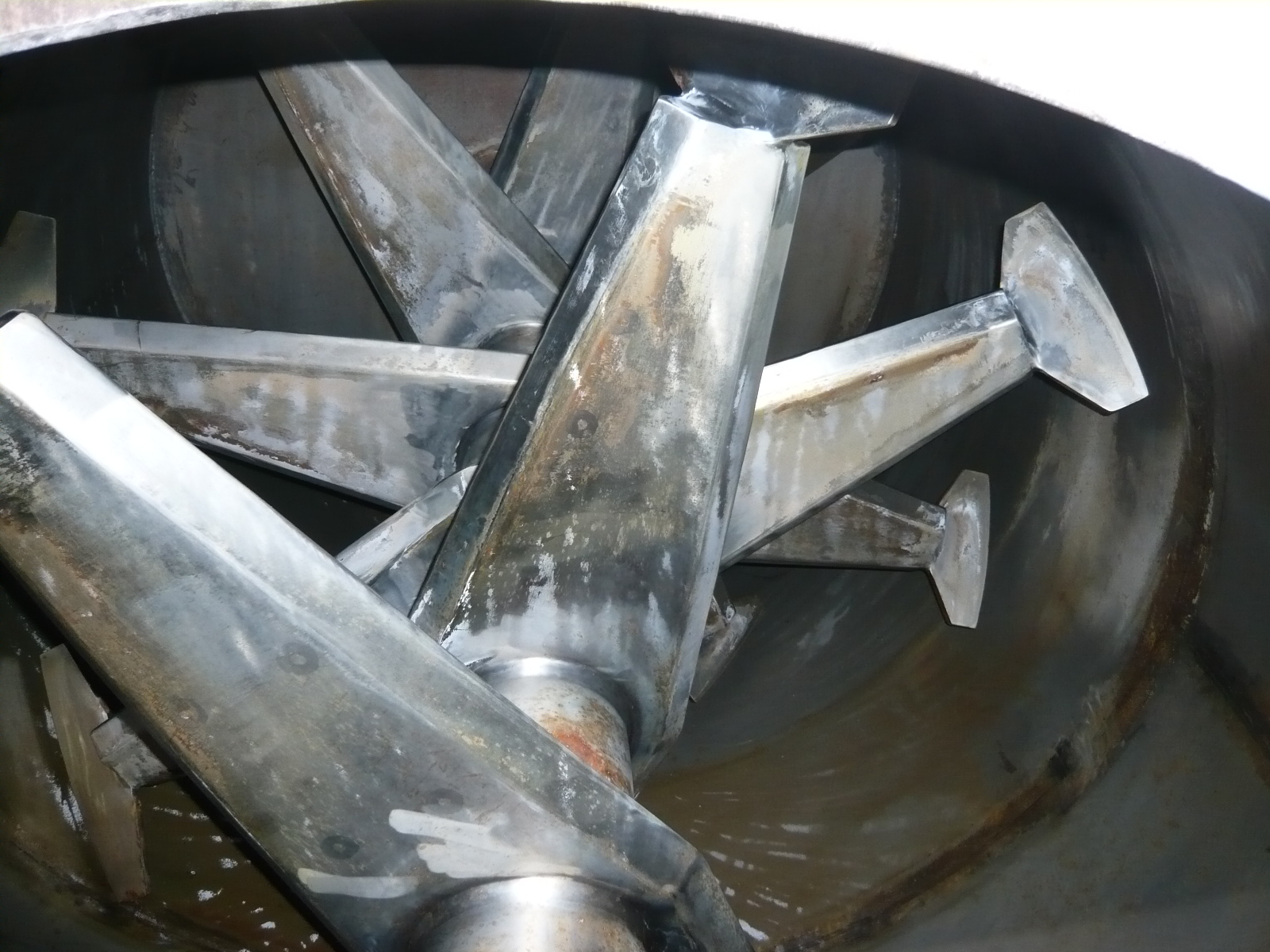

Shell rated full vac @ 300 deg F Has 24" dia removable cored rotor w/SS paddles and teflon scrapers Openings: top 2-24"; btm 1-24" No drive grearbox or rotary joint

Diameter: 1,200 mm (48 in). Length: 9,150 mm (360 in). Temperature: 148.9 °C (300 °F). Rated for Vacuum: Yes. Heat Transfer Surface Area: 35 m² (377 ft²). Jacket Material: Carbon Steel. Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 148.9 °C (300 °F).

Type: Dryer-Rotary Vacuum

Manufacturer: Krauss Maffei

Model: DTB630C-List-Discotherm

Condition: Used

Material: Stainless Steel 316

Capacity Design: 0.72 m3 (25.4 ft3)

Capacity Working: 0.63 m3 (22.2 ft3)

vac dryer (cooler). 316SS shell Total capacity 0.72 cbm Shell 600mm (24") dia x 3.8m (12'6") long Has 18" dia removable cored rotor. Has 9" long scraper blades on shaft. Has (17) fixed delumpers on str side of vessel. Openings: top 2-24" w/bolt cover; btm 3-2", 2-8".

Diameter: 600 mm (23.6 in). Length: 3,800 mm (149.6 in). Height: 2,500 mm (98.4 in). Temperature: 50 °C (122 °F). Pressure: 6 bar (87 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 14.3 m² (153.9 ft²). Orientation: Horizontal. Operational Mode: Continuous. Agitation: Yes. Jacket Material: Stainless Steel 304. Jacket Pressure: 7 bar (101.5 psi). Jacket Temperature: 50 °C (122 °F).

Type: Dryer-Rotary Vacuum

Manufacturer: Stokes

Model: 900-59-125

Condition: Used

Material: Stainless Steel 316

Capacity Design: 7 m3 (247.2 ft3)

Diameter: 1,200 mm (48 in)

jacketed rotary vacuum dryer 3/50/380 volt Cleveland 63-55:1 ratio 3.8 HP, 1750 rpm gearbox shaft cored for steam heating, no national board, rated 50 psi @ 300 degrees F (1-straight side and 1-each end) Rotary union joint, outboard bearings. Unit with dust collector. Openings: top (2) 3' x 18 1/2" hinged access covers with counter balanced mechanism, 2-12"; end 1-8"; bottom 1-10" with manual open/close mechanism; jacket 4-6", 4-2", 4-1", 4-3/4"; shaft 1-2", 1-1 1/2".

Length: 6,100 mm (240 in). Temperature: 148.9 °C (300 °F). Rated for Vacuum: Yes. Heat Transfer Surface Area: 23.3 m² (251 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Agitation: Yes. Dust Collection: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 148.9 °C (300 °F).

Type: Dryer-Rotary Vacuum

Manufacturer: Devine

Condition: Used

Material: Stainless Steel 316

Capacity Design: 2.8 m3 (100 ft3)

Capacity Working: 1.98 m3 (70 ft3)

Rotary vacuum dryer Vessel rated for Full vacuum 12.5" diameter cored shaft with 24 fixed plows. Outboard bearings with packing glands.

Diameter: 1,200 mm (48 in). Length: 3,050 mm (120 in). Rated for Vacuum: Yes. Heat Transfer Surface Area: 11.7 m² (126 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Agitation Seal Type: Packing. Jacket Pressure: 2.4 bar (35 psi). Jacket Temperature: 104.4 °C (220 °F).
