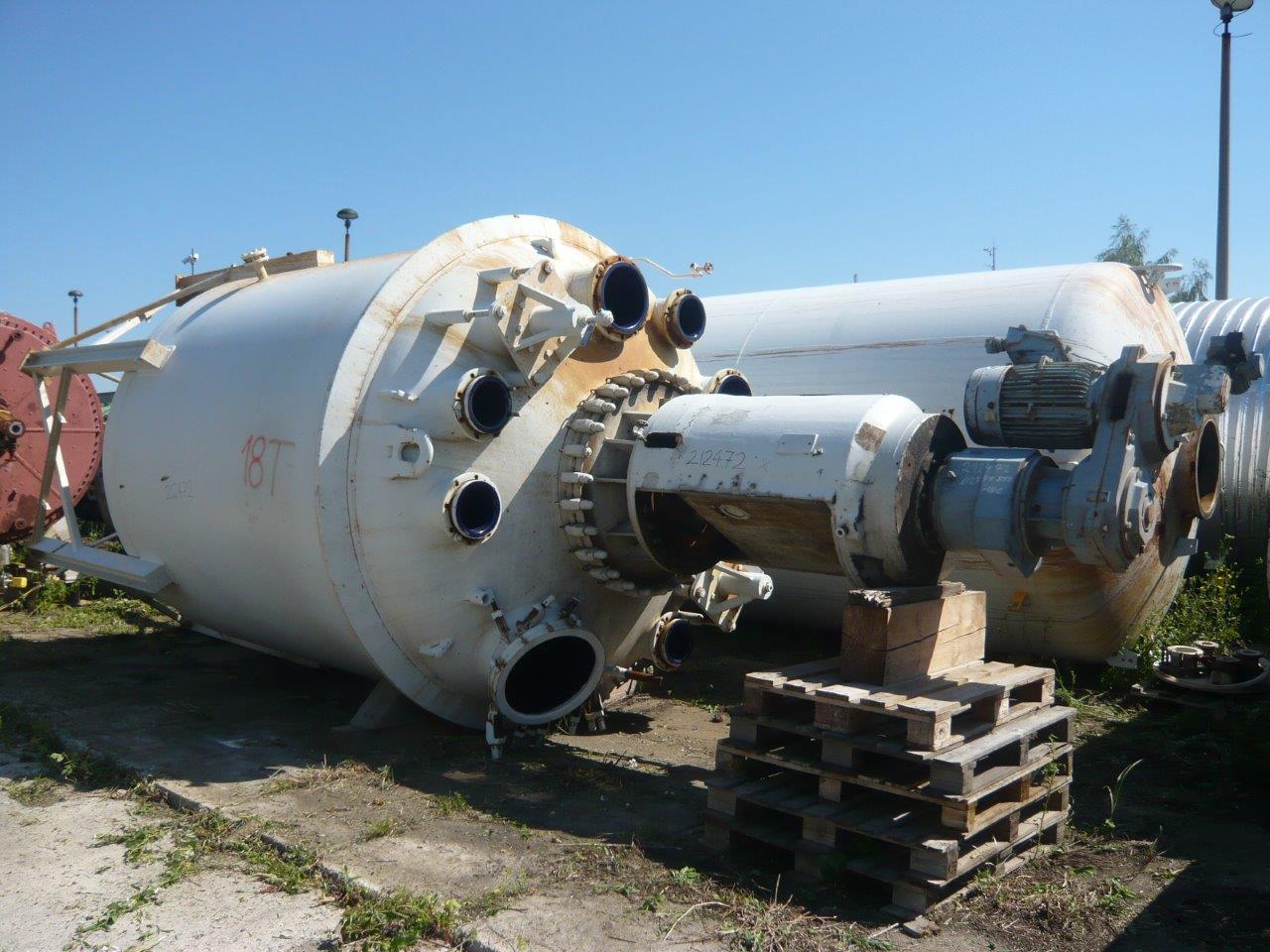

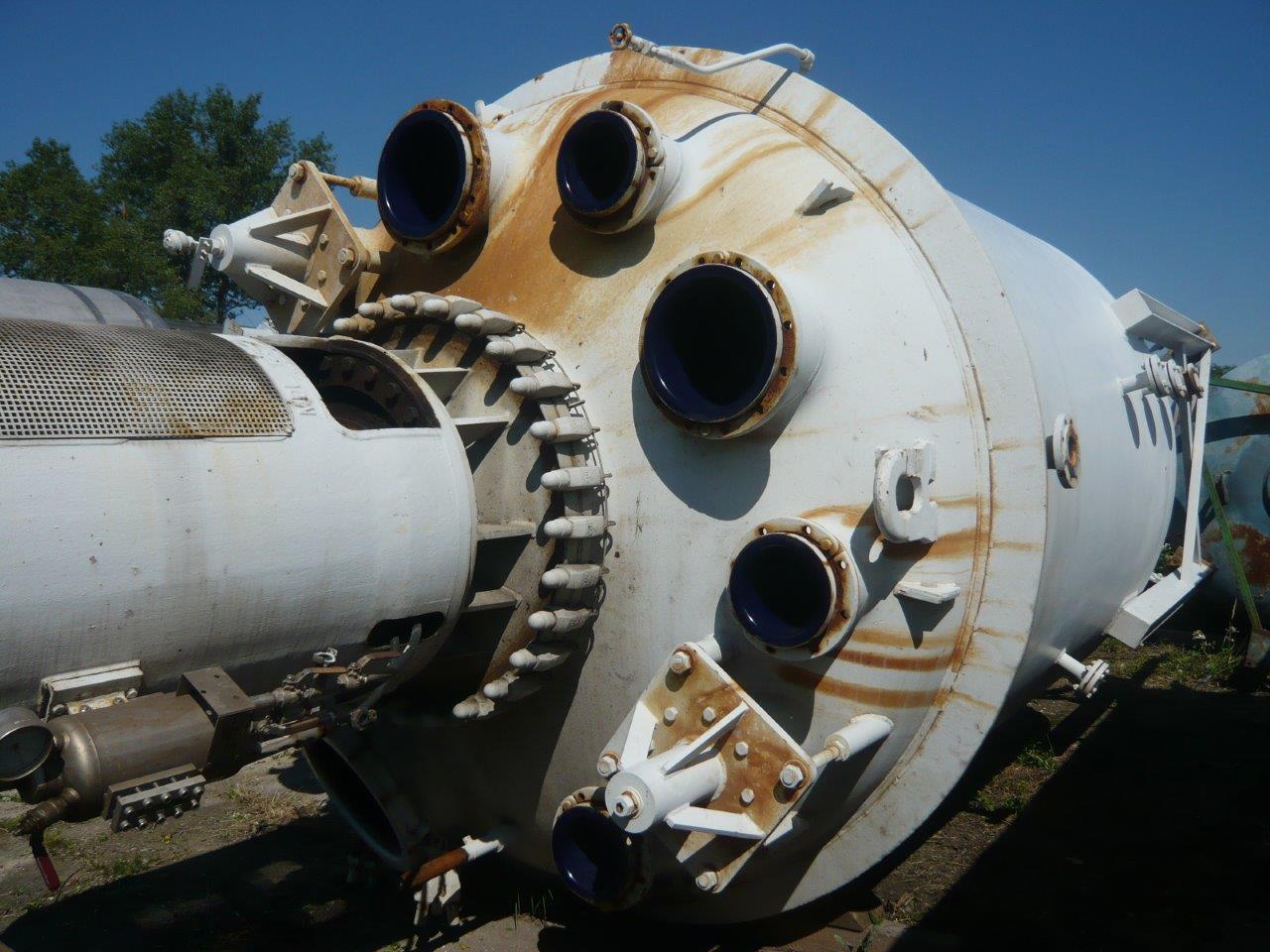

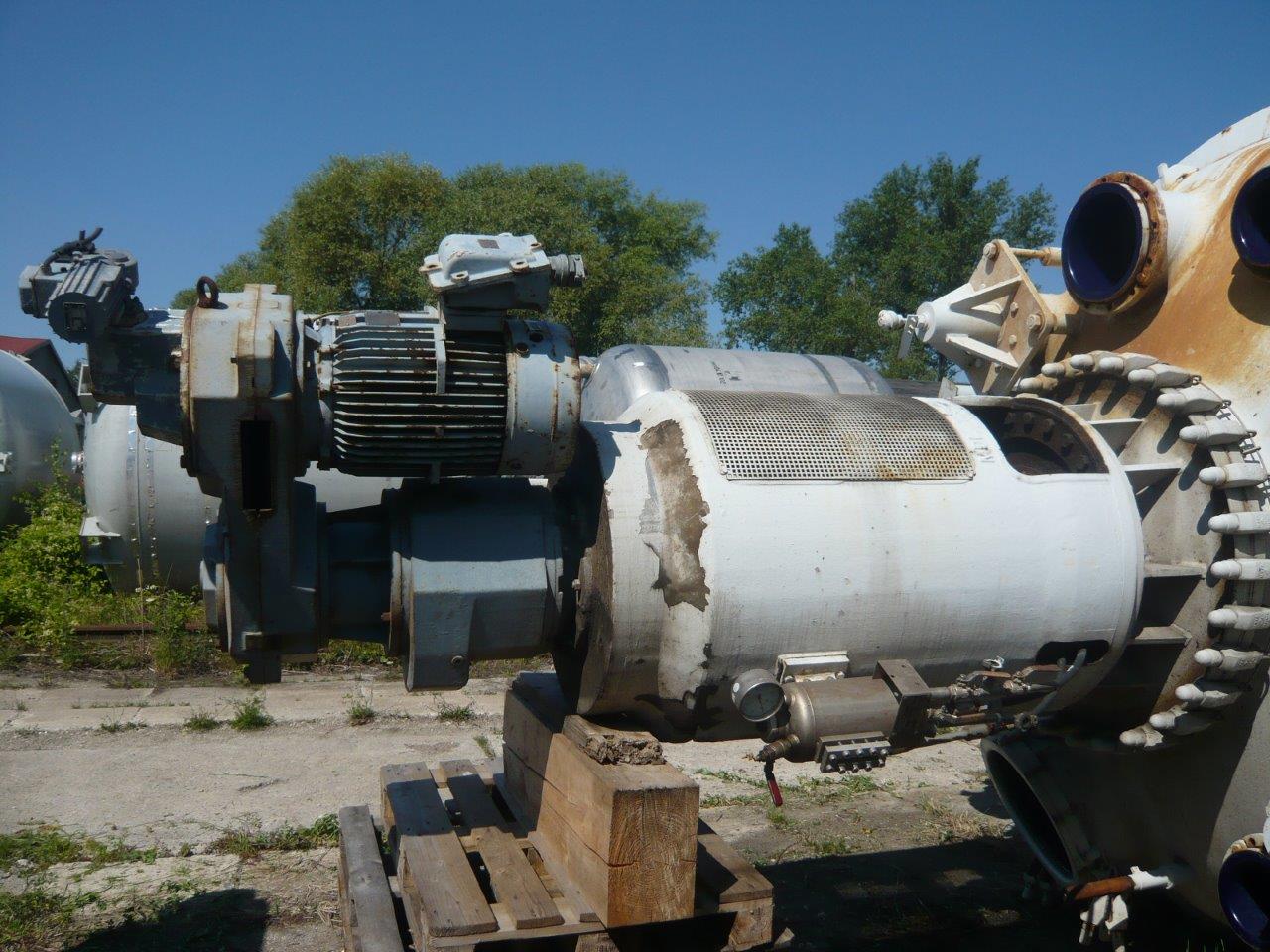

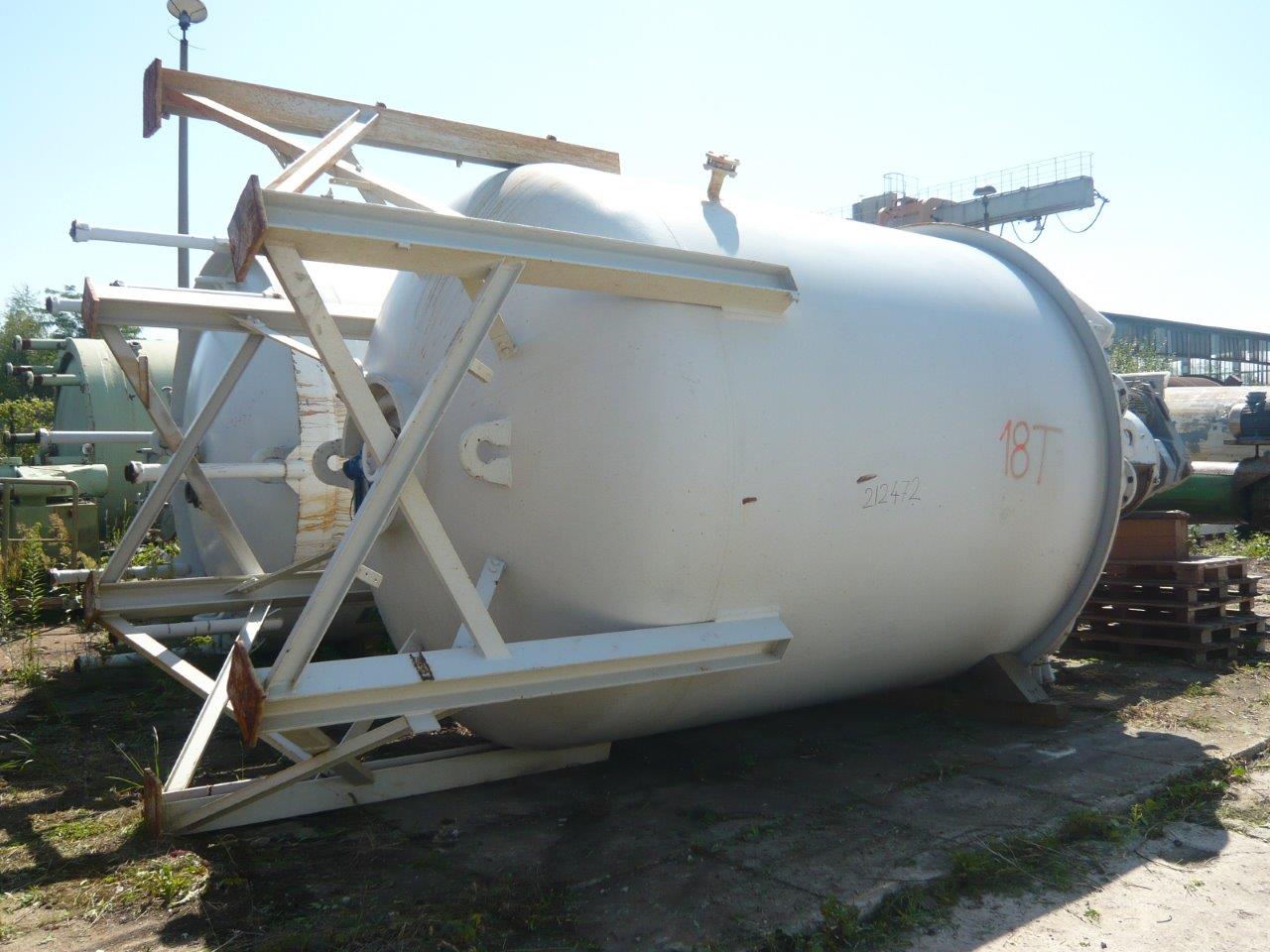

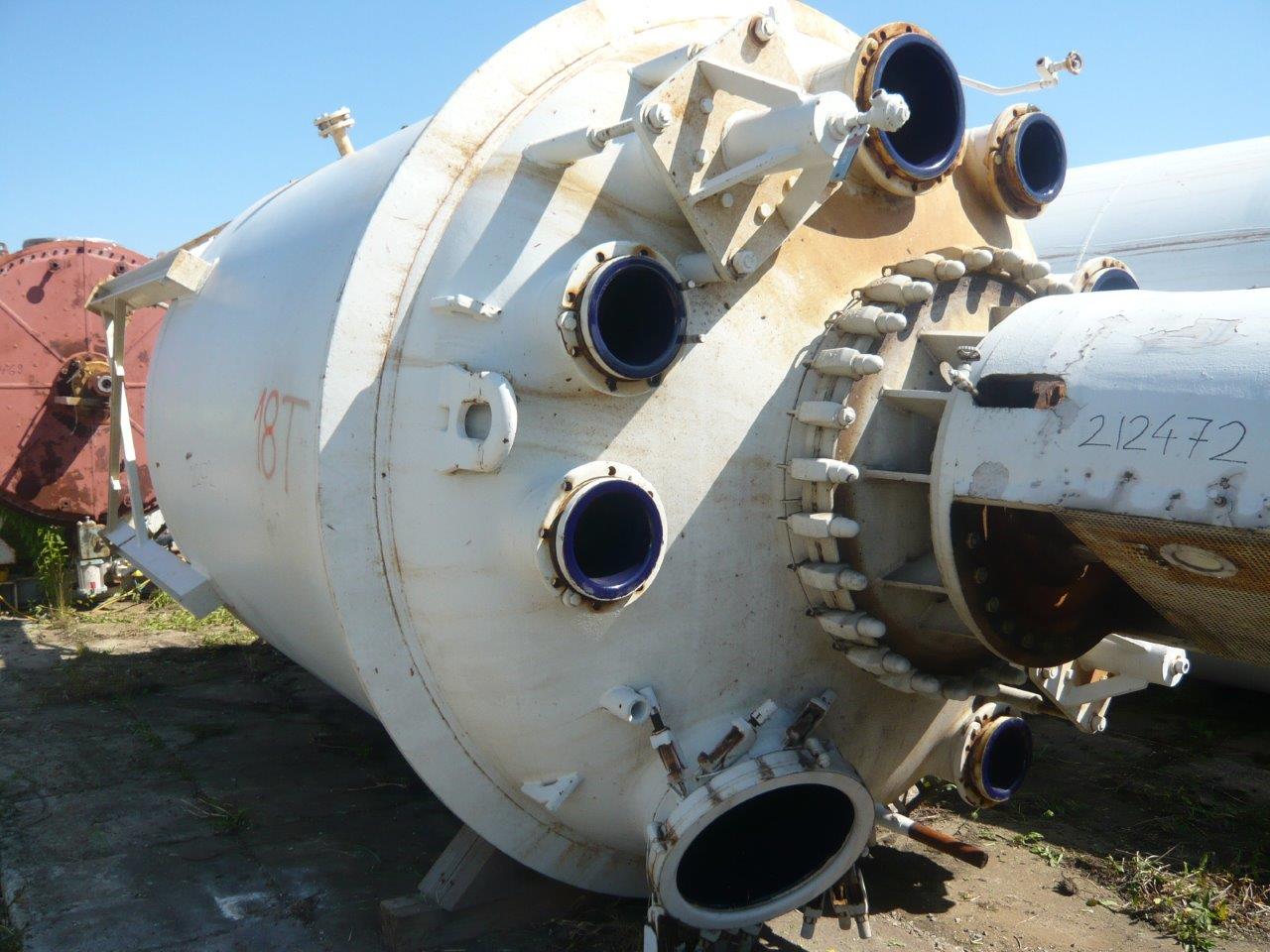

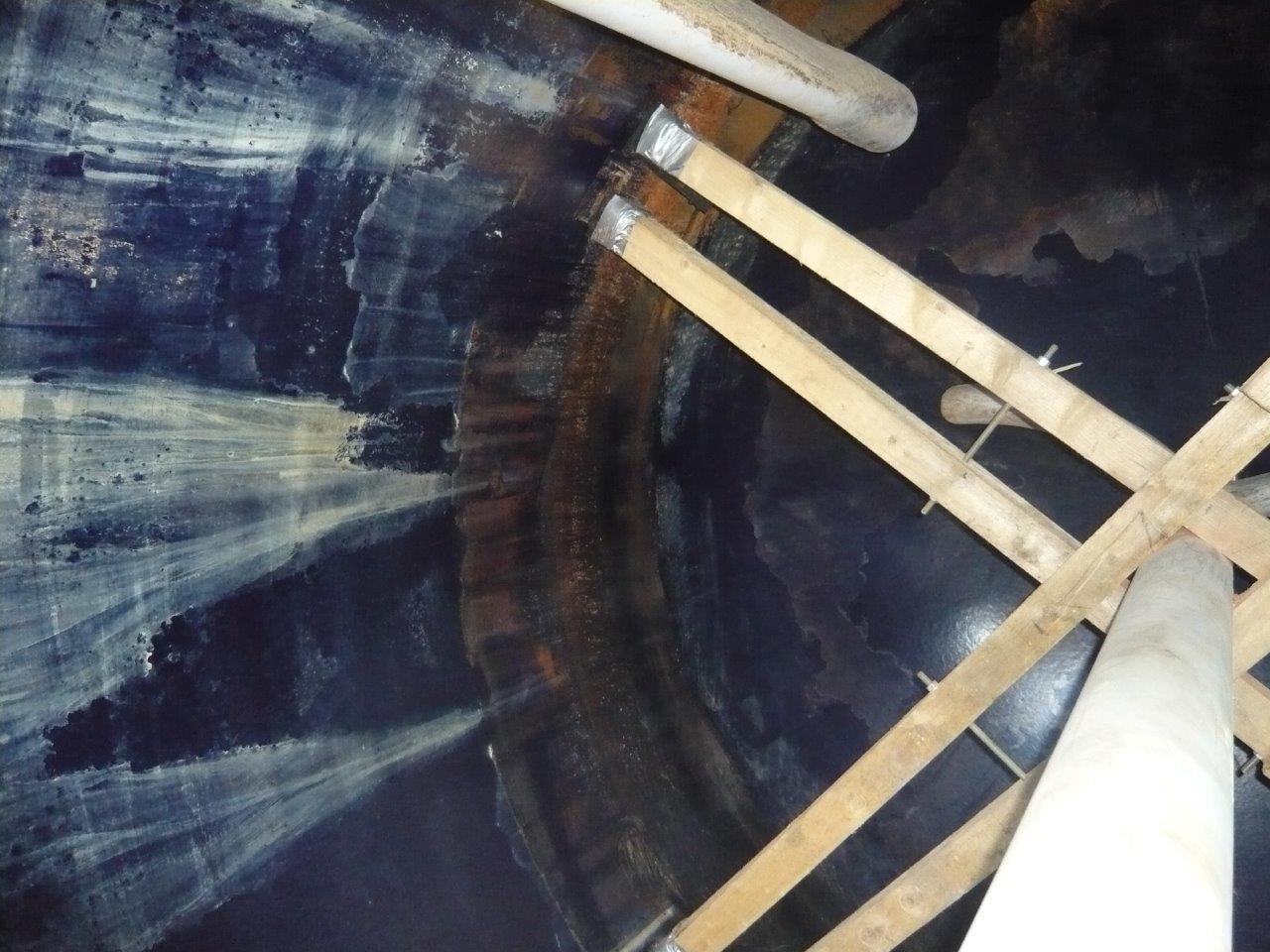

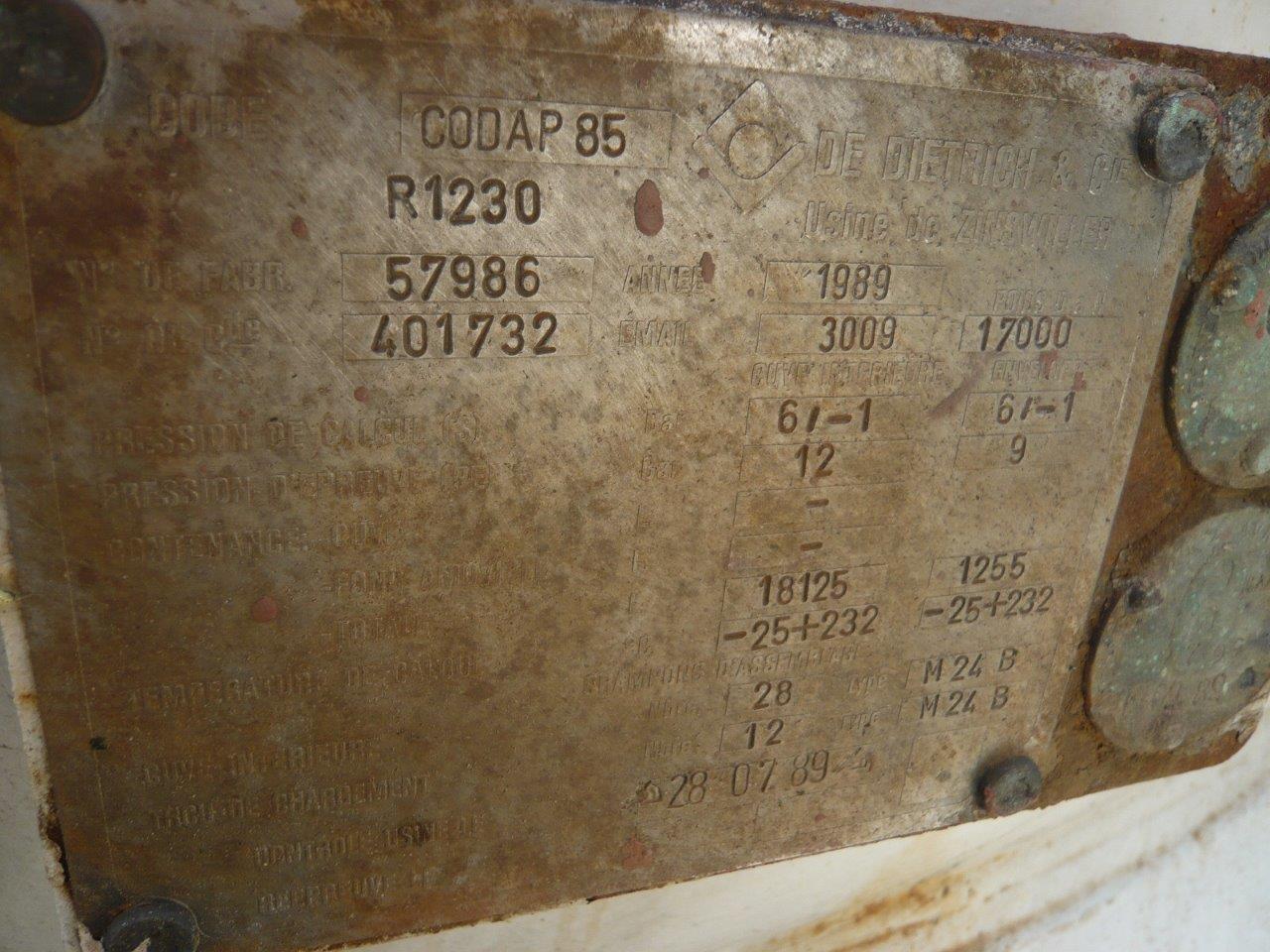

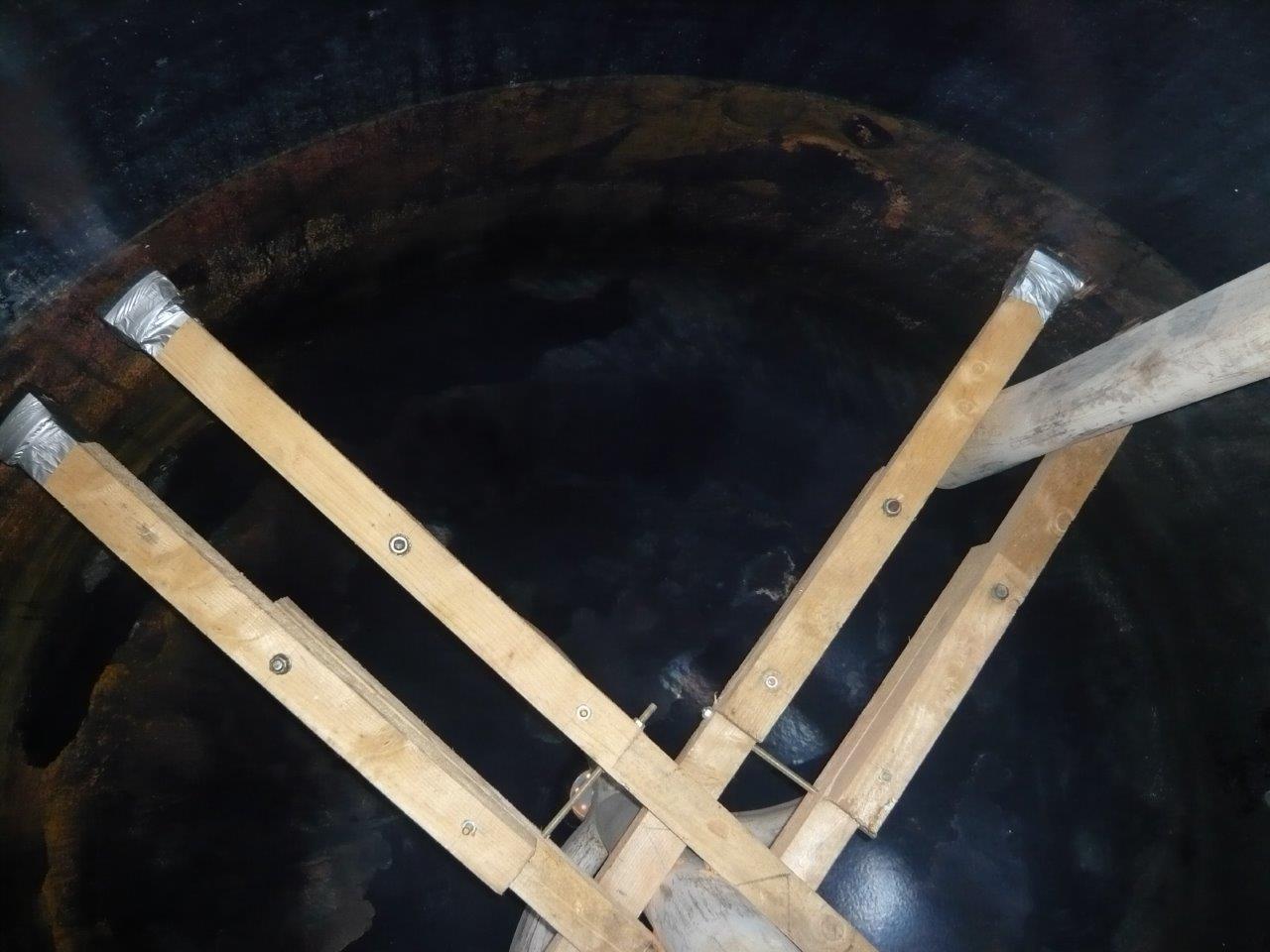

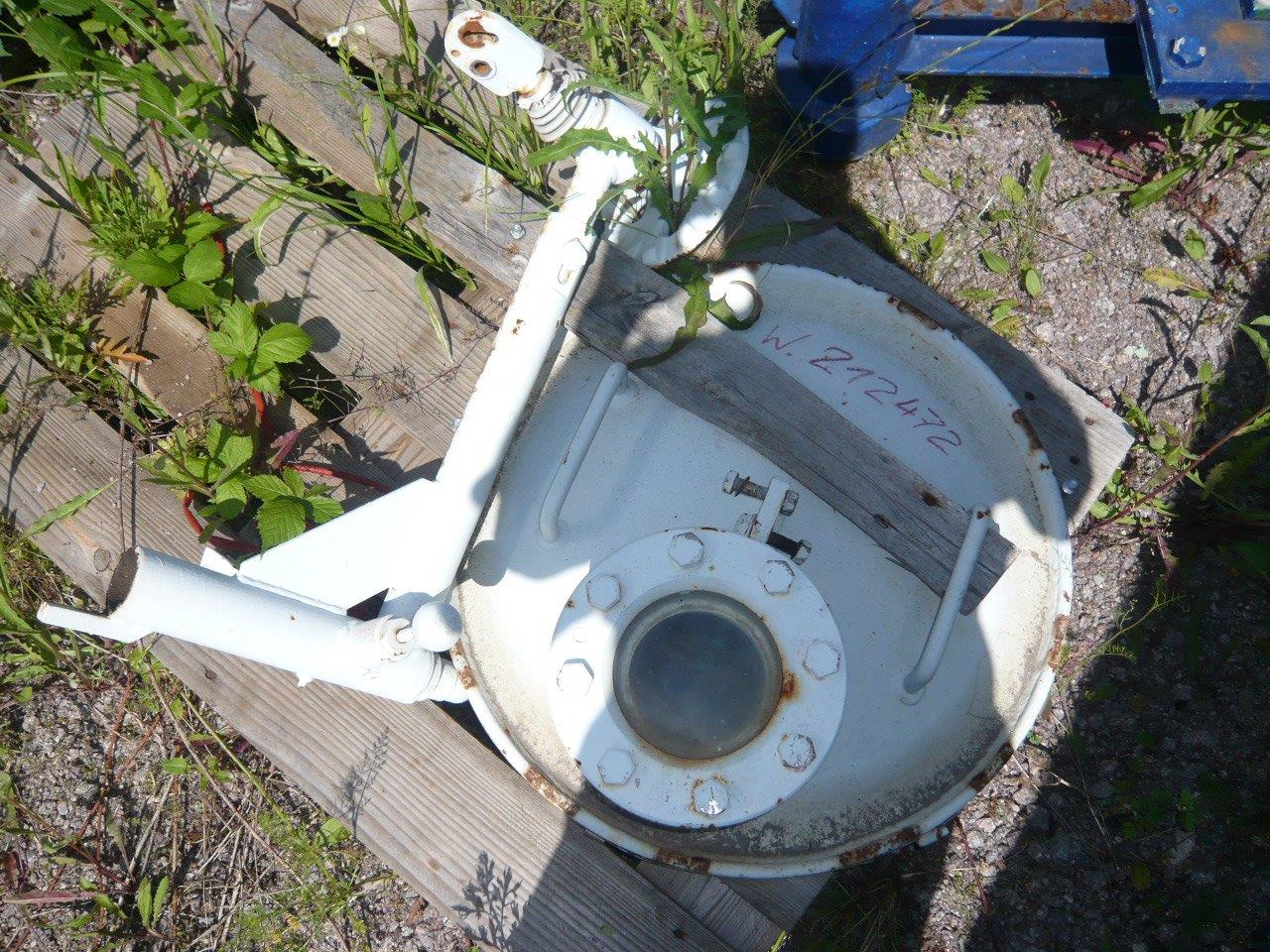

Glasslined DeDietrich Codap 85 Batch-Type Agitated Reactor - IPP# 212472

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: AE

Condition: Used

Material: Glasslined

Capacity (Design): 127 L (33.5 gallons)

Internal Pressure: 6 bar (87 psi)

100 liter

• CE number: 401379
• Glass type: 3009 internal design pressure -1/6 bar @ -25/200 degrees C (127 liter) jacket -1/6 bar @ -25/200 degrees C (38 liter)

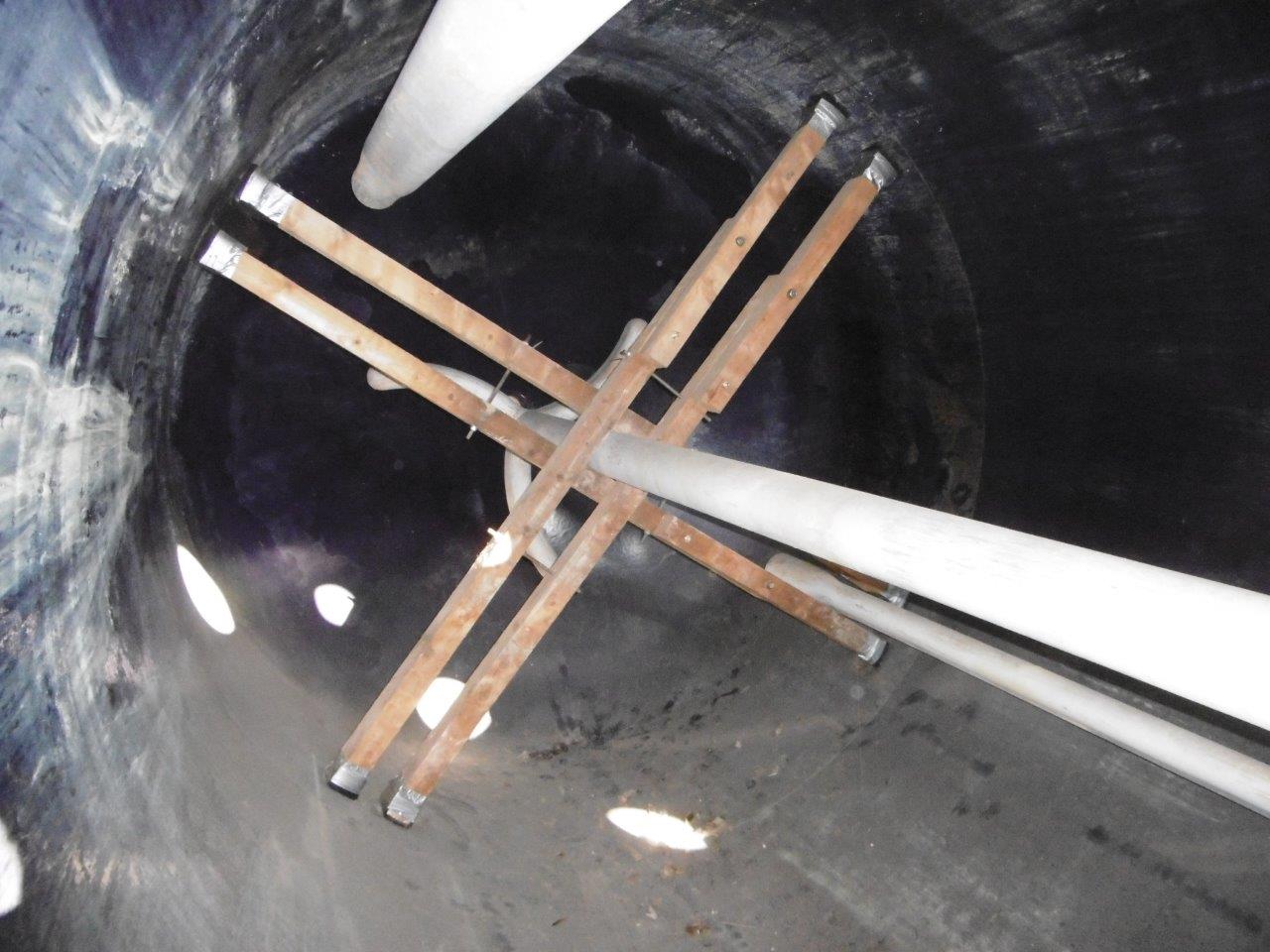

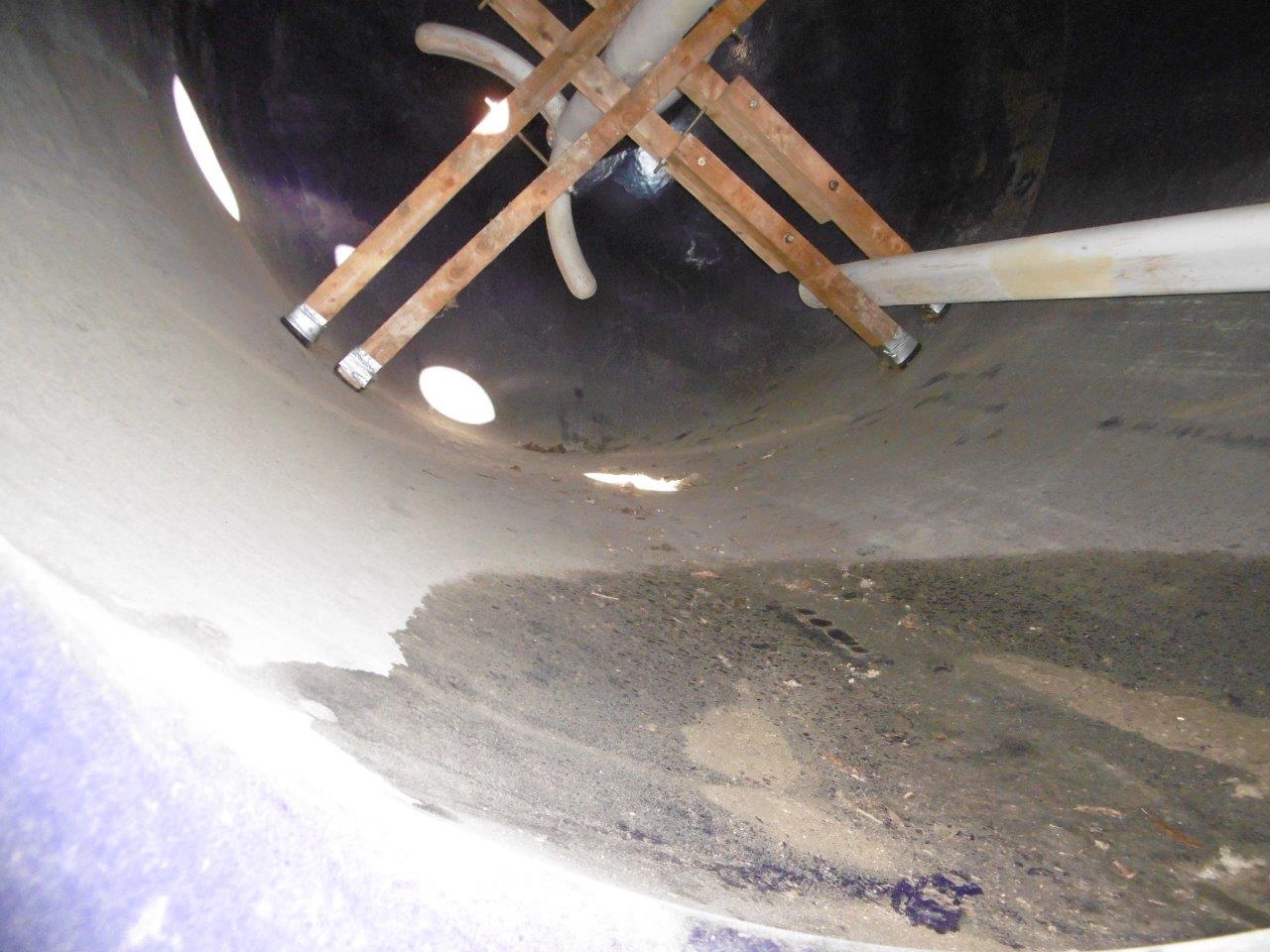

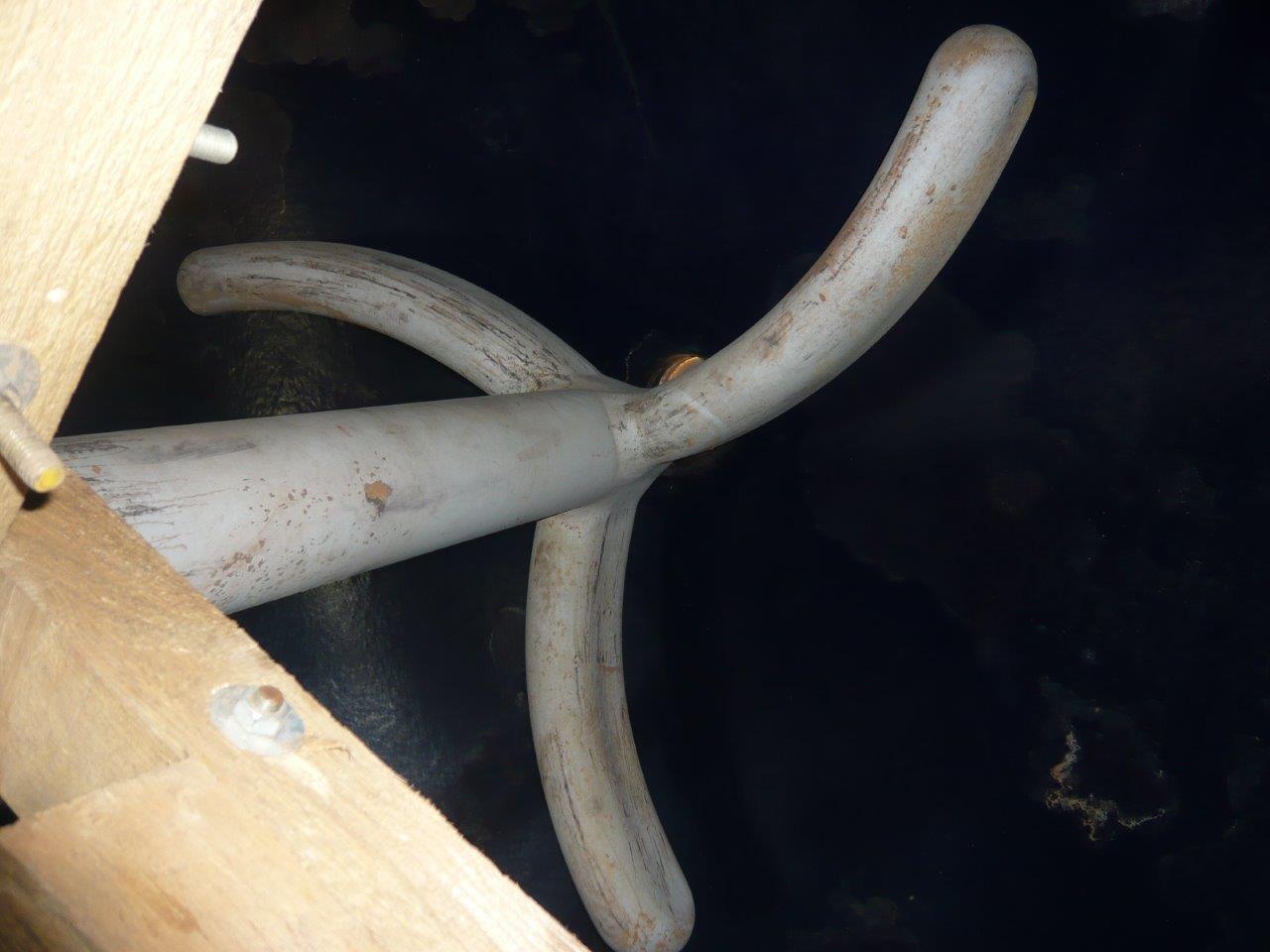

• 3-finger retreat curved agitator (white glass)

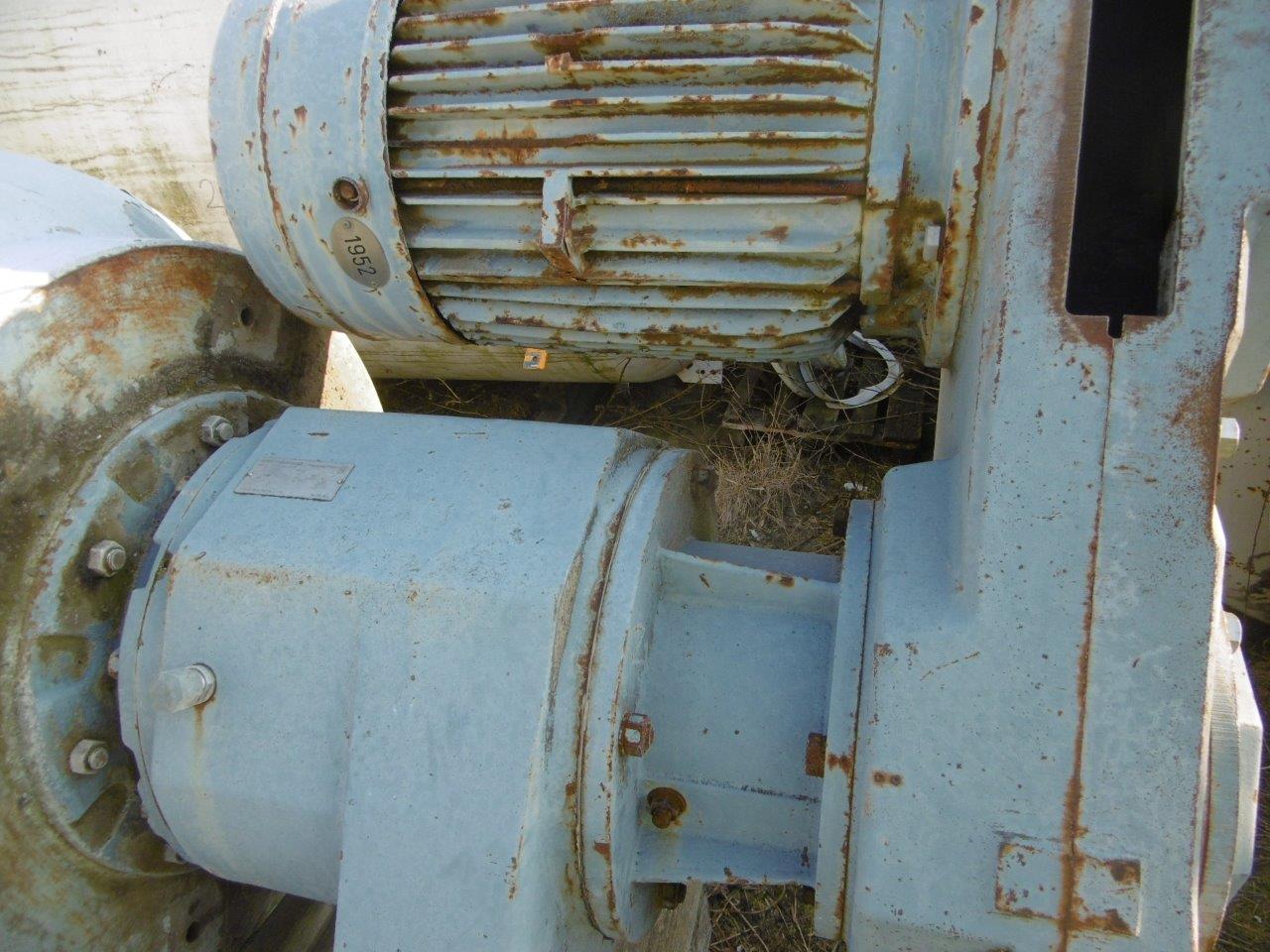

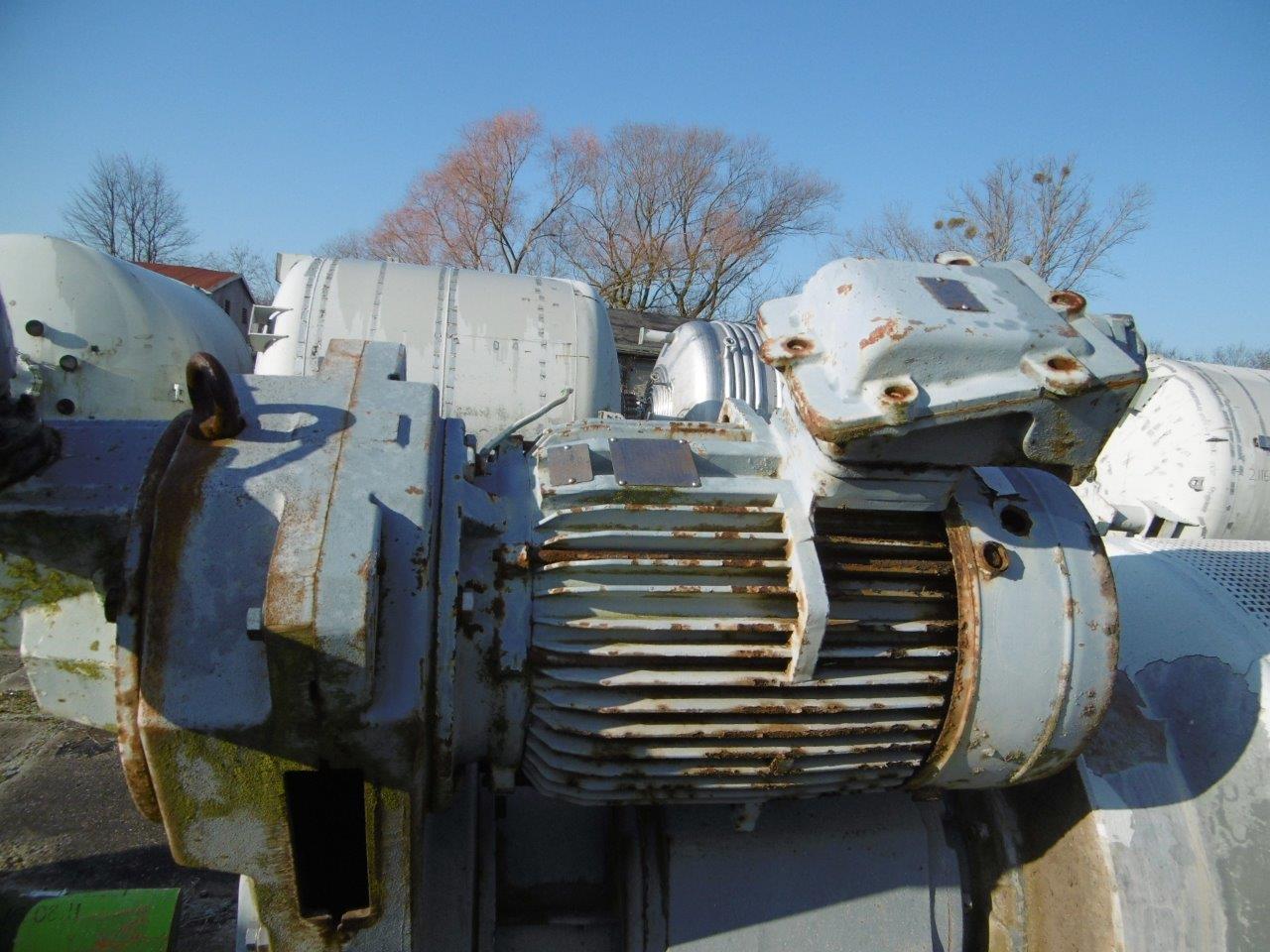

• Motor: 3 phase
• vari-speed drive
• 260/460 volt
• Body and top cover: Blue glass
• Certification: CE certified

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Orientation: Vertical. Agitation: Yes. Diameter: 508 mm (20 in). Straight Side Length: 495 mm (19.5 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: AE-630

Condition: Used

Material: Glasslined

Capacity (Design): 847 L (223.8 gallons)

Internal Pressure: 6 bar (87 psi)

630 liter

• CE number: 401381
• Glass type: 3009-internal design pressure -1/6 bar @ -25/200 degrees C (847 liter)jacket -1/6 bar @ -25/200 degrees C (152 liter)
• 3-finger retreat curved agitator (white glass)
• vari-speed drive
• Motor: 3 phase
• 260/460 volt-- shaft speed 29/166 rpm
• mechanical seal with lubricator
• Body and top cover: Blue glass 1-50mm (jacket)
• Certification: CE certified

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight Side Length: 799 mm (31.5 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: STU

Condition: Refurbished/Rebuilt

Material: Glasslined

Capacity (Design): 4,400 L (1,150 gallons)

Internal Pressure: 4.4 bar (63.8 psi)

• Enamel number: 3008
• Jacket: 3-50mm, 3-25mm, 2-38mm
• Total capacity: 4400 liters.

Internal Temperature: 200 °C (392 °F). Jacket Pressure: 4.4 bar (63.8 psi). Jacket Temperature: 200 °C (392 °F). Diameter: 1,800 mm (70.9 in). Straight Side Length: 2,100 mm (82.7 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: STU

Condition: Used

Material: Glasslined

Capacity (Design): 4,400 L (1,150 gallons)

Internal Pressure: 4.4 bar (63.8 psi)

• Jacket: Openings: 2-75mm, 6-32mm

Internal Temperature: 200 °C (392 °F). Jacket Pressure: 4.4 bar (63.8 psi). Jacket Temperature: 200 °C (392 °F). Diameter: 1,800 mm (70.9 in). Straight Side Length: 2,100 mm (82.7 in). Support Type: Lugs.
