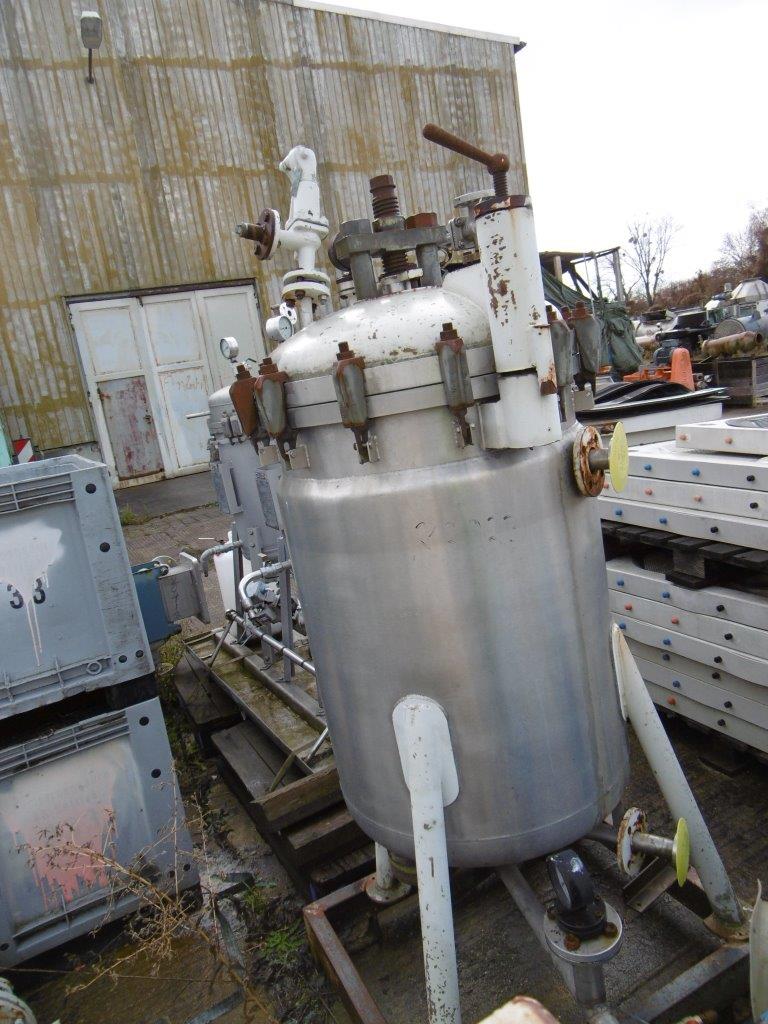

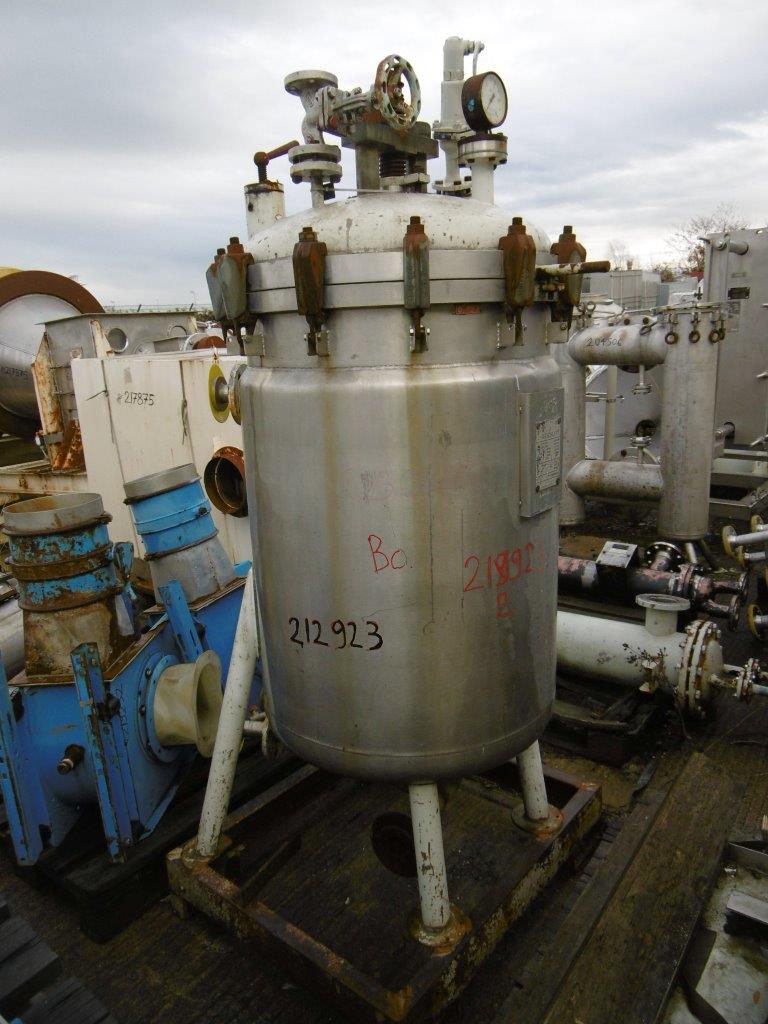

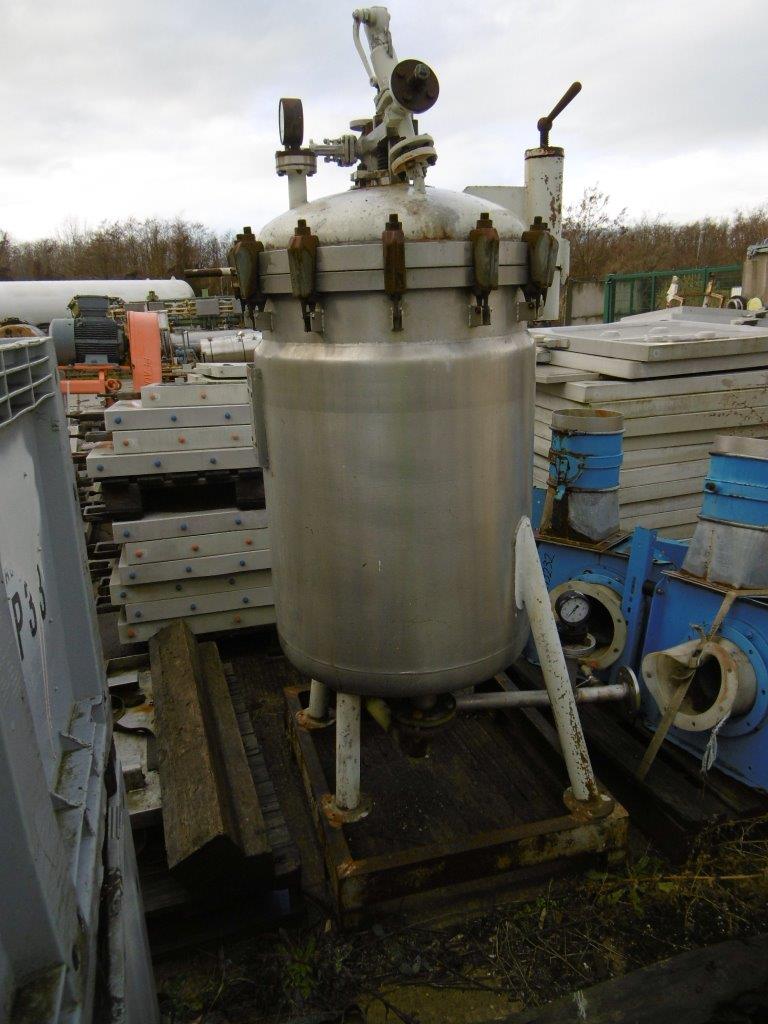

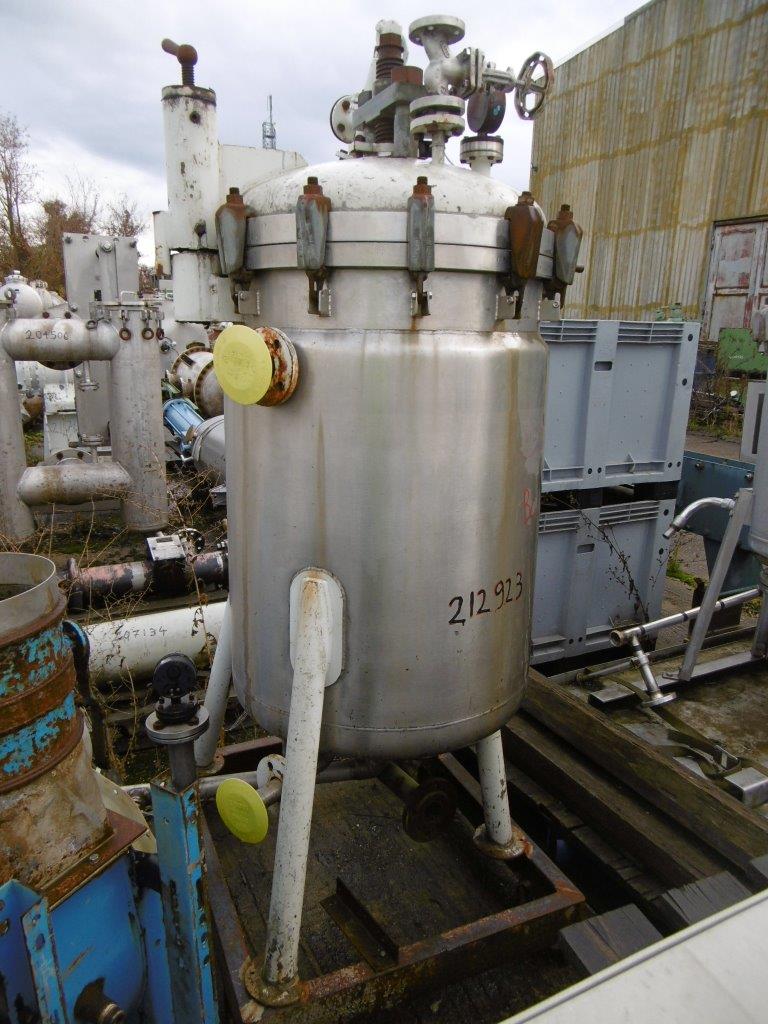

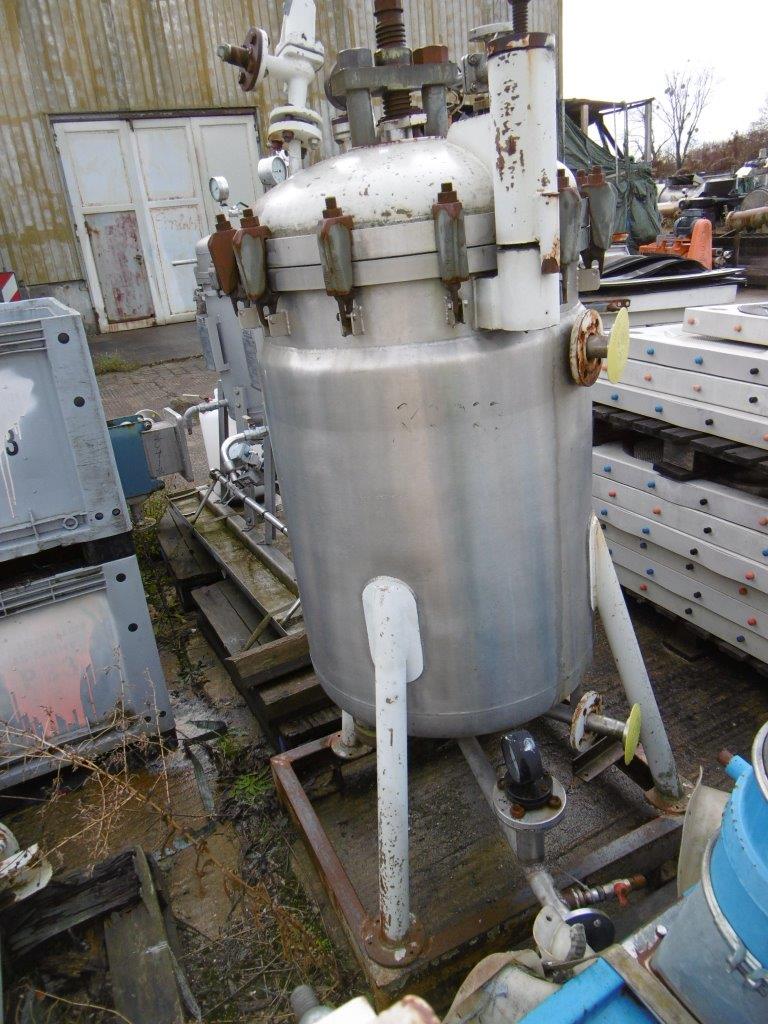

Stainless Steel 316 Pressure Leaf Filter 5.3 m² (56.5 ft²) For Sale - IPP# 212923

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Seitz

Model: PZ-60-A6KC

Condition: Used

Material: Stainless Steel Austenitic

Filtration Area: 3.2 m² (34.4 ft²)

Diameter: 600 mm (23.6 in)

vessel 670mm diameter x 650mm straight side plate type H13, manual screw plate pressure mechanism, top cover with lift/swivel davit arm

Orientation: Horizontal. Pressure: 6 bar (87 psi). Temperature: 165 °C (329 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: AMA (Holland)

Model: 48-2204ASC

Condition: Used

Material: Stainless Steel 316

Filtration Area: 18.5 m² (199.1 ft²)

Orientation: Vertical

Niagara 316 stainless steel horizontal tank vertical leaf pressure filter Rated 4.5 Kg/cm @ 120 degrees C Volume 2.555 cubic meter Chamber 1650mm long x 1150mm diameter Manual opening mechanism Pull plates out

Temperature: 120 °C (248 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Schenk

Model: ZHF-SR5KL

Condition: Used

Material: Stainless Steel 316

Filtration Area: 5 m² (53.8 ft²)

Diameter: 812.8 mm (32 in)

pressure leaf filter body Discharge type: centrifugal Tank capacity: 350 litres Serial number: KH839 Int rated 6 bar/full vac @ 200 deg C Unit will take (10) leaves Vessel is 900mm (36"). No leaves w/unit.

Pressure: 6 bar (87 psi). Temperature: 200 °C (392 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Chemap Ag (Switzerland)

Model: 5213/25

Condition: Used

Material: Stainless Steel 316

Filtration Area: 15 m² (161.5 ft²)

Diameter: 1,100 mm (43.3 in)

Test pressure: 11.9 bar centrifugal discharge Total capacity 539 gals (448 Imperial gals) Unit has (20) 39" diameter discs Type A for wet cake discharge.

Pressure: 6.9 bar (100.1 psi). Jacket: Yes. Jacket MOC: Carbon Steel.
