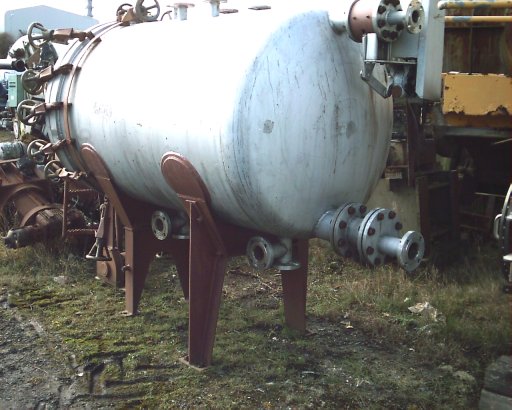

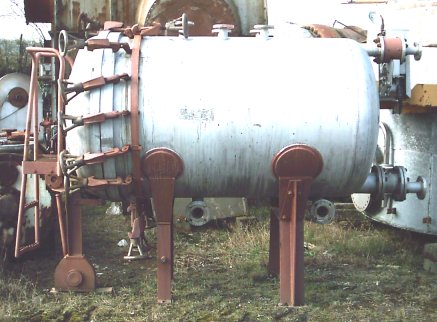

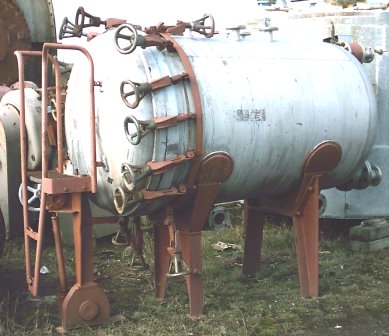

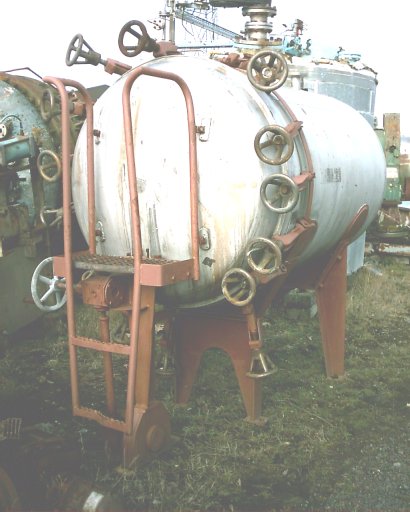

IPP# 98860 - Pressure Leaf Filter 18.5 m² (199 ft²) Stainless Steel 316 For Sale

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Schenk

Model: ZHF-SR5KL

Condition: Used

Material: Stainless Steel 316

Filtration Area: 5 m² (53.8 ft²)

Diameter: 813 mm (32 in)

pressure leaf filter body
Discharge type: centrifugal
Tank capacity: 350 litres
Serial number: KH839
Int rated 6 bar/full vac @ 200 deg C
Unit will take (10) leaves
Vessel is 900mm (36").
No leaves w/unit.

Pressure: 6 bar (87 psi). Temperature: 200 °C (392 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Chemap Ag (Switzerland)

Model: 5213/25

Condition: Used

Material: Stainless Steel 316

Filtration Area: 15 m² (161 ft²)

Diameter: 1,100 mm (43.3 in)

Test pressure: 11.9 bar
centrifugal discharge
Total capacity 539 gals (448 Imperial gals)
Unit has (20) 39" diameter discs
Type A for wet cake discharge.

Pressure: 6.9 bar (100 psi). Overall Length: 1,500 mm (59.1 in). Jacket: Yes. Jacket MOC: Carbon Steel.

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Hayward filter-Technik

Model: VMDE-6402-AC10-020AIX-11SEN-M

Condition: Used

Material: Stainless Steel 316

Diameter: 165 mm (6.5 in)

Orientation: Vertical

pressure bag filter,
moduline Qic-Lock maxiline,
working pressure 10 bar @ 120 degrees C (185 liter)
(4) 165mm diameter x 710mm long bags,
Connections DN50 (2")

Pressure: 10 bar (145 psi). Temperature: 120 °C (248 °F). Overall Length: 710 mm (28 in).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: BHS (Germany)

Model: TDF760/60/8

Condition: Used

Material: Stainless Steel 316

Filtration Area: 3.3 m² (35.5 ft²)

Diameter: 914 mm (36 in)

21" cone
Filter vessel volume 496 liter
Each plate 760mm diameter
Cake is discharged by means of oscillation
Filter has (8) horizontal leaves

Orientation: Horizontal. Pressure: 8 bar (116 psi). Temperature: 80 °C (176 °F).
