Pump-Vacuum Carbon Steel For Sale - IPP# 214060

Type: Pump-Vacuum

Manufacturer: Siemens

Model: L5620KKMe / BN 1602586

Condition: Used

Material: Stainless Steel 316

Air Flow: 440 m3/h (259 CFM)

Discharge Pressure: 0.2 bar (2.9 psi)

Orientation: Horizontal.

Type: Pump-Vacuum

Manufacturer: Siemens

Model: 2BW3114-OHB96-Z

Condition: Used

Material: Stainless Steel 316

Air Flow: 120 m3/h (70.6 CFM)

Seal Type: Liquid Ring

40 mbar stainless steel (1.4581) water seal vacuum pump skid mounted 1.500 x 1.100x 885 mm with condenser and 140 l receiver

Temperature: 60 °C (140 °F).

Type: Pump-Vacuum

Manufacturer: Siemens

Model: 2BW3614-OKB96-Z

Condition: Used

Material: Aluminum

Air Flow: 650 m3/h (382.6 CFM)

Discharge Pressure: 0.01 bar (0.15 psi)

water seal vacuum pump

aluminum bronze

rated by 100 mbar @ 60 degrees C

Motor:

pump is driven by electrical motor

400-690V

with a 110 liter receiver, manufactured by Siemens, serial number 94/1023C, pressure rated 2 bar @ 100 degrees C, with a shell and tube condenser, manufactured by Funke, serial number 361702, pressure shell side 16 bar (volume 2,3 liter, pressure tube side 10 bar (volume 1,62 liter)

pump is skid mounted with a 110 liter receiver

manufactured by Siemens

serial number 94/1023C

pressure rated 2 bar @ 100 degrees C

with a shell and tube condenser

manufactured by Funke

serial number 361702

pressure shell side 16 bar (volume 2,3 liter, pressure tube side 10 bar (volume 1,62 liter)

skid dimension: 1465mm x 1100mm x 945mm

weight 520 kg CE certified

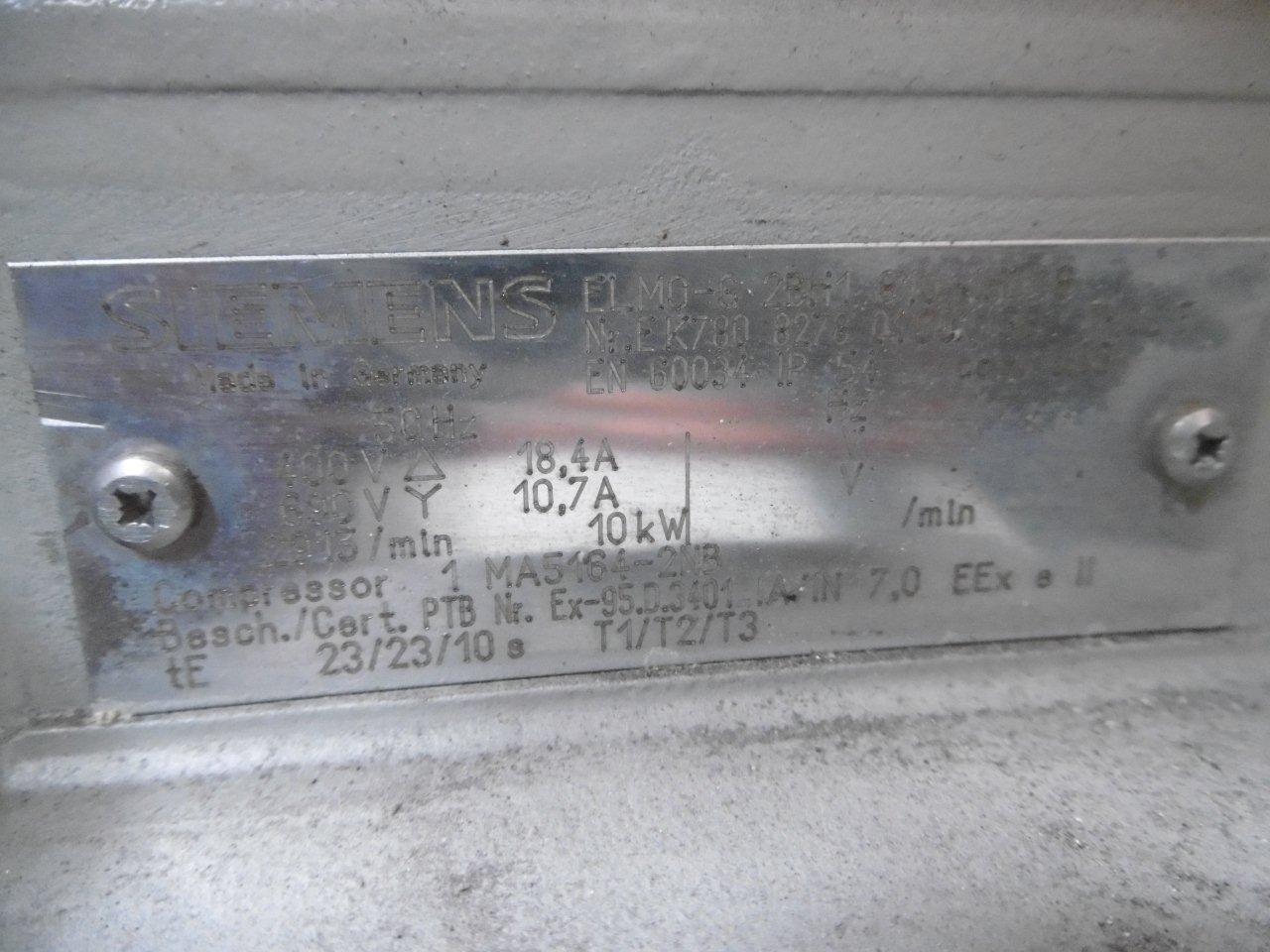

type ELMO-F2BV5161-0KD92-8P-Z, EExeII

Seal Type: Liquid Ring. Temperature: 60 °C (140 °F). Cooling or Seal Water: Yes.

Type: Pump-Vacuum

Manufacturer: Siemens

Model: 2BE1-203-8HY4Z

Condition: Used

Material: Stainless Steel 304

Air Flow: 1,250 m3/h (750 CFM)

Discharge Pressure: 0.08 bar (1.1 psi)

Instruction Manual Available

• Medium: Gas
• Permissible absolute intake pressure: 33mbar abs
• Permissible absolute compression: 900-1100 mbar abs
• Permissible temperature range of intake medium: 0 degrees C to 80 degrees C
• Operating liquid: Type (generally water)
• Shaft sealing liquid: Water
• Temperature: 15 degrees C or operating temp .10 degrees C< boiling point
• Volume: Flow depends on style of stuffing box

Orientation: Horizontal. Seal Type: Liquid Ring. Temperature: -9.4 °C (15 °F). Cooling or Seal Water: Yes.
