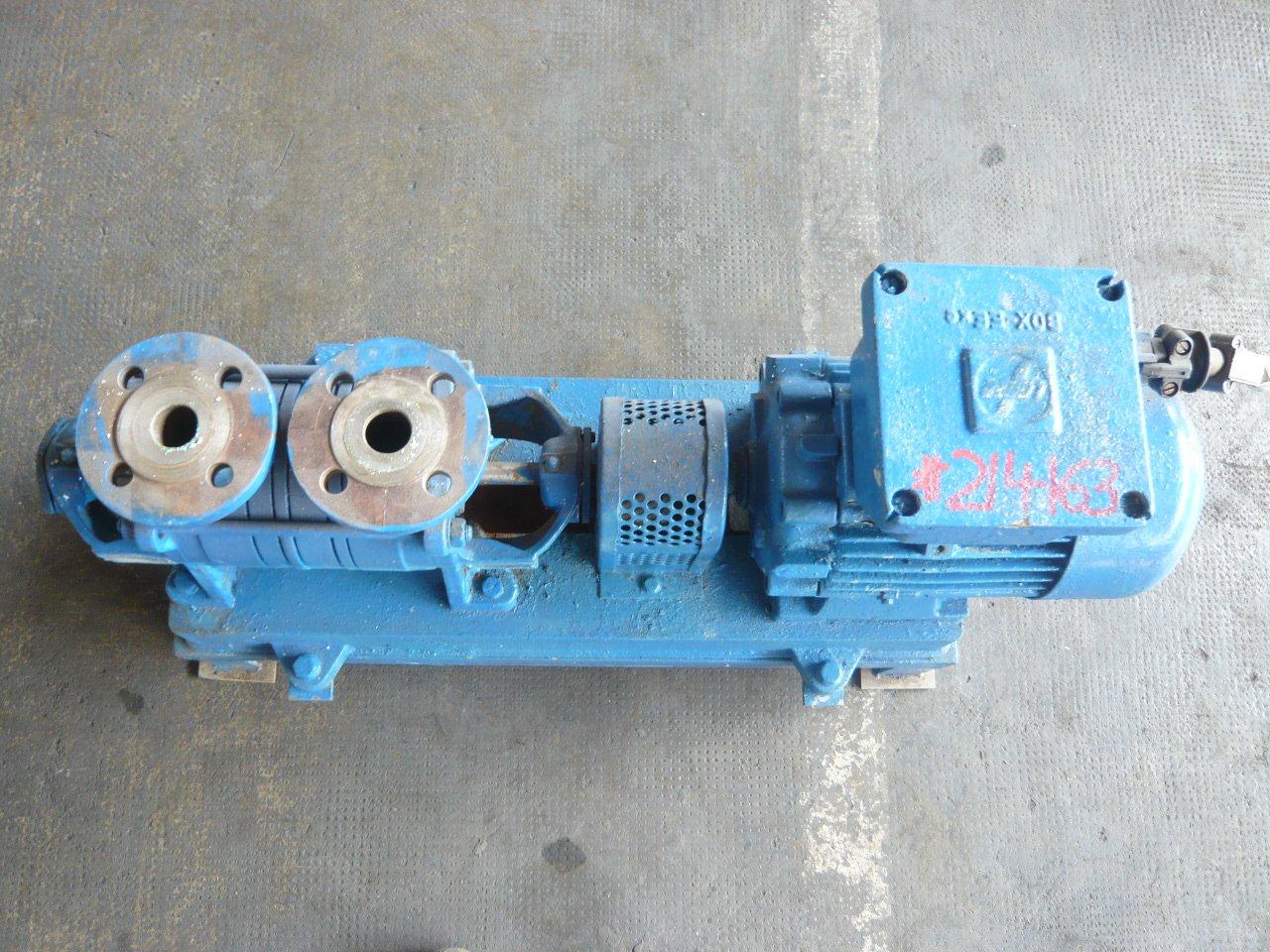

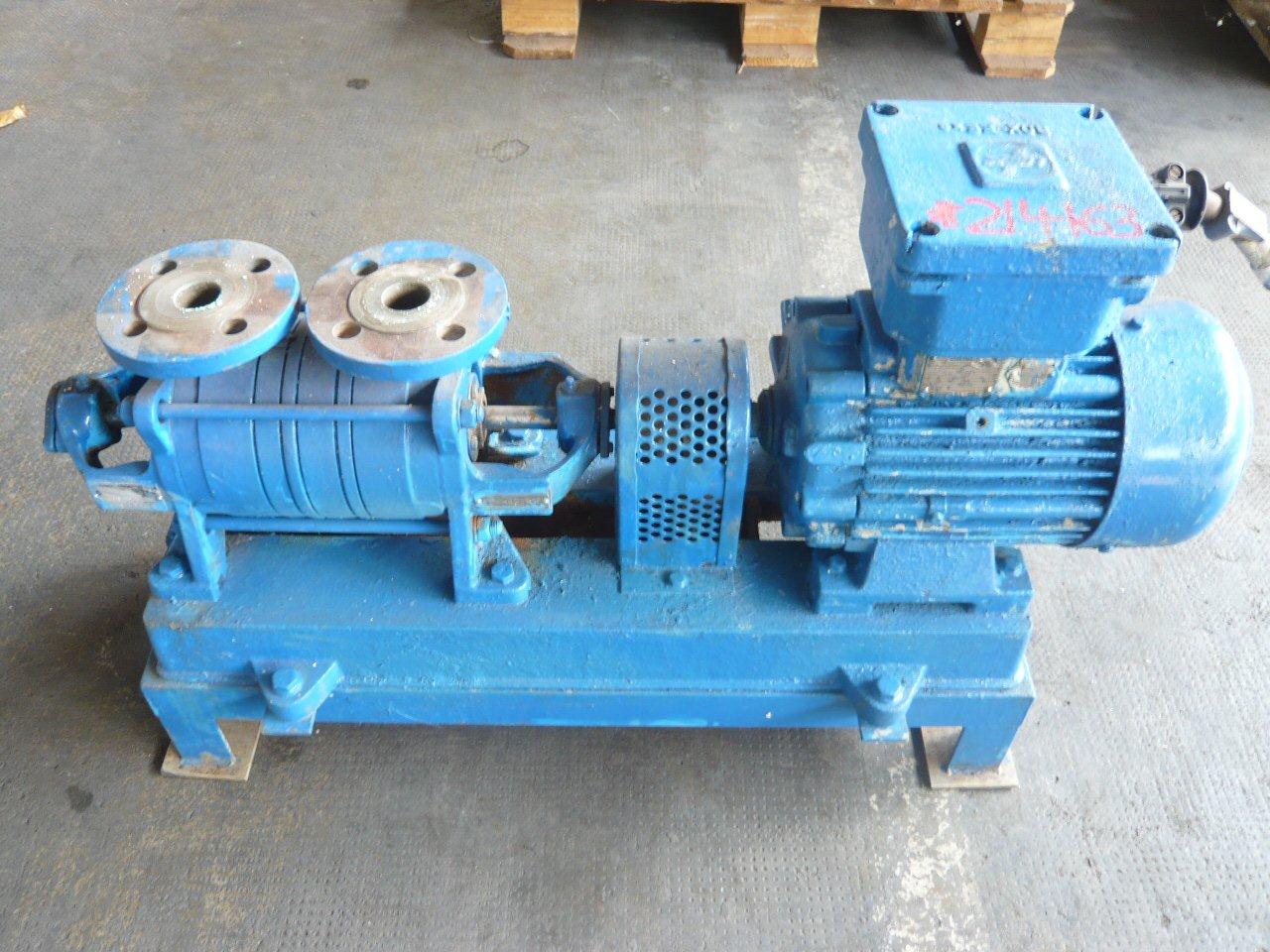

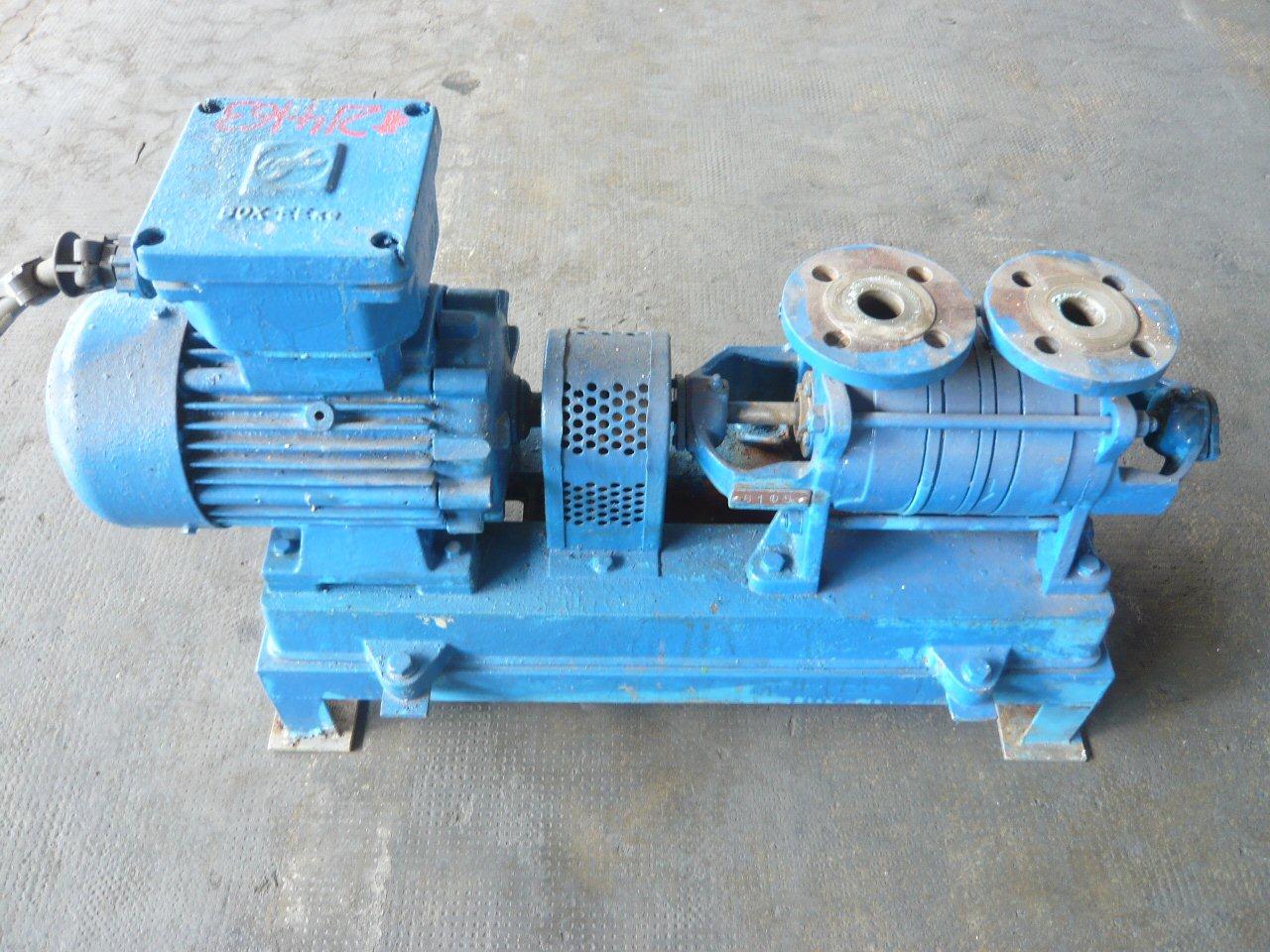

IPP# 214163 - Pump-Vacuum 8 m3/h (4.71 CFM) Stainless Steel Other For Sale

Type: Pump-Vacuum

Manufacturer: SIHI

Model: AKH-3602

Condition: Used

Material: Stainless Steel Other

Air Flow: 8 m3/h (4.71 CFM)

Orientation: Horizontal

Conveying height: 60 m
self-sucking side channel pump
CRANE 109 single-acting
type:DNGW-100LB-04A
motor#2079815
ATEX rating: EEx d e II CT4

Seal Type: Mechanical.

Type: Pump-Vacuum

Manufacturer: SIHI

Model: PLW 14000/2

Condition: Used

Material: Stainless Steel Other

Air Flow: 11,000 m3/h (6,474 CFM)

Discharge Pressure: 0.001 bar (0.0145 psi)

1 mbar

• Additional pump: 350 m3/Hr @ 33 to 0 mbar, SIHI 316 Stainless Steel liquid ring vacuum pump
• Additional motor: 15 Kw Loher E-Motor, Type DNGW 160LB-04A, 500 Volt, 3 phase, 50 Cycle, 1450 U/min, ExProof CT4
• Additional booster: SIHI Sterling CS Vacuum booster, rated 4000 m3/Hr, 11KW, type WNMY4000, Pump Number D729520106, driven by a 11 Kw Loher E-motor, type DNGW-160LB-04A, 500 volt, 50 cycle, 2930 U/min
• Separator tank: 1.730mm diameter x 2.940 mm long, 110 liter Stainless steel, rated 0,5 bar @ 100 degrees C
• Package dimensions: 2.940 mm long x 1.730 mm wide with separator x 3.315 height over all
• Package weight: 5.200 Kg (including carbon steel frame)

Orientation: Horizontal. Inlet Diameter: 250 mm (9.84 in). Outlet Diameter: 150 mm (5.91 in). Seal Type: Liquid Ring.

Type: Pump-Vacuum

Manufacturer: SIHI

Model: LPHY-45008

Condition: Used

Material: Stainless Steel Other

Air Flow: 105 m3/h (61.8 CFM)

Orientation: Horizontal

Inlet Diameter: 40 mm (1.57 in). Outlet Diameter: 40 mm (1.57 in). Seal Type: Liquid Ring.

Type: Pump-Vacuum

Manufacturer: SIHI

Model: LOHY-25007

Condition: Used

Material: Stainless Steel Other

Air Flow: 45 m3/h (26.5 CFM)

Orientation: Horizontal

Inlet Diameter: 32 mm (1.26 in). Outlet Diameter: 32 mm (1.26 in). Seal Type: Liquid Ring.
