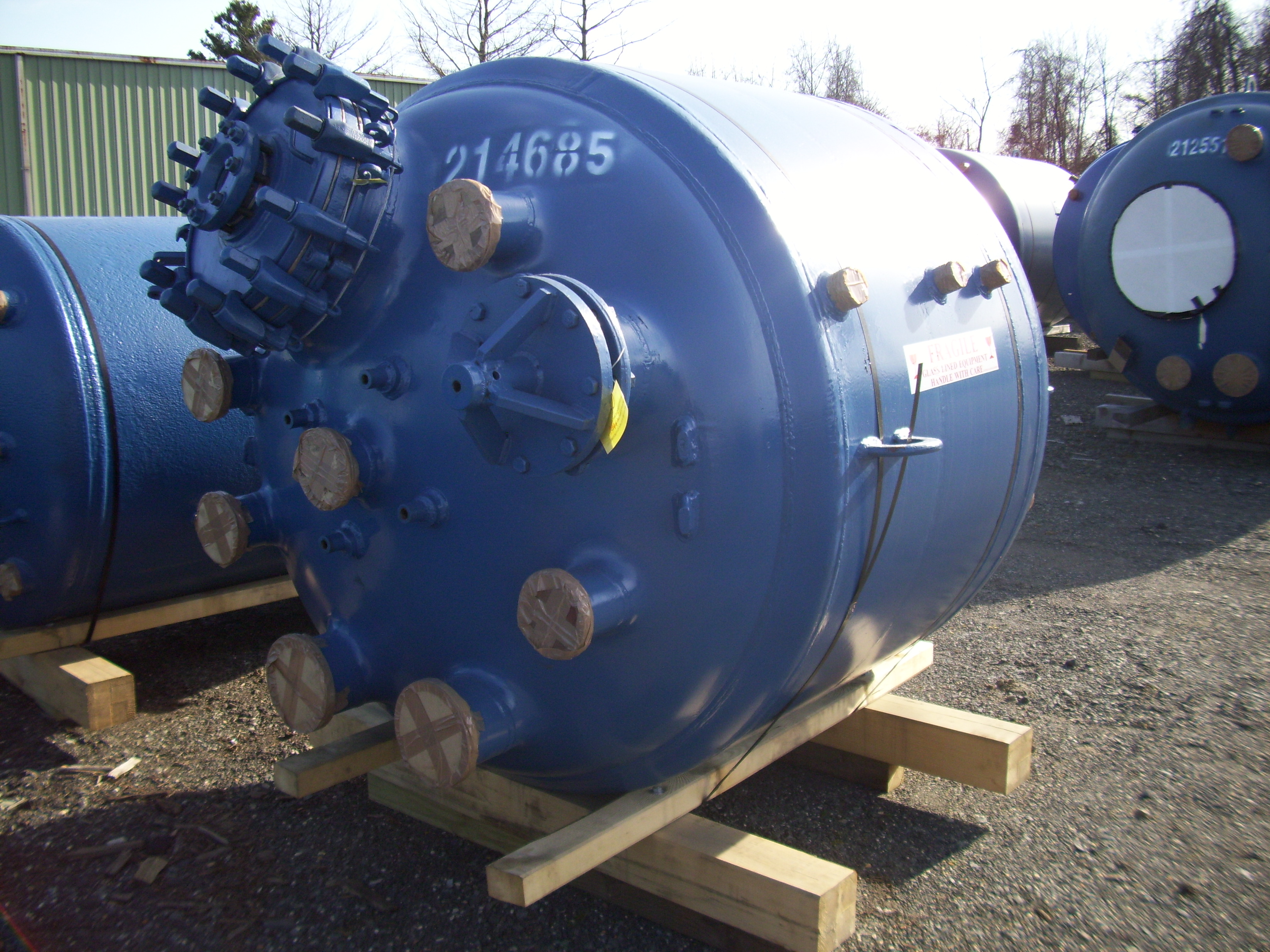

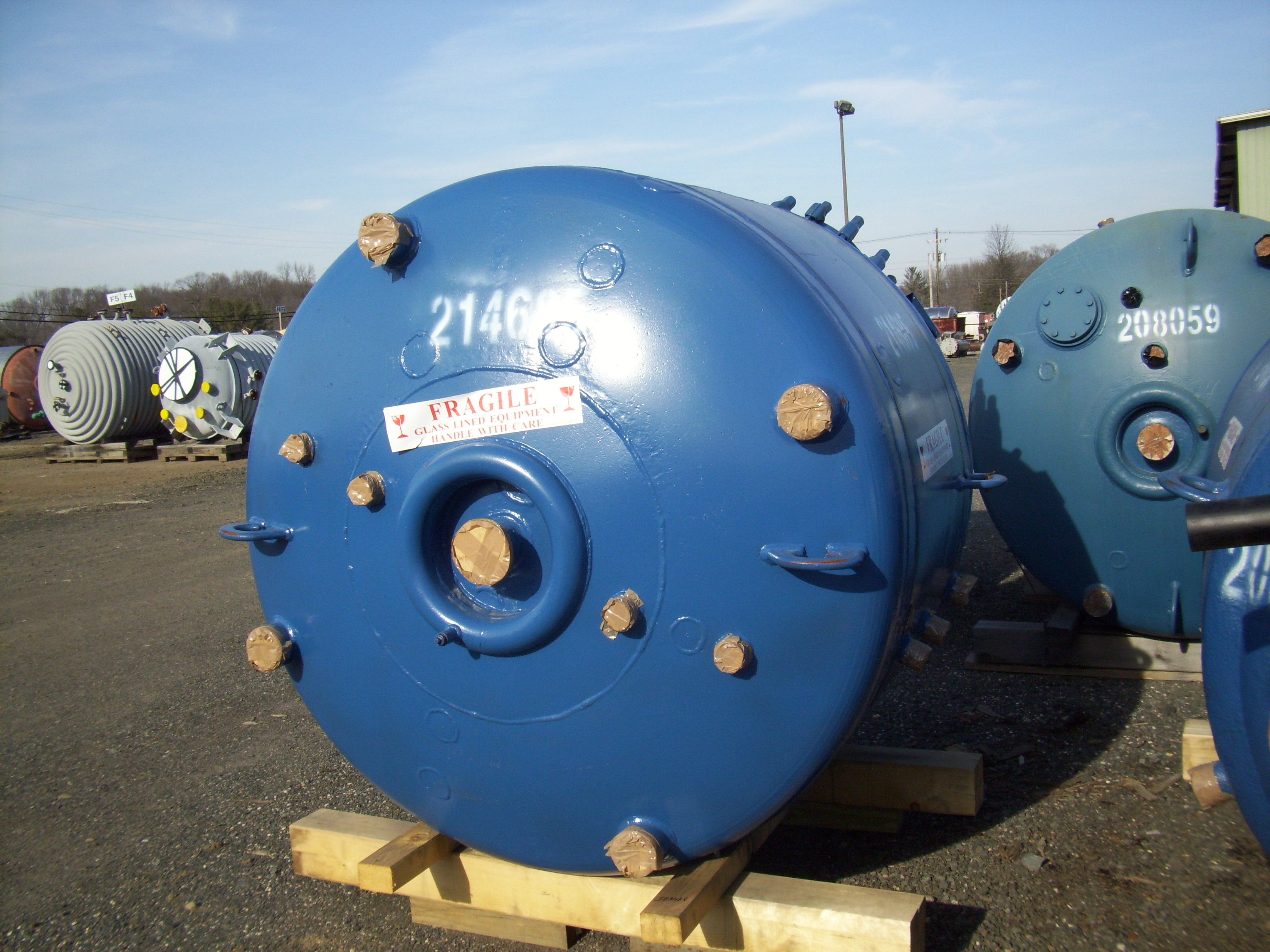

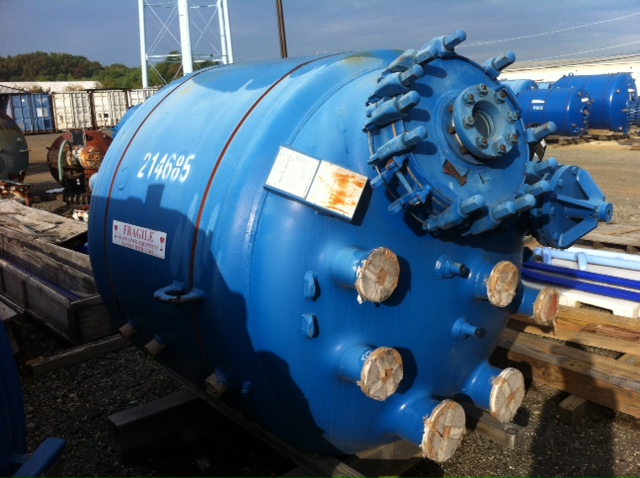

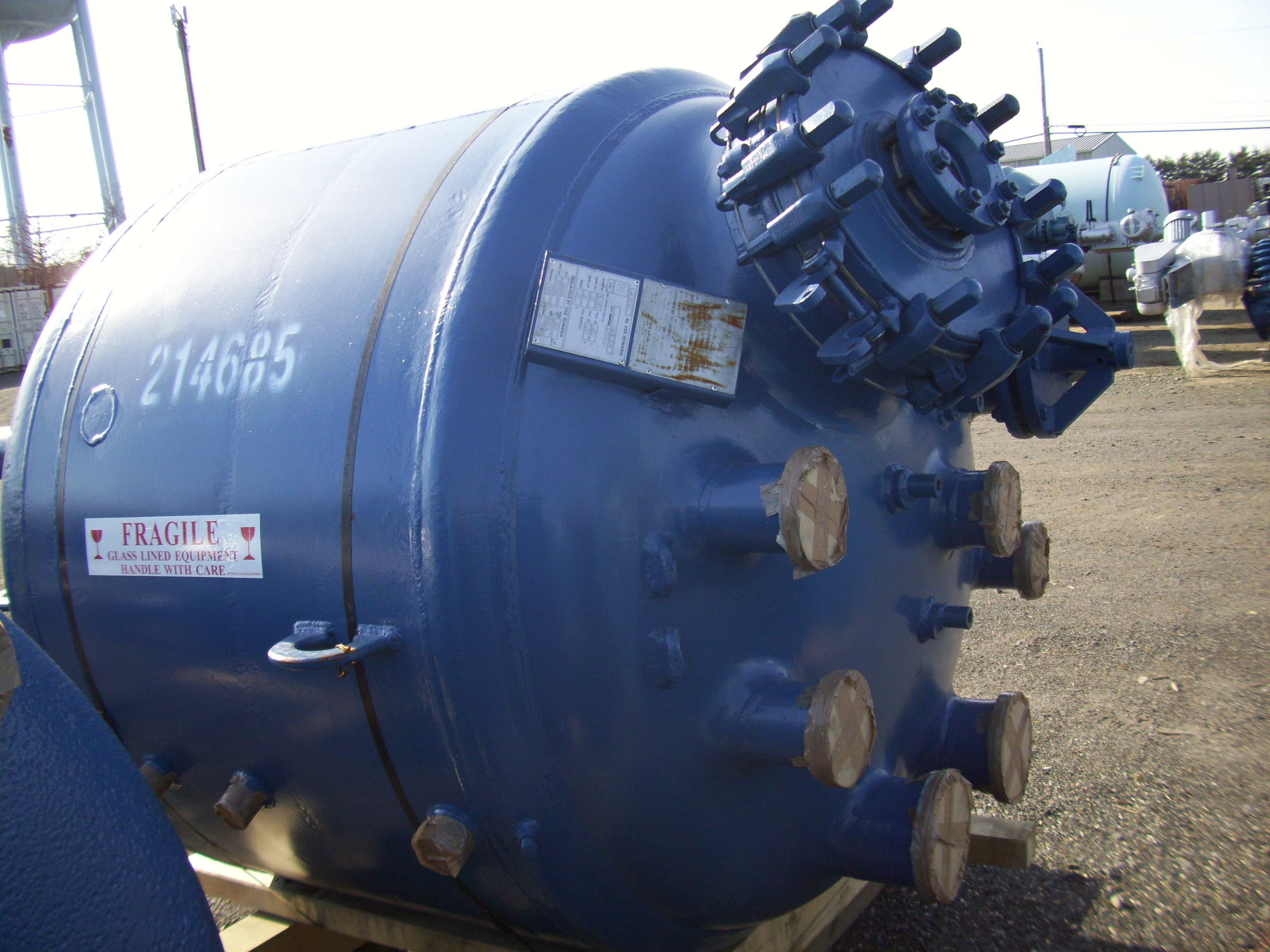

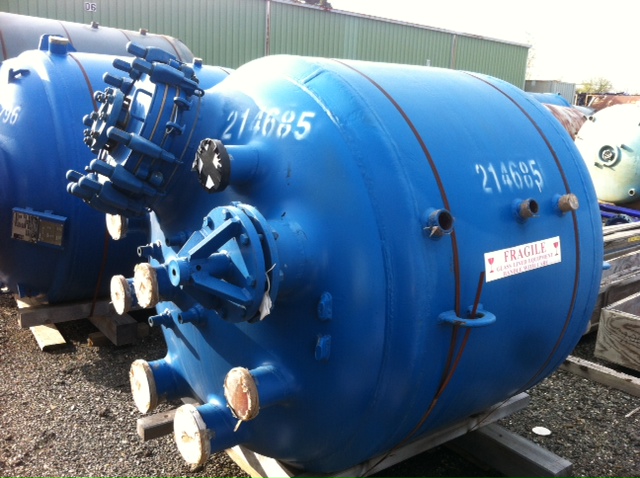

Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685

  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685 Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685 Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685 Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685 Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685 Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685 Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 214685
Overview
Reactor
Batch-Type Agitated
Pfaudler
KC
Re-glassed
Glasslined
1,900 L (500 gallons)
Pressure Vessel
6.9 bar (100 psi)
Yes
232.2 °C (450 °F)
Jacket/Internal Coil
6.2 bar (90 psi)
232.2 °C (450 °F)
Dimensions
1,700 mm (66 in)
1,000 mm (40 in)
Agitation System

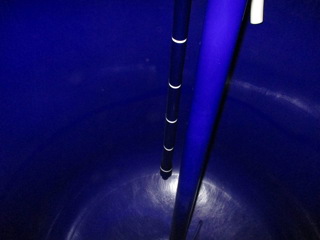

Finger Baffle
Equipped with flange mounted fin baffle.
Heads
Dish
Dish
Other Specifications
Yes
Inlets & Outlets
Top openings: (1) 18" manway cover hinged to a protection ring, (1) 4 3/8" center agitator nozzle with (4) drive bosses, (1) 8",(2) 6", (4) 4", (4) ; Bottom: (1) 3" center outlet

Base Reactor,
