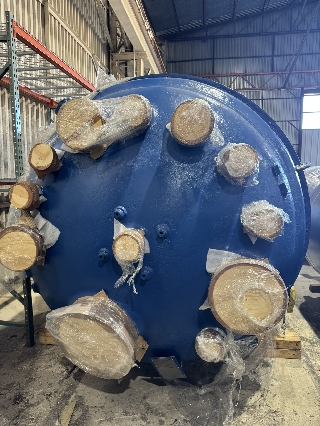

Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232

  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232 Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232 Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232 Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232 Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232 Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232 Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232
  • Glasslined Pfaudler KC Batch-Type Agitated Reactor - IPP# 233232
Overview
Reactor
Batch-Type Agitated
Pfaudler
KC
Used
Glasslined
5,700 L (1,500 gallons)
Pressure Vessel
6.9 bar (100 psi)
Yes
232.2 °C (450 °F)
Jacket/Internal Coil
6.2 bar (90 psi)
232.2 °C (450 °F)
Agitation System
Yes

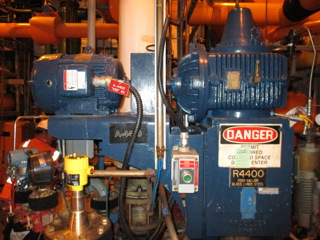

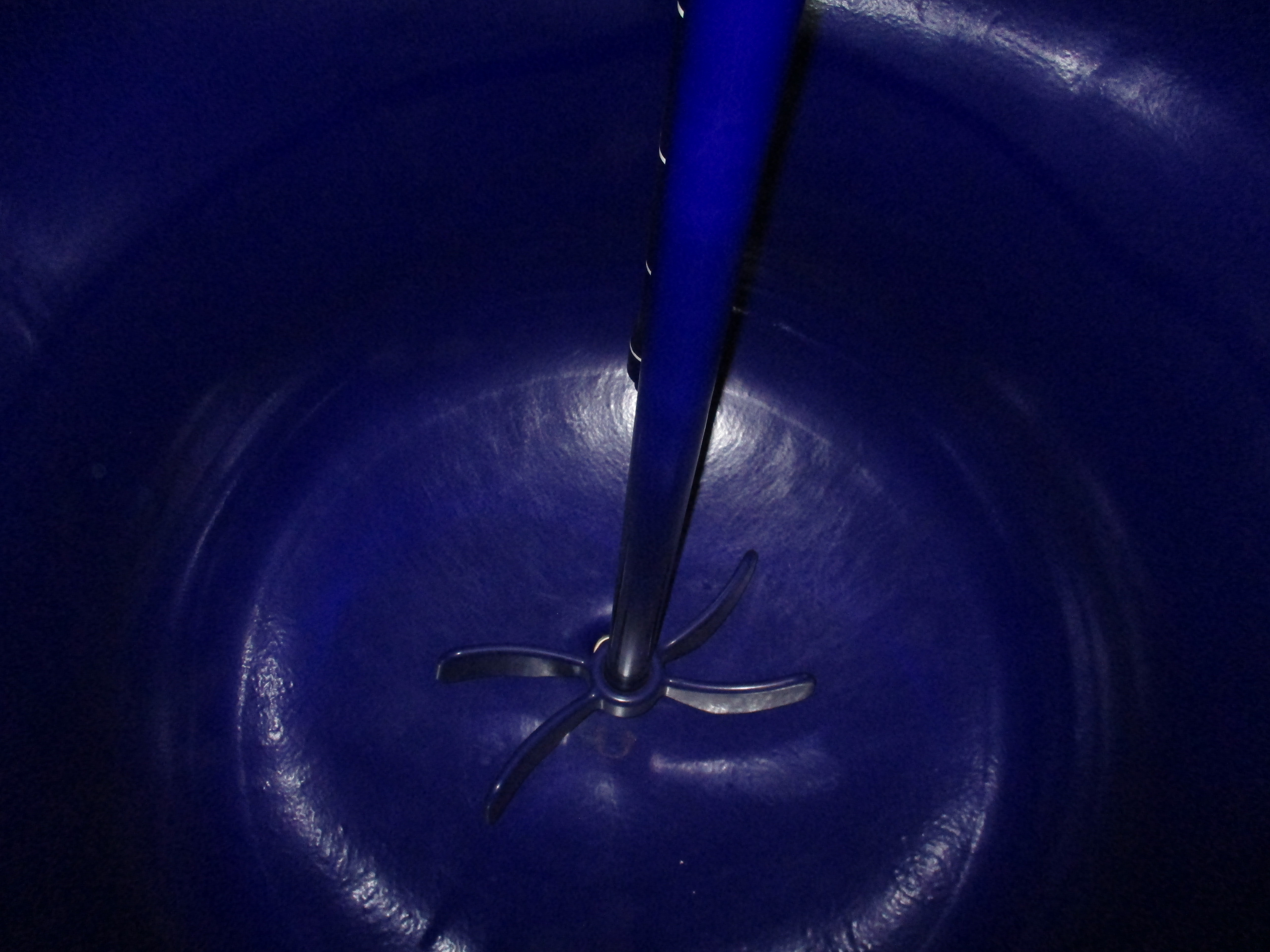

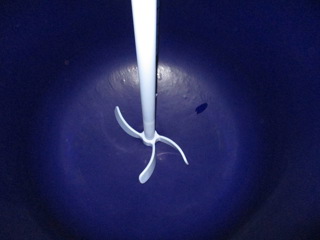

- Agitator: SEW Eurodrive TRD500 with 20HP motor and dry seal, cryolock agitator with single 33" CBT hub
Beavertail

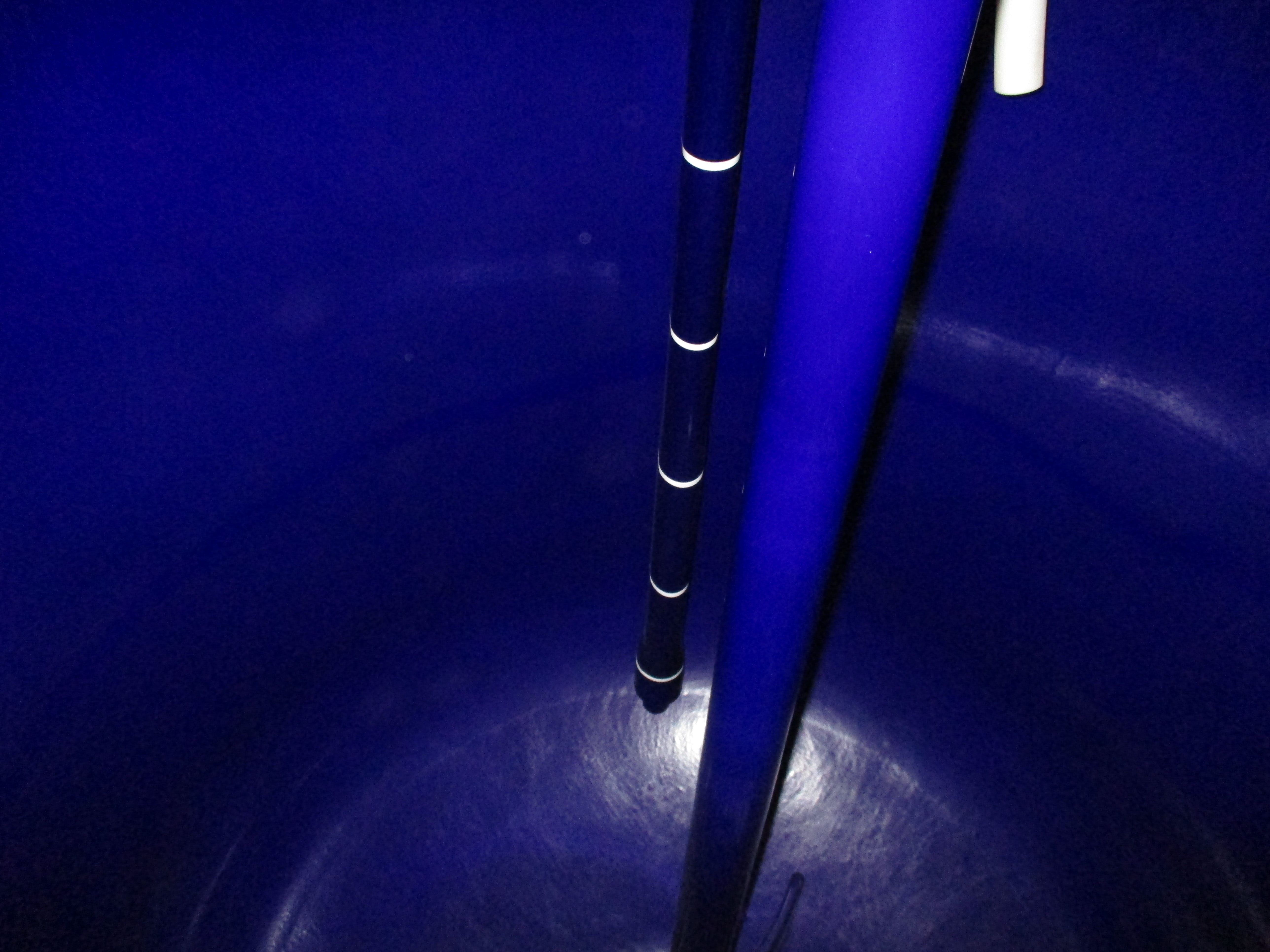

- Baffle: Beavertail baffle with white calibration lines
Dimensions
2,000 mm (78 in)
1,650 mm (65 in)
Other Specifications
Yes
Inlets & Outlets
4 3/8" drive nozzle. 18" manway with 4" sight glass, protection ring with spring assist. Top nozzle schedule : (6) 4", (1) 6", (2) 8", (1)12". 4" center bottom discharge.

reactor assembly

Similar Equipment

Glasslined Pfaudler KC Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: KC

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 1,900 L (500 gallons)

Internal Pressure: 6.9 bar (100 psi)

Base Reactor,

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 232.2 °C (450 °F). Diameter: 1,700 mm (66 in). Straight Side Length: 1,000 mm (40 in).

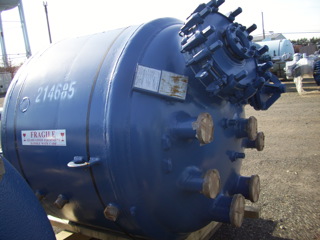

Glasslined Pfaudler KC Batch-Type Agitated Reactor
