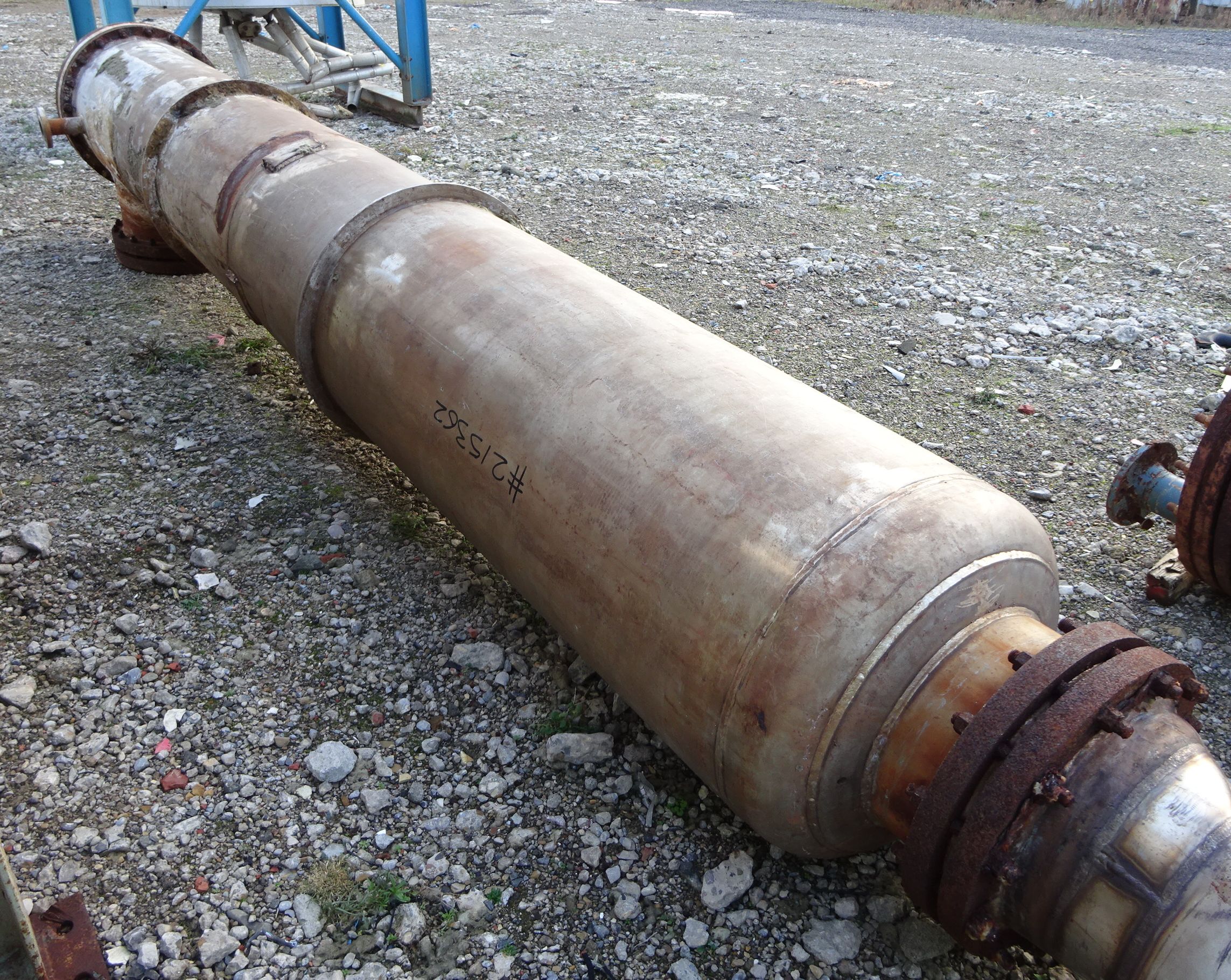

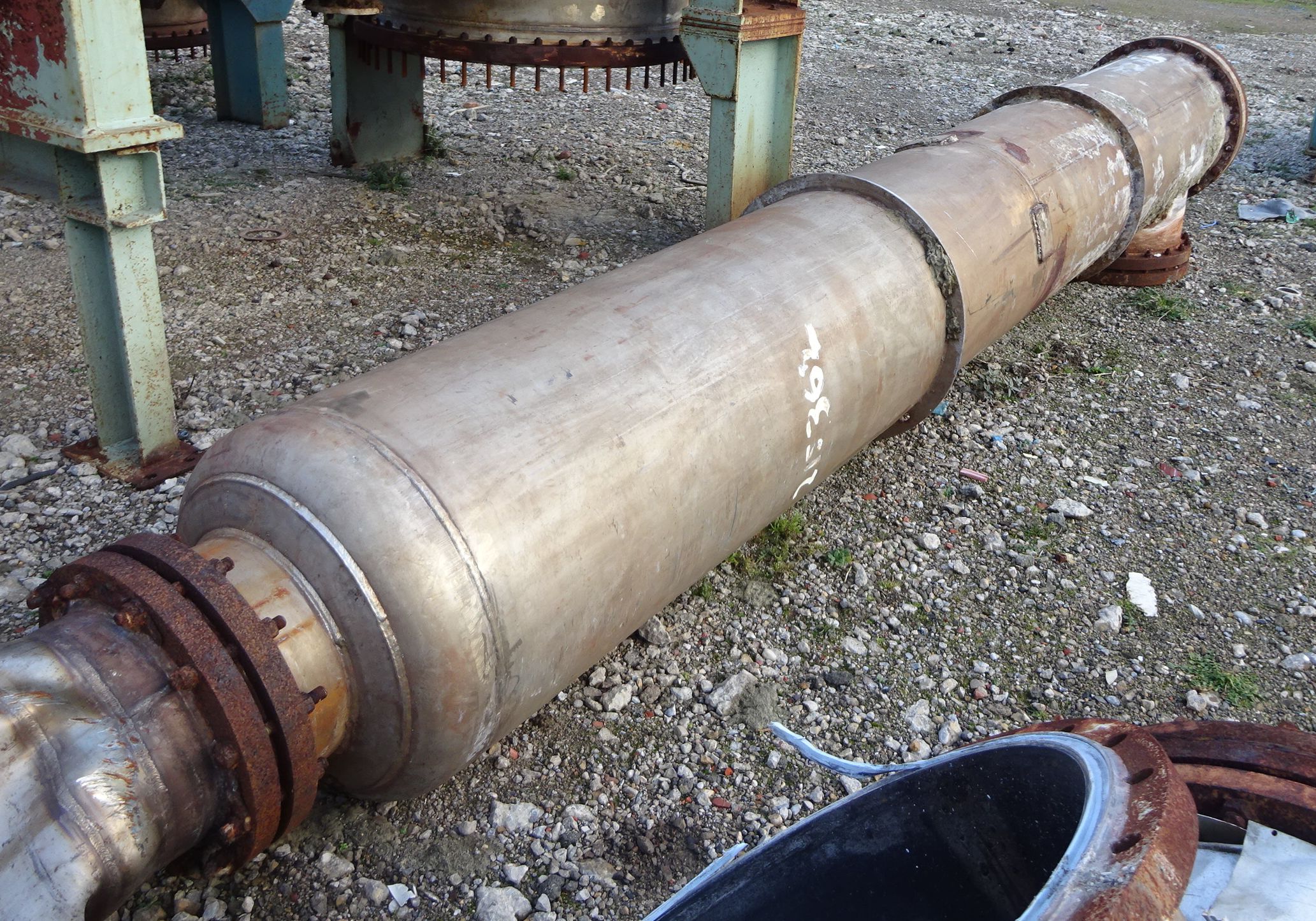

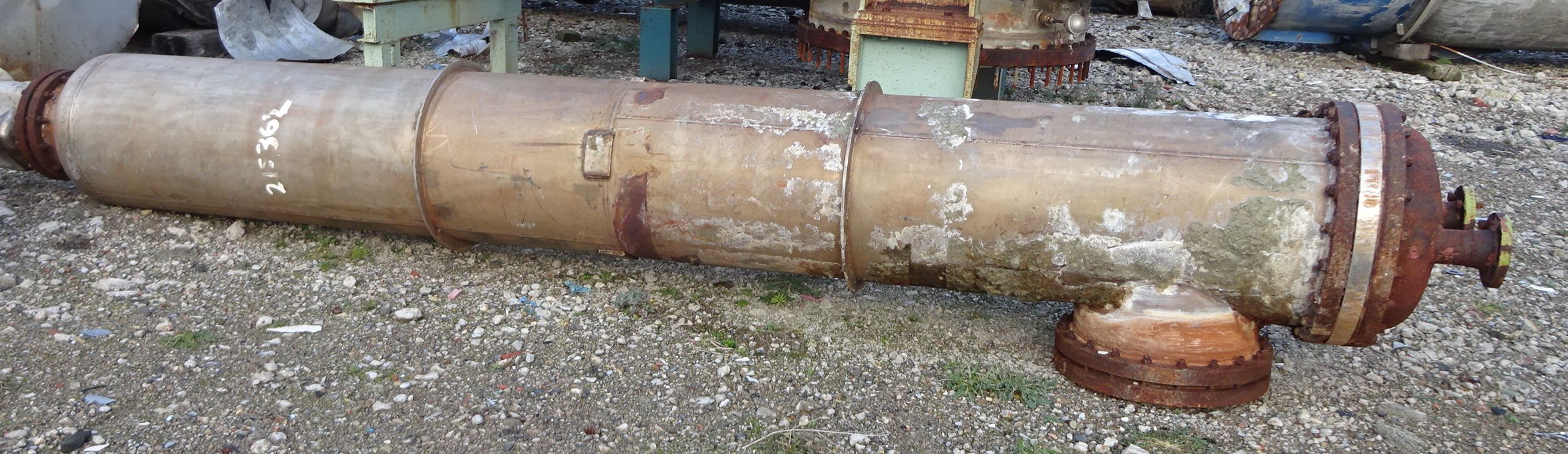

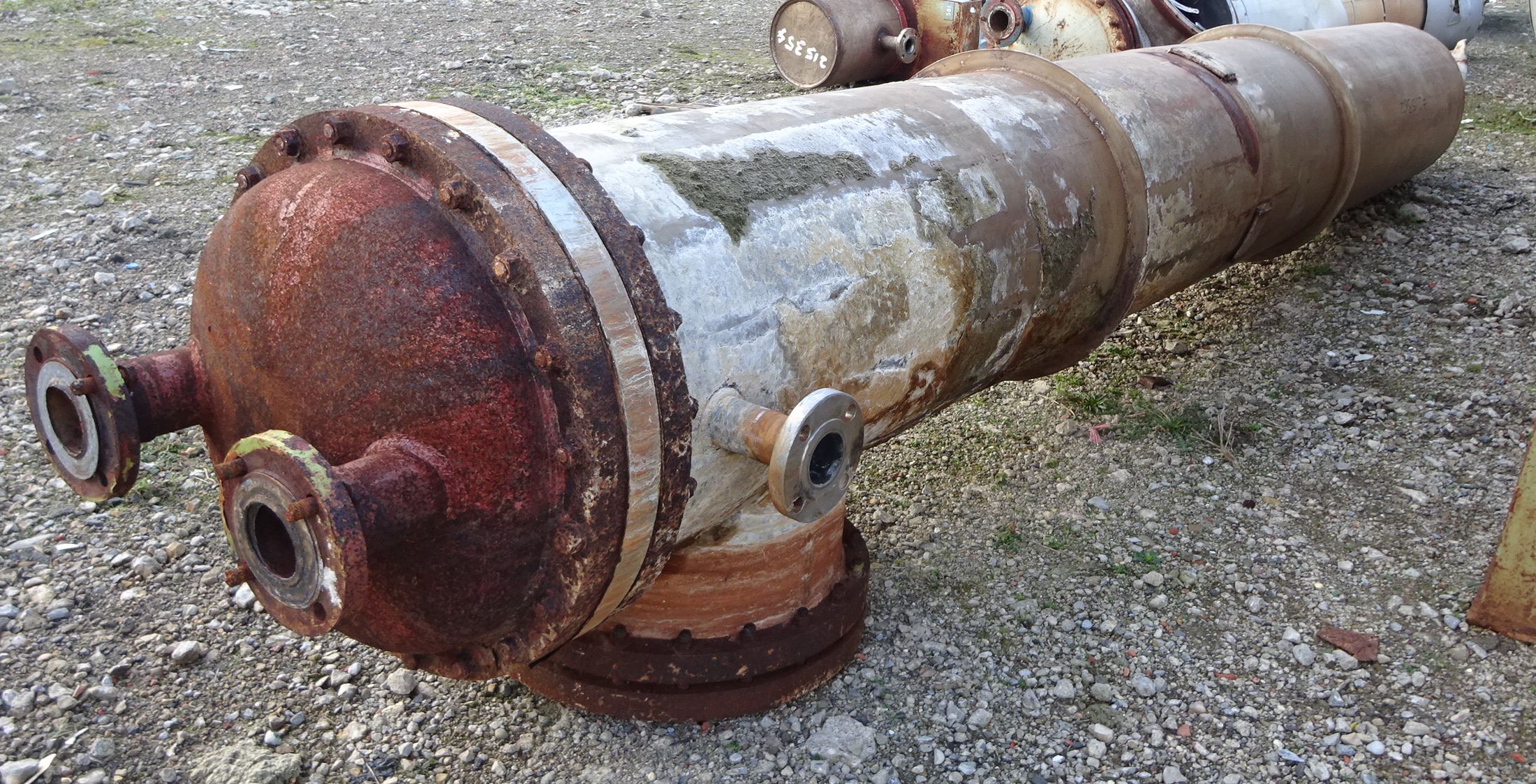

Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: R.Lords & Sons LTD.
Condition: Used
Material: Stainless Steel 316L
Heat Transfer Surface Area: 35 m² (376.7 ft²)
Orientation: Horizontal
working pressure on both sides 5mm hg absolute (0.09 psi) @ 200 degrees C
Shell Pressure: 0.006 bar (0.09 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 0.006 bar (0.09 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel Austenitic. Shell Diameter: 914 mm (36 in). Head Material: Carbon Steel. Length: 5,181 mm (204 in). Tube-side Passes: 4. Tube Number: 80. Tube Diameter: 28 mm (1.1 in). Tube Length: 5,181 mm (204 in). Nozzle Schedule: - Openings: Tubeside - 2-75mm, Shell - 1-400mm, 1-300mm, 2-50mm (with sump) .
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: R.Lords & Sons LTD.
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 57 m² (613.5 ft²)
Orientation: Horizontal
(1) carbon steel channel head
Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 173 °C (343.4 °F). Shell Material: Stainless Steel 316. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 173 °C (343.4 °F). Tube Material: Stainless Steel 316. Shell Diameter: 400 mm (15.7 in). Head Material: Carbon Steel. Length: 3,660 mm (144.1 in). Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 326. Tube Diameter: 19.3 mm (0.76 in). Tube Length: 3,346 mm (131.8 in). Nozzle Schedule: - Head openings: - Tubeside: 2-100mm - Shell: 2-75mm, 1-50mm (socket).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: R.Lords & Sons LTD.
Condition: Used
Material: Stainless Steel 316
Clad: Yes
Heat Transfer Surface Area: 13.8 m² (148.5 ft²)
Orientation: Horizontal
4-pass fully insulated and clad
Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 177 °C (350.6 °F). Shell Material: Carbon Steel. Tube Pressure: 8 bar (116 psi). Tube Temperature: 121 °C (249.8 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 272 mm (10.7 in). Head Material: Stainless Steel 316. Length: 4,428 mm (174.3 in). Tube Type: U-Tube. Tube Number: 56. Tube Diameter: 19 mm (0.75 in). Tube Length: 3,956 mm (155.7 in). Nozzle Schedule: 2-50mm openings, shell with 2-50mm openings.
Type: Heat Exchanger
Subtype: Shell and Tube
Condition: Used
Material: Stainless Steel 316L
Heat Transfer Surface Area: 54.4 m² (585.8 ft²)
Orientation: Horizontal
316L stainless steel 'U' tubes multi-pass
Shell Pressure: 3.5 bar (50.8 psi). Shell Material: Stainless Steel Austenitic. Tube Pressure: 3.5 bar (50.8 psi). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 1,100 mm (43.3 in). Head Material: Carbon Steel. Length: 3,500 mm (137.8 in). Tube Type: U-Tube. Tube Number: 180. Tube Diameter: 28 mm (1.1 in). Tube Length: 3,500 mm (137.8 in). Nozzle Schedule: - Openings: tubeside - 2-80mm, 4-15mm (sockets), shell - 1-800mm, 1-600mm, 1-80mm (with sump).
