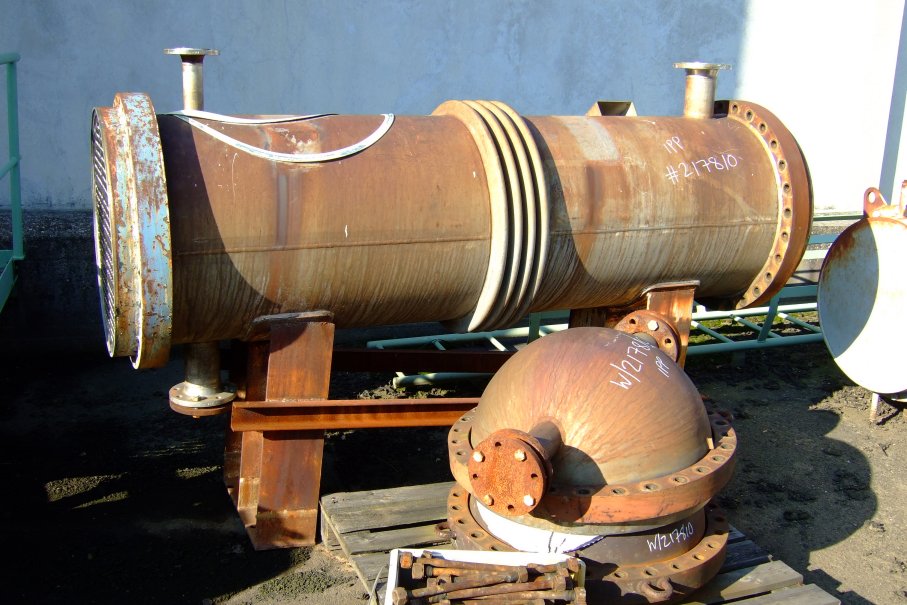

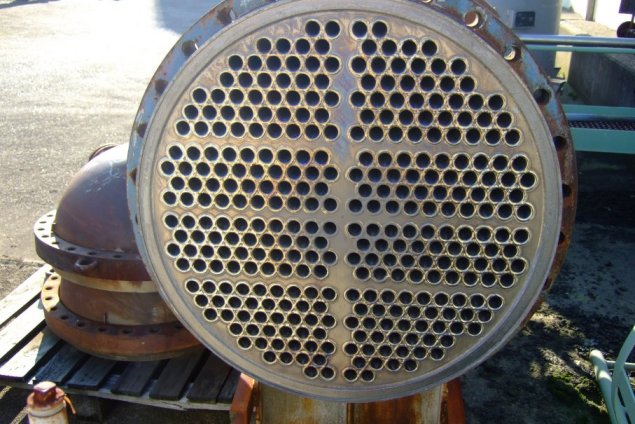

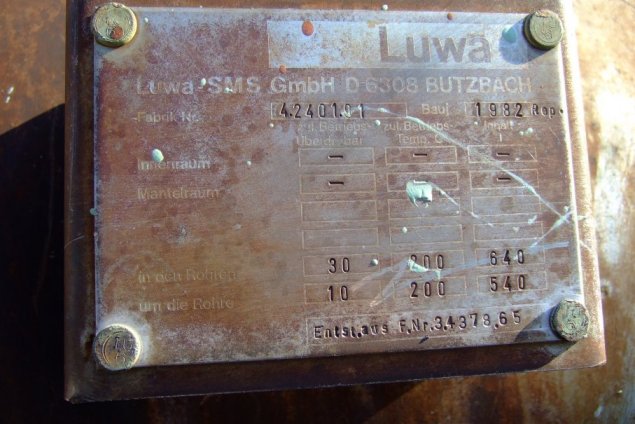

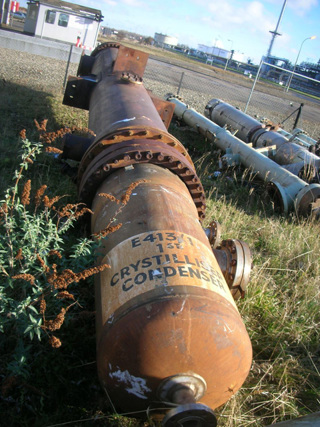

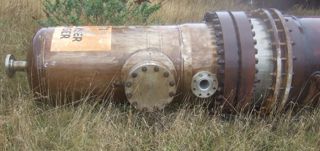

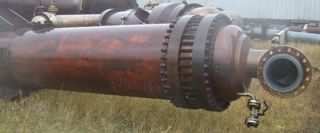

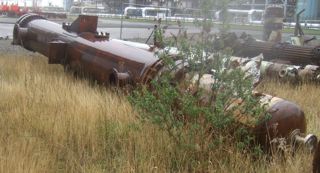

Titanium Luwa SMS Shell and Tube Heat Exchanger - IPP# 217810

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Wilton Engineering Ltd

Condition: Used

Material: Titanium

Clad: Yes

Heat Transfer Surface Area: 67 m² (721 ft²)

Orientation: Horizontal

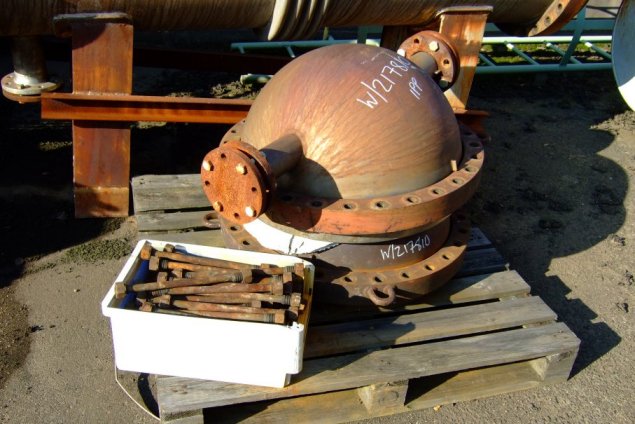

Head type: (2) flat heads (possibly Titanium clad on carbon steel) Design code: SEC V111 DIV.1.1968 & TEMA 'R' 1968

Shell Pressure: 88 bar (1,300 psi). Shell Temperature: 350 °C (662 °F). Shell Material: Carbon Steel. Tube Pressure: 88 bar (1,300 psi). Tube Temperature: 307 °C (585 °F). Tube Material: Titanium. Shell Diameter: 507 mm (20 in). Head Material: Titanium. Tube Number: 140. Tube Diameter: 19 mm (0.75 in). Tube Length: 9,150 mm (359.4 in). Nozzle Schedule: openings tube side: 1 head with 2-150mm, 1 head with none, shell side: 1-100mm with (2) 25mm off shoots, 1-75mm with (2) 25mm off shoots.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Reactive Metal Fabricators Ltd

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 433 m² (4,650 ft²)

Orientation: Horizontal

Incolloy S25 expansion joint Design code: V111 DIV.1

Shell Pressure: 6.9 bar (99.9 psi). Shell Temperature: 187.7 °C (369.9 °F). Shell Material: Carbon Steel. Tube Pressure: 12.1 bar (174.9 psi). Tube Temperature: 171 °C (339.8 °F). Tube Material: Titanium. Tubesheet Material: Titanium. Shell Diameter: 1,250 mm (48.9 in). Head Material: Stainless Steel 317. Tube-side Passes: 2. Tube Number: 1,140. Tube Diameter: 25 mm (0.98 in). Tube Length: 4,850 mm (191.8 in). Nozzle Schedule: openings tube side: 1 head with 2-325mm with (2) 25mm off shoots, 1 head with none, shell side: 1-225mm, 1-75mm with a 32mm off shoot,.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Bramah Process Plant Ltd

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 72.9 m² (785 ft²)

Orientation: Vertical

(1) 316L stainless steel dished head,

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 65 °C (149 °F). Shell Material: Carbon Steel. Tube Pressure: 7.6 bar (110.1 psi). Tube Temperature: 198.9 °C (390 °F). Tube Material: Titanium. Shell Diameter: 812 mm (32 in). Head Material: Stainless Steel 316. Tube-side Passes: 1. Tube Number: 500. Tube Diameter: 25 mm (0.98 in). Tube Length: 1,850 mm (71.9 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Motherwell Bridge Thermal Ltd

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 213 m² (2,300 ft²)

Orientation: Vertical

Titanium floating/stationary tube sheets Head specifications: (1) titanium dished head, (1) titanium bonnet head

Shell Pressure: 6.8 bar (99 psi). Shell Temperature: 190 °C (374 °F). Shell Material: Carbon Steel. Tube Pressure: 13.5 bar (196 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Titanium. Tubesheet Material: Titanium. Shell Diameter: 812 mm (32 in). Head Material: Titanium. Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 586. Tube Diameter: 19 mm (0.75 in). Tube Length: 6,100 mm (240.2 in). Nozzle Schedule: openings tube side: dished head with 1-250mm, 1-25mm, bonnet head with 1-200mm, 2-75mm, shell side: 1-350mm, 1-200mm, 1-32mm, 2-25mm,.
