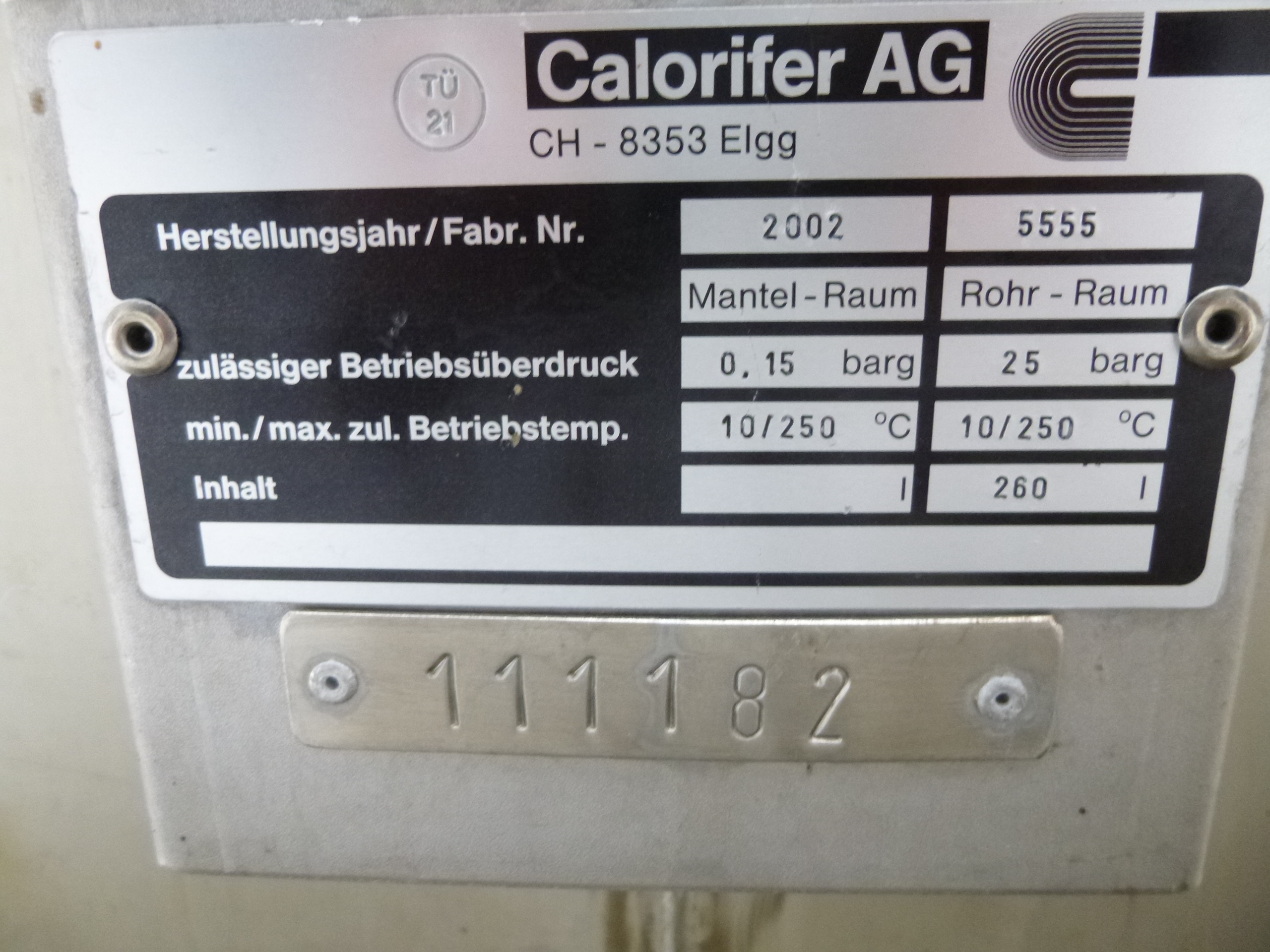

shell heater bank (calorifier) design pressure jacket 0,15 bar @ 250 degrees C design pressure tubeside 25 bar @ 250 degrees C, volume 260 liter, with welded on top and bottom cone section
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: CALORIFER AG
Condition: Used
Material: Stainless Steel 321
Heat Transfer Surface Area: 21.6 m² (232.5 ft²)
Shell Pressure: 0.15 bar (2.2 psi)
Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 321. Tube Pressure: 25 bar (362.6 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel 321. Nozzle Schedule: - Openings (tube side): (1) DN15, (3) DN 25 - Openings (shell side): (2) DN 900. Capacity: 126 L (33.3 gallons).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: CALORIFER AG
Condition: Used
Material: Hastelloy - C22
Heat Transfer Surface Area: 20 m² (215.3 ft²)
Orientation: Horizontal
design pressure tube side -1/6 barg @ -25/200 degrees C (198 liter), shell 0/16 barg @ -25/200 degrees C (123 liter), (126) 25.4mm diameter x 1.65 x 2002mm long, 417mm diameter 316L stainless steel (1.4404) shell with expansion joint, (16) 316L stainless steel (1.4404) internal baffle plates, (2) Hastelloy C22 (2.4602) integral channel heads with Hastelloy C22 clad removeable end plates
Shell Pressure: 16 bar (232.1 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel 316. Tube Pressure: 6 bar (87 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Hastelloy - C22. Tubesheet Material: Hastelloy - C22. Vacuum: Yes. Shell Diameter: 417 mm (16.4 in). Head Material: Hastelloy - C22. Length: 2,800 mm (110.2 in). Tube Type: Straight Tube. Tube Number: 126. Tube Diameter: 25.4 mm (1 in). Tube Length: 2,000 mm (78.8 in). Nozzle Schedule: tubes side 1 head with 1-250mm, 1 head with 1-75mm, shell 2-100mm. Capacity: 123 L (32.5 gallons). Heat Exchanger Tube Capacity: 198 L (52.3 gallons).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Paul Schwingel GmbH
Condition: Used
Material: Stainless Steel 321
Heat Transfer Surface Area: 20 m² (215.3 ft²)
Orientation: Vertical
pressure tube side -1/6,2 bar @ 250 deg C, volume 330 liter shell side -1/6,2 bar @ 250 deg C, volume 218 liter (1) bonnet head, (1) dished head
Shell Pressure: 6.2 bar (89.9 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 321. Tube Pressure: 6.2 bar (89.9 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 500 mm (19.7 in). Head Material: Stainless Steel 321. Tube Number: 110. Tube Diameter: 30 mm (1.18 in). Tube Length: 2,500 mm (98.6 in). Tube Thickness: 2.5 mm (0.1 in).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Buhler AG
Model: OTW-500-A-32280
Condition: Used
Material: Stainless Steel 321
Heat Transfer Surface Area: 38 m² (409 ft²)
Shell Material: Stainless Steel 321

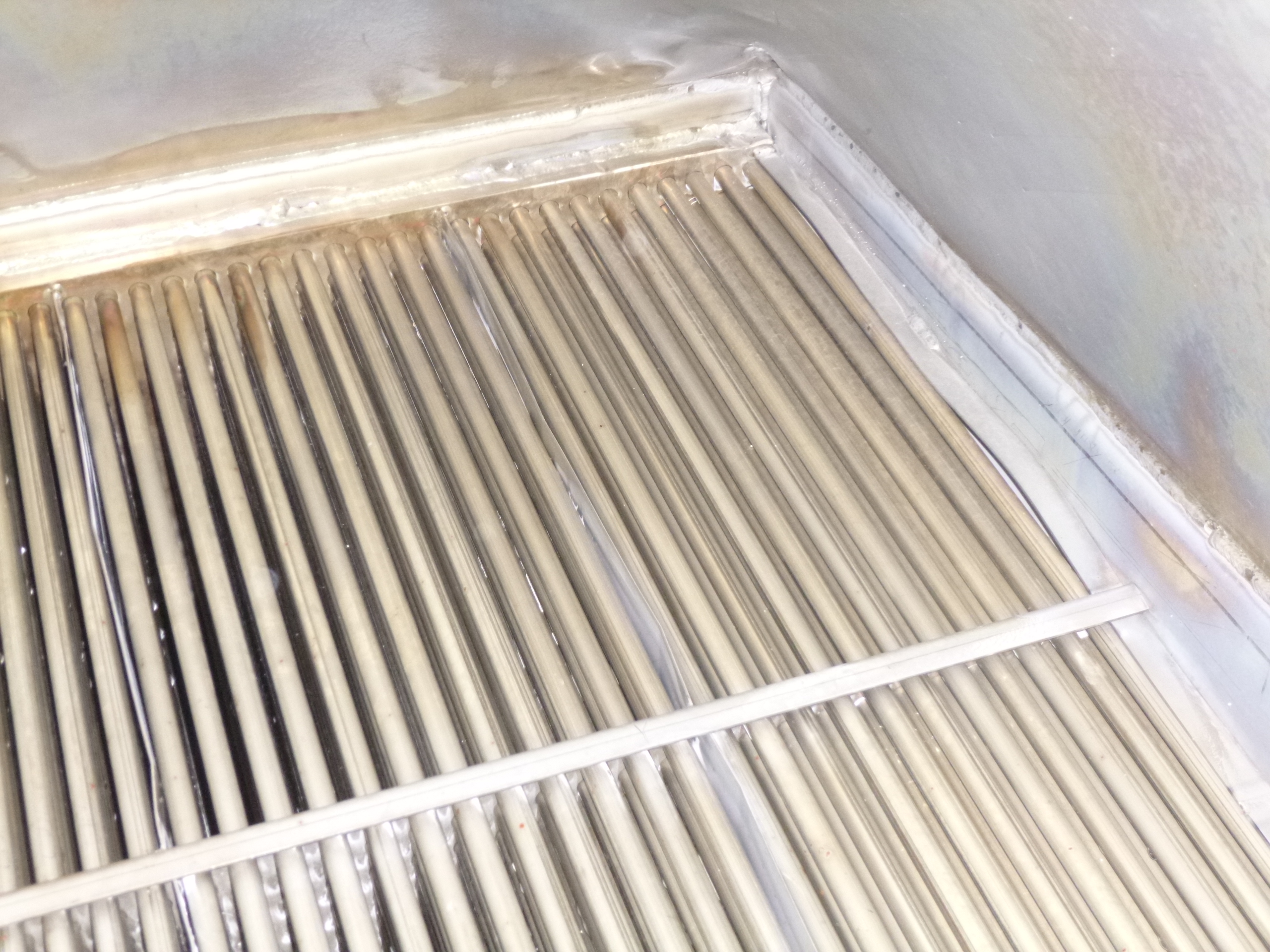

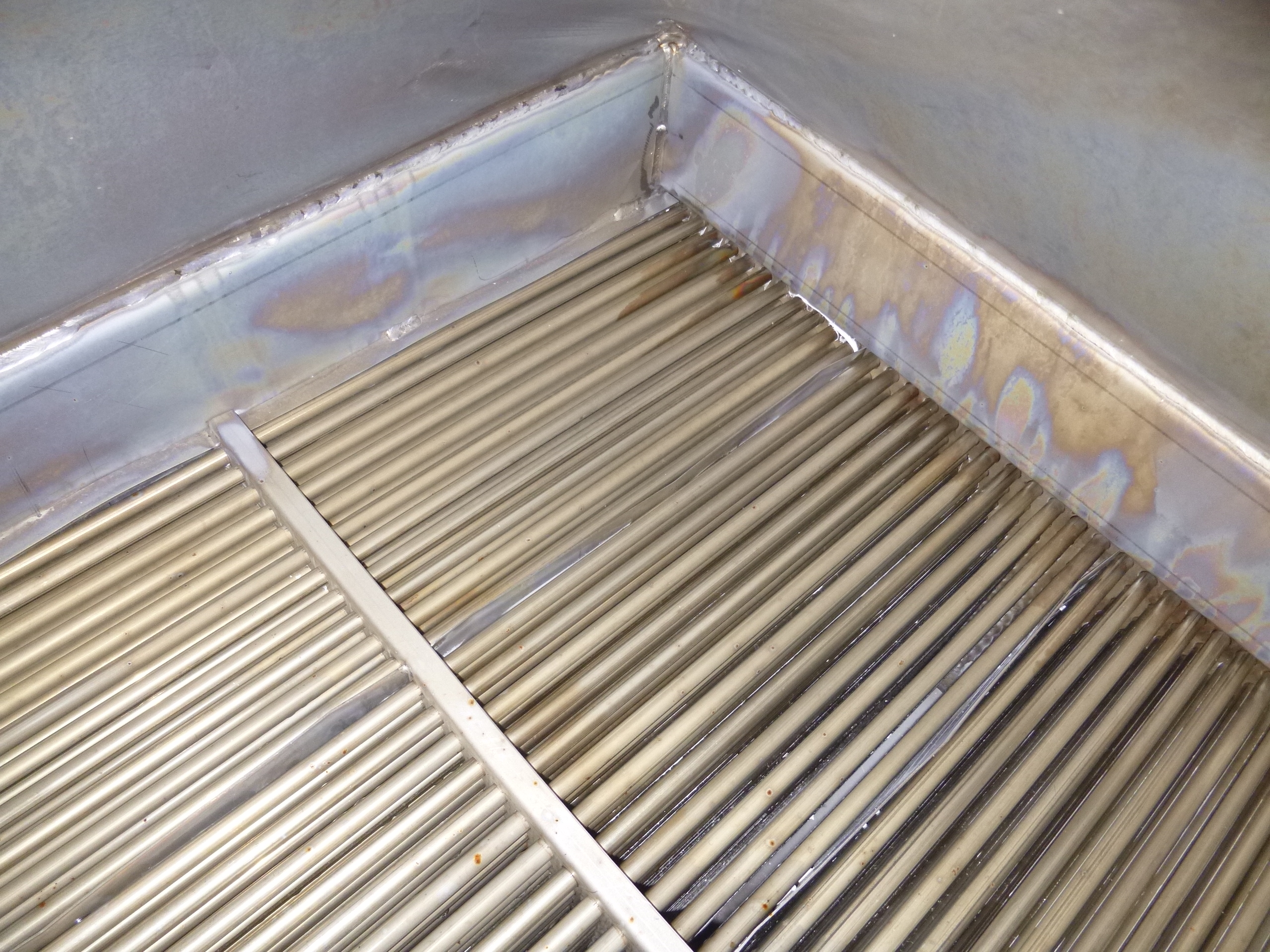

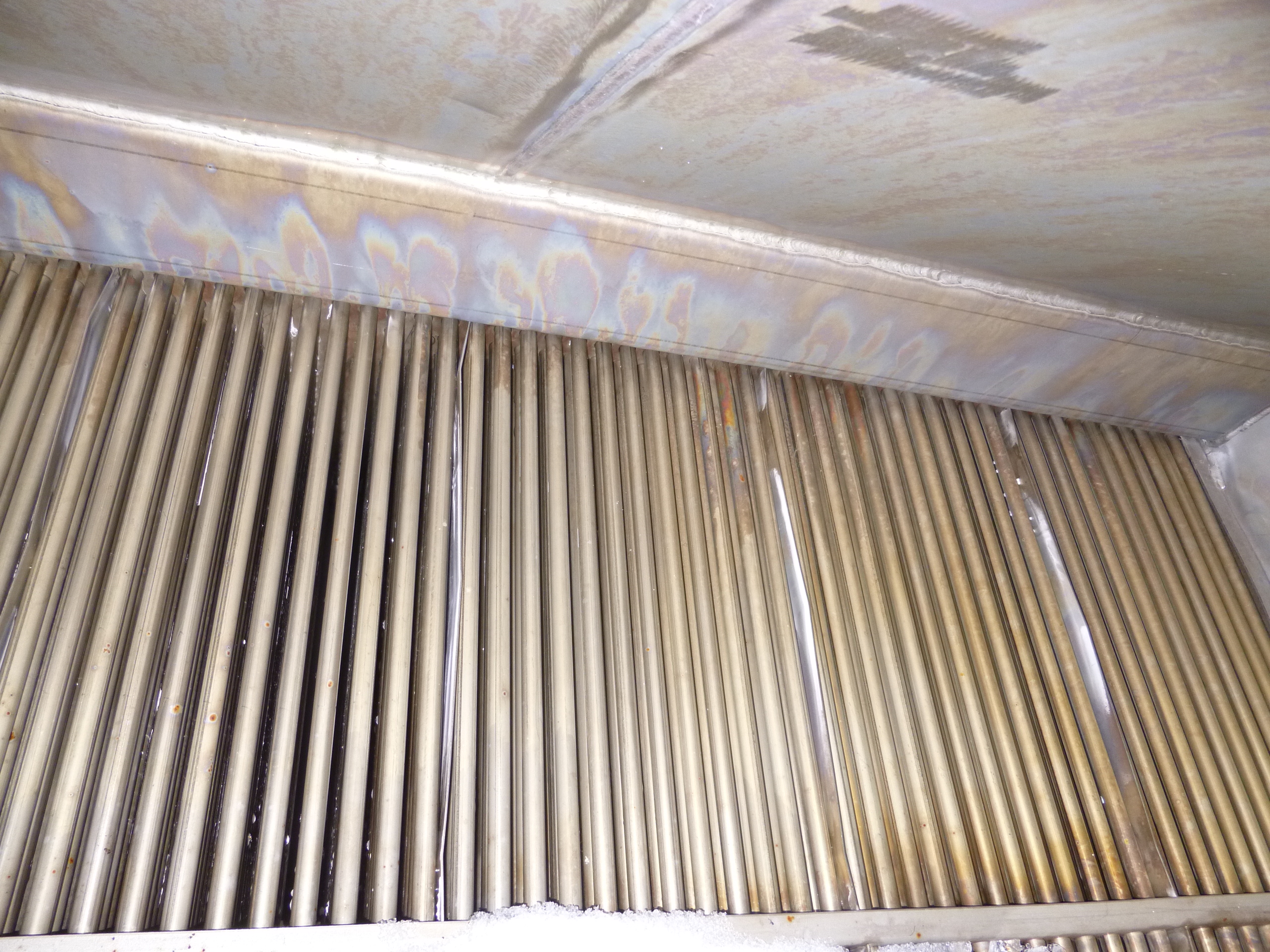

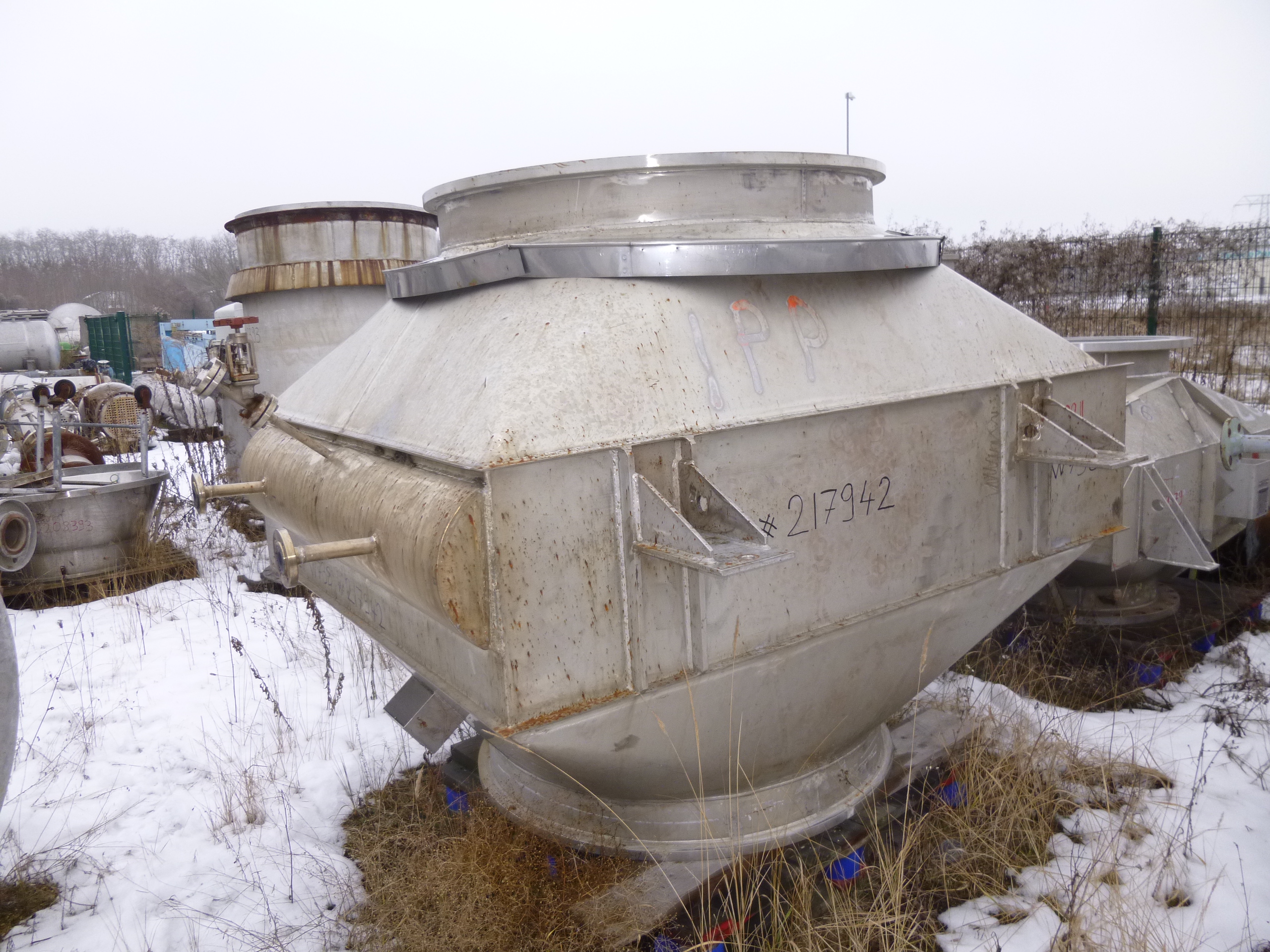

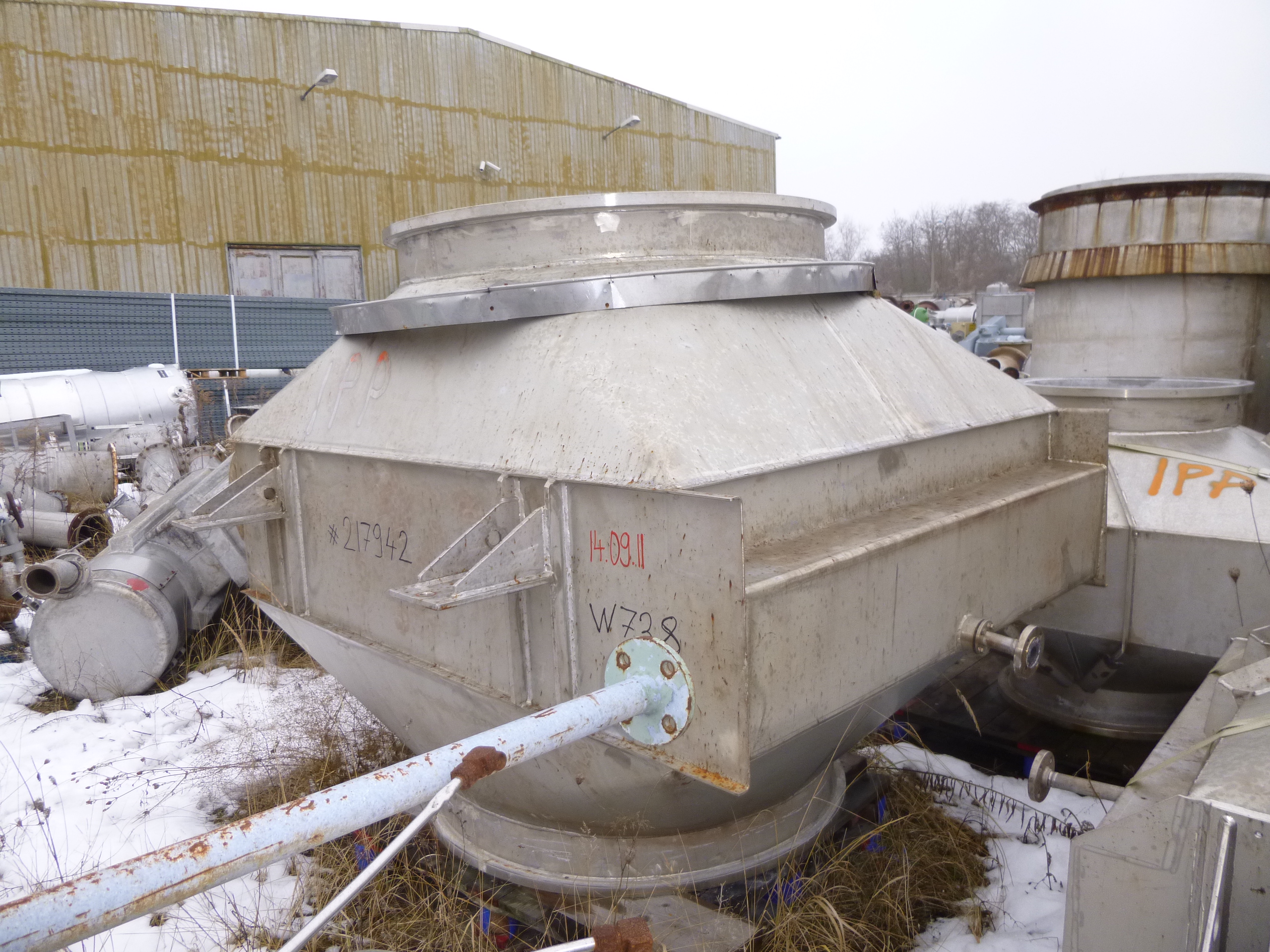

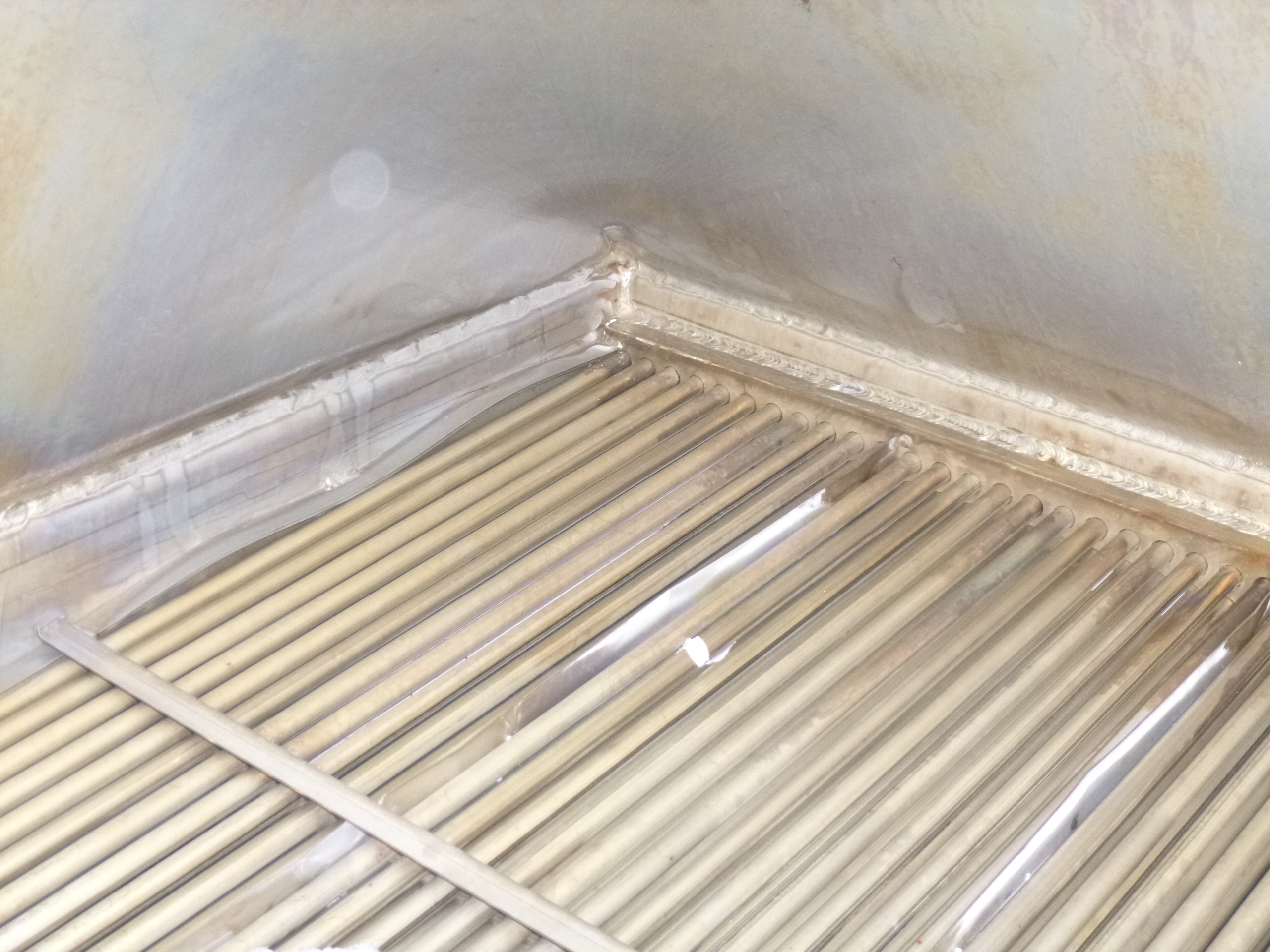

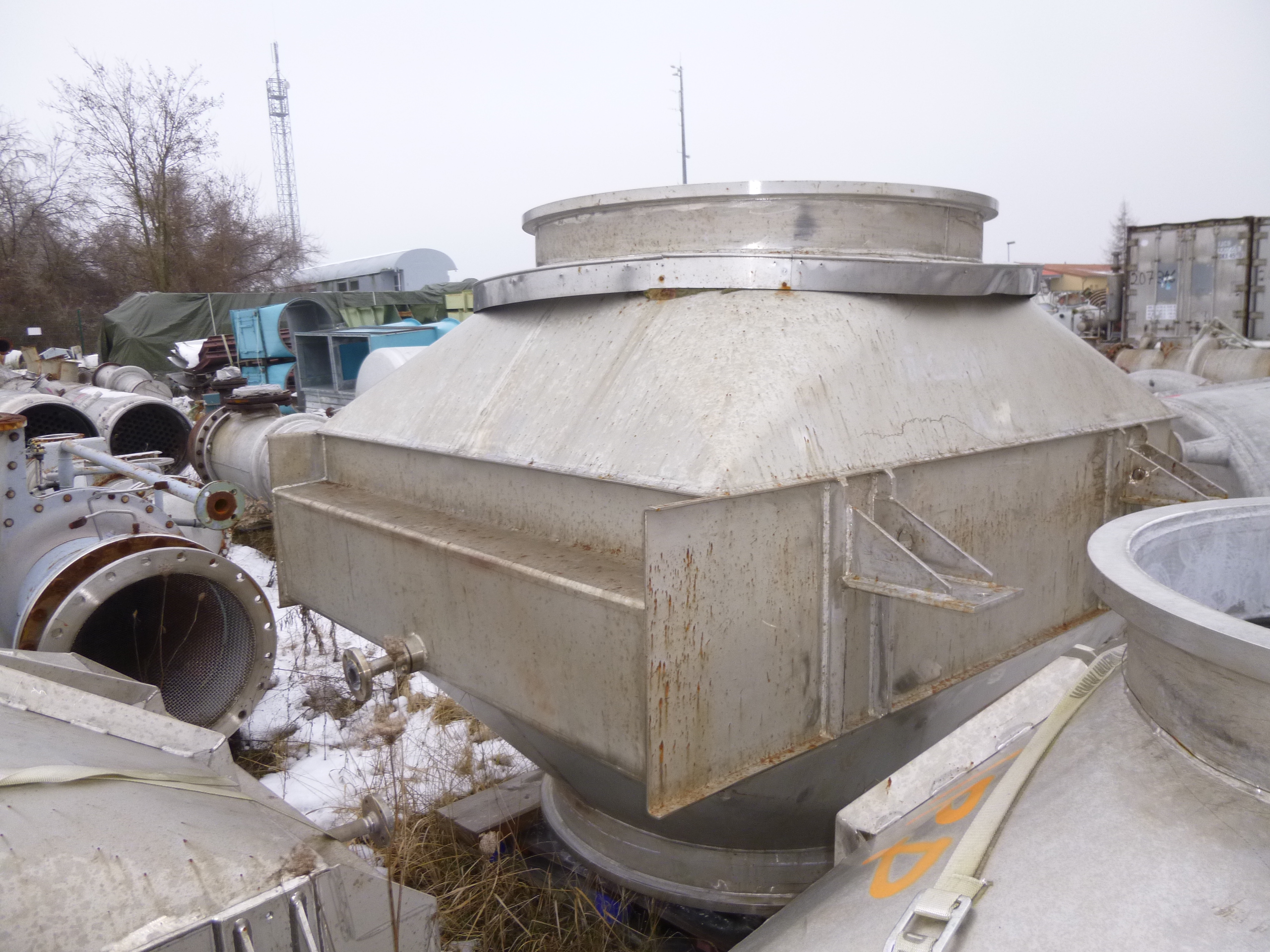

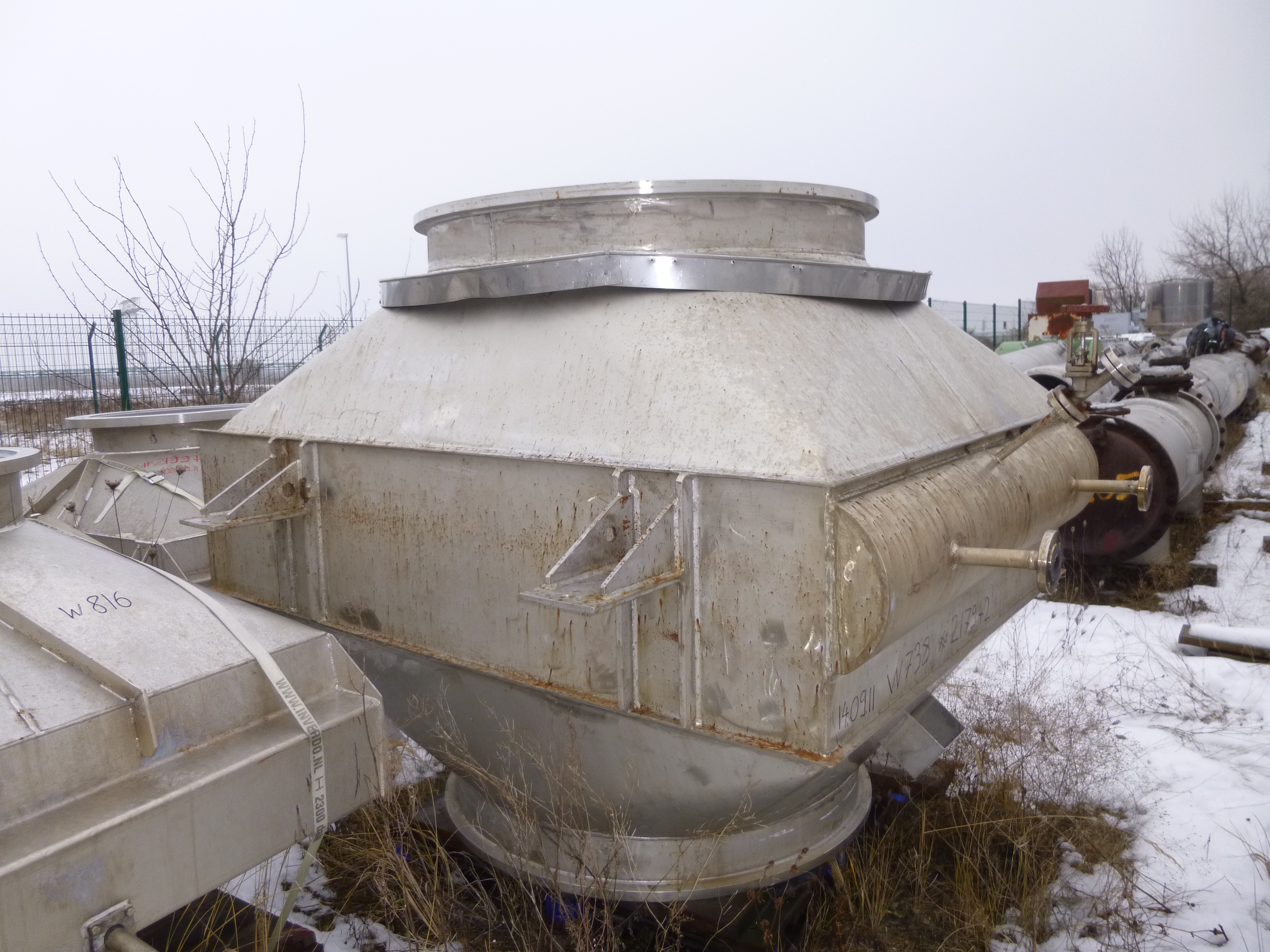

tube chamber 1760mm wide x 1224mm long x 360mm deep with welded on top and bottom cone section
Tube Pressure: 23 bar (333.6 psi). Tube Temperature: 400 °C (752 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Tube Number: 540. Tube Diameter: 14 mm (0.55 in). Tube Length: 1,650 mm (65 in). Nozzle Schedule: - Tube openings: 2-25mm, 1-15mm, 1 x cone with 1-700mm, 1 x cone with 1-700mm. Capacity: 123 L (32.5 gallons).
