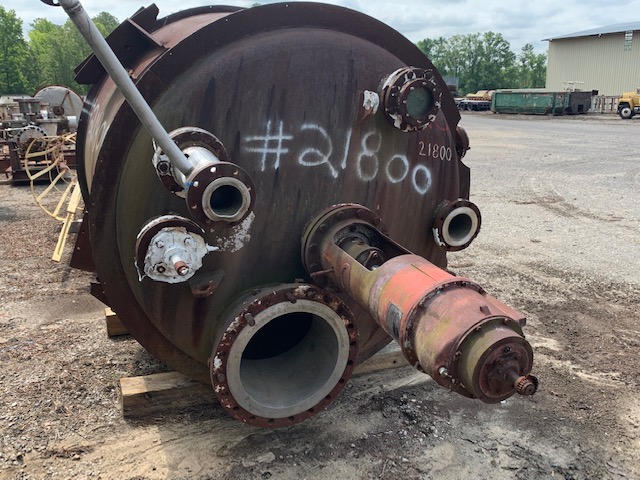

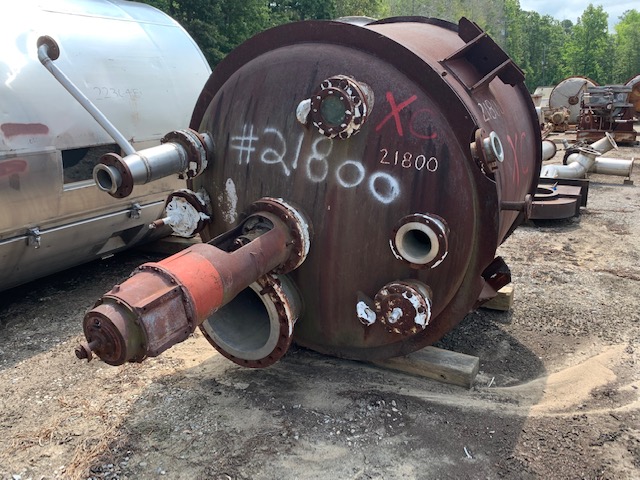

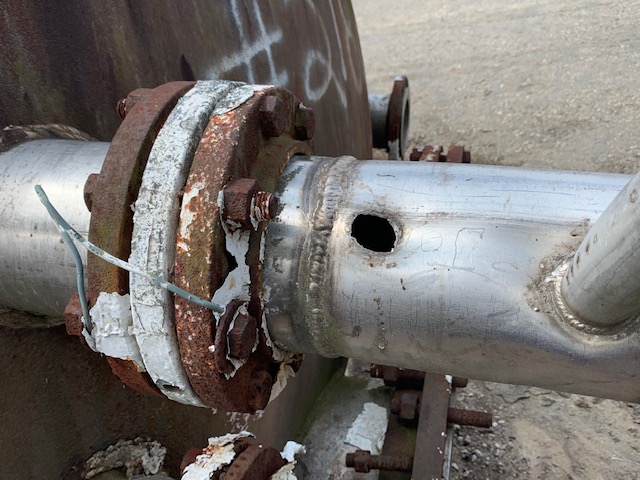

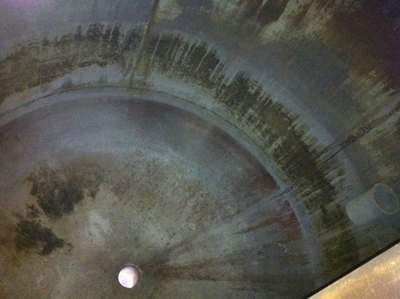

Stainless Steel 304 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 21800

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Superior Welding

Condition: Used

Material: Stainless Steel 321

Clad: Yes

Capacity (Design): 1,900 L (500 gallons)

Internal Pressure: 86.2 bar (1,250 psi)

• Internal coil, of 321 SS seamless pipe, is 2 & 3/8" diameter x 0.218 wall thickness. It has 13 turns with a 36" mean diameter on a 4" pitch.

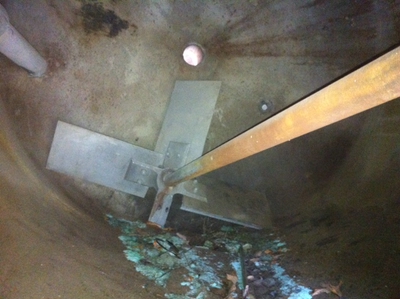

• Mixing is by a 16" diameter radial type impeller rotating at 258 rpm. Driven by a 5 HP motor, 440 v 60 Hz, 3 phase, and has a belt driven MagneDrive II series seal less magnetic drive, manufactured by Parker/Autoclave Engineers. This drive arrangement features Contamination free mixing, and zero atmospheric leakage

Internal Temperature: 343.3 °C (650 °F). Jacket Pressure: 20.7 bar (300 psi). Jacket Temperature: 398.9 °C (750 °F). Jacket Material of Construction: Stainless Steel 321. Orientation: Vertical. Agitation: Yes. Diameter: 1,100 mm (44 in). Straight Side Length: 1,650 mm (65 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 1,350 L (360.1 gallons)

Jacket Material of Construction: Carbon Steel

Jacket: Carbon steel on straight side and bottom dish of vessel Lip: Carbon steel

Agitation: Yes. Diameter: 1,150 mm (45 in). Straight Side Length: 1,150 mm (45 in).

Type: Reactor

Subtype: Batch-Type Agitated

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 3,400 L (900 gallons)

Internal Pressure: 1.03 bar (15 psi)

• Packing gland: yes
• Jacket: stainless steel on straight side and bottom dish of vessel
• Lip: carbon steel

Jacket Pressure: 3.4 bar (50 psi). Jacket Material of Construction: Stainless Steel Other. Agitation: Yes. Diameter: 1,500 mm (60 in). Straight Side Length: 1,450 mm (58 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: R Jenkins

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 3,350 L (880 gallons)

Internal Pressure: 4.1 bar (60 psi)

Jkt rated 100 psi @ 256 deg C, 150 psi test; int rated 60 psi/full vac @ 256 deg C, 124 psi test direct driven by 5 HP, 3/50/415 volt flameproof motor

Internal Full Vacuum: Yes. Internal Temperature: 256 °C (492.8 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 256 °C (492.8 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Diameter: 1,500 mm (60 in). Straight Side Length: 1,700 mm (66 in). Support Type: Lugs.
