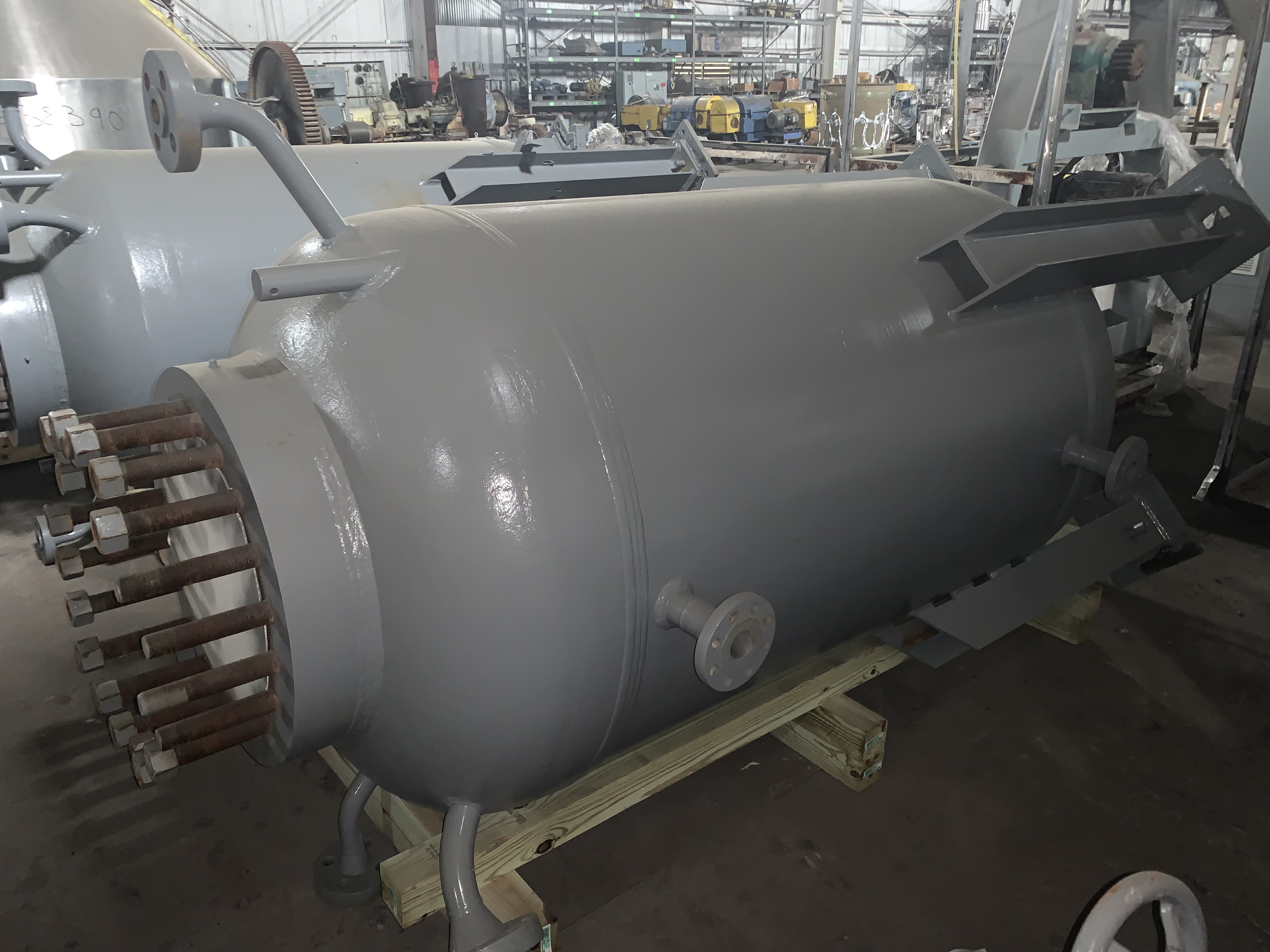

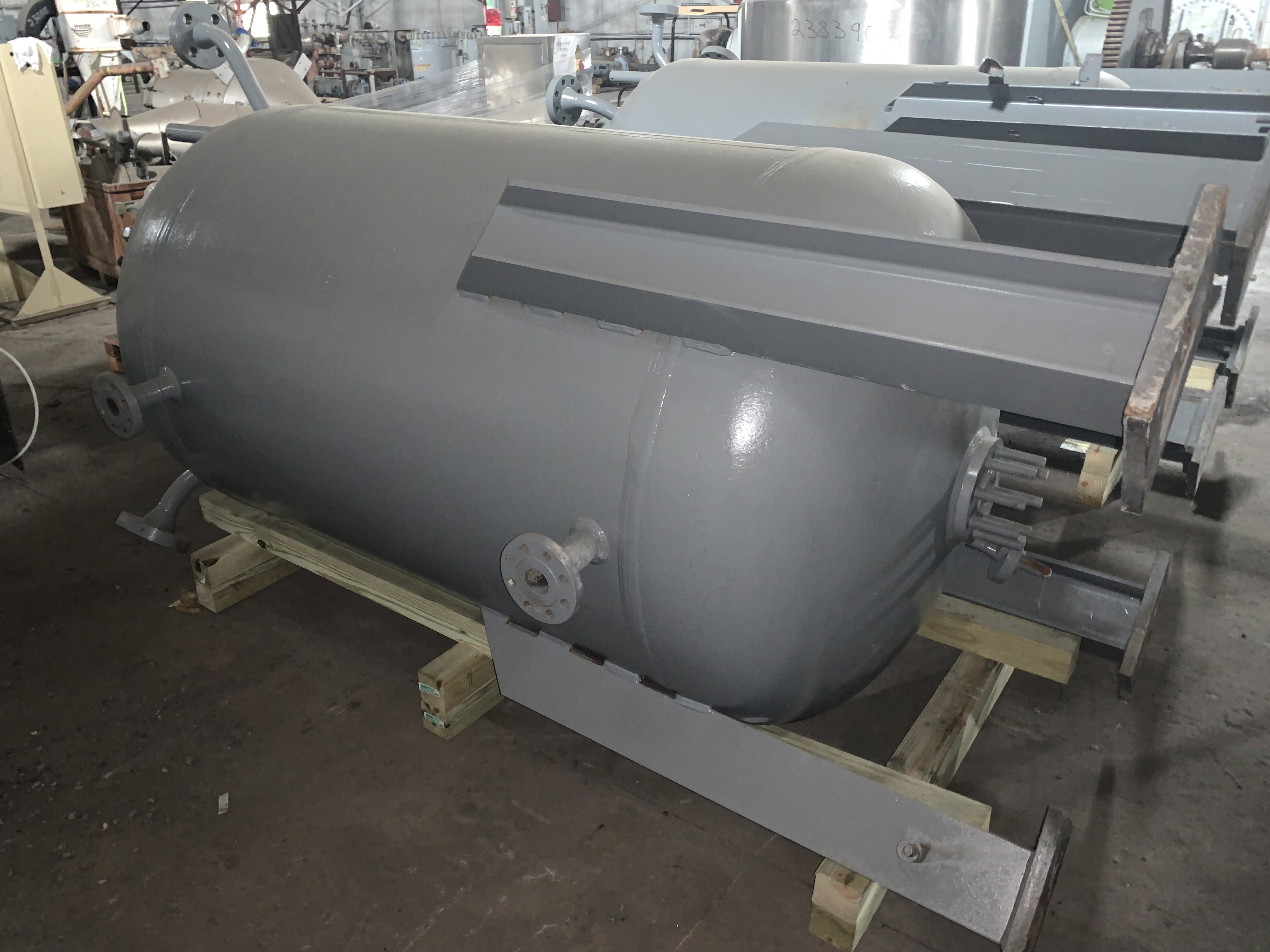

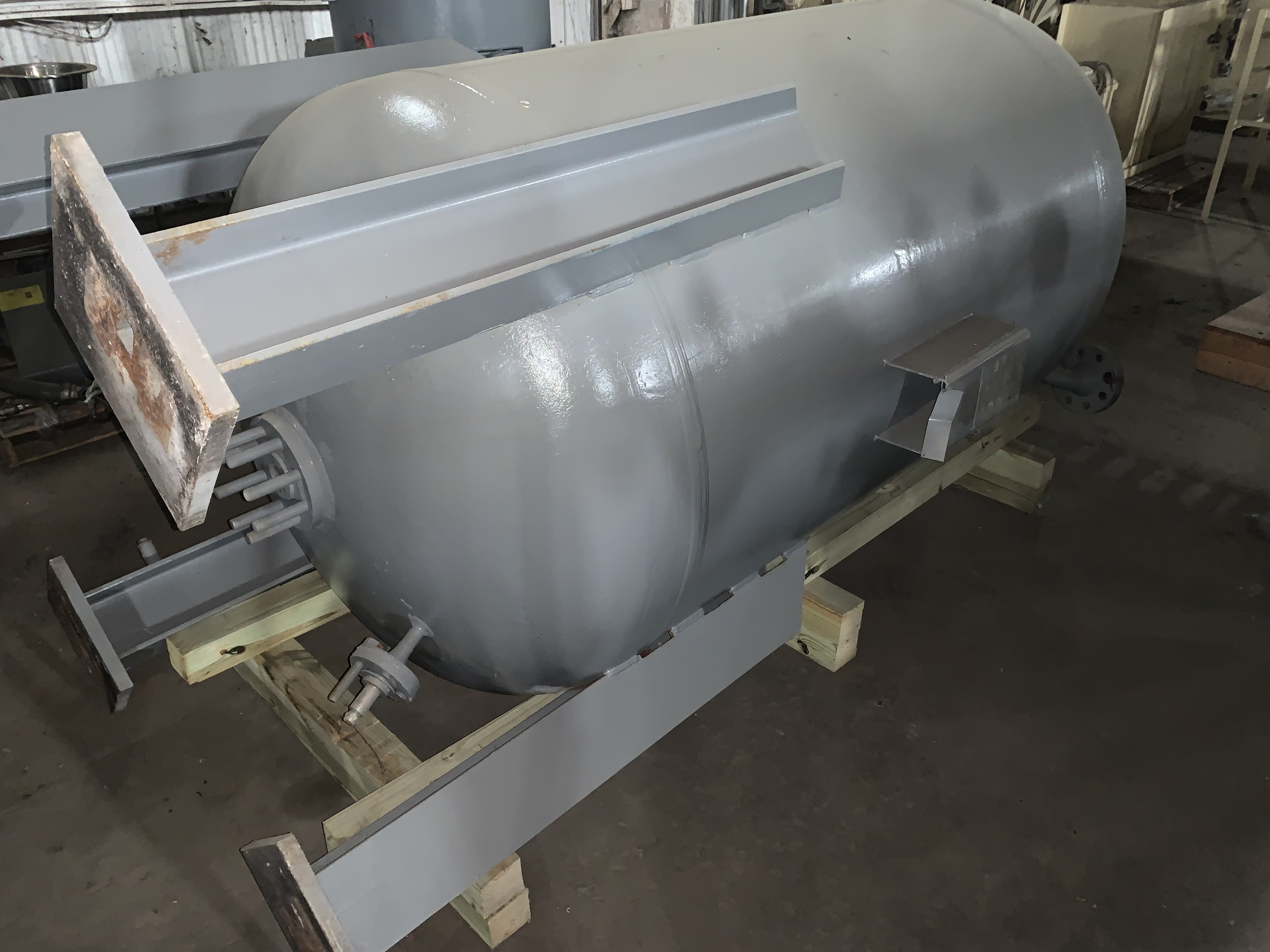

Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921

  • Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921 Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921
  • Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921 Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921
  • Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921 Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921
  • Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921 Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921
  • Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921 Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921
  • Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921 Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921
  • Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921
  • Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921
  • Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921
  • Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921
  • Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921
  • Stainless Steel 321 Clad Superior Welding Batch-Type Agitated Reactor - IPP# 235921
Overview
Reactor
Batch-Type Agitated
Superior Welding
Used
Stainless Steel 321
Yes
1,900 L (500 gallons)
Mill 2B
Pressure Vessel
86.2 bar (1,250 psi)
343.3 °C (650 °F)
Jacket/Internal Coil
20.7 bar (300 psi)
398.9 °C (750 °F)
Internal Pipe Coil
Stainless Steel 321
Yes
Dimensions
Vertical
1,100 mm (44 in)
1,650 mm (65 in)
Agitation System
Yes
Radial Type
Seal Less Magnetic Drive
16" diameter radial Impeller @ 258 rpm
3.7 kW (5 HP)
Sidewall Mounted Straight Baffle
three side wall baffles,4" wide x 65" long.
Heads
Elliptical
Clad
Elliptical
Clad
Other Specifications
Yes
Legs
Inlets & Outlets
Top openings are one 18" man way, one 2" inlet, one 1.5 vapor relief, one 3/4" for a thermocouple, one 2" dip pipe. One 2" outlet and two 2" coils inlet/outlet.
  • Internal coil, of 321 SS seamless pipe, is 2 & 3/8" diameter x 0.218 wall thickness. It has 13 turns with a 36" mean diameter on a 4" pitch.
  • Mixing is by a 16" diameter radial type impeller rotating at 258 rpm. Driven by a 5 HP motor, 440 v 60 Hz, 3 phase, and has a belt driven MagneDrive II series seal less magnetic drive, manufactured by Parker/Autoclave Engineers. This drive arrangement features Contamination free mixing, and zero atmospheric leakage

Similar Equipment

Stainless Steel 304 Clad Superior Welding Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Superior Welding

Condition: Used

Material: Stainless Steel 304

Clad: Yes

Capacity (Design): 3,800 L (1,000 gallons)

Internal Pressure: 10.3 bar (150 psi)

no motor

Internal Temperature: 148.9 °C (300 °F). Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 148.9 °C (300 °F). Orientation: Vertical. Agitation: Yes. Diameter: 1,850 mm (72 in). Straight Side Length: 1,350 mm (54 in). Support Type: Lugs.

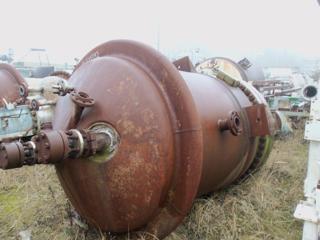

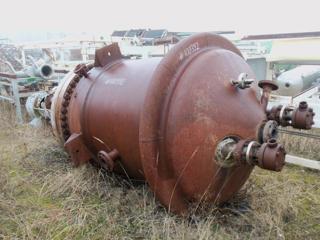

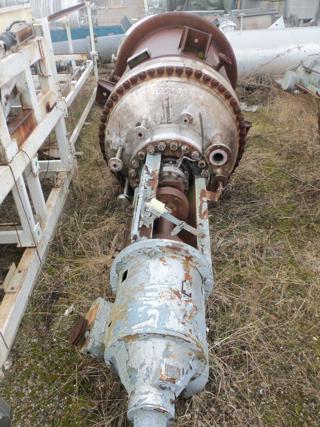

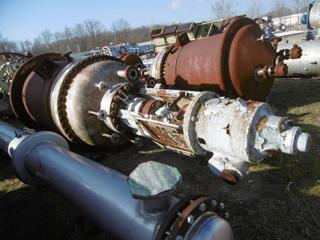

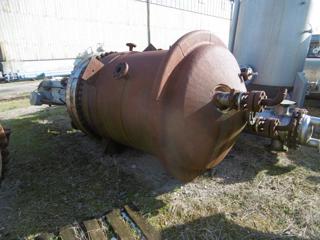

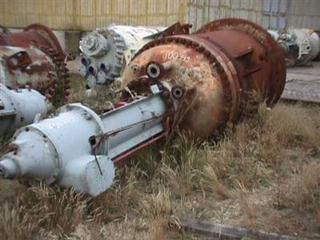

3,500 L (925 gallons) Stainless Steel 321 Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Taylor Reid & Co Ltd

Condition: Used

Material: Stainless Steel 321

Capacity (Design): 3,500 L (925 gallons)

Internal Pressure: 25.9 bar (375 psi)

internal coil 50 psig (3.4 bar) @ 680 degree F (360 degrees C) motor 3/50/400/440V coil 50mm diameter with 10 turns 3/4" (19mm) sidewall thickness, jacket 3/8" (9.5mm) thick

  • Steel jacket with expansion joint: yes
  • Internal coils: 321SS, 50mm diameter, 10 circles
  • Spare shaft and coil: yes

Internal Temperature: 315.6 °C (600 °F). Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 360 °C (680 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,200 mm (48.2 in). Straight Side Length: 1,800 mm (70.2 in). Support Type: Lugs.

3,500 L (925 gallons) Stainless Steel 321 Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Taylor Reid & Co Ltd

Condition: Used

Material: Stainless Steel 321

Capacity (Design): 3,500 L (925 gallons)

Internal Pressure: 25.9 bar (375 psi)

internal coil 50 psig (3.4 bar) @ 680 degree F (360 degrees C.

  • Jacket: Steel jacket with expansion joint
  • Internal coils: 321SS, 50mm diameter, 10 circles
  • Spare parts: Spare shaft and coils included motor 3/50/400/440V

Internal Temperature: 315.6 °C (600 °F). Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 360 °C (680 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,200 mm (48.2 in). Straight Side Length: 1,800 mm (70.2 in). Support Type: Lugs.

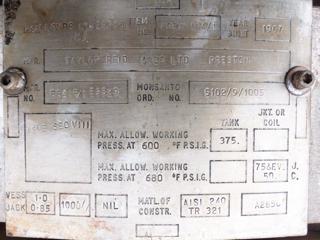

3,500 L (925 gallons) Stainless Steel 321 Batch-Type Agitated Reactor
