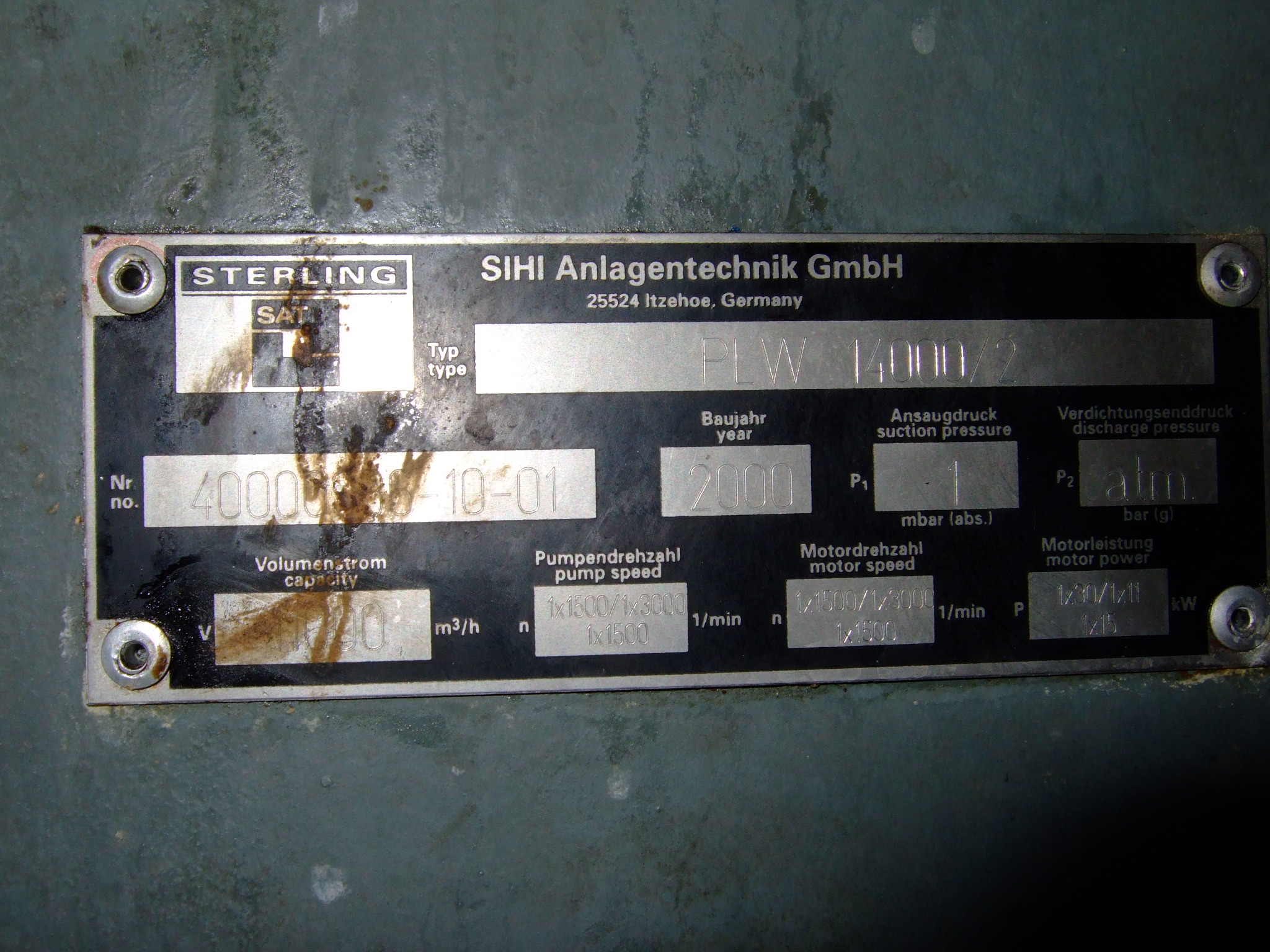

1 mbar System includes: 350 m3/Hr @ 33 to 0 mbar SIHI type LPHA 55320, Serial Number BN BFK42.4, Pump Number D005187903 Mounted above the SIHI vacuum pump is a SIHI Sterling CS Vacuum booster, rated 4000 m3/Hr, 11KW, type WNMY4000, Pump Number D72951 0106, driven by a 11 Kw Loher E-motor, type DNGW-160LB-04A, 500 volt, 50 cycle, 2930 U/min This booster discharges directly into the suction inlet of a second SIHI Rotary lobe booster rated 14000 m3/Hr direct coupled to a 30 KW motor Skid mounted system includes a 1.730mm diameter x 2.940 mm long separator tank, a plate heat exchanger used as a cooler, and a 110 liter Stainless steel separator tank rated 0,5 bar @ 100 degrees C. Total package dimensions are 2.940 mm long x 1.730 mm wide with separator and plate heat exchanger x 3.315 height over all, total weight including the carbon steel frame 5.200 Kg.
Type: Pump-Vacuum
Manufacturer: SIHI
Model: PIW 14000/2
Condition: Used
Material: Stainless Steel 316
Air Flow: 11,000 m3/h (6,450 CFM)
Discharge Pressure: 0.001 bar (0.015 psi)
Orientation: Horizontal. Inlet Diameter: 250 mm (9.8 in). Outlet Diameter: 150 mm (5.9 in). Seal Type: Liquid Ring.
Type: Pump-Vacuum
Manufacturer: SIHI
Model: CEHE-3601
Condition: Used
Material: Stainless Steel 316
Air Flow: 5 m3/h (2.9 CFM)
Inlet Diameter: 38.1 mm (1.5 in)
Water seal vacuum pump Packing glands on shaft. 3/50/220/380 volt, 25m HD single stage. Openings: top 1-1 1/2"; end 1-2".
Outlet Diameter: 50.8 mm (2 in). Seal Type: Liquid Ring. Cooling or Seal Water: Yes.
Type: Pump-Vacuum
Manufacturer: SIHI
Model: LPHA 55320
Condition: Used
Material: Stainless Steel 316
Air Flow: 350 m3/h (206 CFM)
Discharge Pressure: 2 bar (29 psi)

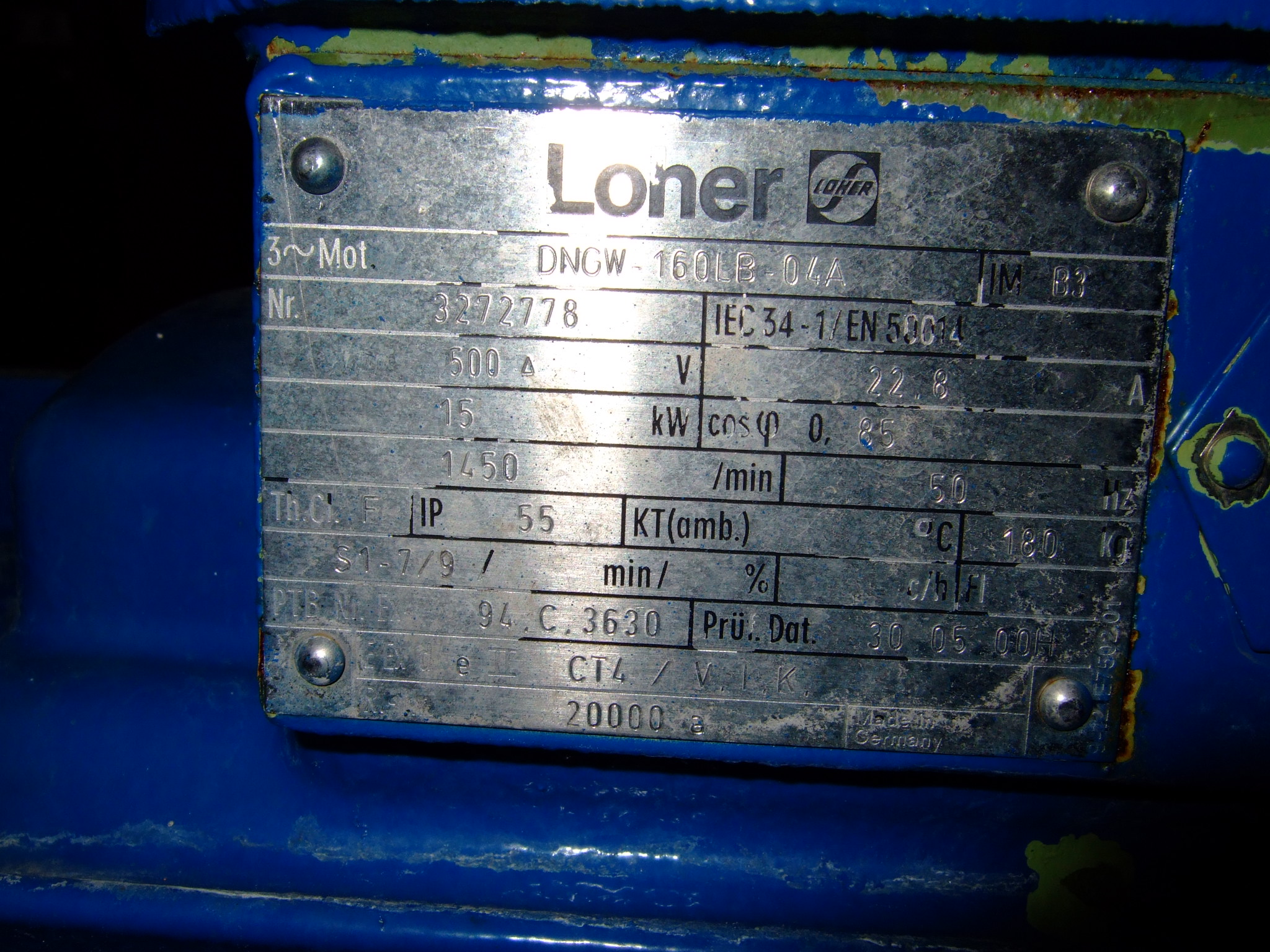

vacuum pump system 2 stage liquid ring vacuum pump, 33 mbar@2 bar, type LPHA 55320 serial # BN BFK 42 4, pump#D-005187901, openings: 4 x DN 50 PN16 e-motor type DNGW-160LB-04A, motor#3306781, 500V/50Hz/22,8A/15kW/1450 U/min, ex proof (CT4); (1) 14.000 m³/h SIHI c/steel roots vacuum pump with water cooling, type WNMY 14000, serial#A2 XOA OBO, pump# D-72-945-0106, CE confirm, (1)down openig connecting tube: approx: 300 mm diameter,(1) top opening: DN 400 PN10, no motor (1) 4.000 m³ SIHI c/steel roots vacuum pump with water cooling, type WNMY4000 A2 XOA OBO, pump#62 125 0006, CE confirm,,(1)down opening: DN 250 PN16 (1)top opening: DN 250x273 PN10, driven by LOHER e-motor type DNGW-160MB-02C, motor#3272776, 500V/50Hz/16,4A/11kW/2920 U/min, ex proof (CT4); (1) 110 liter s/steel separator @ 0,5 bar@100° C, s/steel (316), mfd by STERLING SAT,
Inlet Diameter: 50 mm (1.97 in). Seal Type: Liquid Ring.
Type: Pump-Vacuum
Manufacturer: SIHI
Model: LPHA-50115
Condition: Used
Material: Stainless Steel 316
Air Flow: 500 m3/h (294.3 CFM)
system included (2) approx 500 m³/h 316 stainless steel single stage liquid ring vacuum pumps, first pump, type SIHI LPHA-50115 / BN 135 42 0, Motor: ex proof (G3), second pump, type SIHI LPH-50115, serial # D-2879337, driven by 10.0 kW, 3/50Hz/500 V/1460 rpm, mfd LOHER electrical motor, ex proof (G3), (1) 4.2 square meter 316 stainless steel (1.4571) shell and tube heat exchanger, serail # 7032/224, manufactured by GESSNER GmbH Germany, rated shell side -1/7 bar @ 250 degrees C, volume 43 liter, rated tube side -1/7 bar @ 250 degrees C, volume 34 liter. (1) 260 liter s/steel reciever, mfd by WERK OFFENBACH, serial # 282 rated -1/6 bar @ 250 degrees C .
