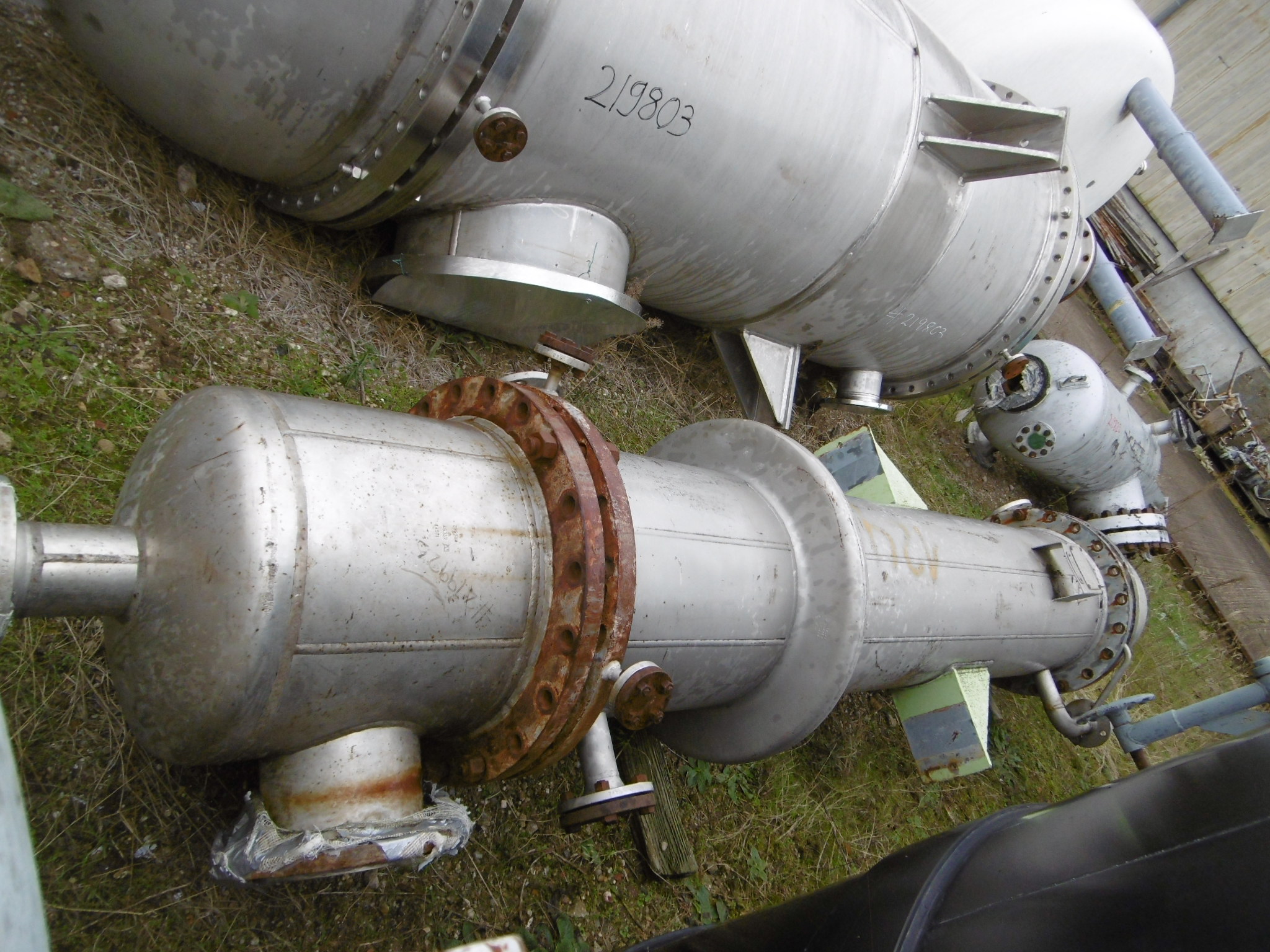

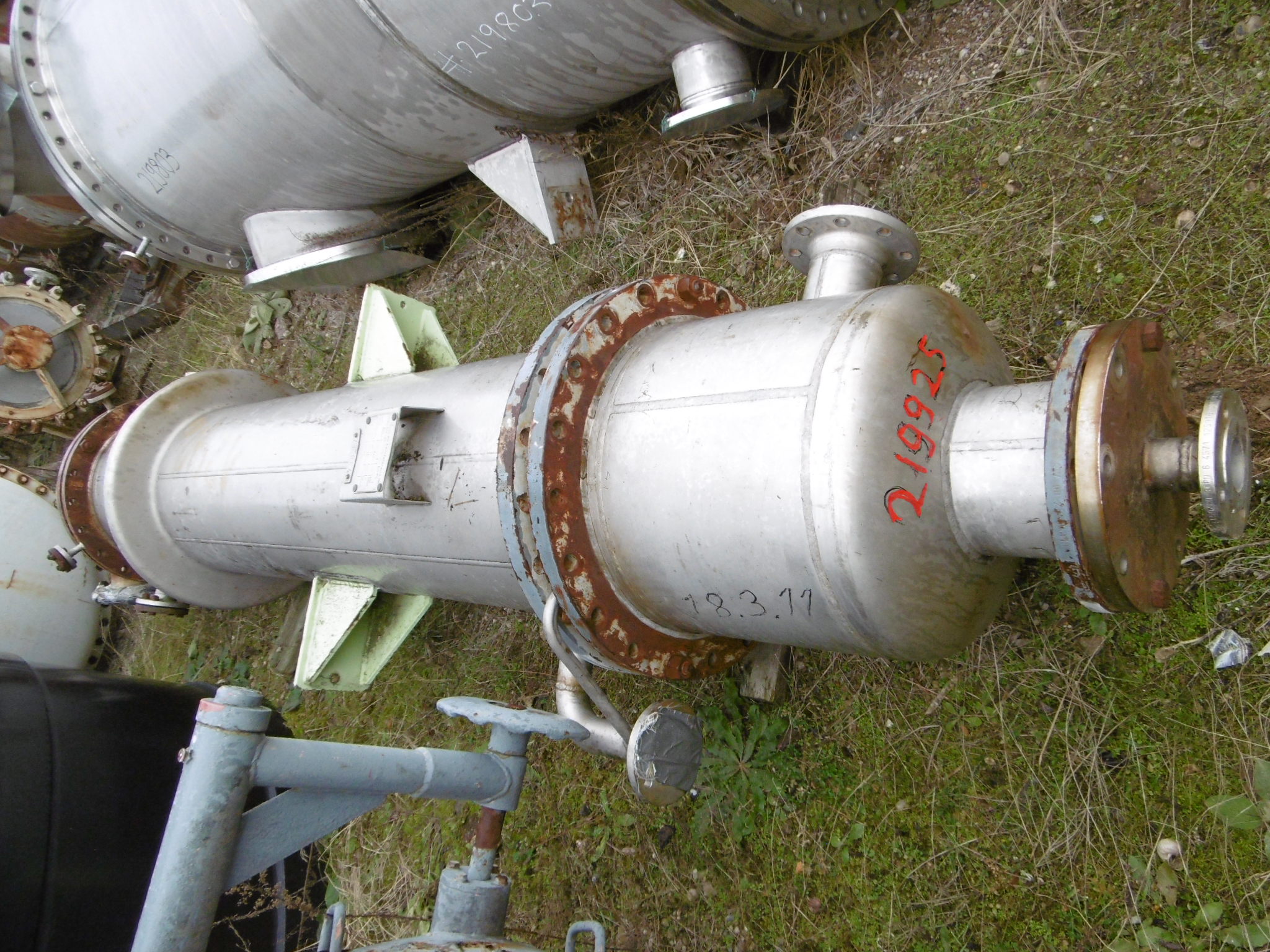

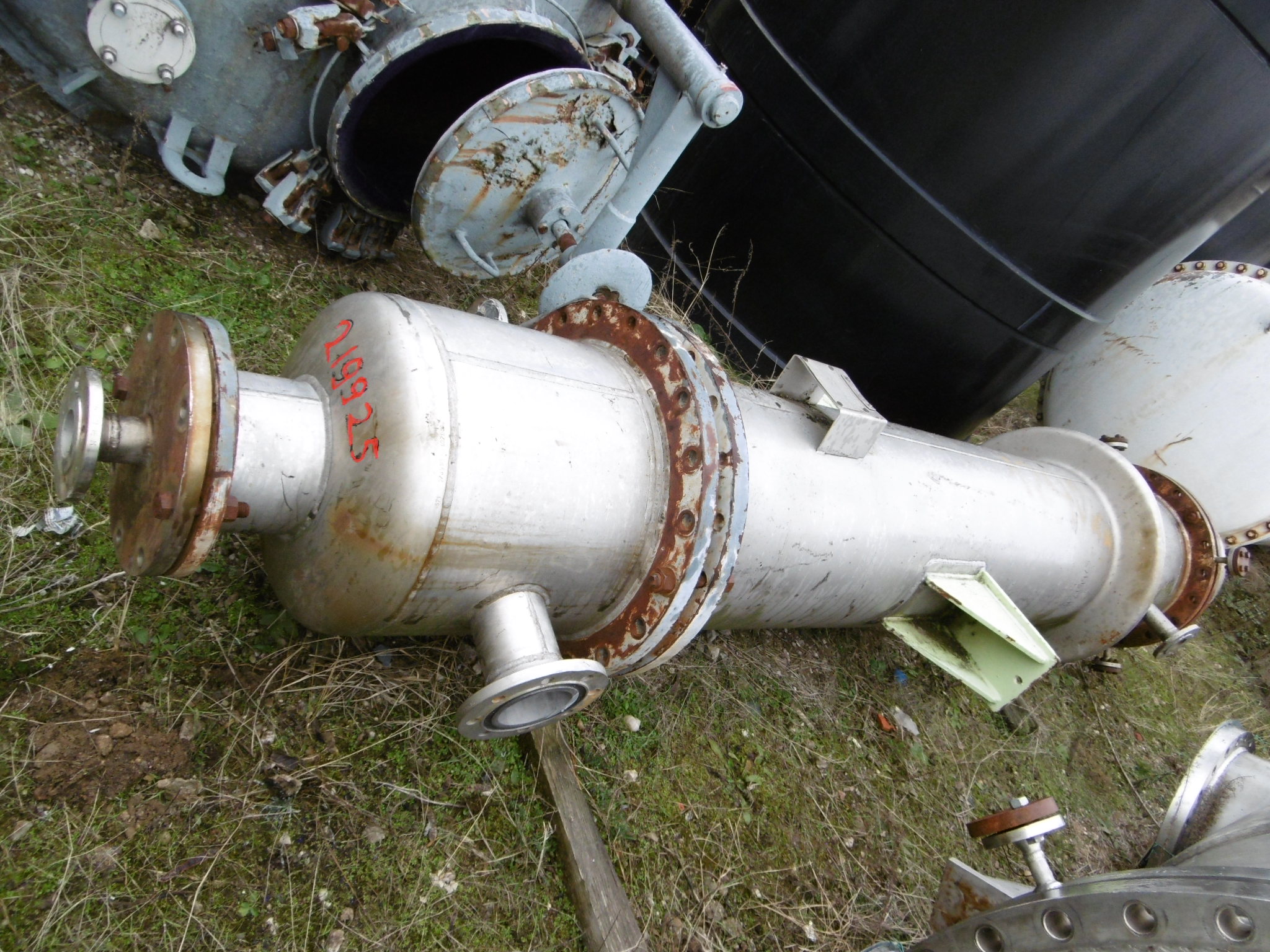

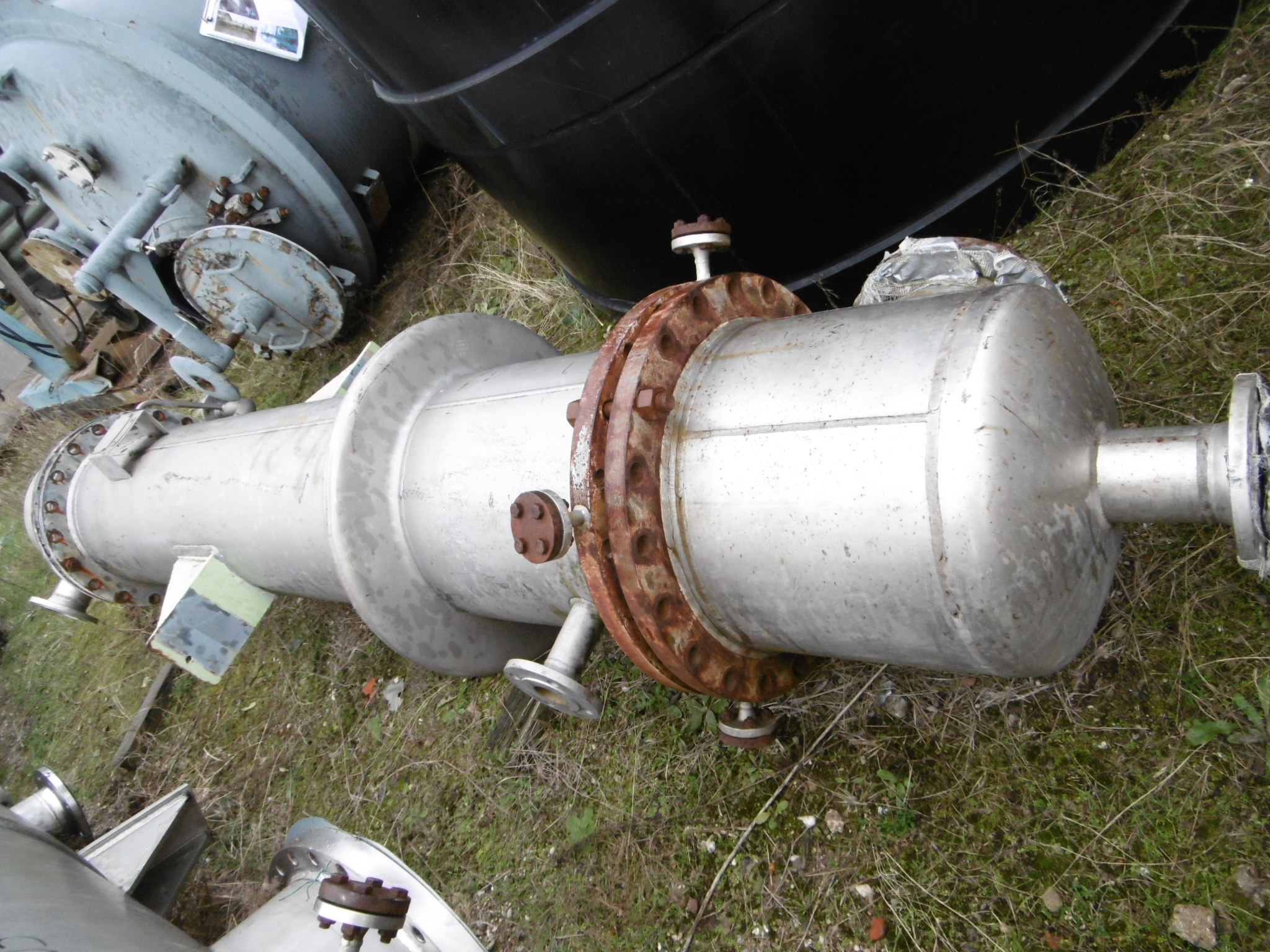

Shell and Tube Heat Exchanger 31 m² (333.7 ft²) Stainless Steel Austenitic For Sale - IPP# 219925

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Thies Kg Coesfeld Gmbh

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 120 m² (1,300 ft²)

Orientation: Vertical

• Expansion bellow: Yes domed head single pass expansion bellow (1) 1.4571 stainless steel dished head, (1) doemd head

Shell Pressure: 20 bar (290.1 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 321. Tube Pressure: 6 bar (87 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 1,000 mm (39.4 in). Head Material: Stainless Steel 321. Length: 2,500 mm (98.4 in). Tube Number: 616. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Nozzle Schedule: - Tubeside openings: 1 x domed head with 1-600mm, 1 x head with 1-300mm - Shell openings: 1-250mm, 1-150mm.

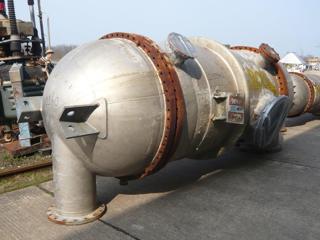

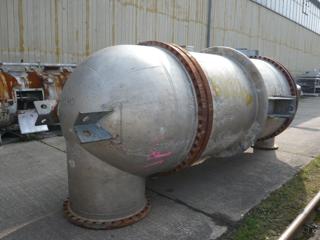

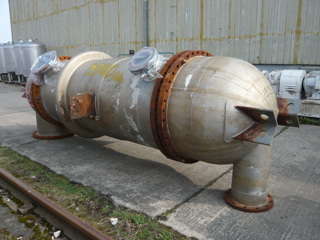

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Thies Kg Coesfeld Gmbh

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 247 m² (2,650 ft²)

Orientation: Vertical

multi pass, expansion bellow, (1) domed head

Shell Pressure: 6.2 bar (89.9 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 321. Tube Pressure: 6.2 bar (89.9 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 1,400 mm (55.1 in). Head Material: Stainless Steel 321. Length: 2,500 mm (98.4 in). Tube Number: 1,260. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Nozzle Schedule: - Openings: Tubeside - 1 x domed head with 1-800mm, 1 x head with 1-400mm; Shell - 1-600mm, 1-250mm, 1-200mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: K.Ley

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 32 m² (344.4 ft²)

Orientation: Vertical

• Heads: Without heads
• Pressure (tube side): -1/6 bar @ -10/300 deg C
• Volume (tube side): 145 liter
• Pressure (shell side): -1/6 bar @ -10/300 deg C
• Volume (shell side): 275 liter

Shell Pressure: 6 bar (87 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Tube Number: 164. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings shell: 3-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: K.Ley

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 32 m² (344.4 ft²)

Orientation: Horizontal

• Pressure:
  • Tubeside: -1/6 bar @ 300 deg C (203 liter)
  • Shell side: -1/6 bar @ 300 deg C (310 liter) Multi-pass shell with expansion joint.

Shell Pressure: 6 bar (87 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 500 mm (19.7 in). Head Material: Stainless Steel Austenitic. Length: 3,000 mm (118.1 in). Tube Number: 164. Tube Diameter: 25 mm (0.98 in). Tube Length: 2.5 mm (0.1 in). Nozzle Schedule: - Openings: 2-15mm - Openings: - Shell: 2-80 mm, 1-250, 1-300 - Head 1: 2-150mm - Head 2: No openings.
