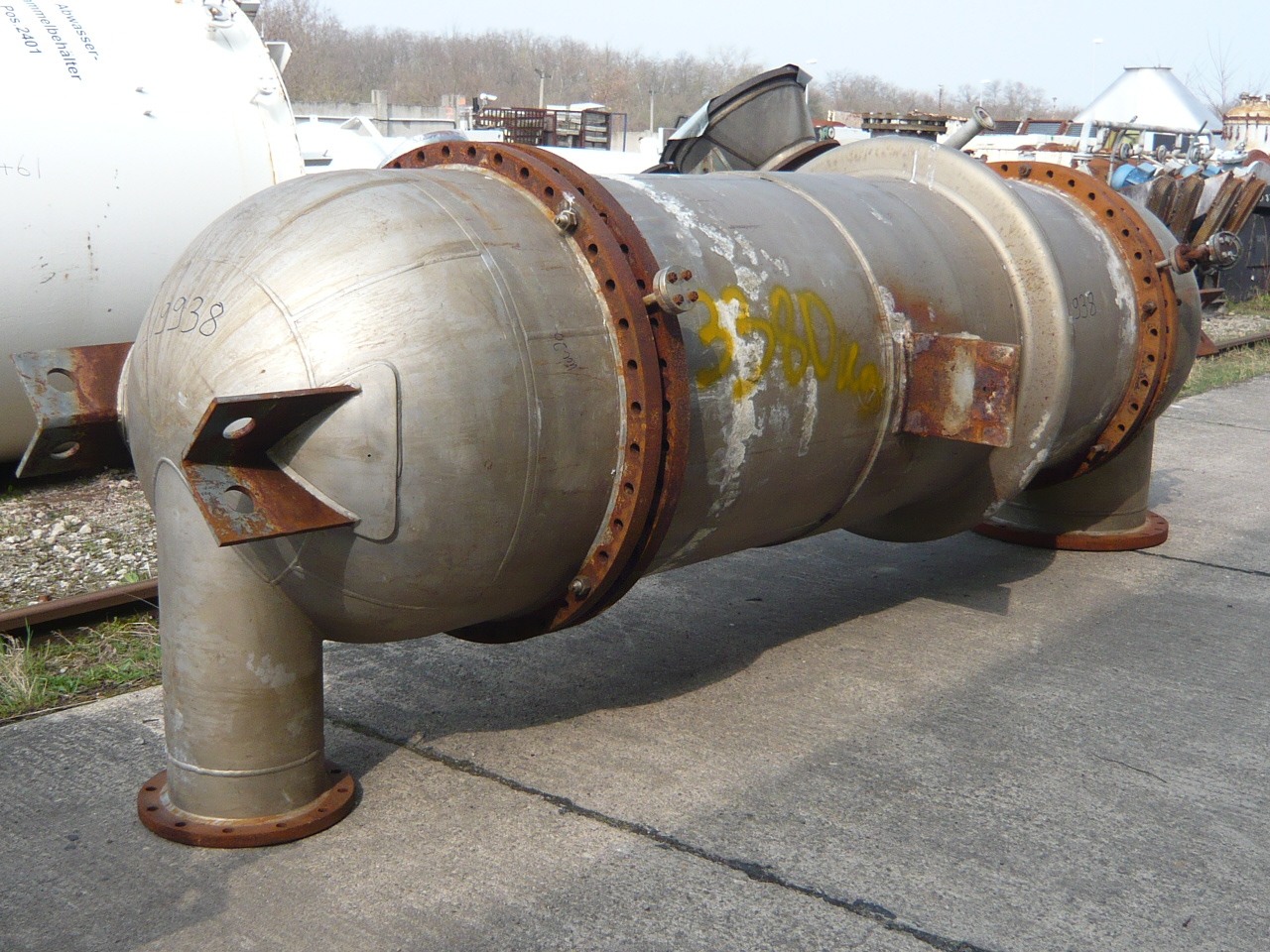

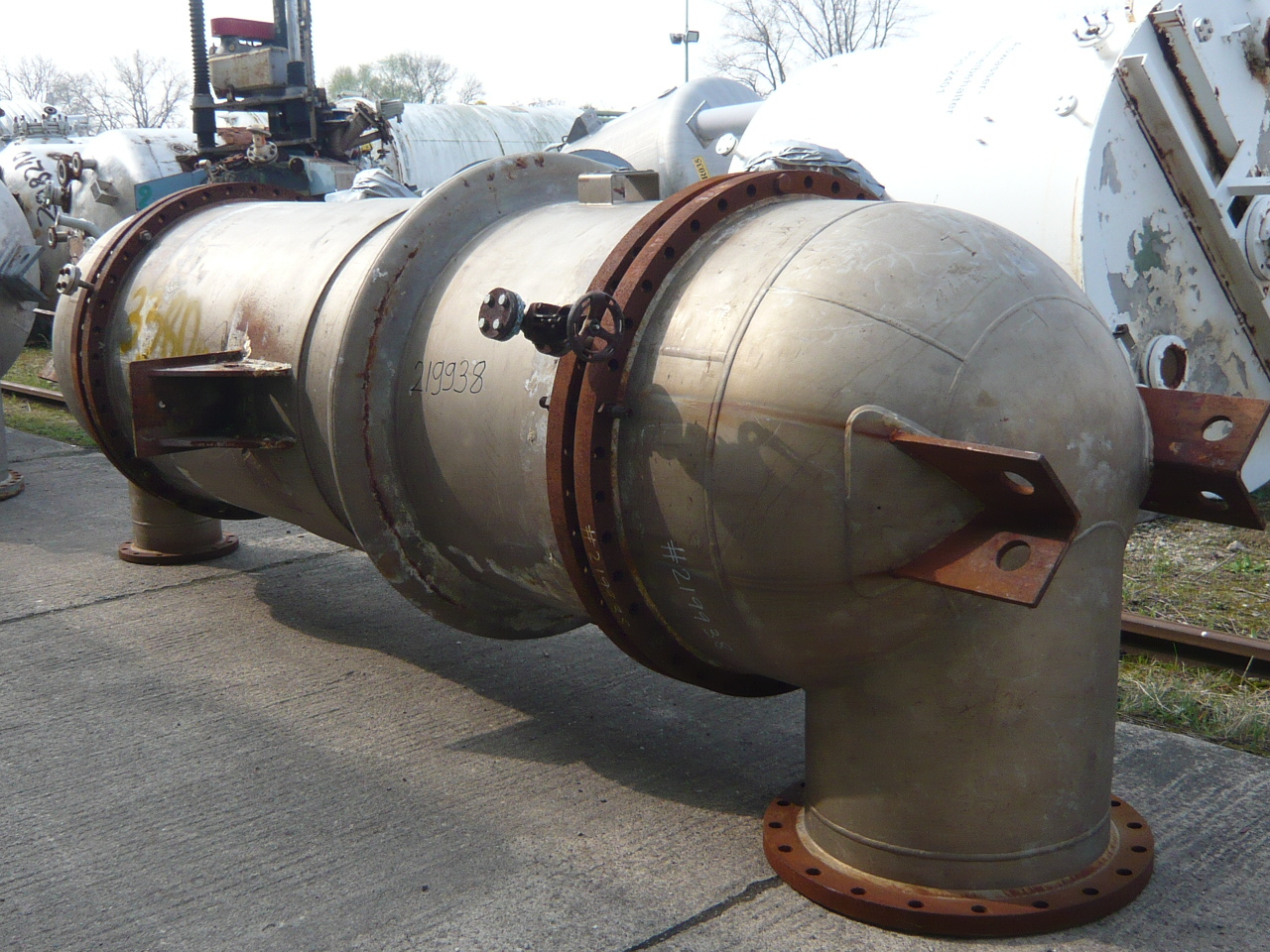

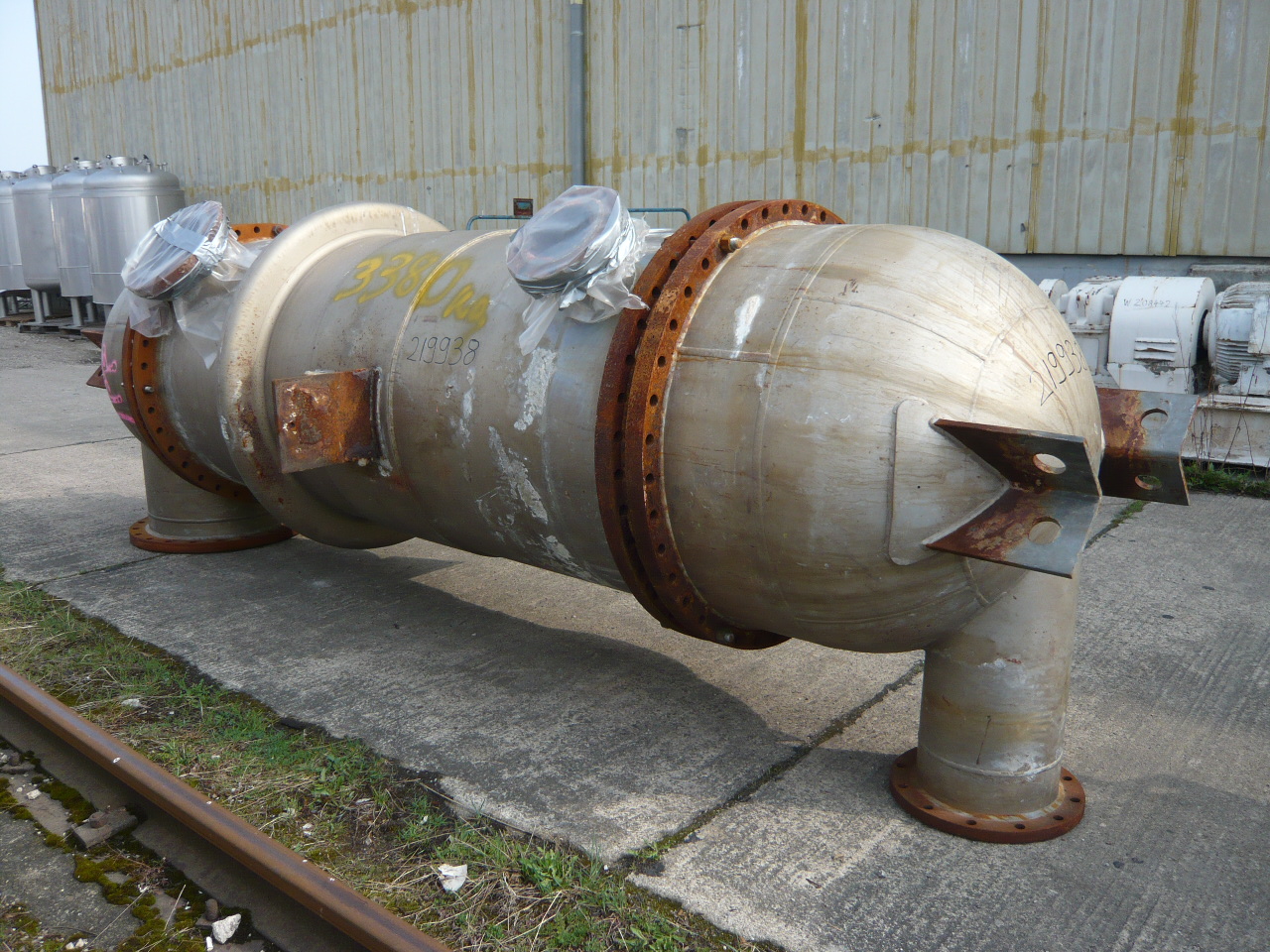

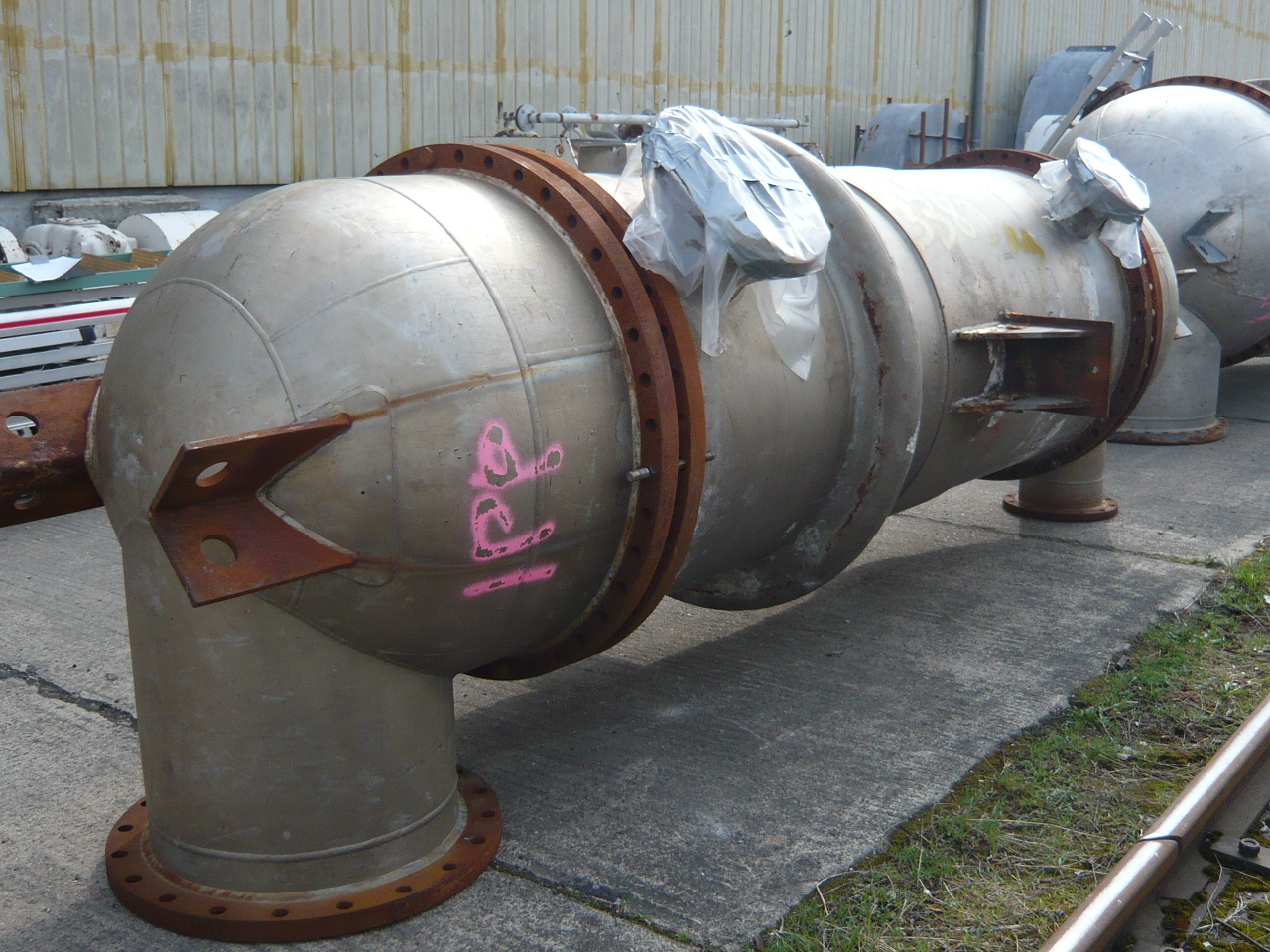

Shell and Tube Heat Exchanger 120 m² (1,300 ft²) Stainless Steel 321 For Sale - IPP# 219938

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Thies Kg Coesfeld Gmbh

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 247 m² (2,650 ft²)

Orientation: Vertical

multi pass, expansion bellow, (1) domed head

Shell Pressure: 6.2 bar (89.9 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 321. Tube Pressure: 6.2 bar (89.9 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 1,400 mm (55.1 in). Head Material: Stainless Steel 321. Length: 2,500 mm (98.4 in). Tube Number: 1,260. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Nozzle Schedule: - Openings: Tubeside - 1 x domed head with 1-800mm, 1 x head with 1-400mm; Shell - 1-600mm, 1-250mm, 1-200mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Thies Kg Coesfeld Gmbh

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 31 m² (333.7 ft²)

Orientation: Vertical

Expansion bellows: Yes, on shell single pass (2) 1.4571 s/steel bonnet heads

Shell Pressure: 6 bar (87 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 500 mm (19.7 in). Head Material: Stainless Steel Austenitic. Length: 2,500 mm (98.4 in). Tube Number: 162. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Nozzle Schedule: - Tube openings: 1 x head with 1-200mm, 1-100mm; 1 x head with 1-200mm, 1-100mm - Shell openings: 3-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Paul Schwingel GmbH

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 20 m² (215.3 ft²)

Orientation: Vertical

pressure tube side -1/6,2 bar @ 250 deg C, volume 330 liter shell side -1/6,2 bar @ 250 deg C, volume 218 liter (1) bonnet head, (1) dished head

Shell Pressure: 6.2 bar (89.9 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 321. Tube Pressure: 6.2 bar (89.9 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 500 mm (19.7 in). Head Material: Stainless Steel 321. Tube Number: 110. Tube Diameter: 30 mm (1.18 in). Tube Length: 2,500 mm (98.6 in). Tube Thickness: 2.5 mm (0.1 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Buhler AG

Model: OTW-500-A-32280

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 38 m² (409 ft²)

Shell Material: Stainless Steel 321

tube chamber 1760mm wide x 1224mm long x 360mm deep with welded on top and bottom cone section

Tube Pressure: 23 bar (333.6 psi). Tube Temperature: 400 °C (752 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Tube Number: 540. Tube Diameter: 14 mm (0.55 in). Tube Length: 1,650 mm (65 in). Nozzle Schedule: - Tube openings: 2-25mm, 1-15mm, 1 x cone with 1-700mm, 1 x cone with 1-700mm. Capacity: 123 L (32.5 gallons).
