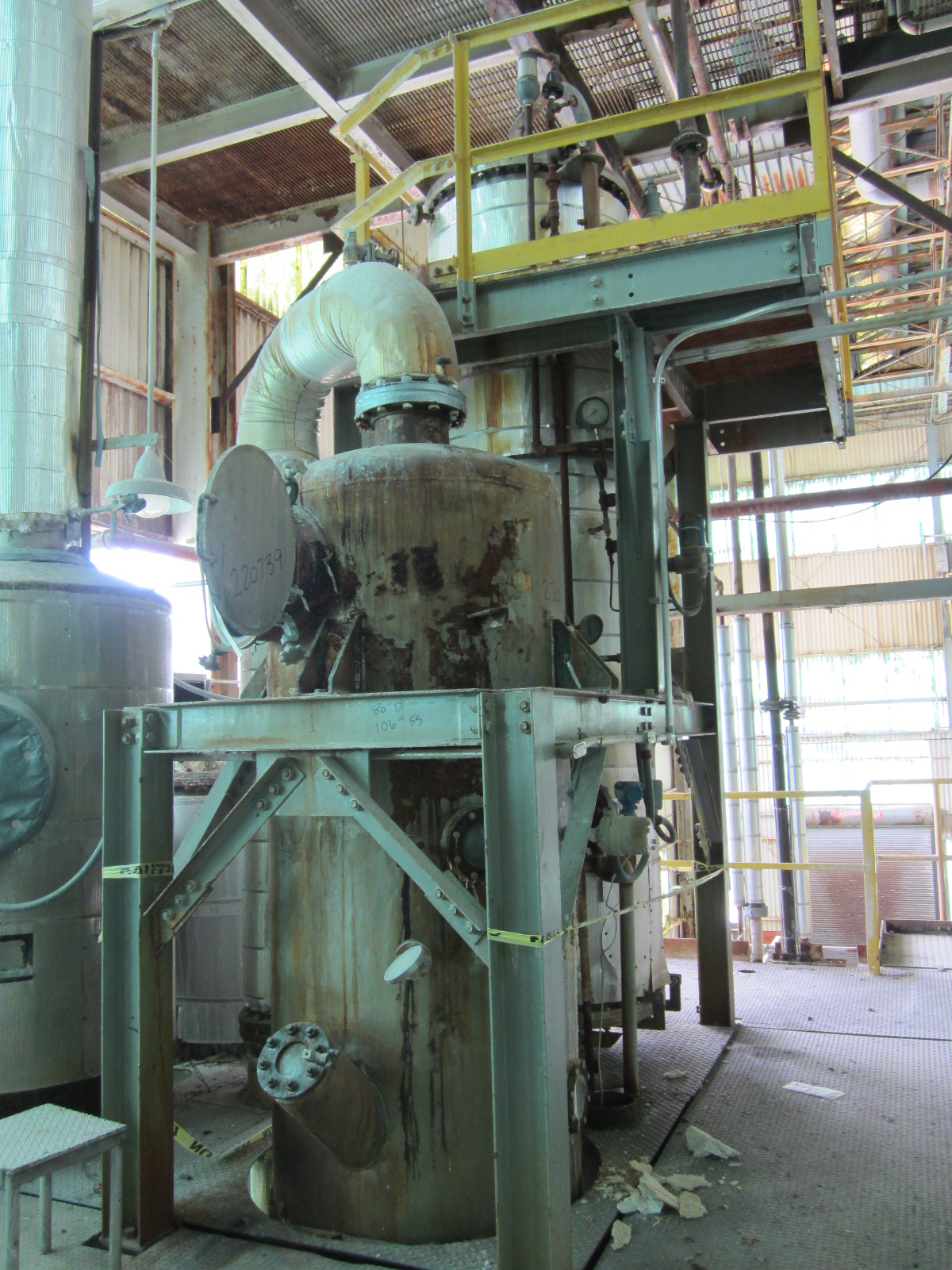

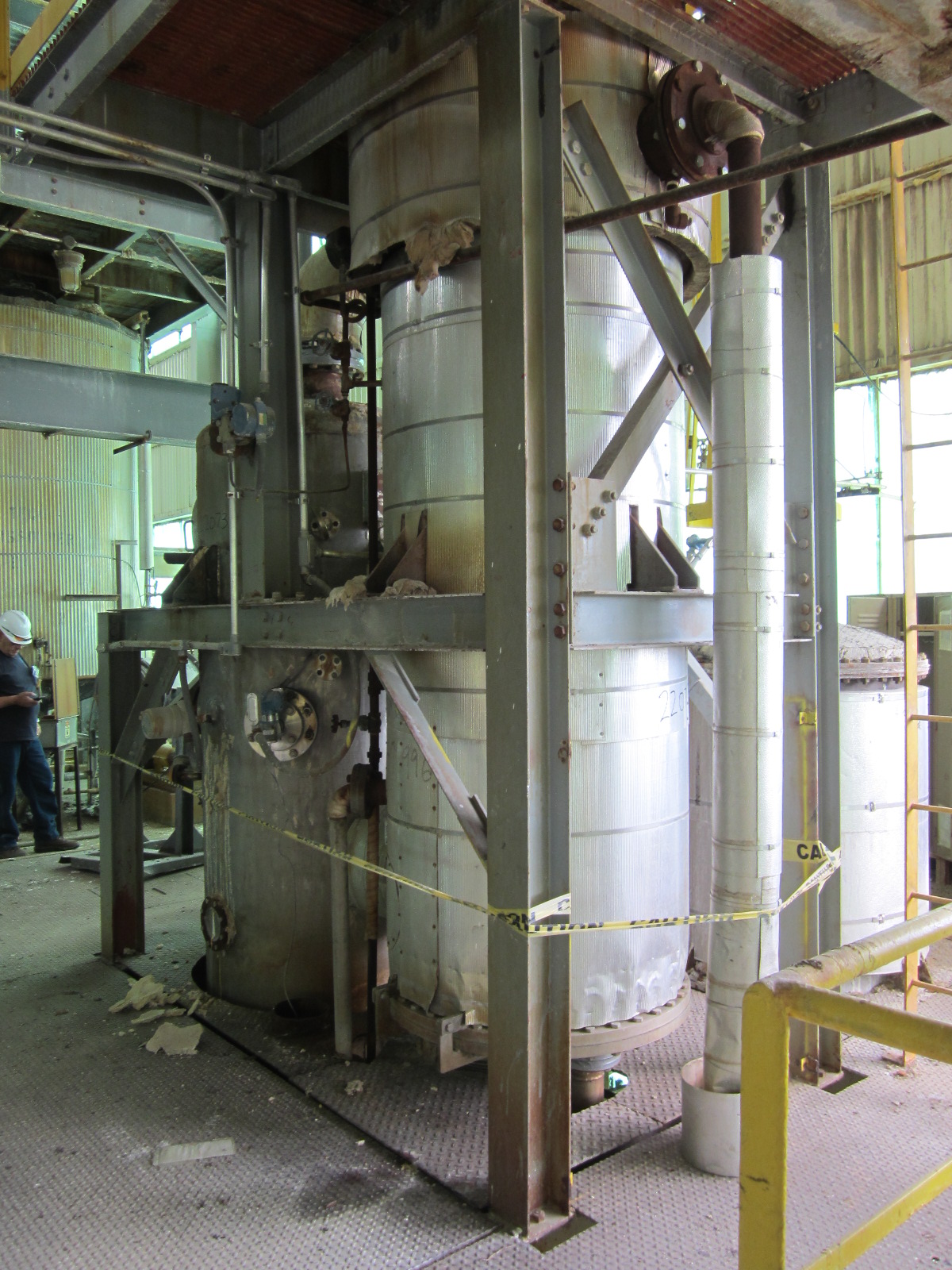

Type: Evaporator
Subtype: Rising/Falling Film

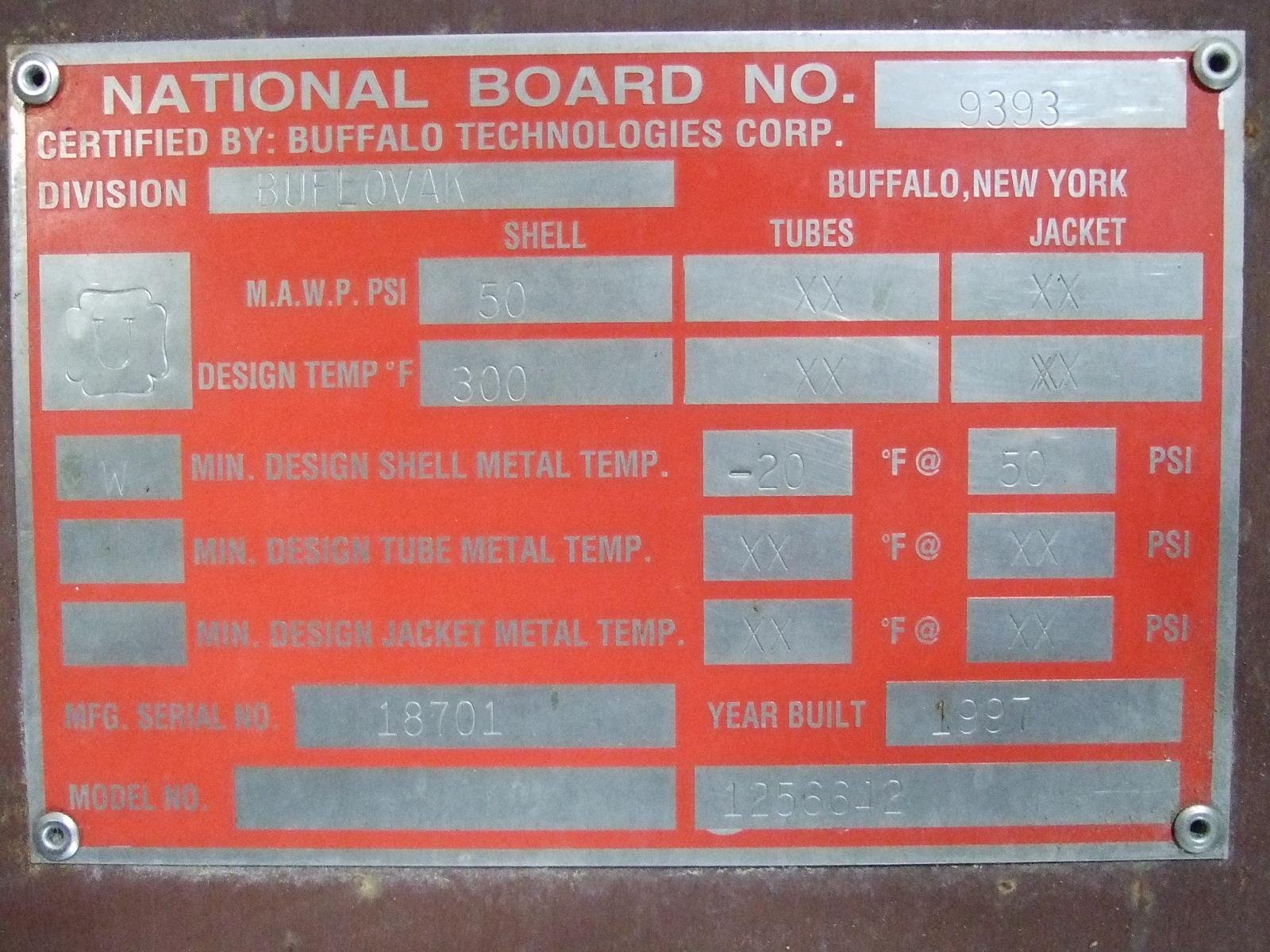

Manufacturer: Buflovak/Blaw Knox
Model: x-320 steam chest
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 6,765 kg/h (14,915 lb/h)
Total Heat Transfer Surface Area: 263 m² (2,827 ft²)

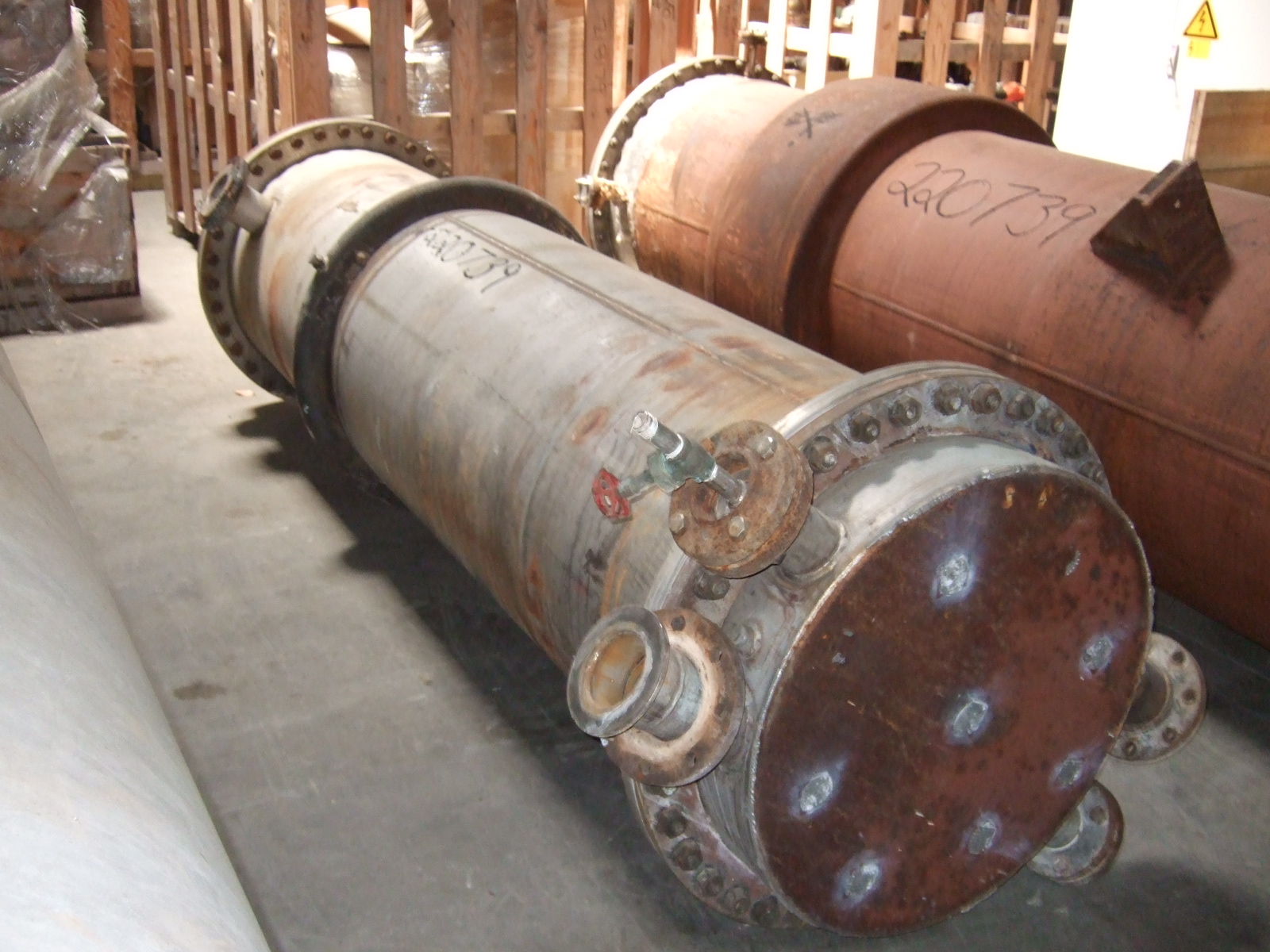

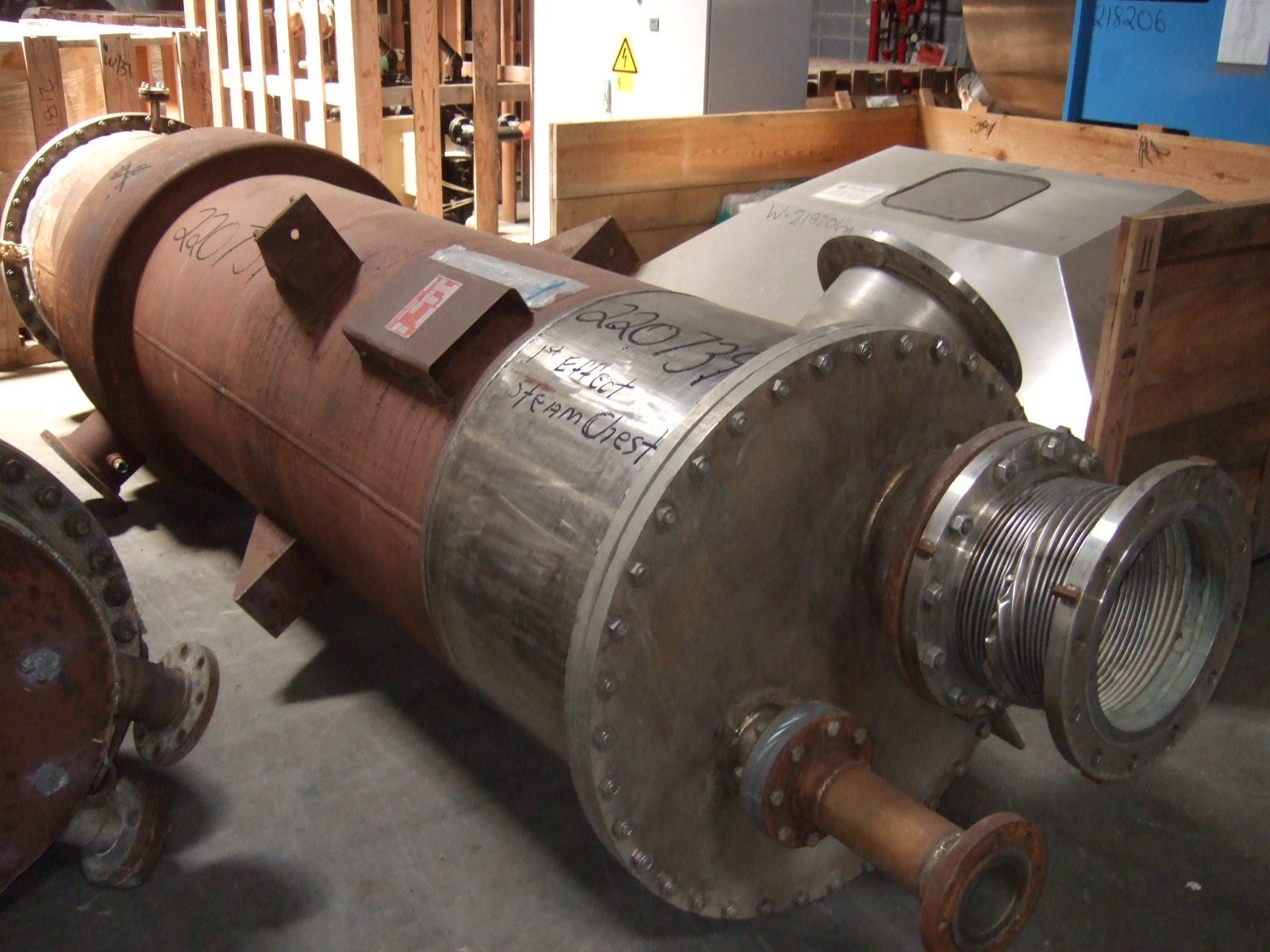

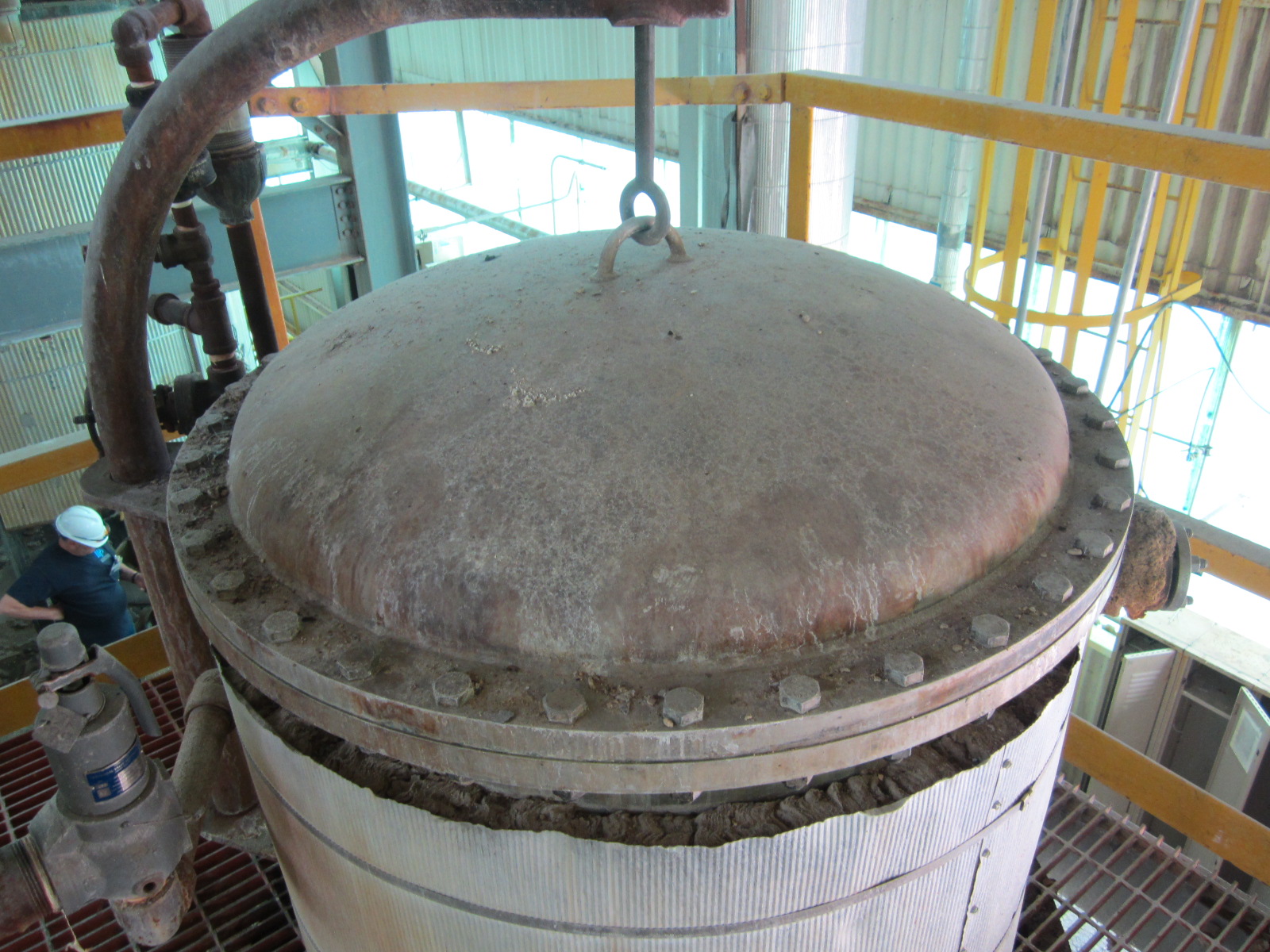

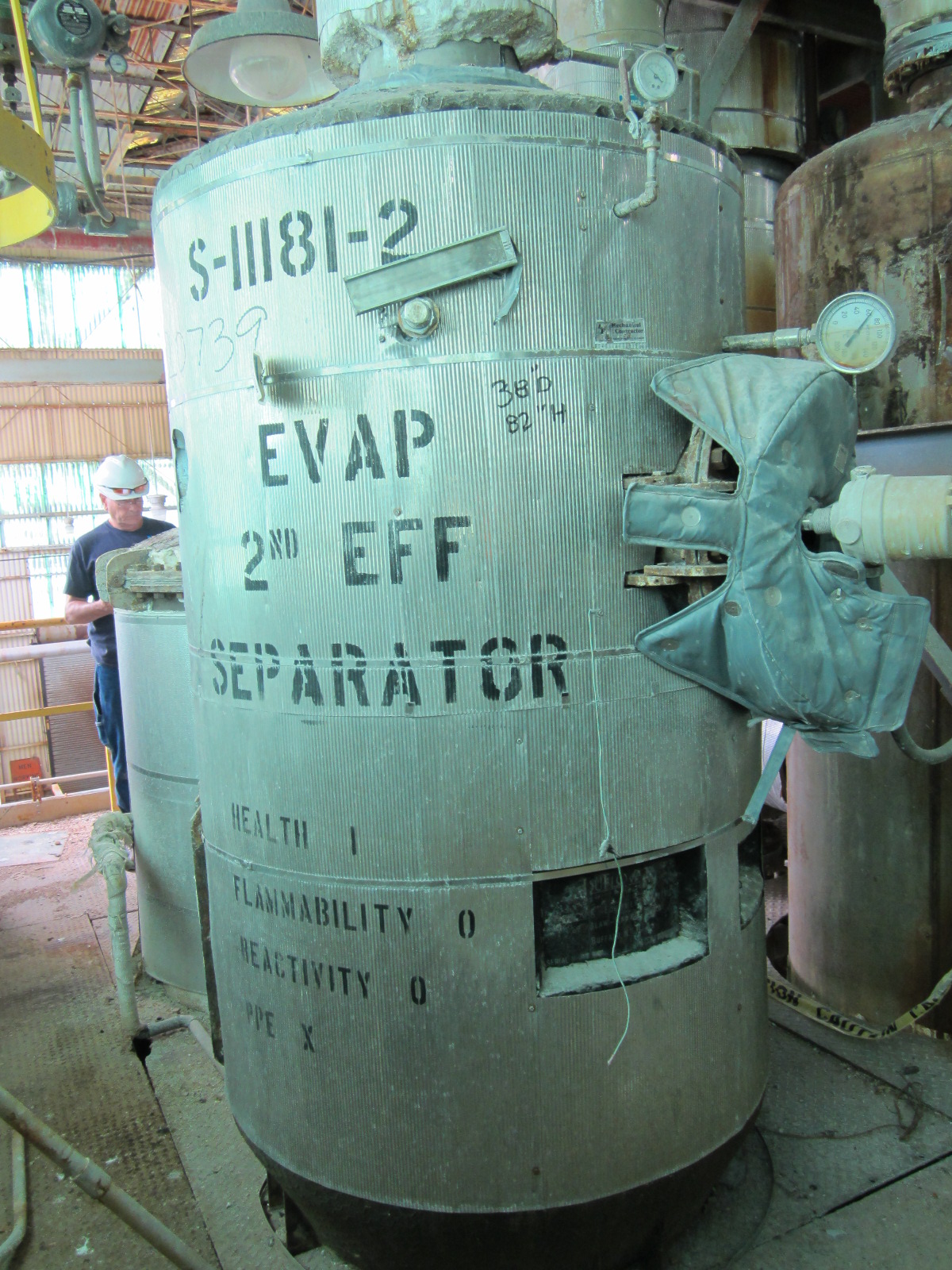

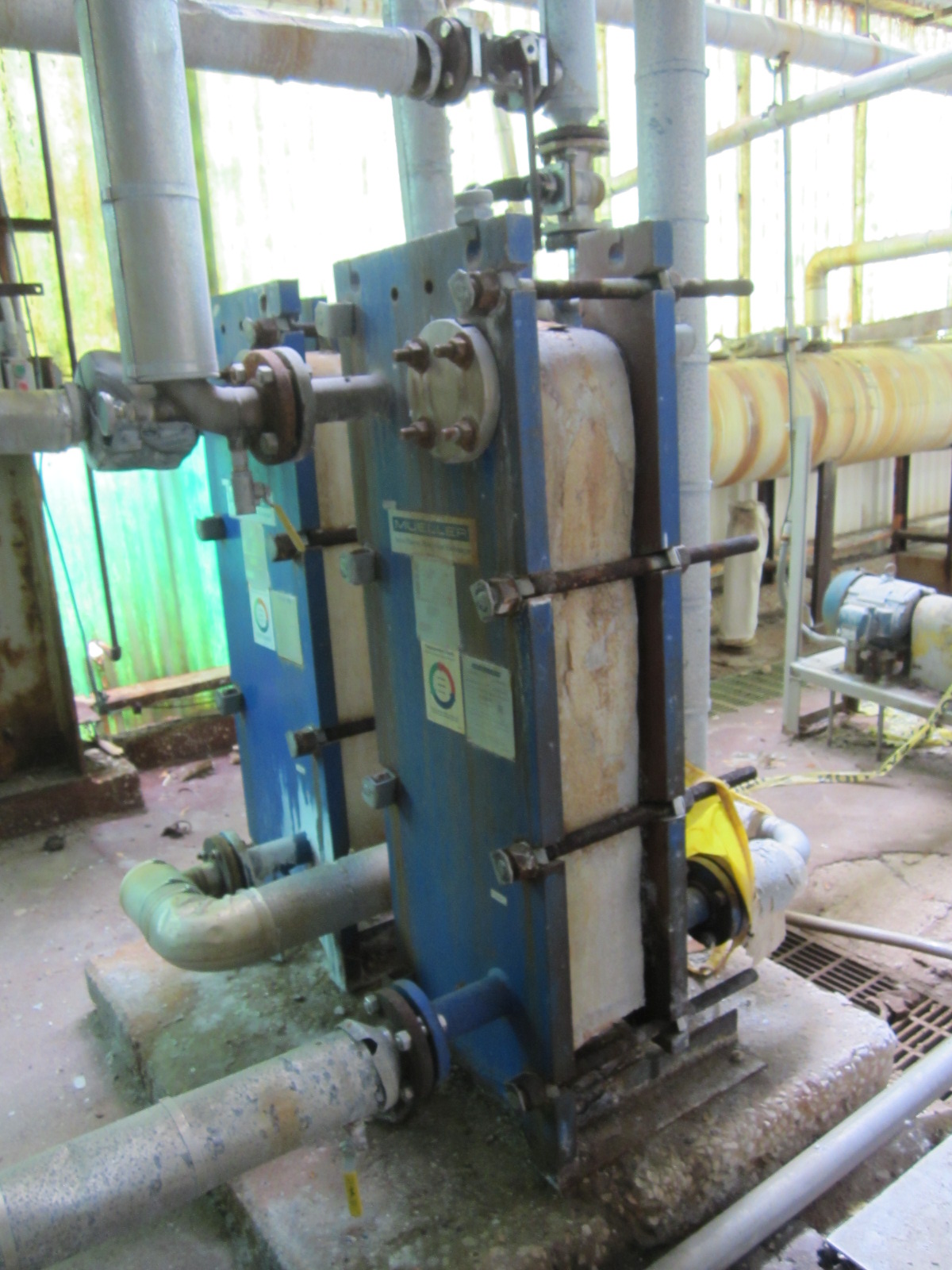

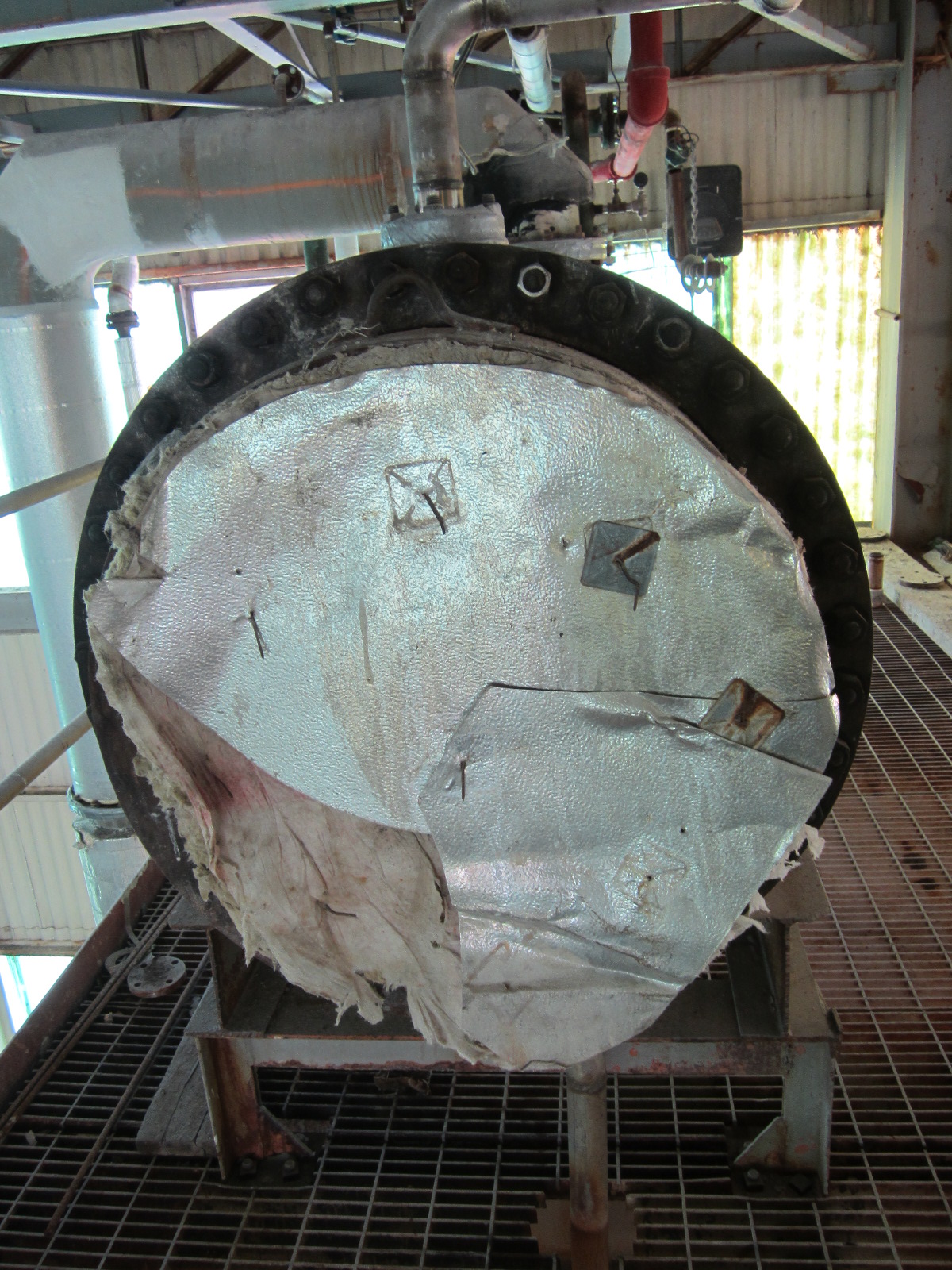

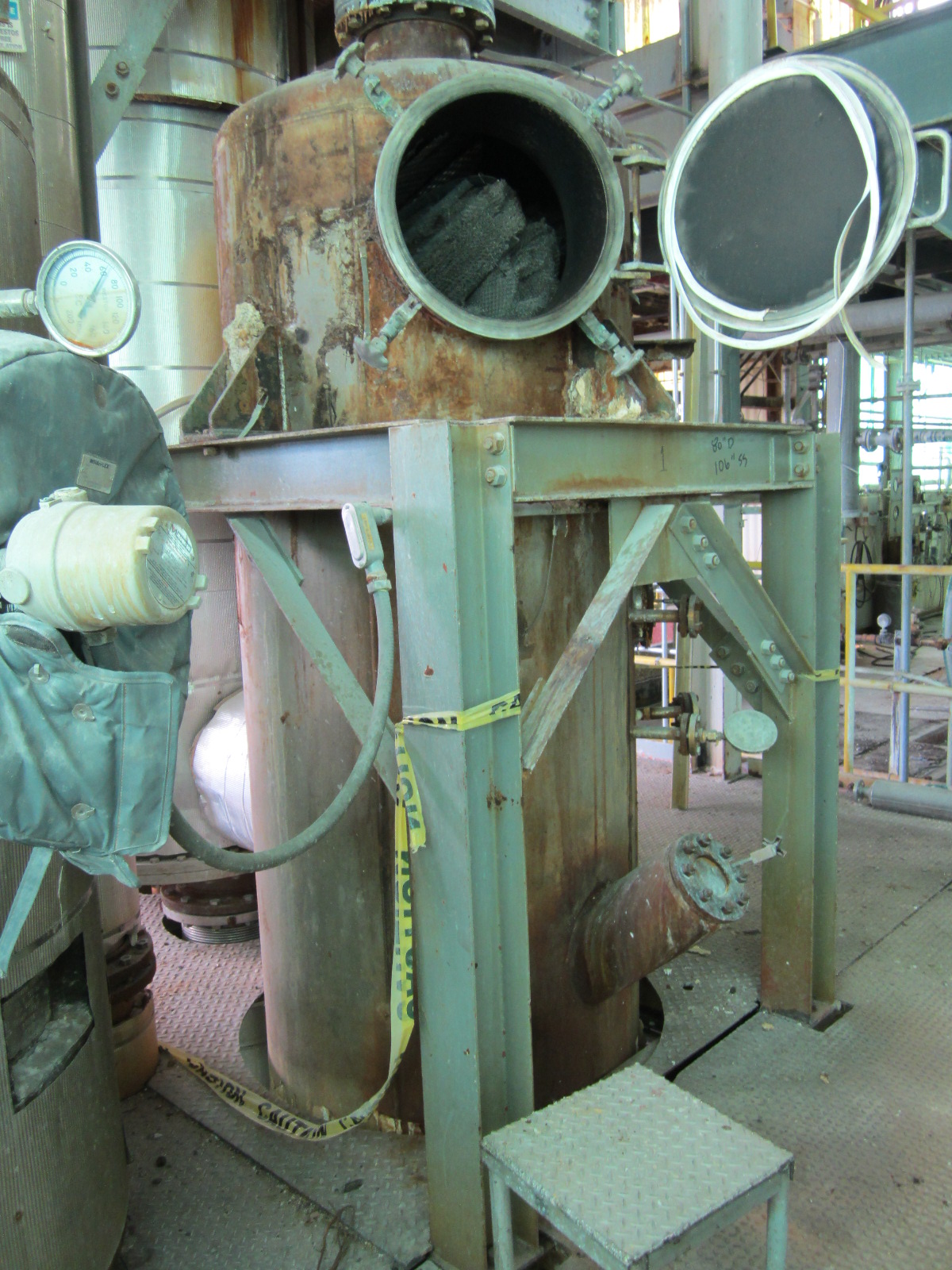

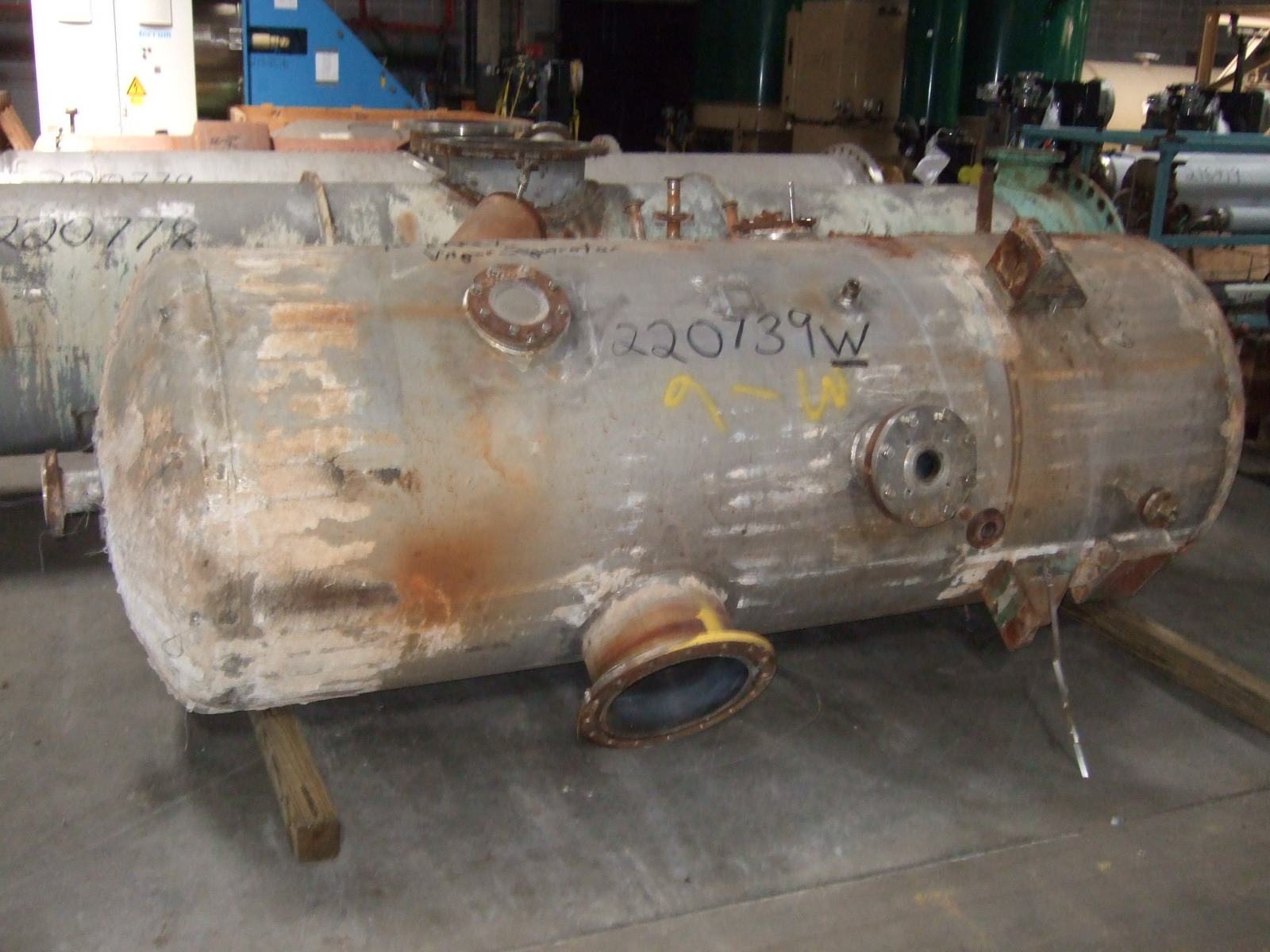

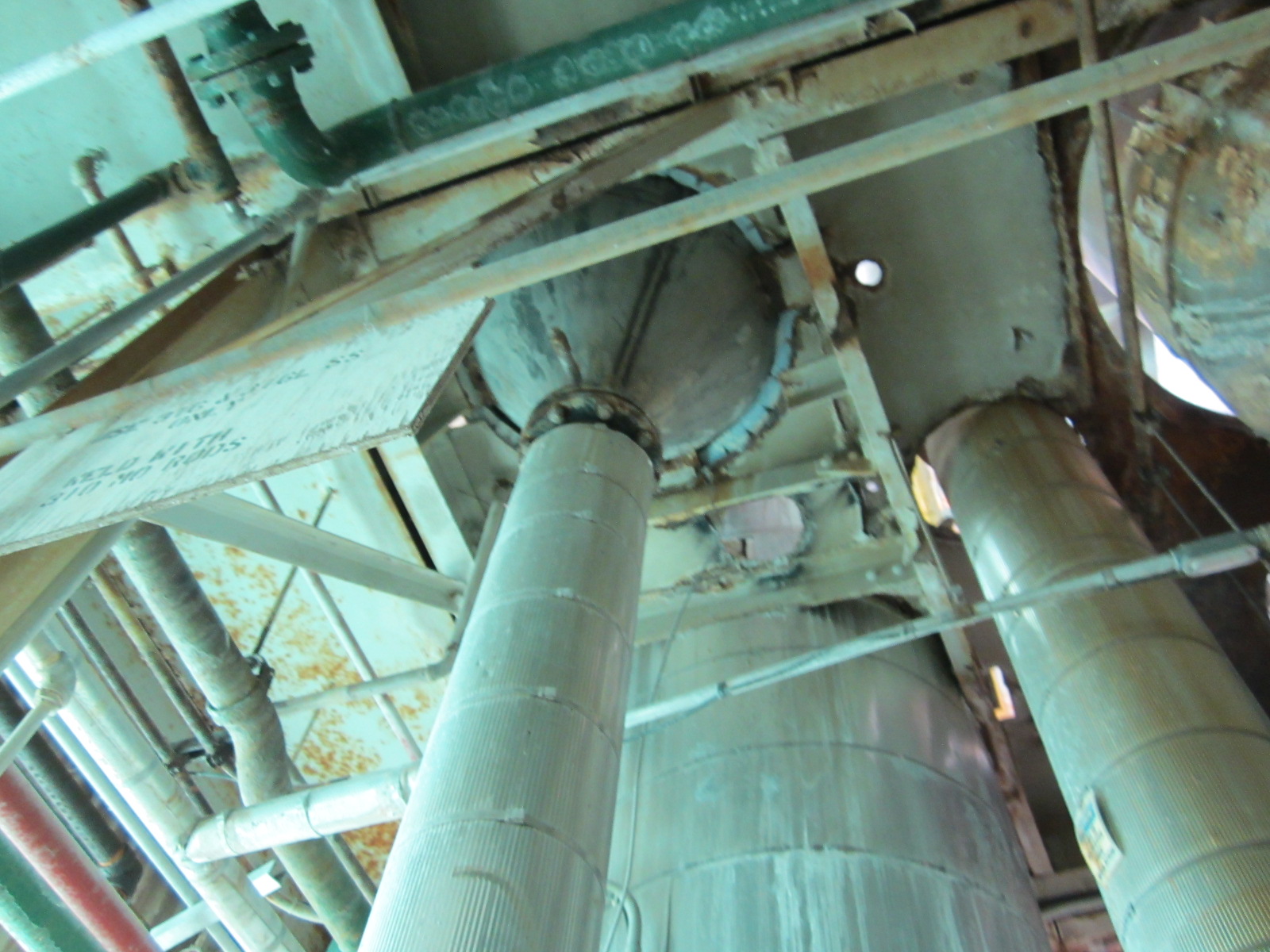

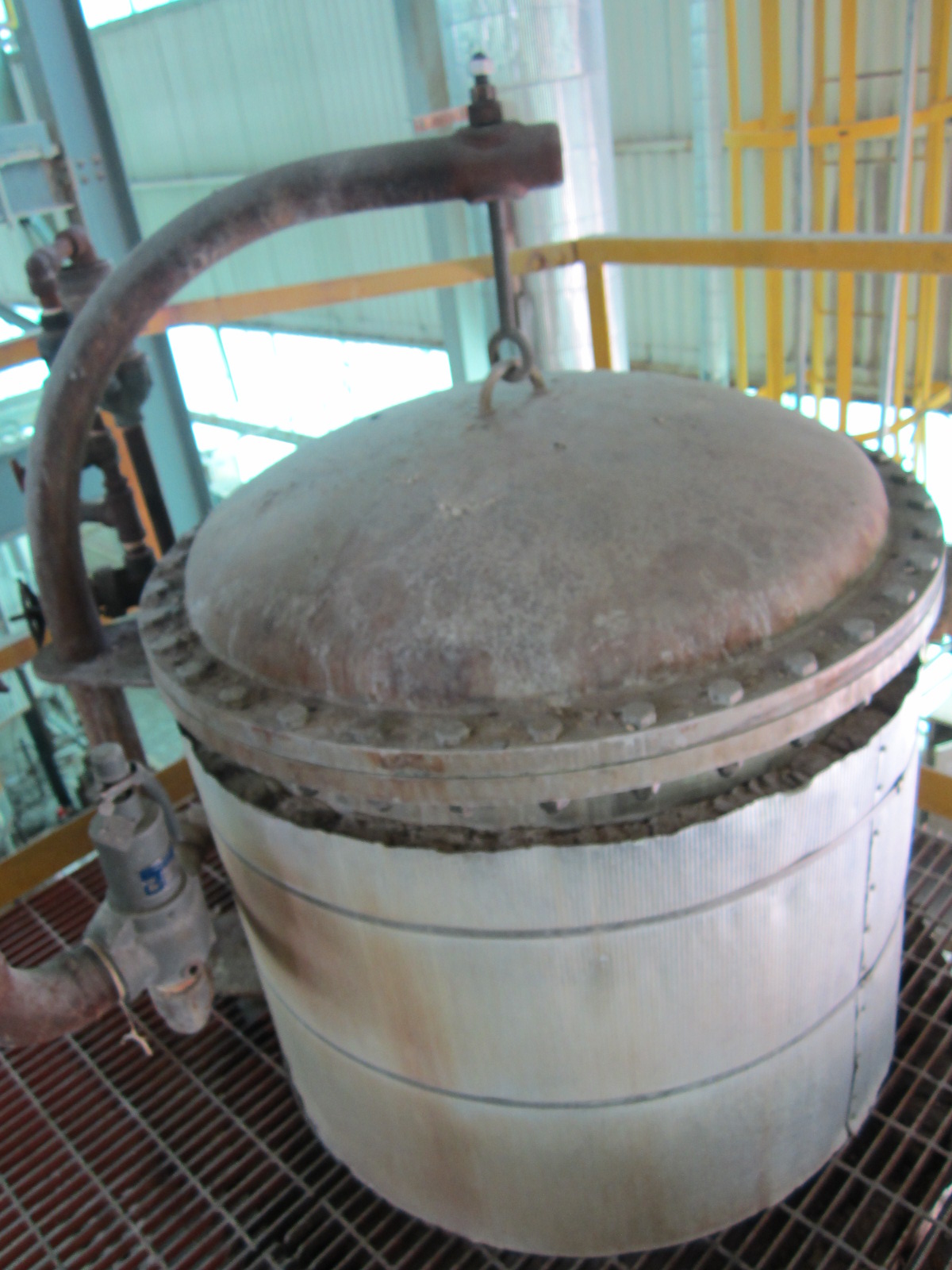

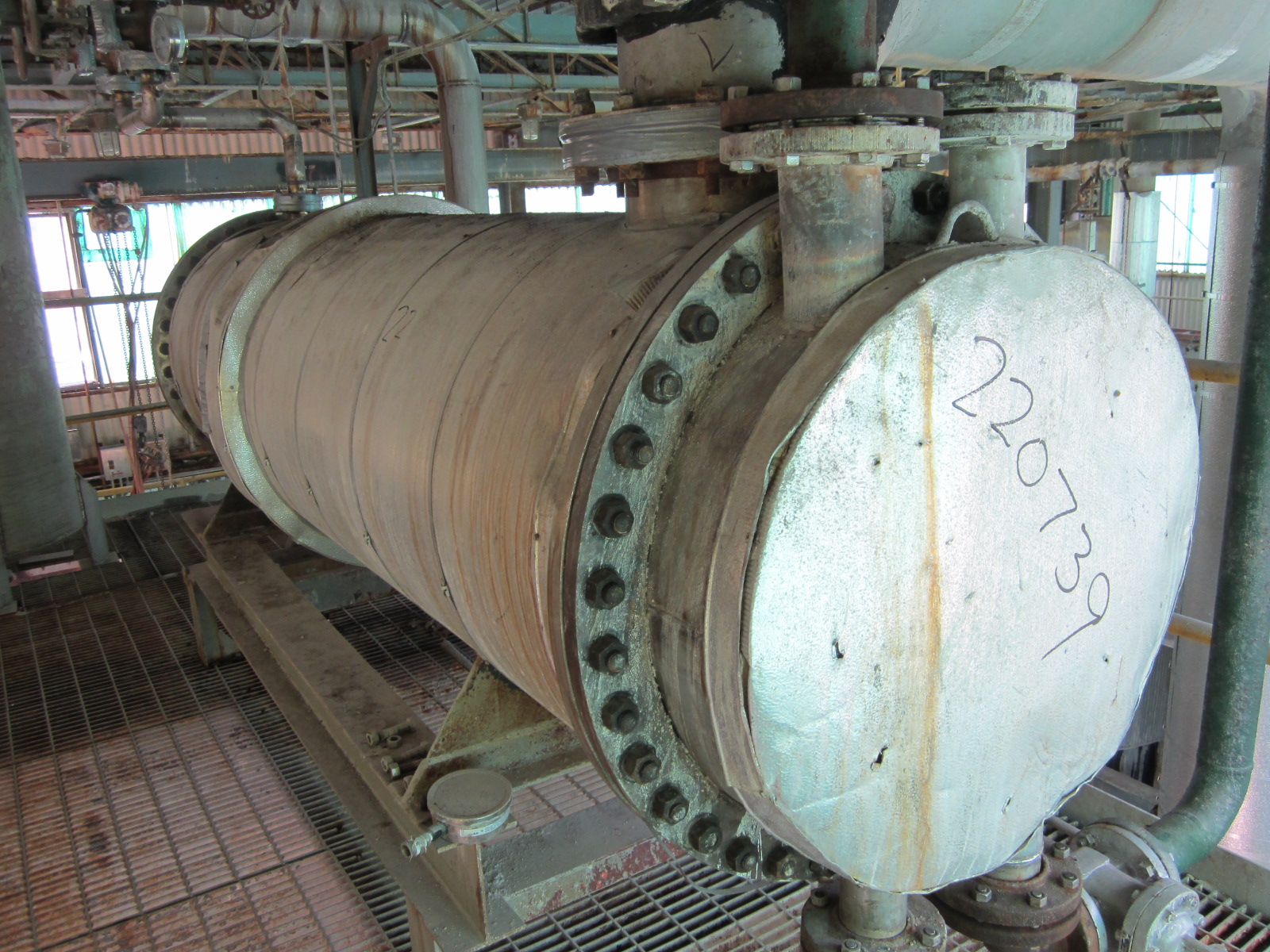

Orientation: Vertical. Pressure: 8.27 bar (120 psi). Temperature: 149 °C (300 °F). Vacuum: Yes. Number of Effects: 2. Vapor Body #1: 316 SS 36" OD x 102 " SS, lug Mounted Print weight 1400 lbs.. Vapor Body # 2: 316SS 42" OD x 102" SS, lug mounted Print weight 2000 lbs.. Steam Chest #1: 903 Sq.Ft. 316 SS tubes and tube sheets, CS shell. 36" OD x 319" OAL . 116 straight tubes, 1.5"OD x 239" Vertical lug mount.. Steam Chest # 2: 1924 Sq.Ft. 316 SS tubes and tube sheets, CS shell. 34" OD x 333" OAL 245 1.5" tubes 0.049" wall x 20' long. Vertical lug mount.. Condenser: 900 Sq.Ft. 316 SS tubes, tube sheets and heads, CS shell. 30" OD x 137" OAL, 430 straight tubes 1" OD x 0.049" wall x 8' long Horizontal saddle mounted.. Feed Heating: 316 SS plate & Frame Alfa Laval 27 Sq.Ft. & 51 Sq.Ft..
Type: Evaporator
Subtype: Rising/Falling Film
Manufacturer: Buflovak/Blaw Knox
Condition: Used
Material: Stainless Steel 304
Evaporation Rate: 9,573 kg/h (21,105 lb/h)
Total Heat Transfer Surface Area: 392 m² (4,221 ft²)
Second Effect separator replaced by IPS, Inc.-Condenser changed from original design and now is an Alfa Laval spiral, IPP stock # 246876. 270 Sq.Ft., 316 SS clad on CS, 55 psi at 300 degrees F.
Orientation: Vertical. Pressure: 0.965 bar (14 psi). Temperature: 149 °C (300 °F). Vacuum: Yes. Number of Effects: 2. Vapor Body #1: 304 SS top 54" diameter x 84" long (vapor) bottom is 24" diameter x 72" long. (liquid) Lug mounted, with welded dish heads.. Vapor Body # 2: 304 SS 64" diameter x 150' straight side with welded dish heads. Lug mounted. Manufactured by IPS Inc. serial # 05-1122, NB # 135.. Steam Chest #1: 2315 Sq.Ft., 304 SS with CS shell, vertical steam chest. 38" diameter x 157" long, with clamped heads mounted by lugs. Estimated 442 straight tubes 2" OD x 10" long.. Steam Chest # 2: 1906 Sq.Ft., 304SS tubes with CS shell vertical steam chest. 32" diameter x 163" long side with clamped heads, mounted by lugs. Estimated 364 straight tubes 2" OD x 10' long.. Condenser: Alfa Laval spiral, See stock # 246876 for details. Feed Heating: No.
Type: Evaporator
Subtype: Rising/Falling Film
Manufacturer: Kleiser Gmbh
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 9,400 kg/h (20,723 lb/h)
Orientation: Vertical
single effect falling film evaporator
pressure internal -1/6 bar @ 200 degrees C (1291 liter), jacket -1/6 bar @ 200 degrees C (1020 liter) 9.4 m3/hour evaporation rate
single pass tubeside, 316Ti (1.4571) stainless steel tubesheets, 700mm diameter 316Ti stainless steel (1.4571) shell with expansion joint, 7250mm overall length, (1) 316Ti stainless steel (1.4571) dished head, (1) 316Ti stainless steel (1.4571) bonnet head
evaporator with (1) 316Ti stainless steel (1.4571) expansion boiler, 1227 liter, 800mm diameter x 2250mm, pressure and vacuum resistant, manual valves and control valves
Pressure: 6 bar (87 psi). Temperature: 200 °C (392 °F). Vacuum: Yes.
Type: Evaporator
Subtype: Rising/Falling Film
Condition: Used
Material: Stainless Steel 316
Total Heat Transfer Surface Area: 17.3 m² (186 ft²)
Orientation: Vertical
SMS vertical single effect falling film evaporator,
c/steel heads
pressure shell side 5.5/8 bar @ 160/170 degrees C (190 liter)
tube side vacuum @ 45/145 degrees C (160 liter),
Shell dimensions: 368mm diameter x 8mm
Pressure: 8 bar (116 psi). Temperature: 170 °C (338 °F). Vacuum: Yes.
