Type: Evaporator
Subtype: Rising/Falling Film

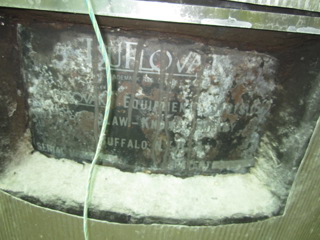

Manufacturer: Buflovak/Blaw Knox
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 7,257 kg/h (16,000 lb/h)
Total Heat Transfer Surface Area: 83.6 m² (900 ft²)

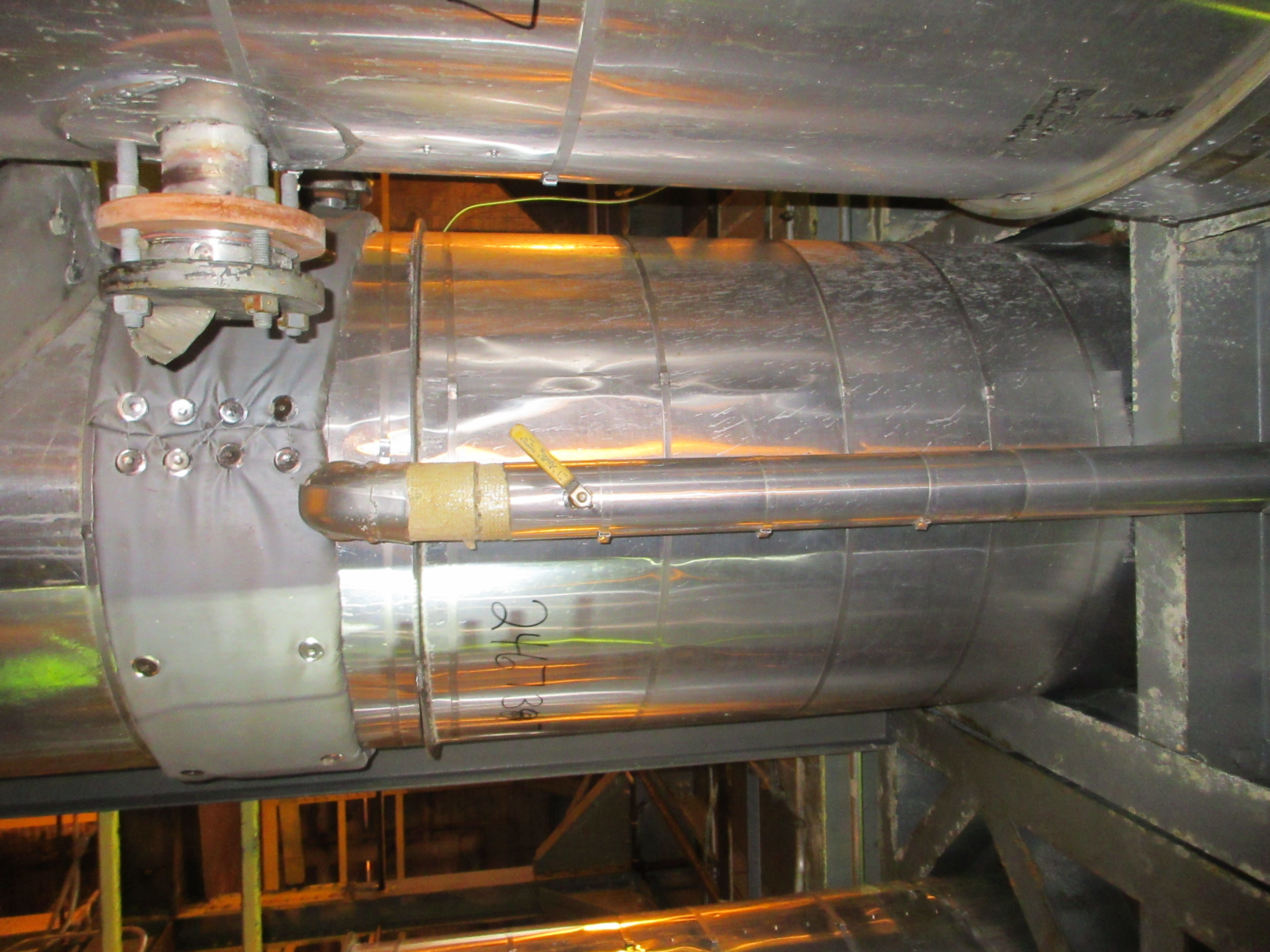

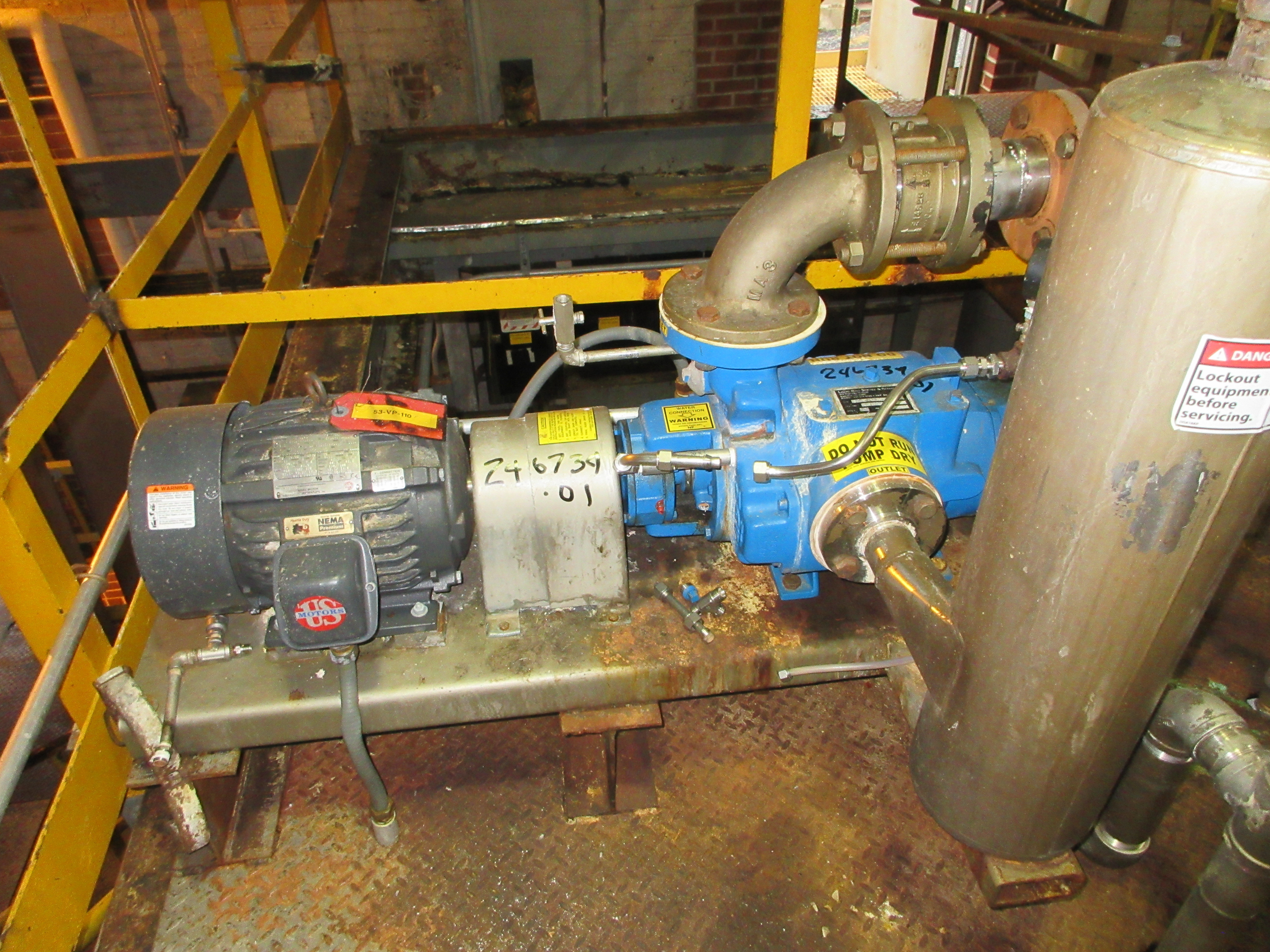

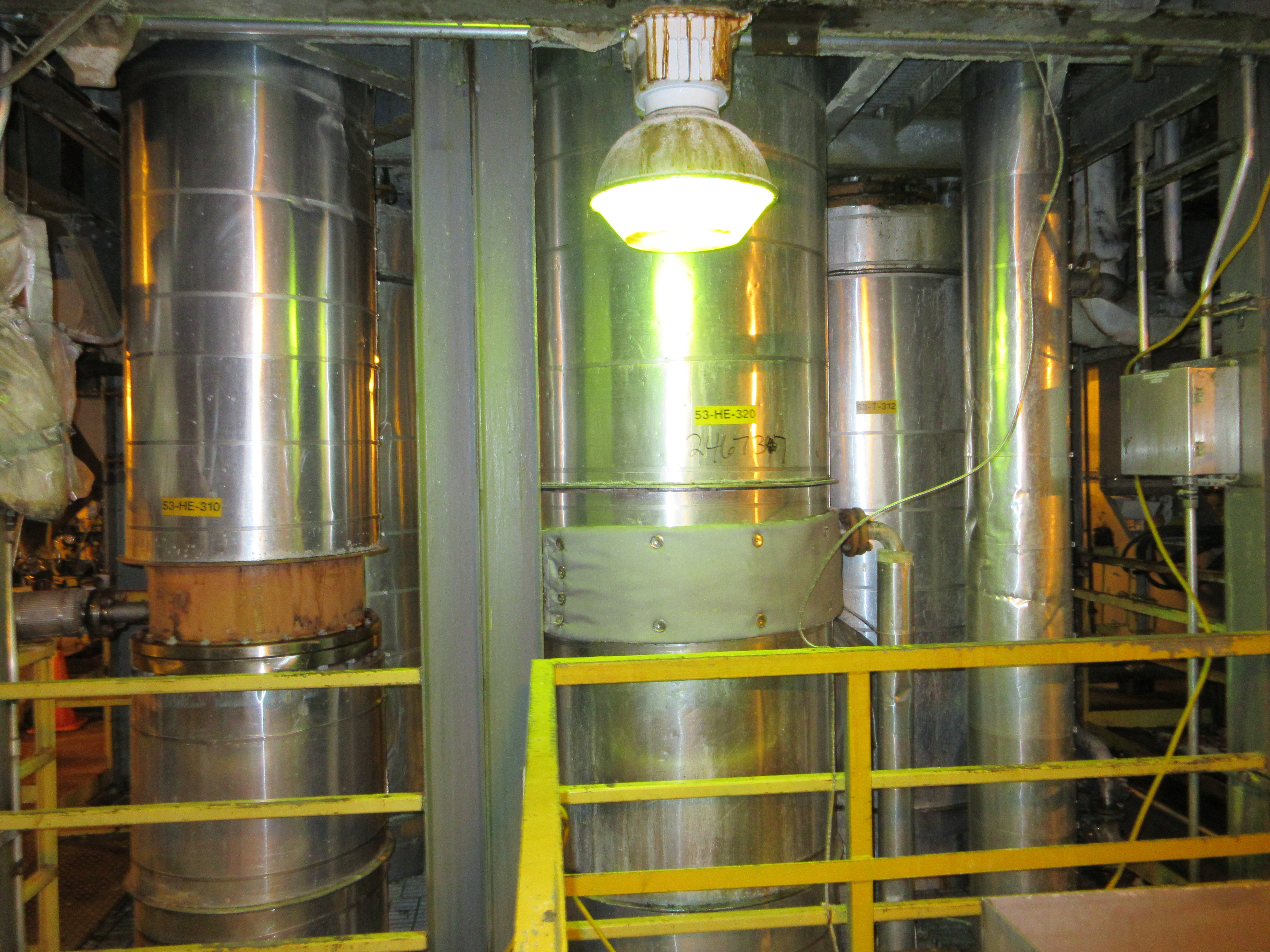

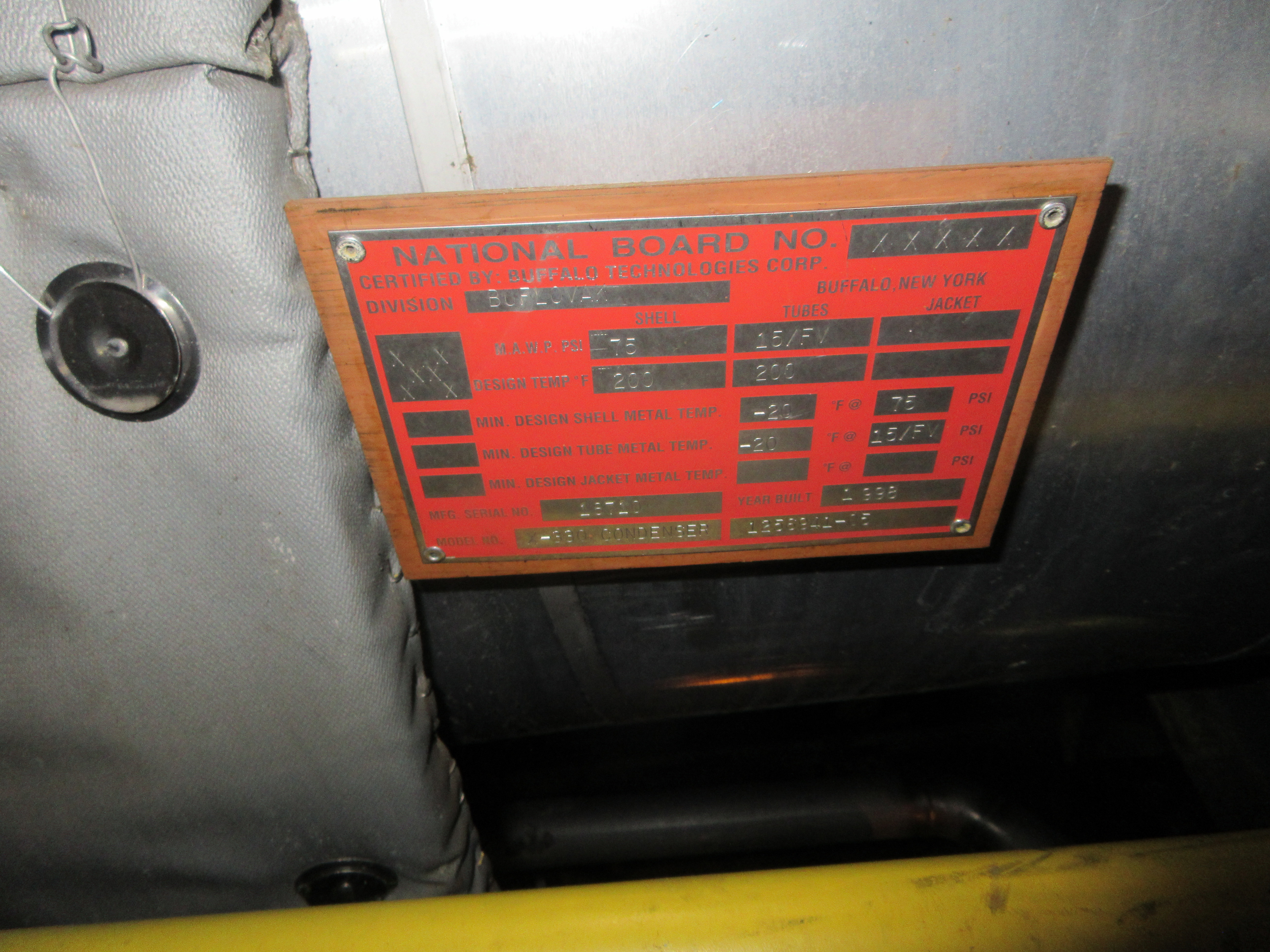

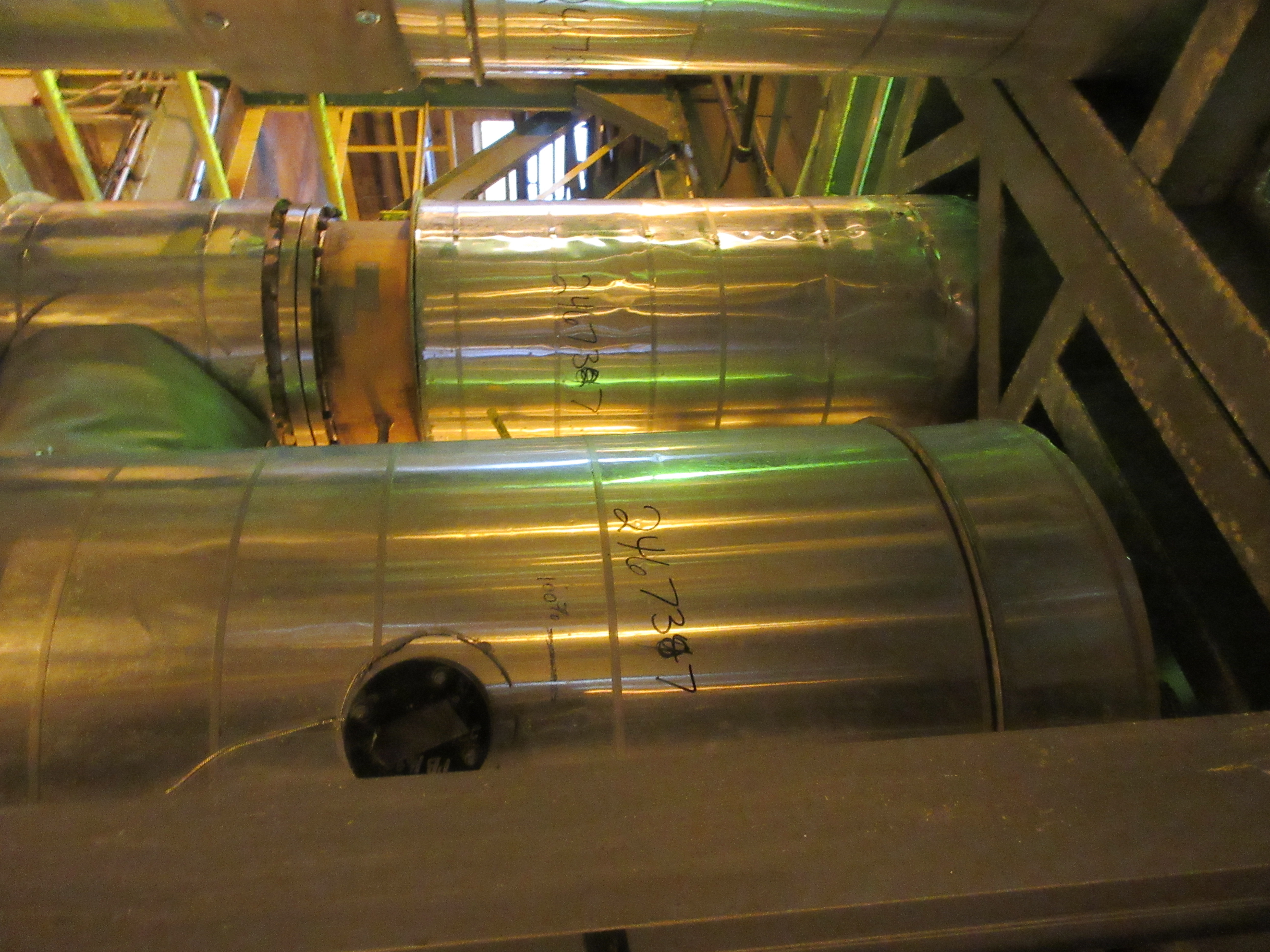

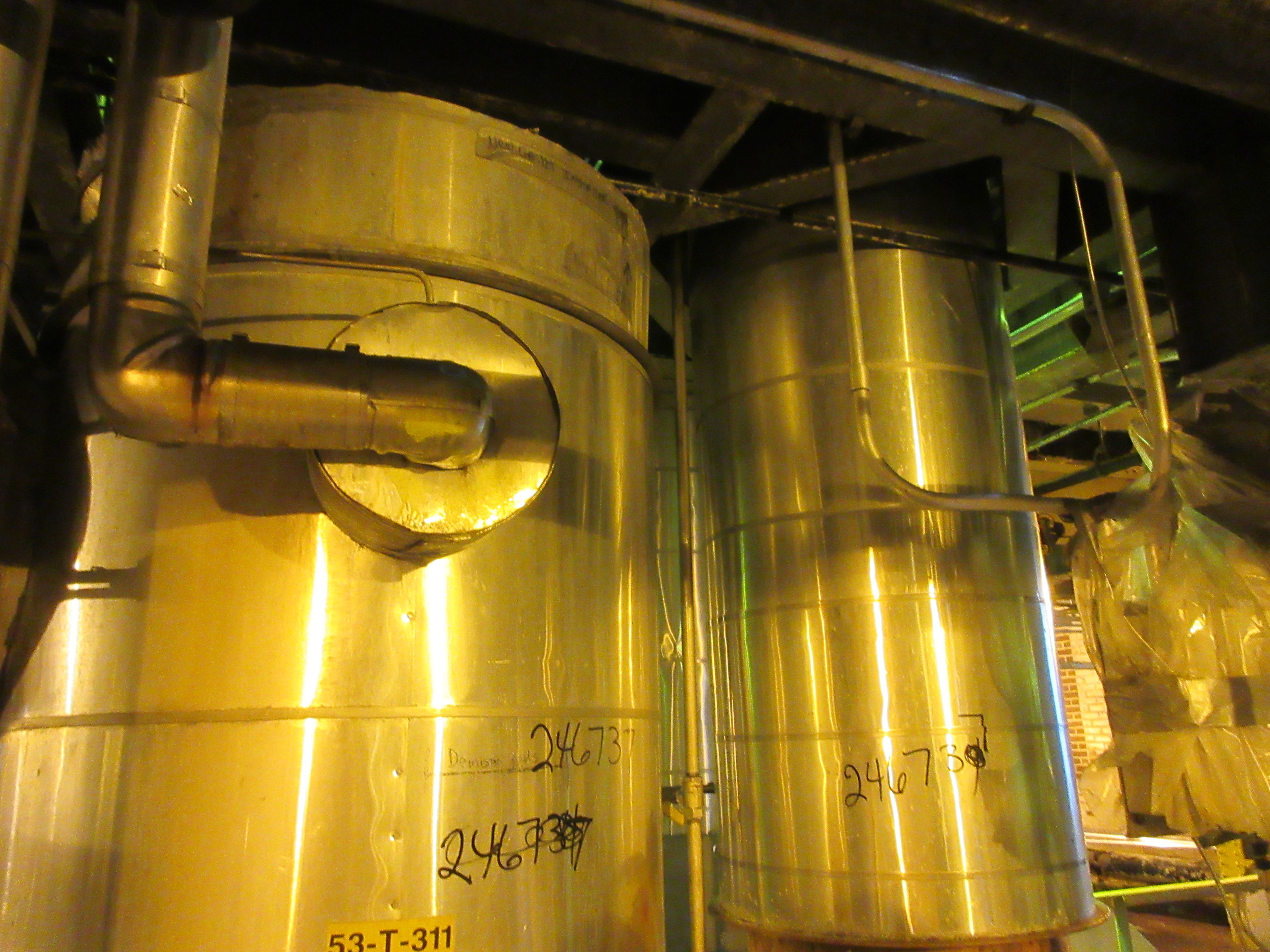

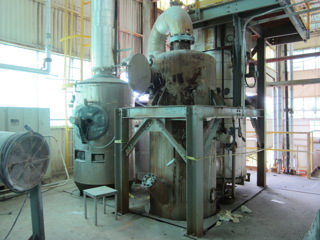

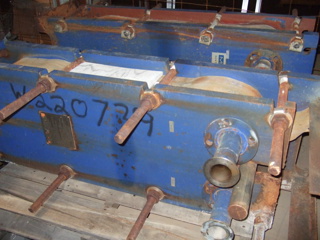

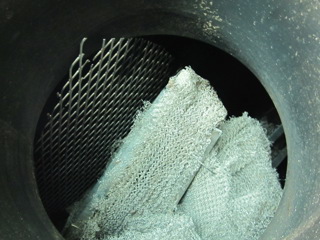

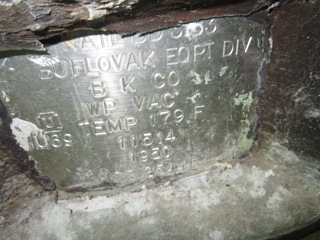

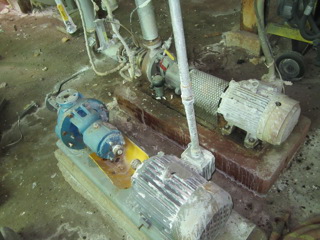

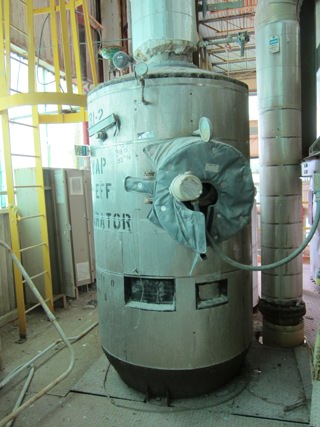

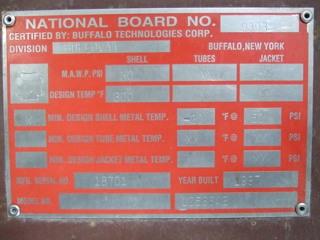

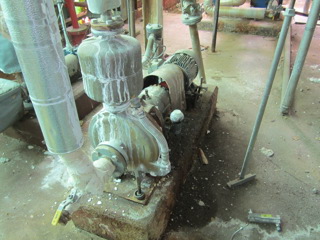

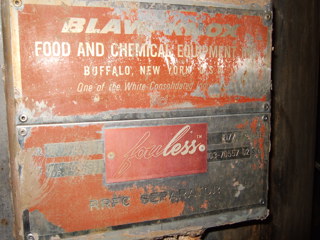

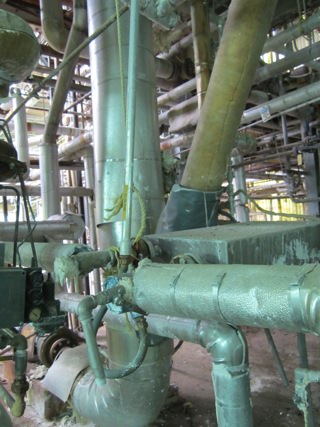

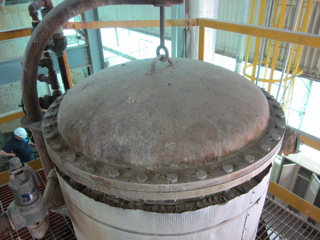

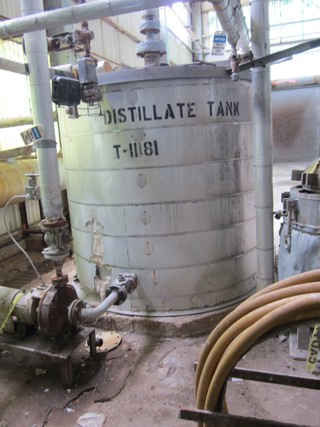

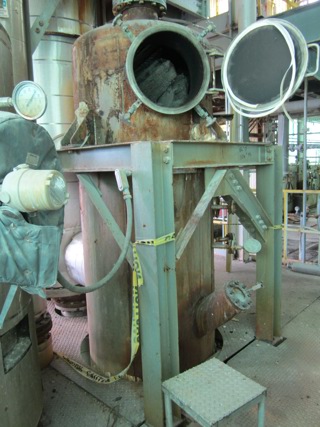

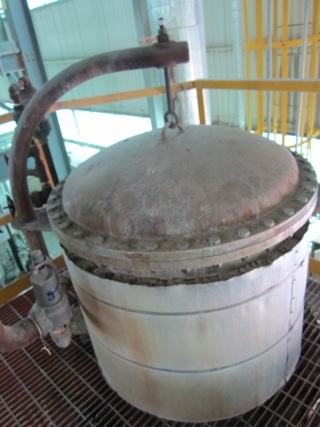

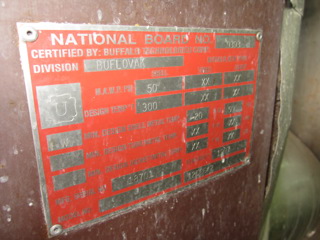

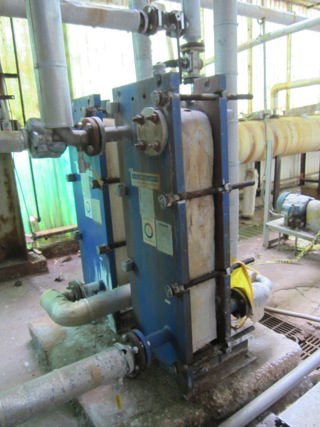

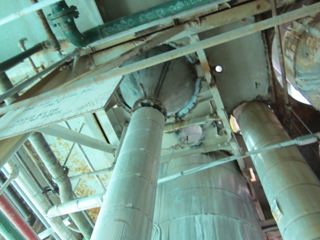

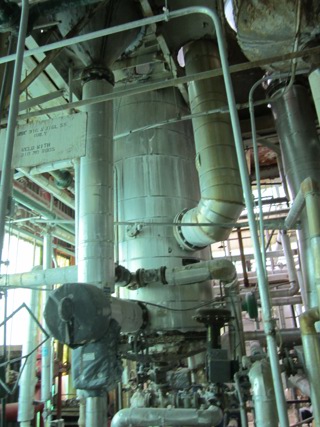

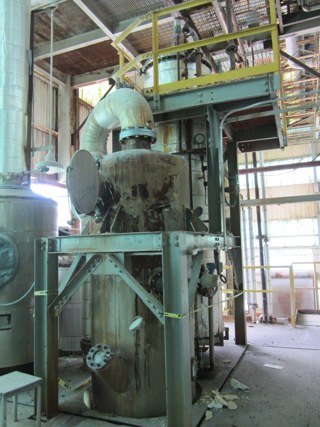

tubular evaporation system manufactured by Buflovak-Blaw-Knox. Includes 5 main pieces and support equipment such as pumps and small plate heat exchanger. Main pieces are as follows:(D) 1st effect steam chest (heat exchanger), 900 Sq Ft. NB #8255/ 9393, SN # 17669/18701, (1997) rated for 50 psi at 300 degrees on the shell, Model 1256642. 36" diameter x 10' OAL mounted vertical. (C) 1st effect vapor separator, RRFC, 42" diameter x 9' OAL with top side man way and "York" style 931 316 SS demisting mesh packing for vapor carry over.(needs to be replaced). (E) 2nd effect heater, 4' diameter x 13' OAL, with (B) 38" diameter x 8' OAL separator with cone bottom. NB # 3136, serial # 11514, Rated for MAWP Vacuum at 179 degrees F. ( HSB # 2544B) Plant # S-11181-2. With 18" man way and sight glass. With 12" interconnecting pipe, and elbow pump. Overhead condenser (A) approx. 2000 Sq. ft., 316 SS , 2/4 pass on tube side(cooling) with 12" water inlet/outlet. Discharge of overheads to distillate.

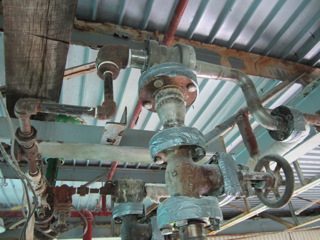

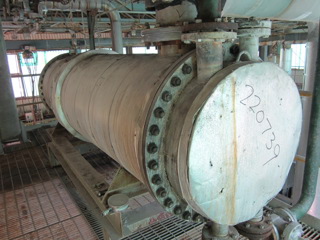

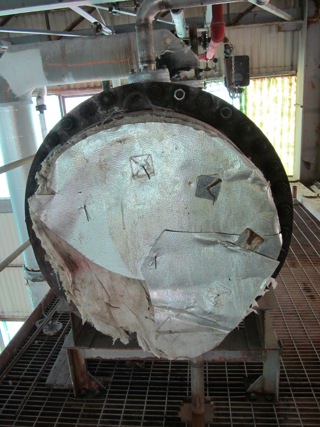

30" diameter x 10' 3" OAL, saddle mounted, with two 40 Lb. steam jets to supply vacuum.
Pressure: 3.4 bar (50 psi). Temperature: 148.9 °C (300 °F).

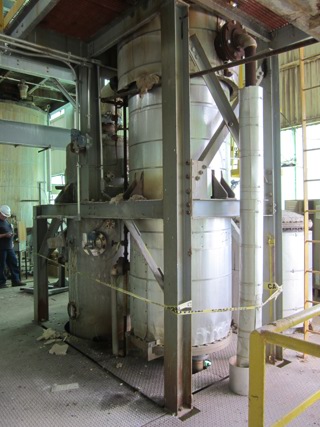

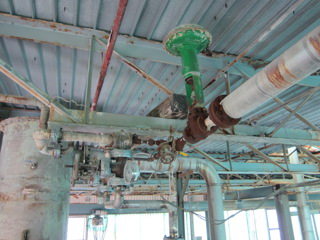

Type: Evaporator
Subtype: Rising/Falling Film
Manufacturer: Buflovak/Blaw Knox
Condition: Used
Material: Stainless Steel 304
Evaporation Rate: 9,573 kg/h (21,105 lb/h)
Total Heat Transfer Surface Area: 392.1 m² (4,221 ft²)
Second Effect separator replaced by IPS, Inc.-Condenser changed from original design and now is an Alfa Laval spiral, IPP stock # 246876. 270 Sq.Ft., 316 SS clad on CS, 55 psi at 300 degrees F.

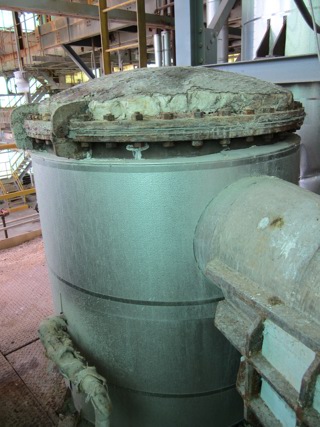

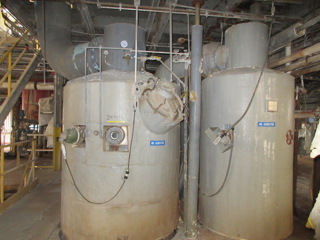

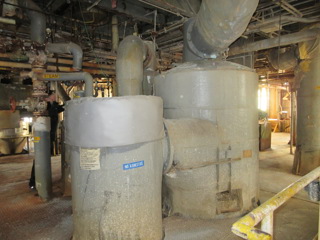

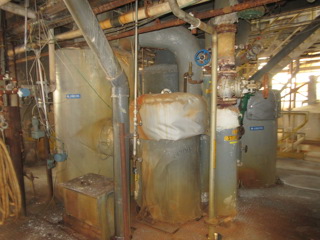

Orientation: Vertical. Pressure: 0.97 bar (14 psi). Temperature: 148.9 °C (300 °F). Vacuum: Yes. Number of Effects: 2. Vapor Body #1: 304 SS top 54" diameter x 84" long (vapor) bottom is 24" diameter x 72" long. (liquid) Lug mounted, with welded dish heads.. Vapor Body # 2: 304 SS 64" diameter x 150' straight side with welded dish heads. Lug mounted. Manufactured by IPS Inc. serial # 05-1122, NB # 135.. Steam Chest #1: 2315 Sq.Ft., 304 SS with CS shell, vertical steam chest. 38" diameter x 157" long, with clamped heads mounted by lugs. Estimated 442 straight tubes 2" OD x 10" long.. Steam Chest # 2: 1906 Sq.Ft., 304SS tubes with CS shell vertical steam chest. 32" diameter x 163" long side with clamped heads, mounted by lugs. Estimated 364 straight tubes 2" OD x 10' long.. Condenser: Alfa Laval spiral, See stock # 246876 for details. Feed Heating: No.
Type: Evaporator
Subtype: Rising/Falling Film
Manufacturer: Kleiser Gmbh
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 9,400 kg/h (20,723 lb/h)
Orientation: Vertical

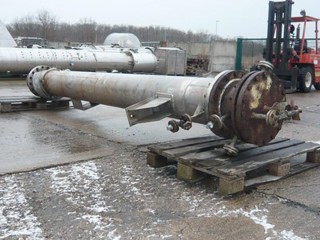

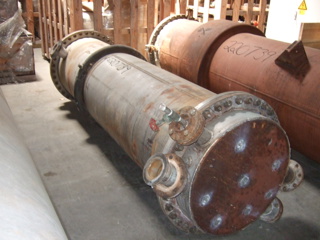

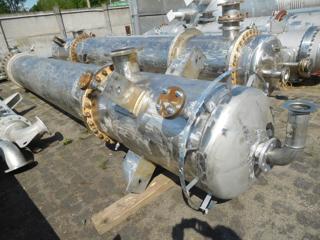

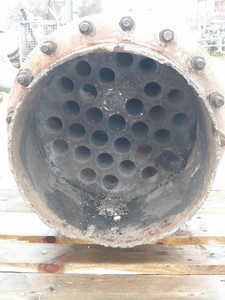

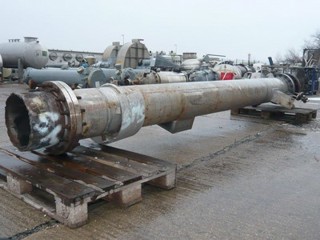

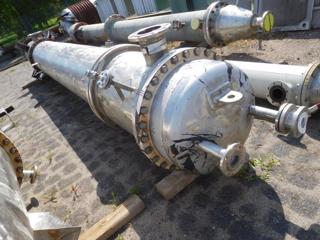

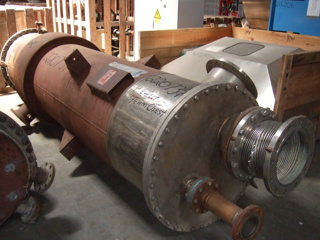

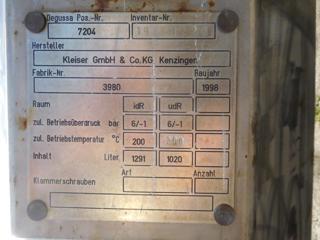

single effect falling film evaporator pressure internal -1/6 bar @ 200 degrees C (1291 liter), jacket -1/6 bar @ 200 degrees C (1020 liter) 9.4 m3/hour evaporation rate single pass tubeside, 316Ti (1.4571) stainless steel tubesheets, 700mm diameter 316Ti stainless steel (1.4571) shell with expansion joint, 7250mm overall length, (1) 316Ti stainless steel (1.4571) dished head, (1) 316Ti stainless steel (1.4571) bonnet head evaporator with (1) 316Ti stainless steel (1.4571) expansion boiler, 1227 liter, 800mm diameter x 2250mm, pressure and vacuum resistant, manual valves and control valves
Pressure: 6 bar (87 psi). Temperature: 200 °C (392 °F). Vacuum: Yes.
Type: Evaporator
Subtype: Rising/Falling Film
Condition: Used
Material: Stainless Steel 316
Total Heat Transfer Surface Area: 17.3 m² (186.2 ft²)
Orientation: Vertical

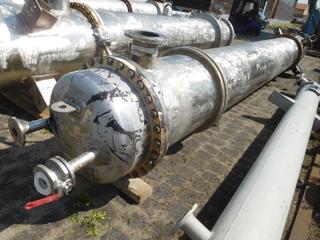

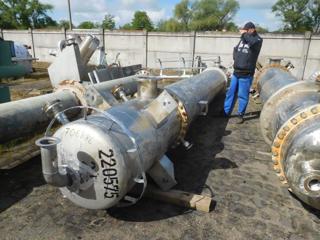

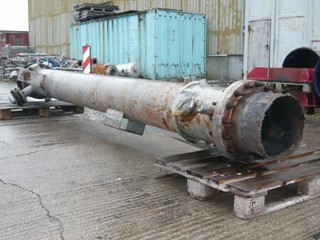

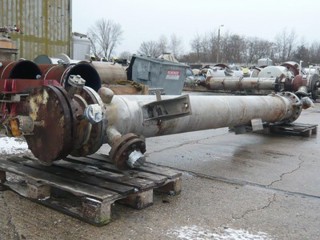

SMS vertical single effect falling film evaporator, c/steel heads pressure shell side 5.5/8 bar @ 160/170 degrees C (190 liter) tube side vacuum @ 45/145 degrees C (160 liter), Shell dimensions: 368mm diameter x 8mm
Pressure: 8 bar (116 psi). Temperature: 170 °C (338 °F). Vacuum: Yes.
