IPP# 223152 1,300 L (343 gallons) Stainless Steel 316L Mixer-Intensive For Sale

Overview

Type:

Mixer-Intensive

Manufacturer:

Koruma Mashinenbau GmbH

Model:

DISHO V180/1300

Condition:

Used

Material:

Stainless Steel 316L

Capacity

Capacity (Design):

1,300 L (343 gallons)

Motor

Motor Power:

51 kW (68.4 HP)

Other Specifications

Bowl Diameter:

1,118 mm (44 in)

Bowl Depth:

1,829 mm (72 in)

Blade Type:

wide sweep & pitched perforated blade w/ side wall scraper

Pressure:

2.5 bar (36.3 psi)

Temperature:

180 °C (356 °F)

Bowl Jacket:

Yes

Vacuum:

Yes

Controls:

Yes

Jacket

Jacket Pressure:

6 bar (87 psi)

Jacket Temperature:

180 °C (356 °F)

Additional Information

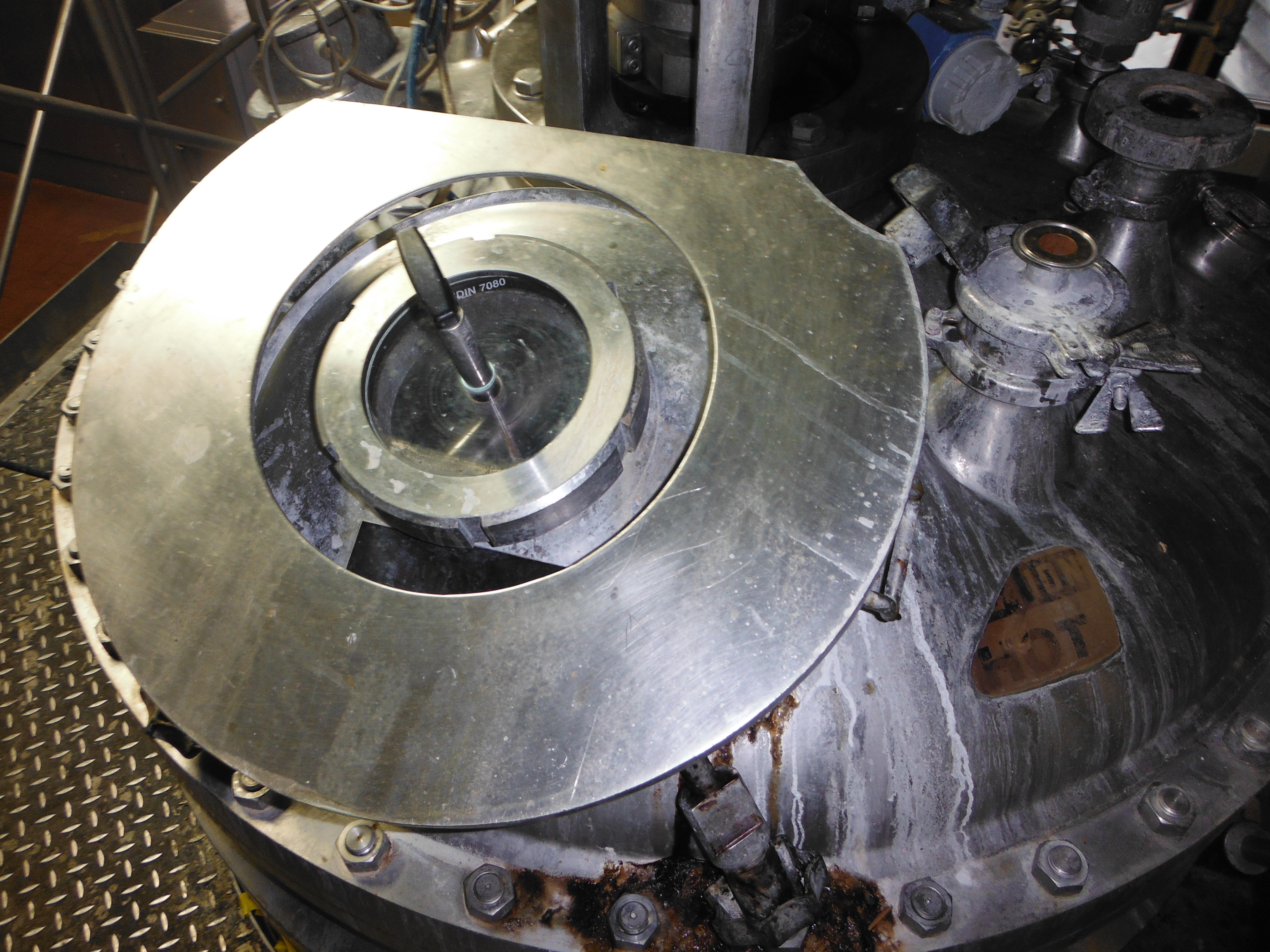

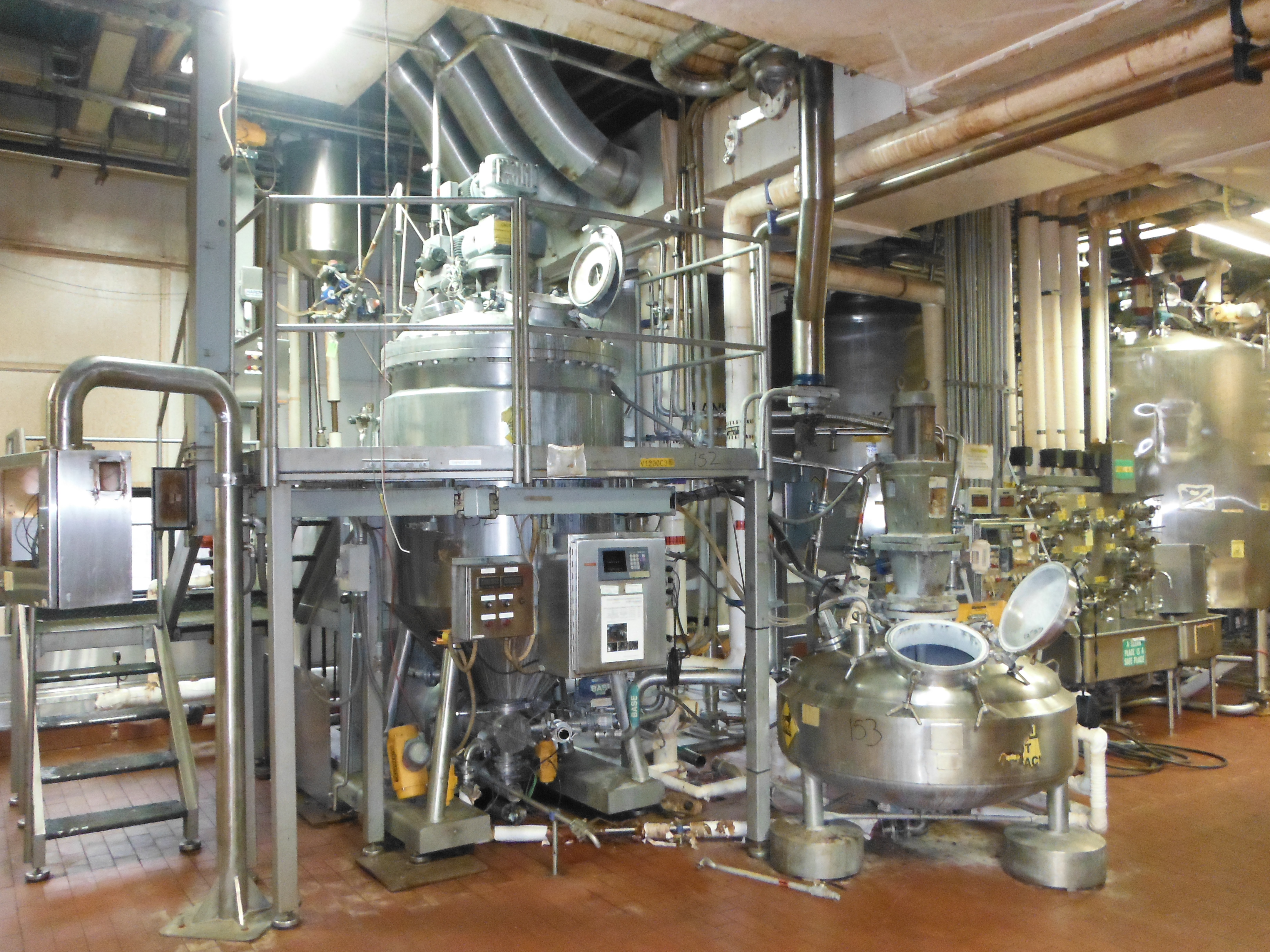

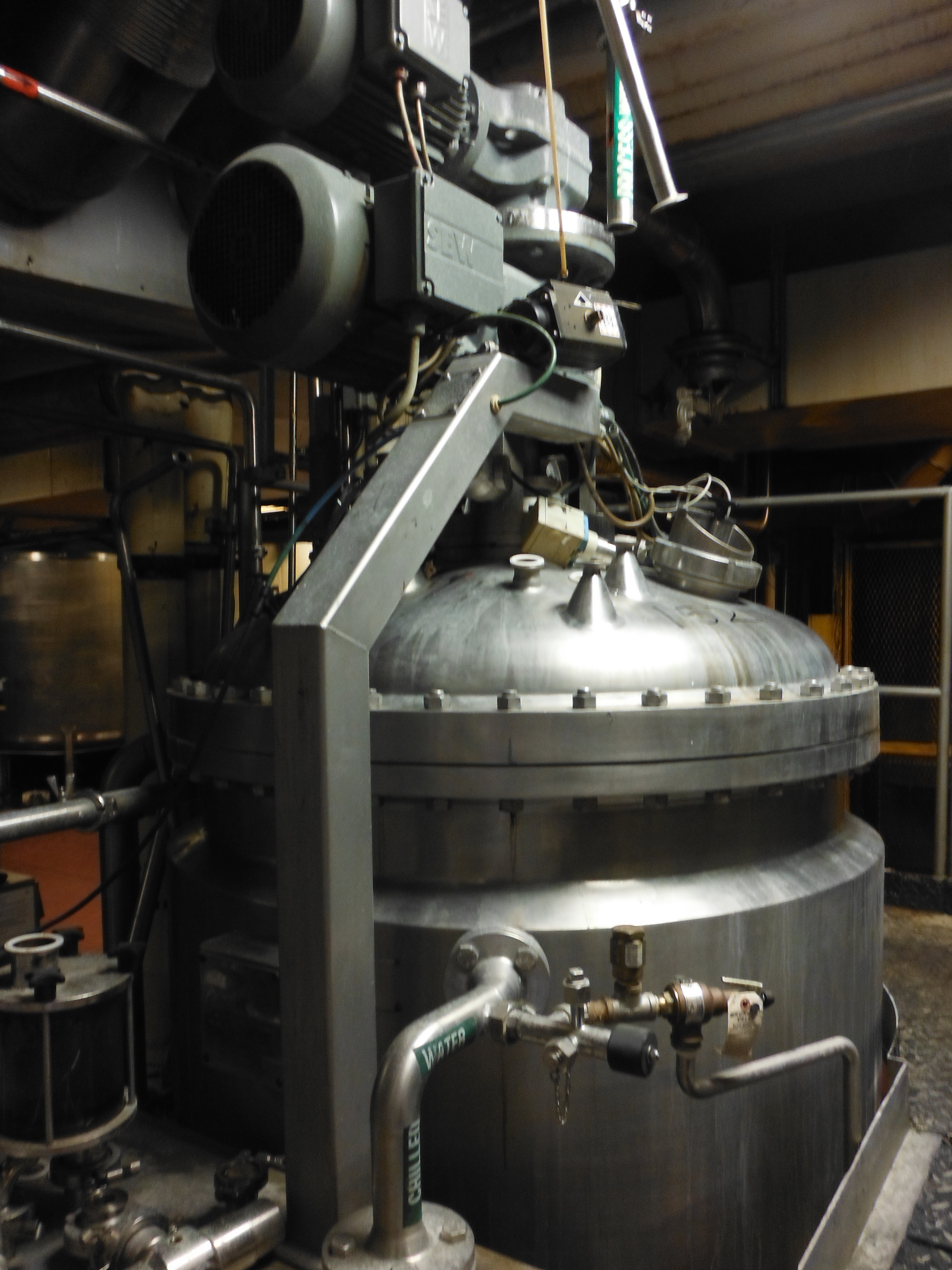

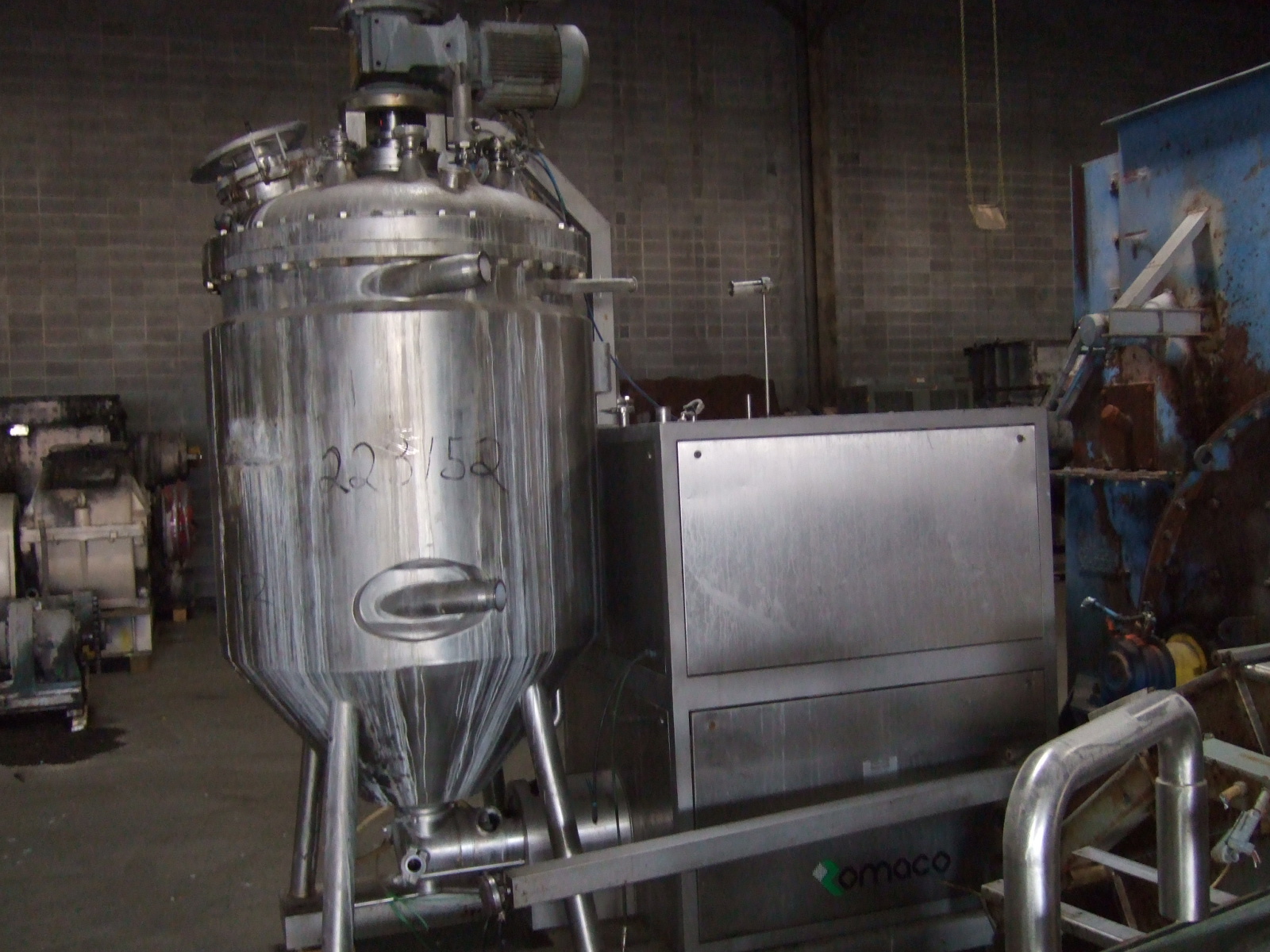

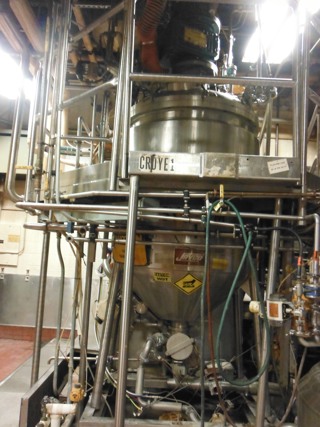

DISHO Vacuum Mixing Dispersing and Homogenizing Unit. Vessel manufactured by Hebold, rated FV/36 psi at 356 degrees F internal; with a 24" cone bottom. It has a flanged and bolted dish top head. Vessel openings include: Top -14" manway with hinged cover, (3) 4"; (3) 1".

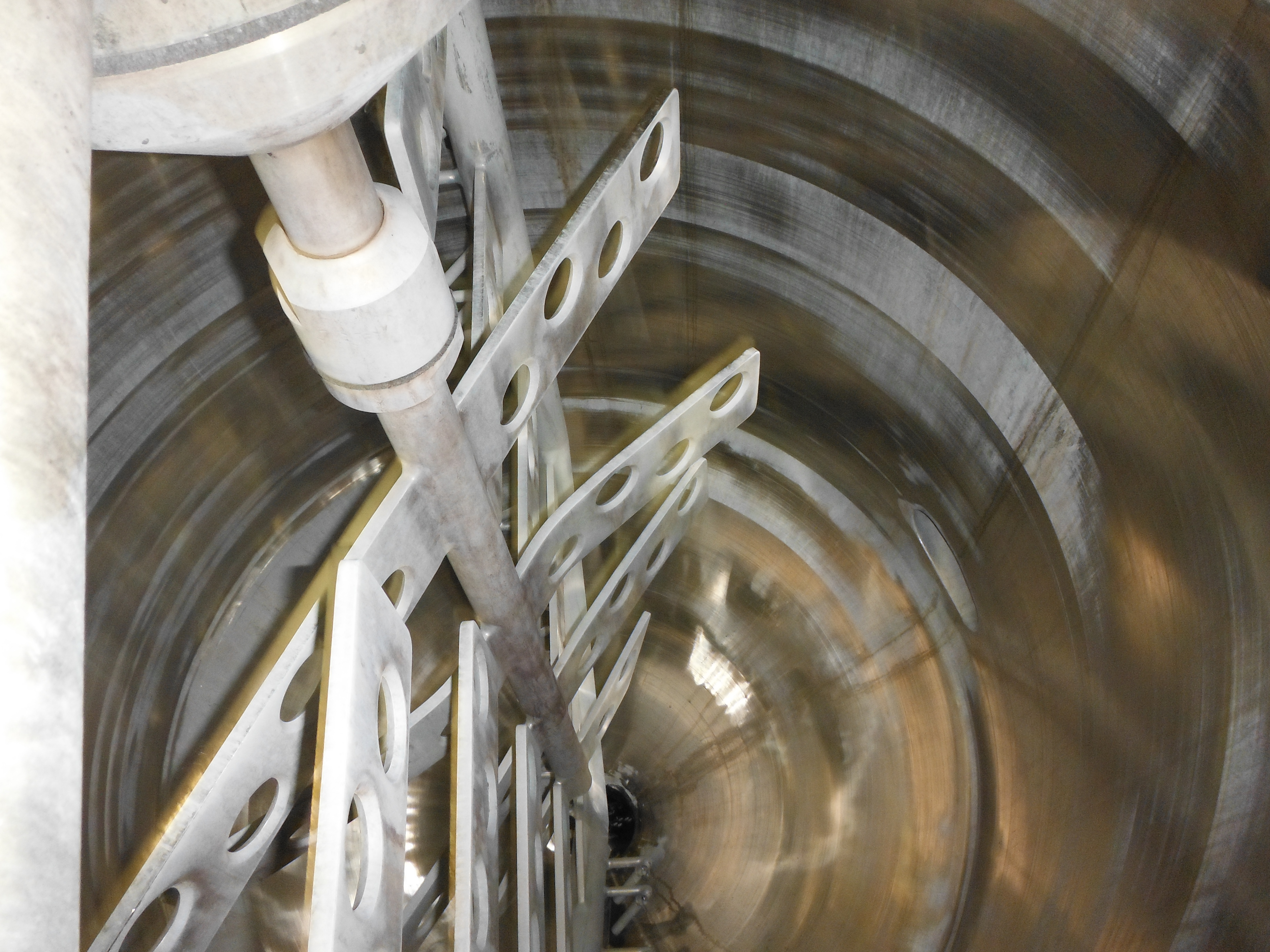

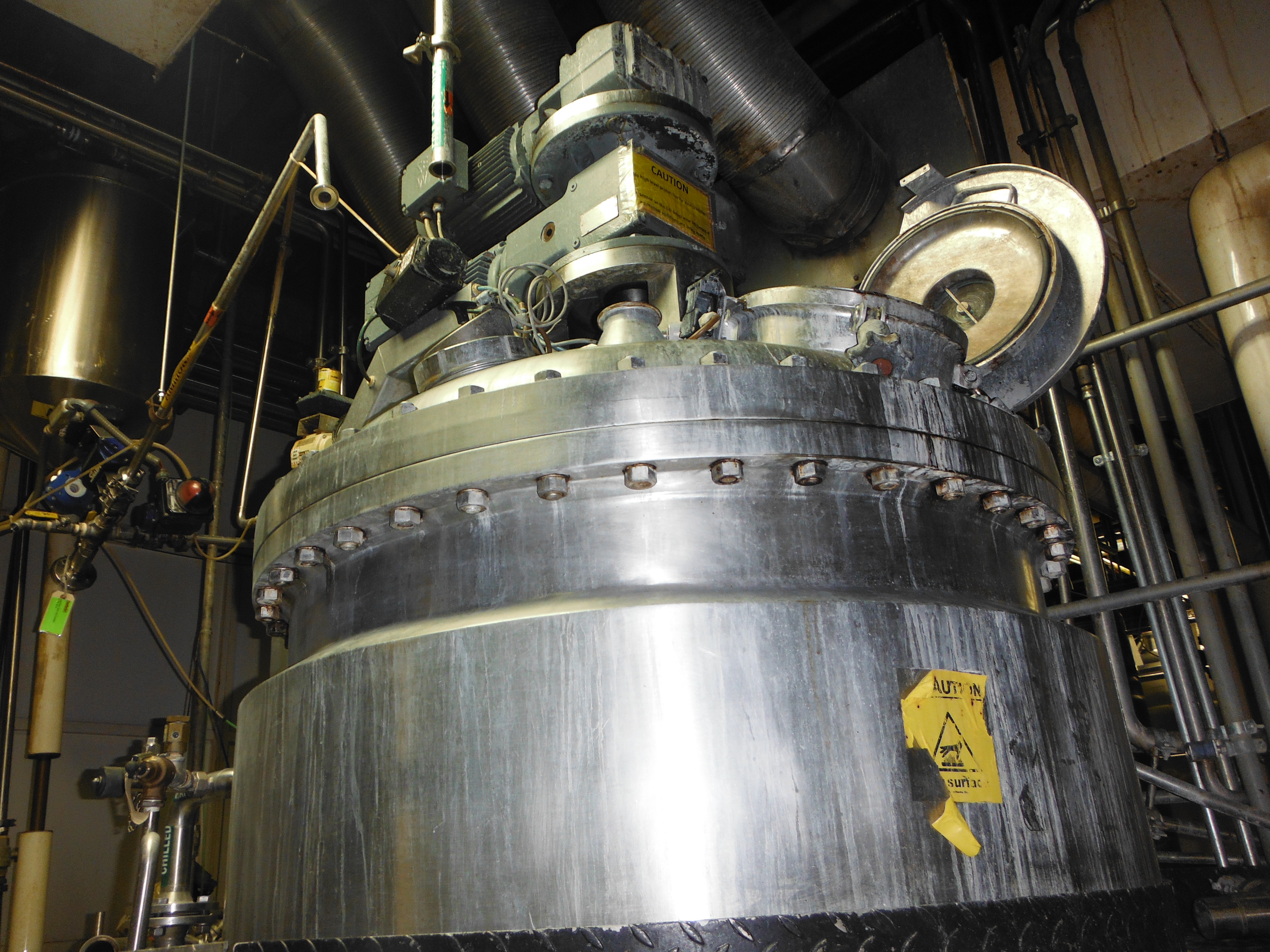

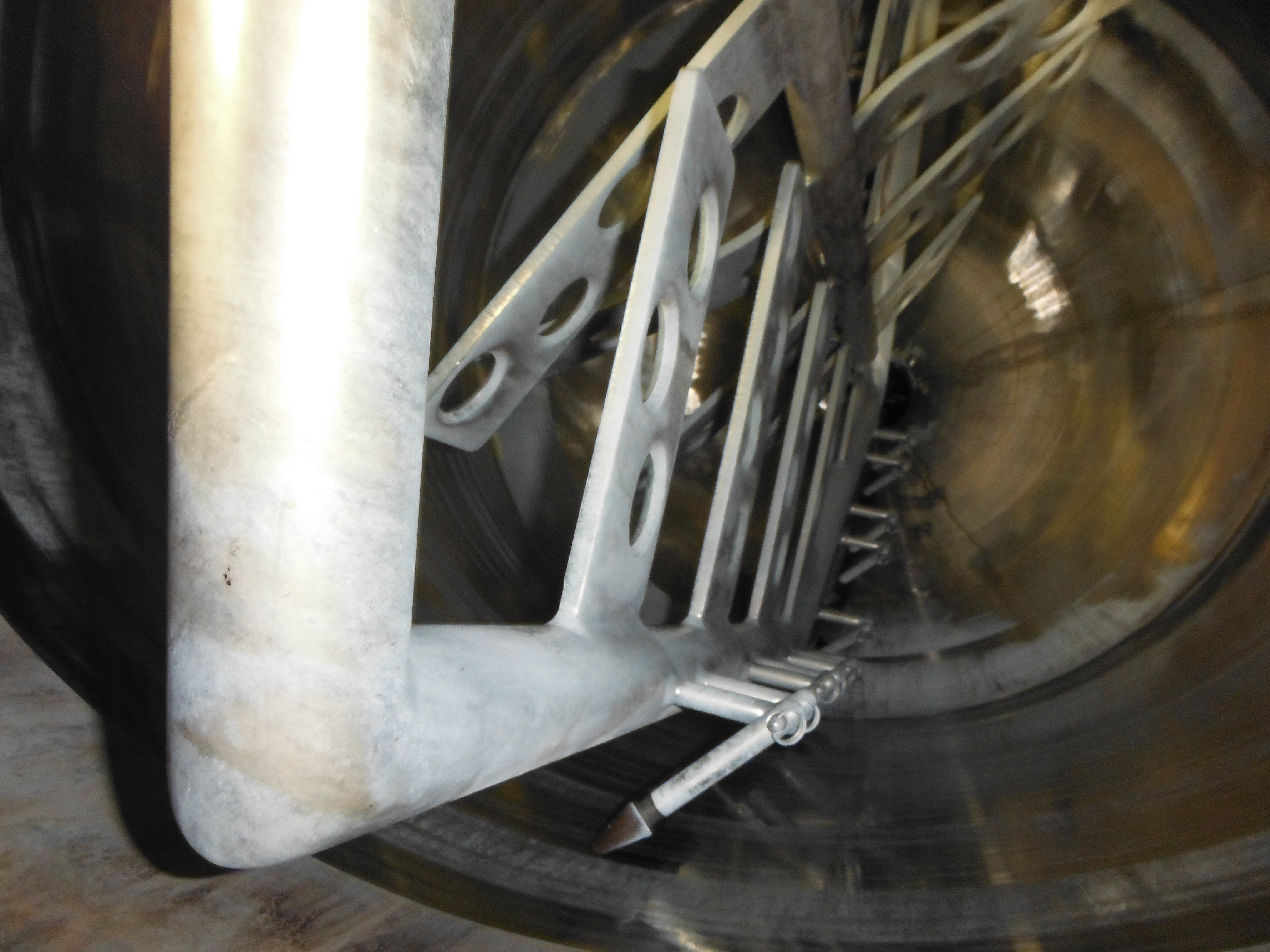

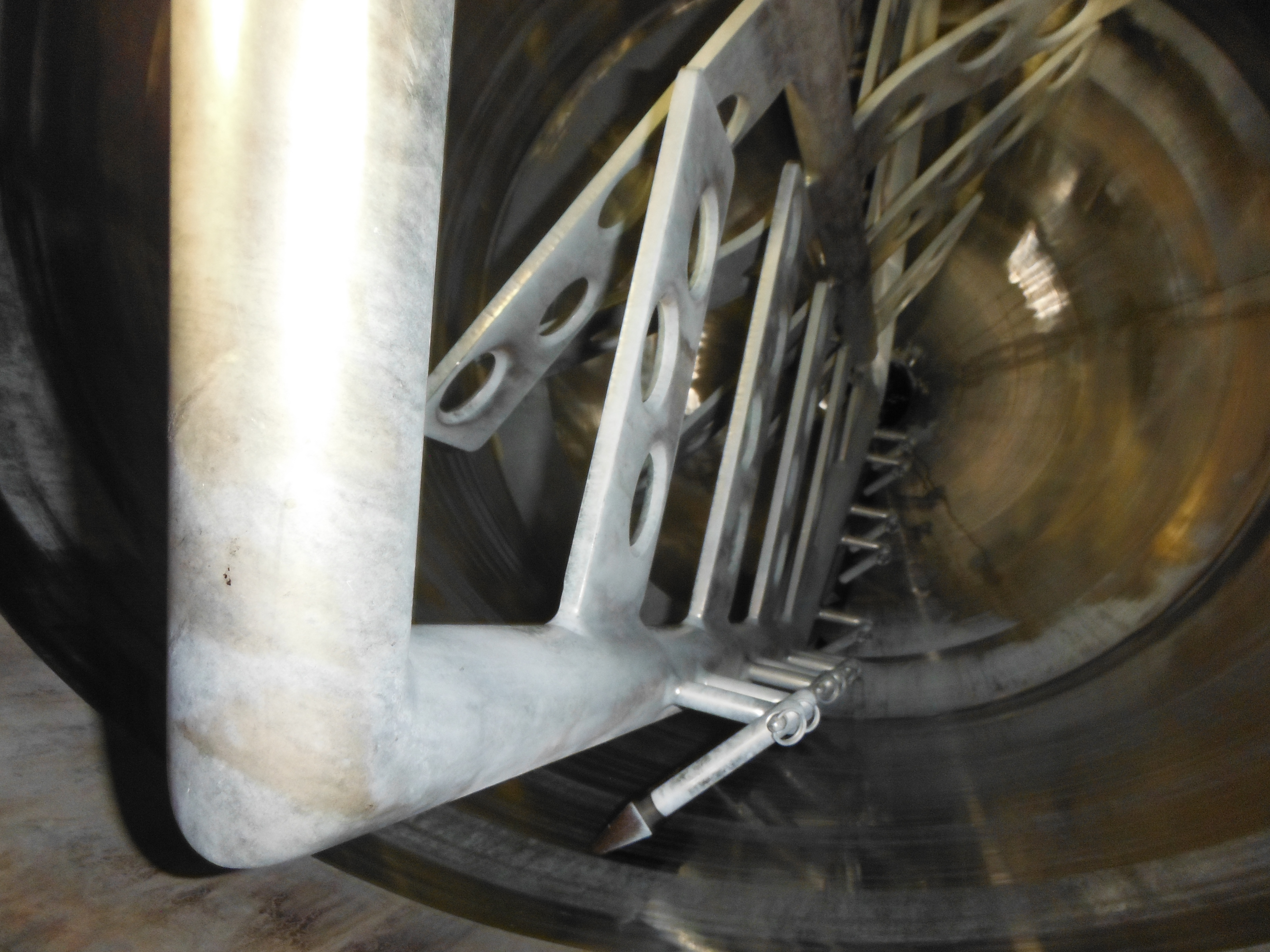

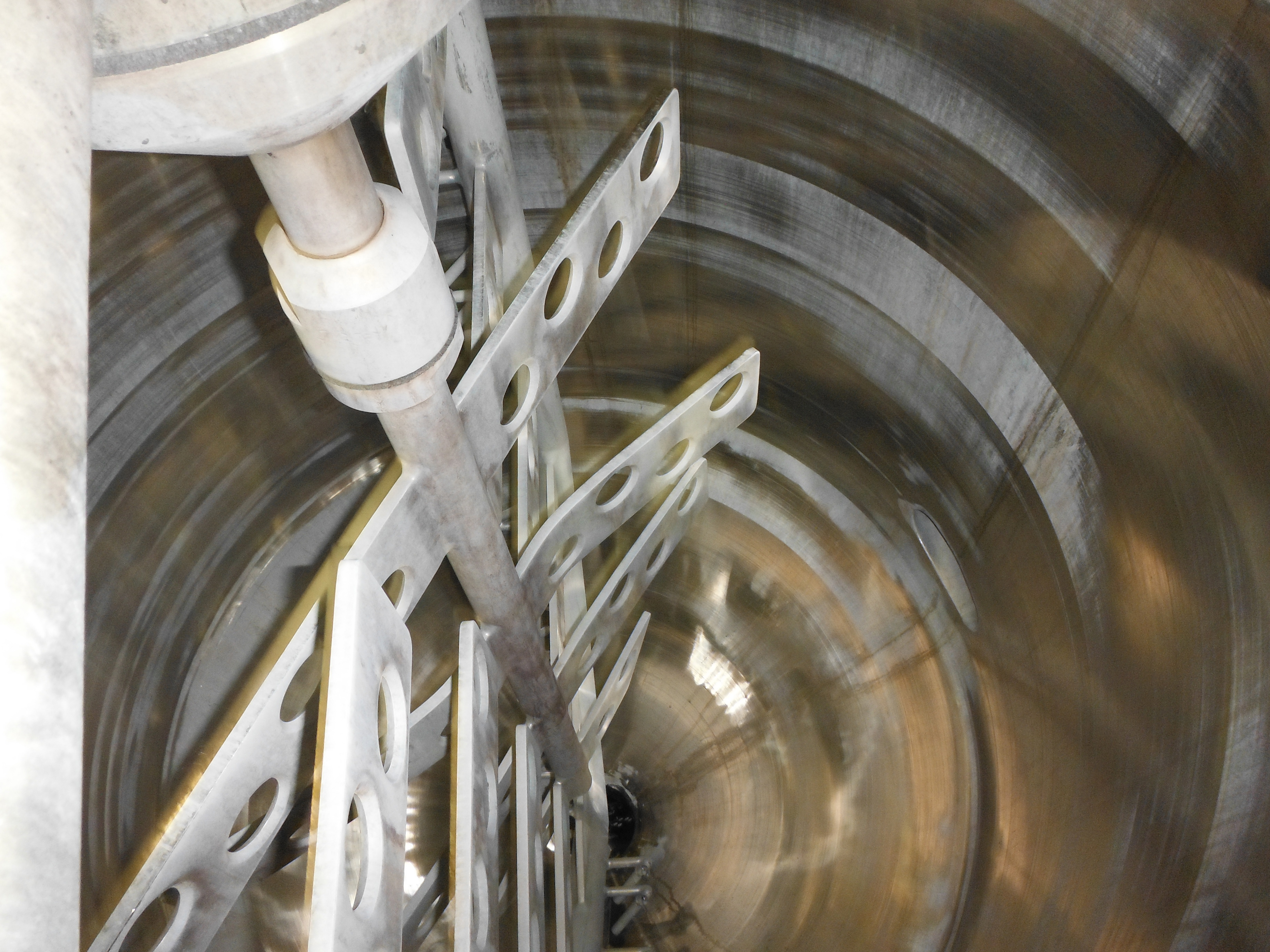

Fully insulated with SS shroud over insulation. Mounted on legs with Top mounted double motion agitator with wide sweep with perforated pitched blades and side wall scrapers, and center shaft with perforated pitched blades that intermesh with counter rotating wide sweep agitator blades.

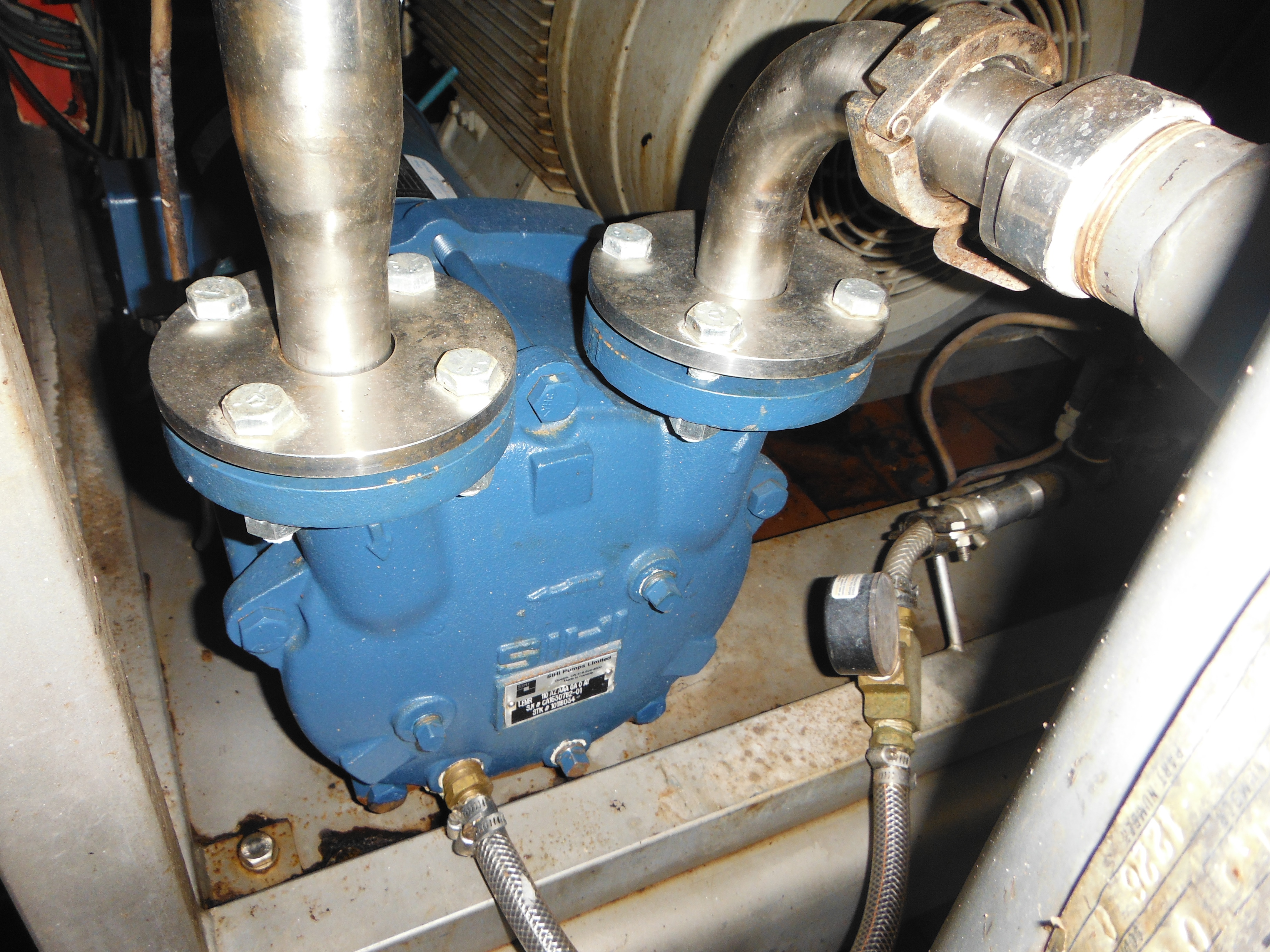

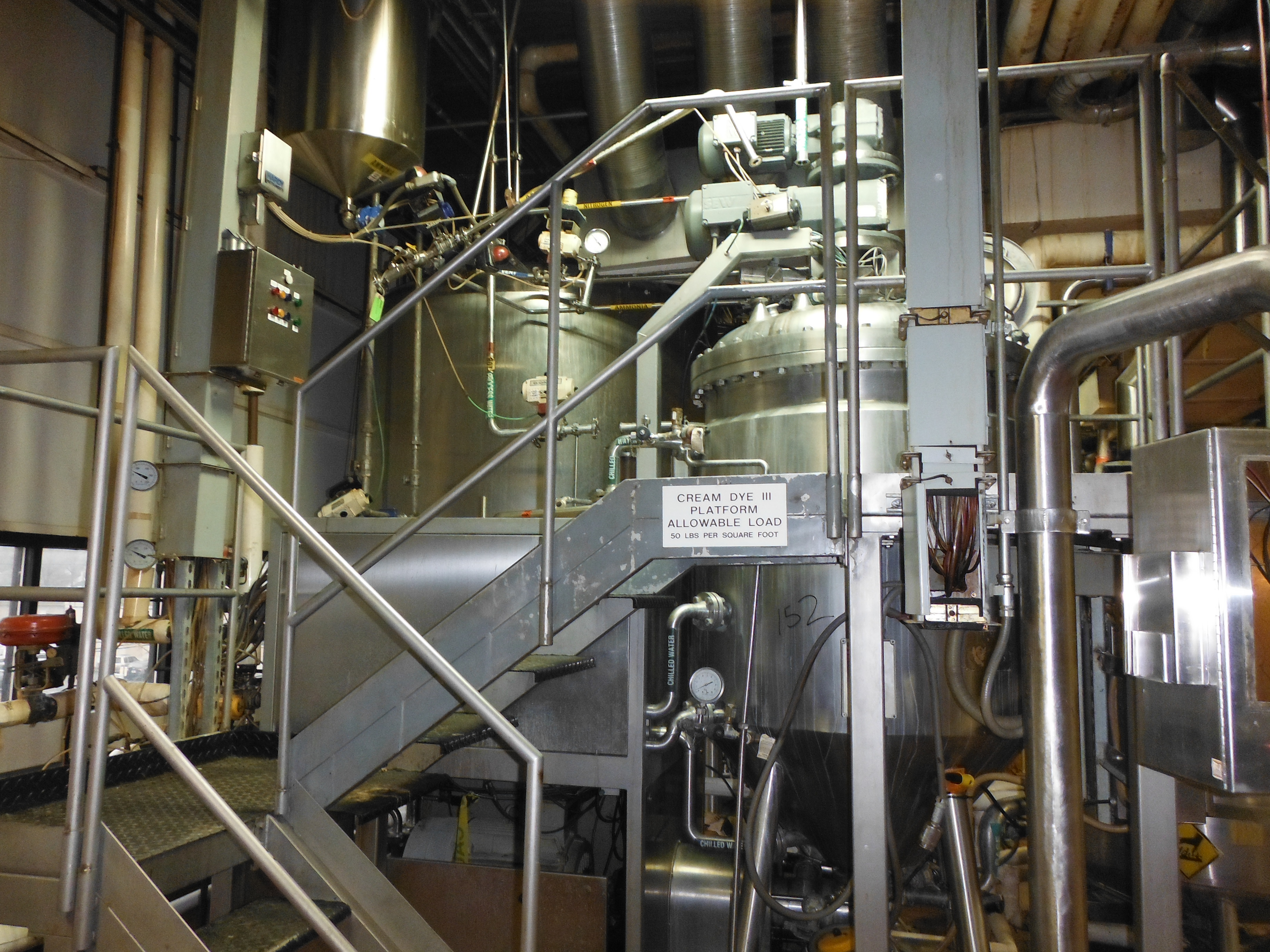

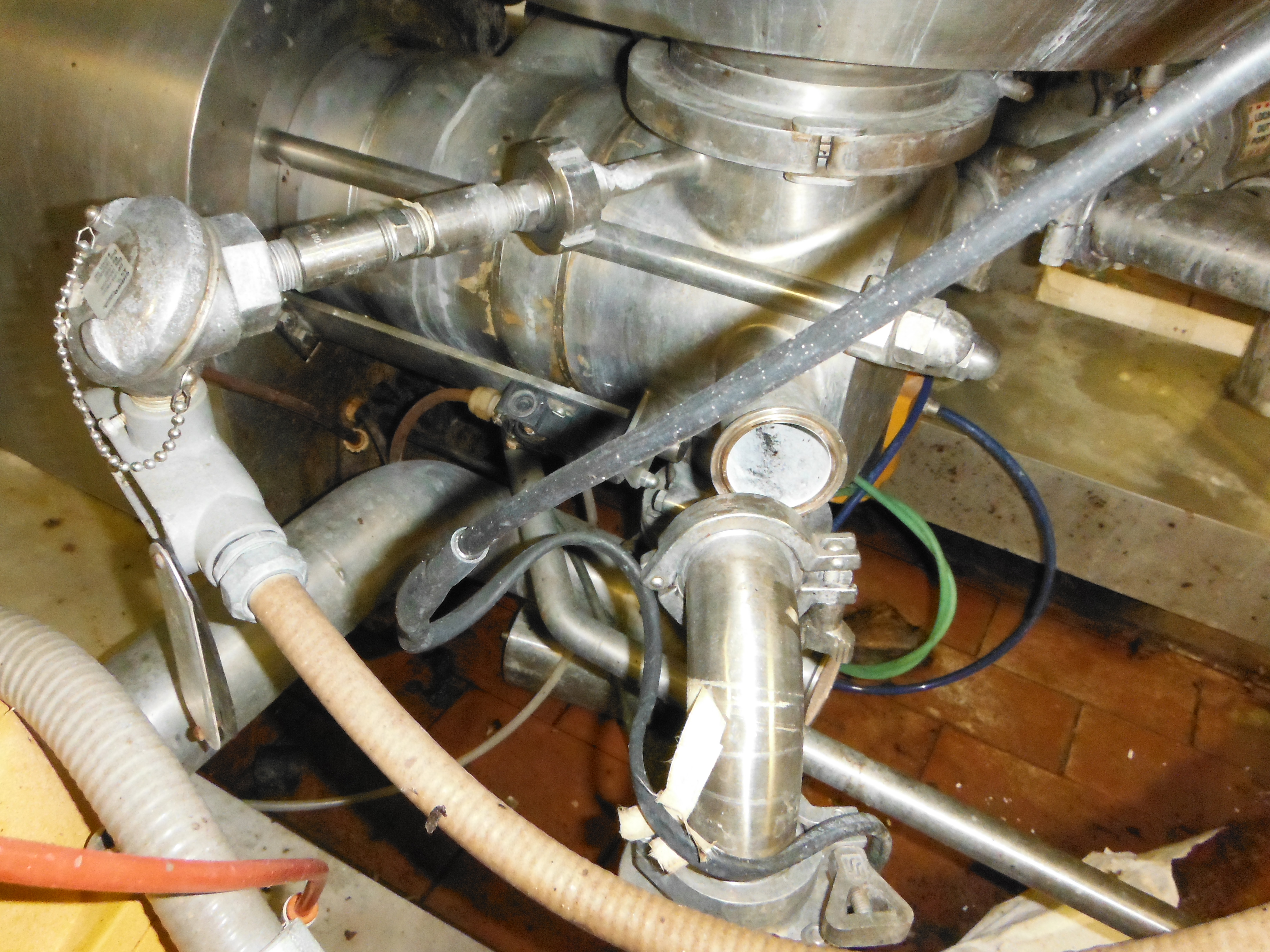

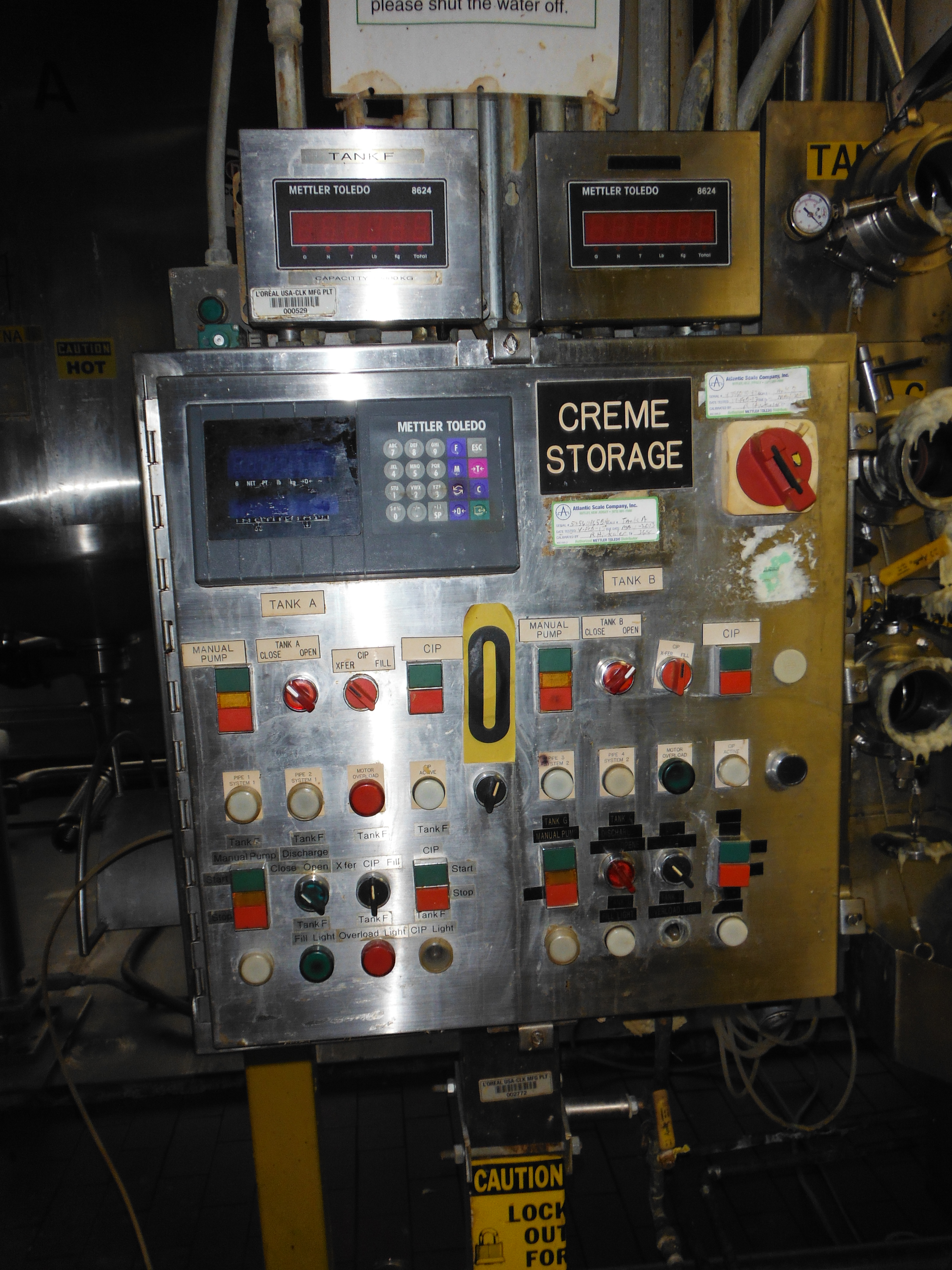

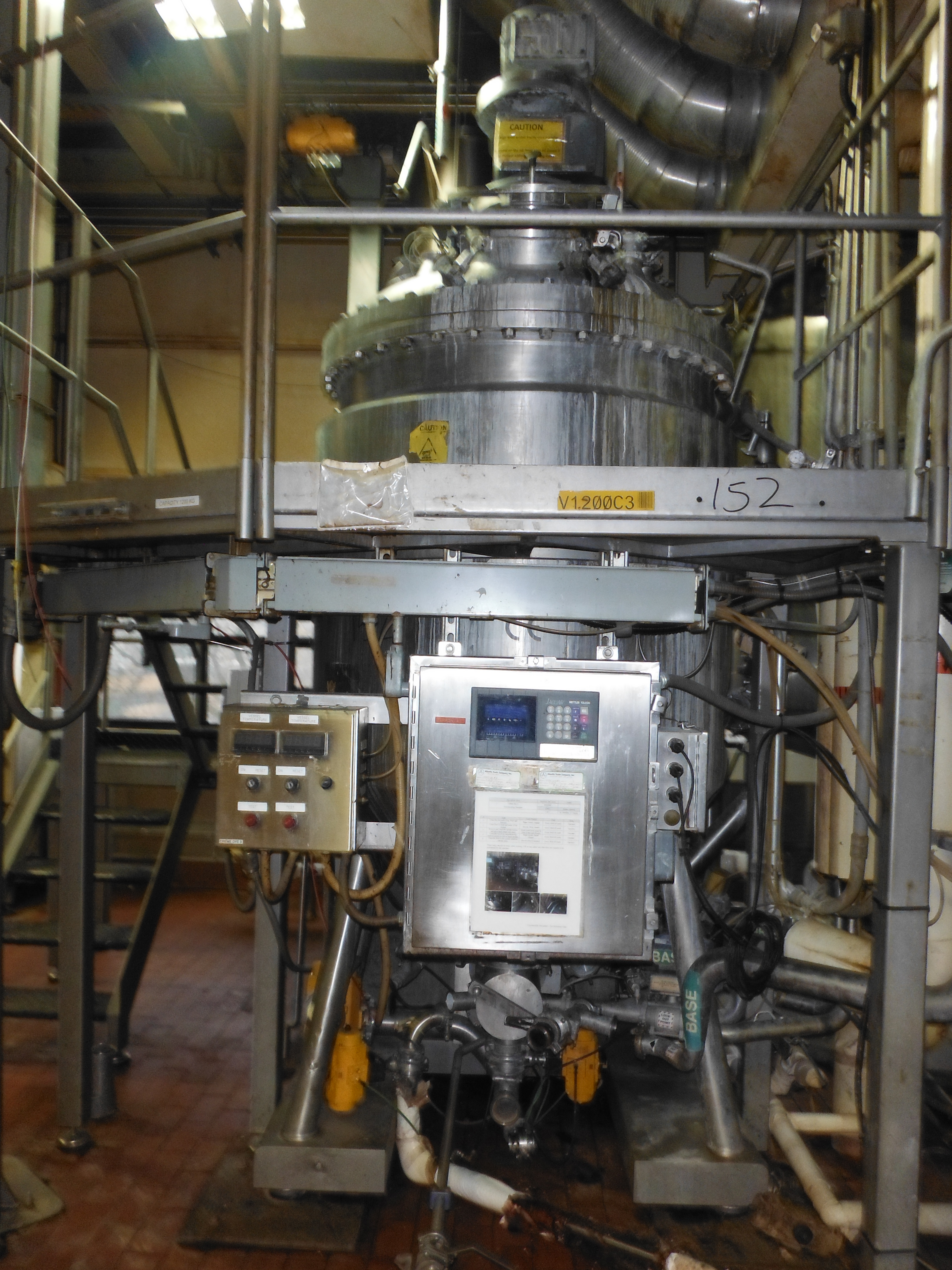

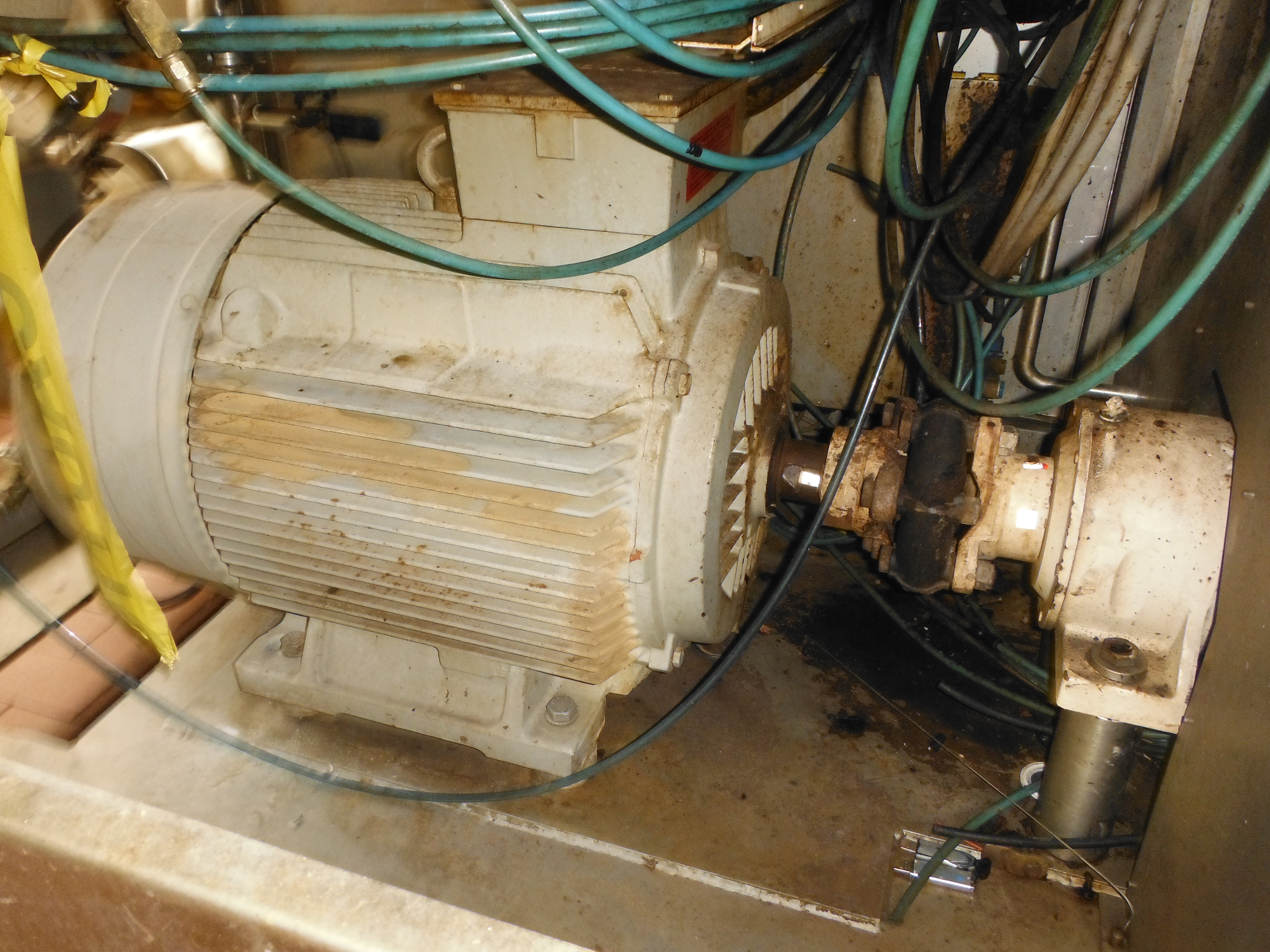

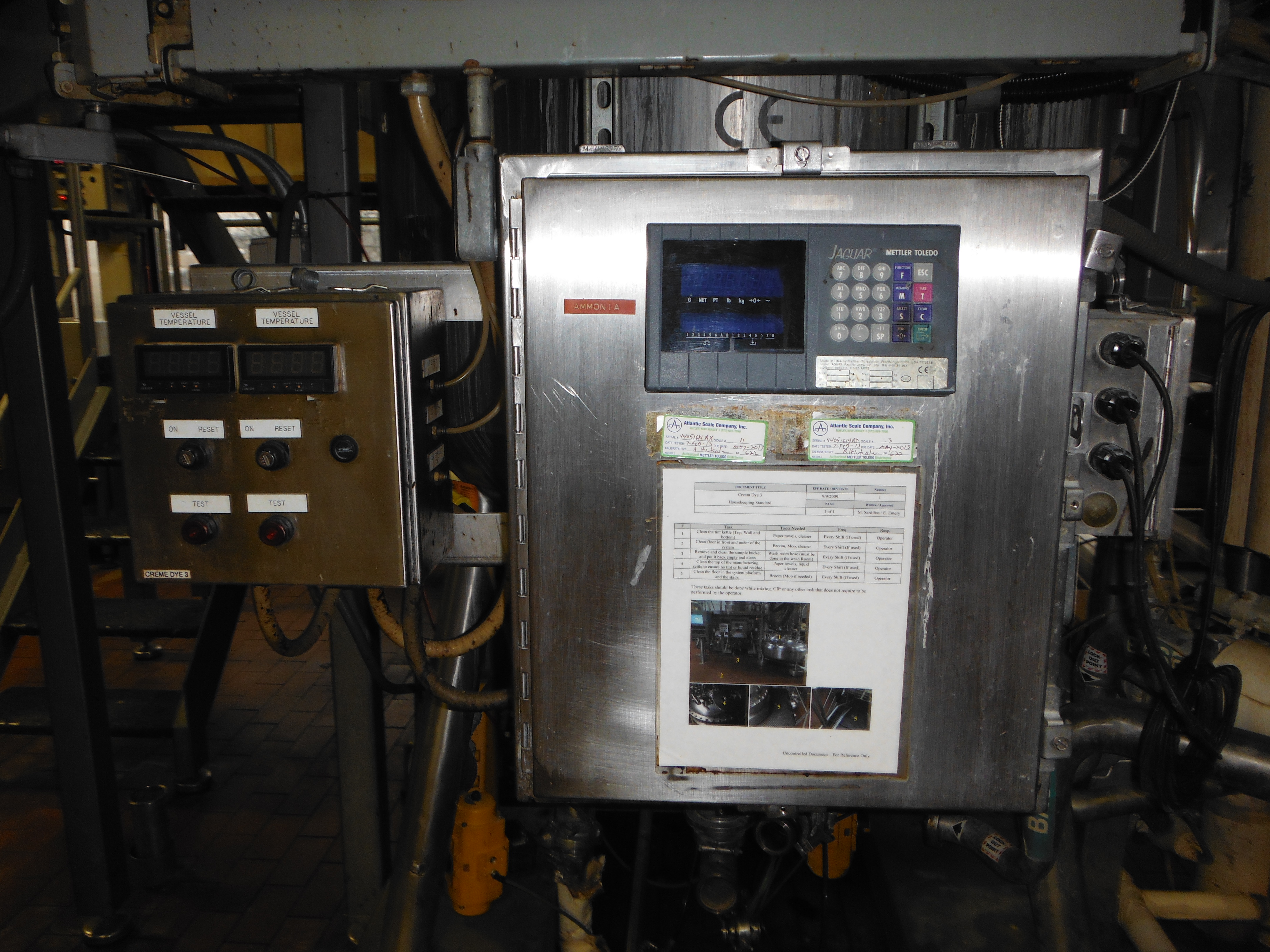

3/60/230/460 volt motor Vessel discharges into a horizontal DISHO homogenizing mill, multi chamber, driven by a 51 KW 3/60/230/460 volt motor. Complete skid mounted system with approx. 5 HP water seal vacuum pump, controls and stainless steel enclosure for pump and mill drive.

Similar Equipment

Stainless Steel 316 Jaygo DISHO V180/1300 Mixer-Intensive

Type: Mixer-Intensive

Manufacturer: Jaygo

Model: DISHO V180/1300

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 1,300 L (343 gallons)

Motor Power: 14.9 kW (20 HP)

(317gallons)
Vacuum Mixing, Dispersing and Homogenizing Unit
with bolted dished top, cone bottom
Dispersing and Homogenizing Unit
Manufactured by Stainless Fabricators Inc
rated FV/25 psi @ 300 degrees F internal

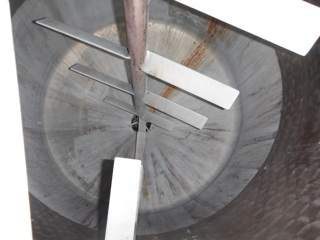

fully insulated with SS shroud over insulation. With Top mounted dual motion agitator manufactured by Jaygo, has wide sweep with pitched blades and center shaft with pitched blades that intermesh with counter rotating wide sweep agitator.
3/60/230/460 volt motor
Vessel openings include: Top -14" manway with hinged cover, (3) 4"; (3) 1".

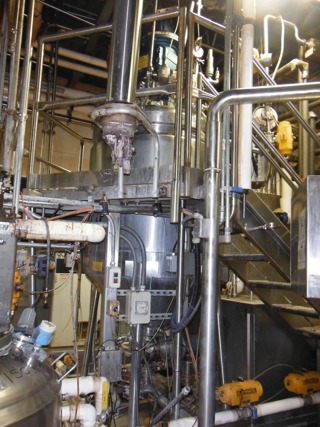

Vessel discharges into a horizontal DISHO homogenizing mill, multi chamber, driven by a 60 HP 3/60/230/460 volt motor. Complete skid mounted system with Intervac 5 HP water seal vacuum pump, controls and stainless steel enclosure for pump and mill drive.
