Stainless Steel 316 Jaygo DISHO V180/1300 Mixer-Intensive - IPP# 223148

Type: Mixer-Intensive

Manufacturer: Koruma Mashinenbau GmbH

Model: DISHO V180/1300

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 1,300 L (343 gallons)

Motor Power: 51 kW (68.4 HP)

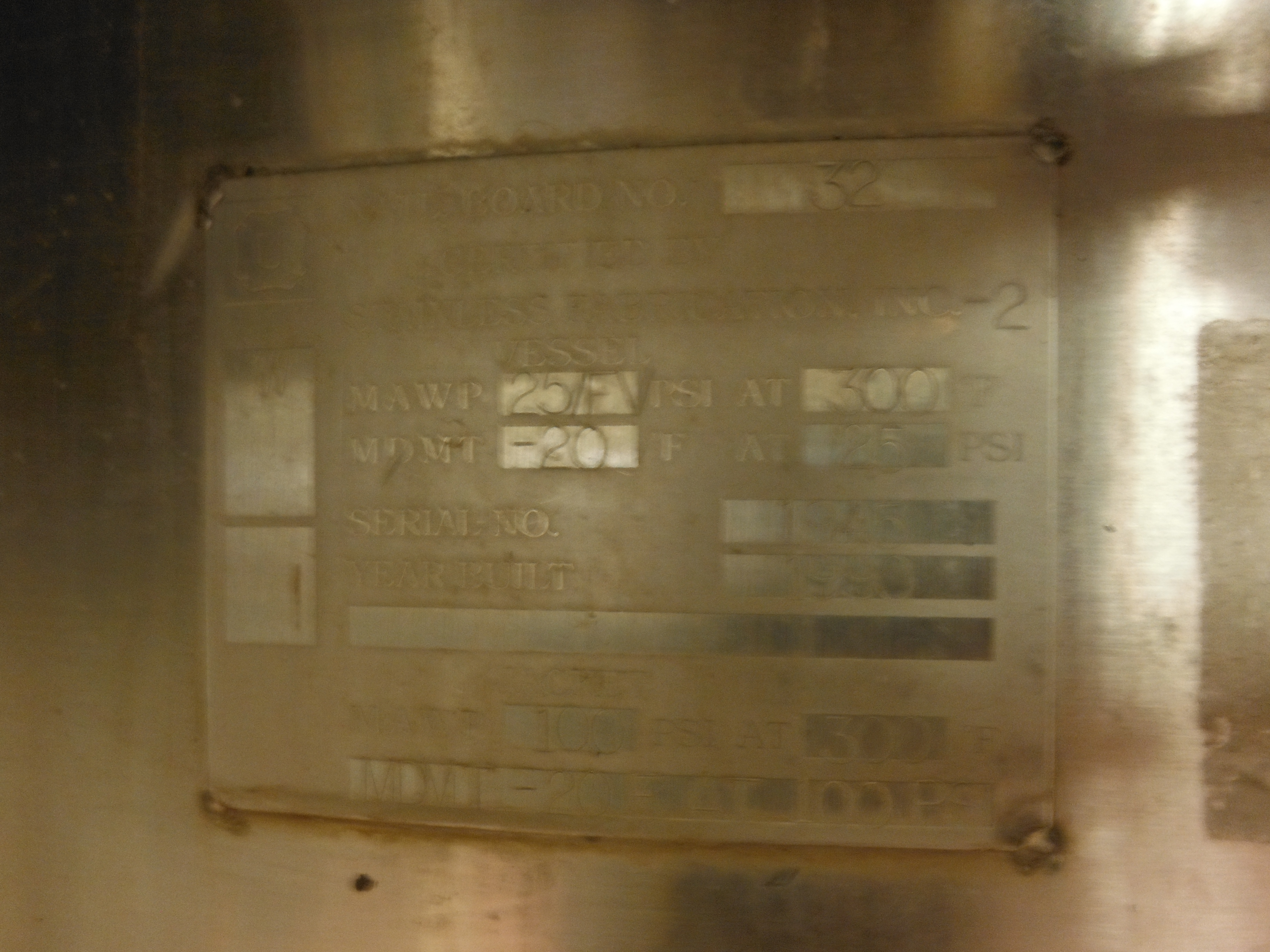

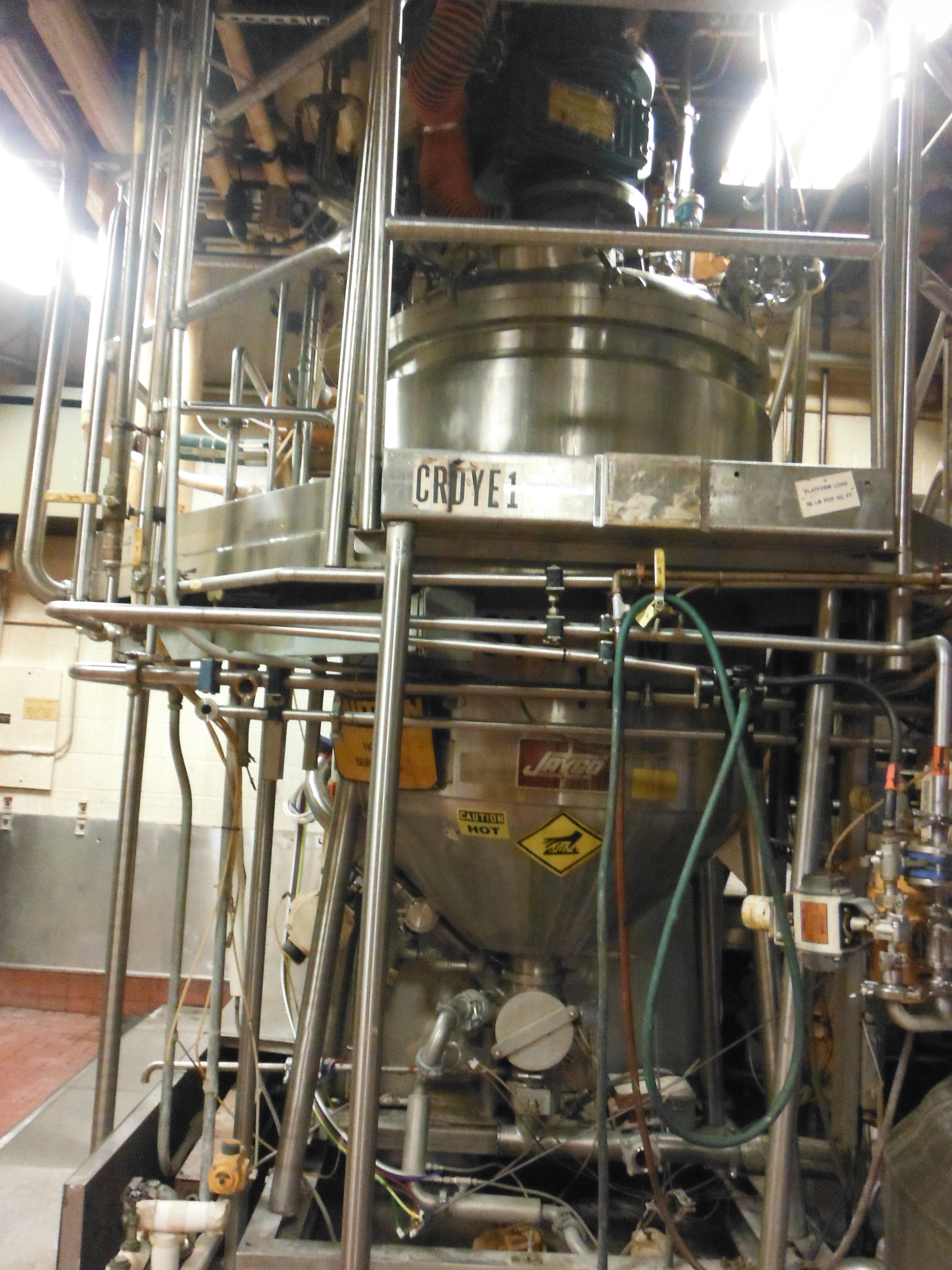

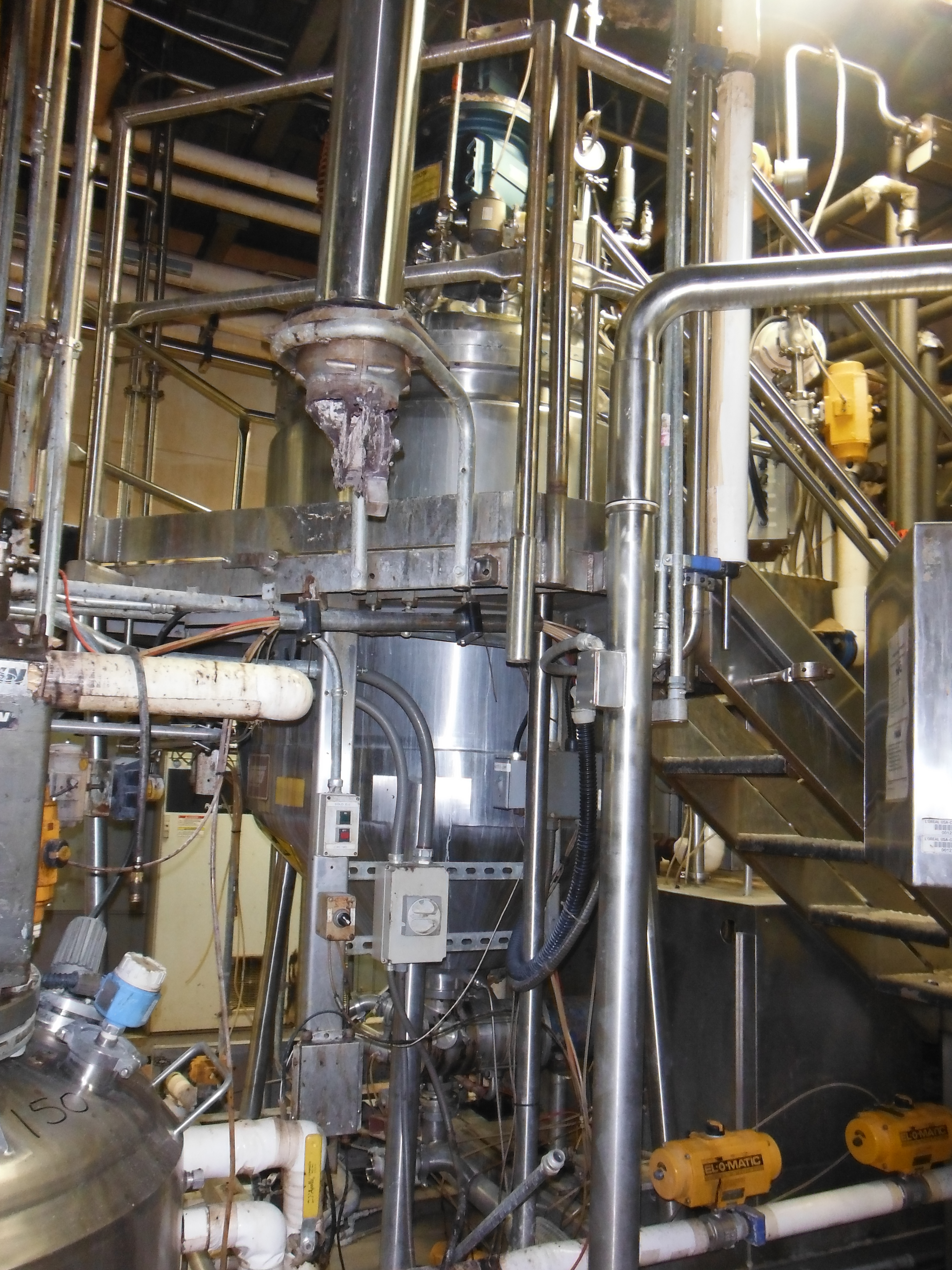

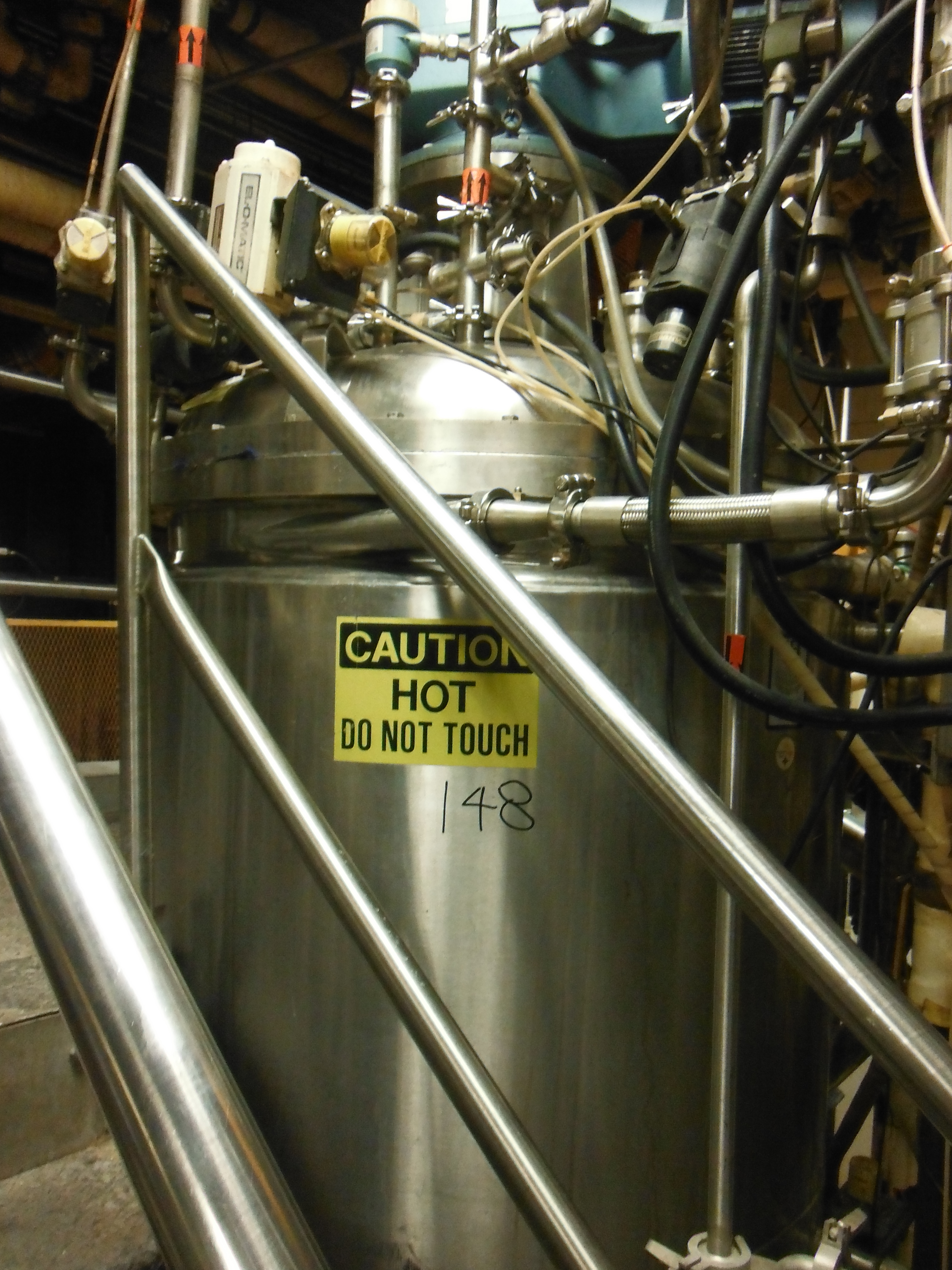

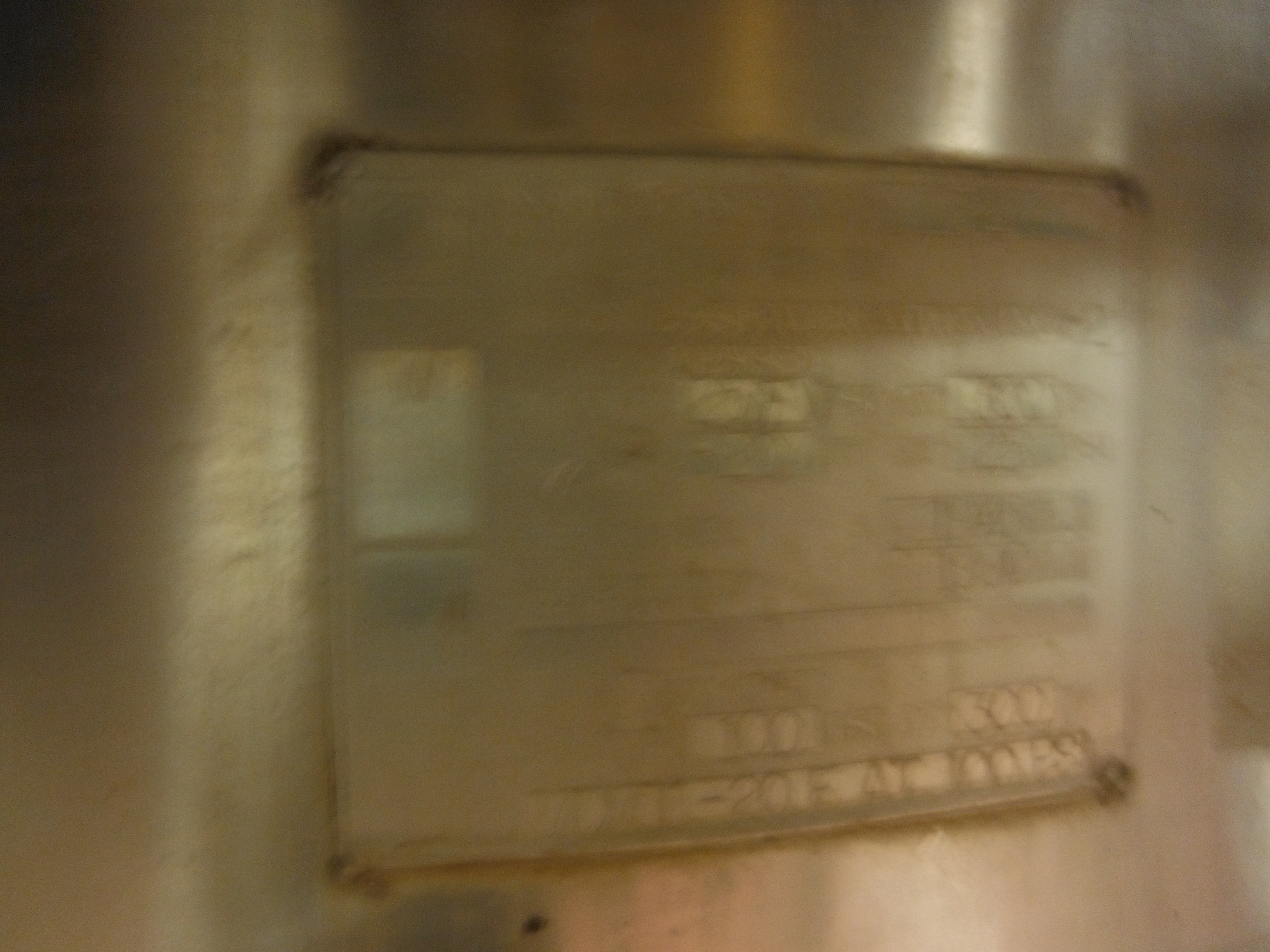

• DISHO Vacuum Mixing Dispersing and Homogenizing Unit. Vessel manufactured by Hebold, rated FV/36 psi at 356 degrees F internal; with a 24" cone bottom. It has a flanged and bolted dish top head. Vessel openings include: Top -14" manway with hinged cover, (3) 4"; (3) 1".

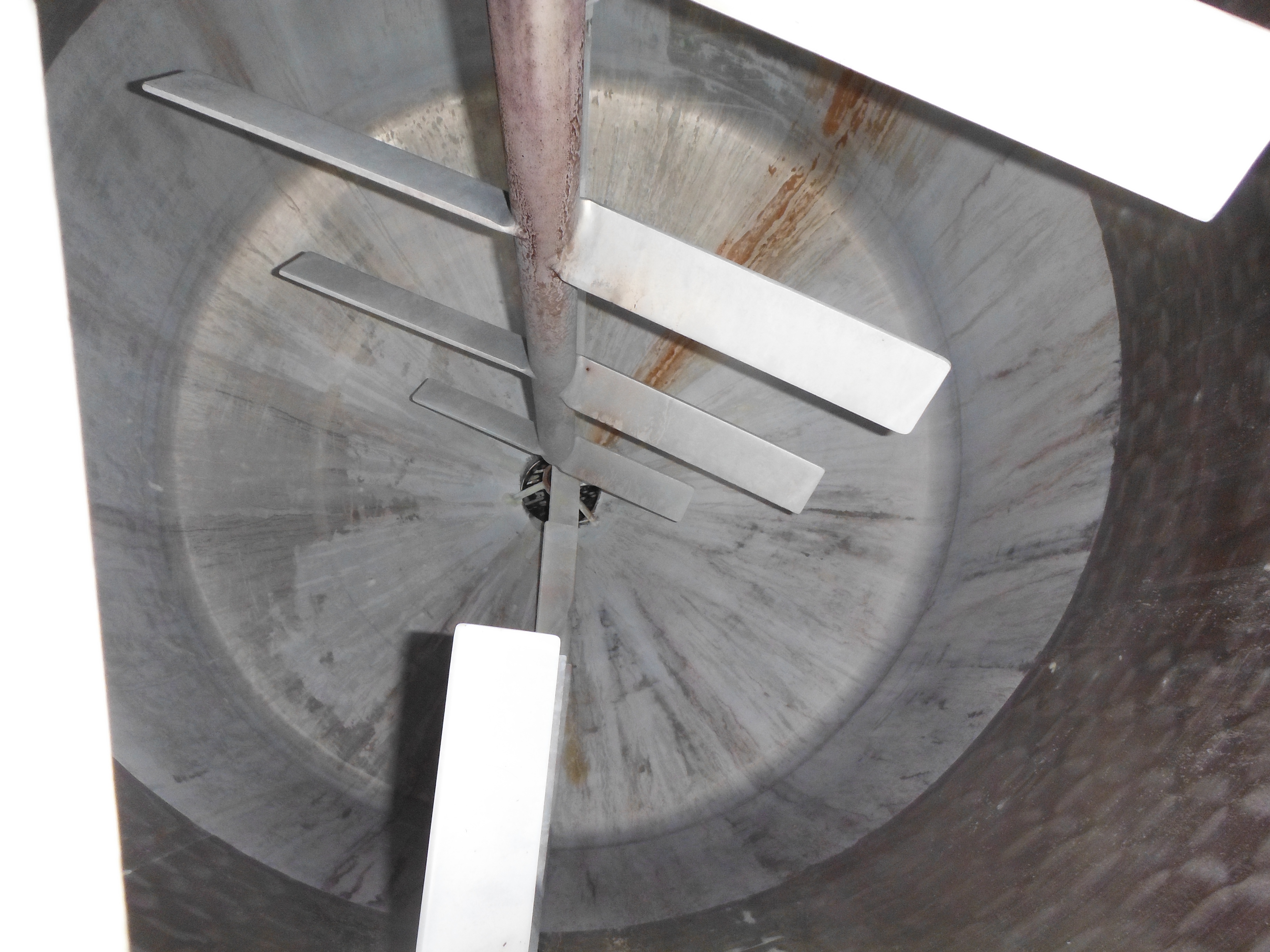

• Fully insulated with SS shroud over insulation. Mounted on legs with Top mounted double motion agitator with wide sweep with perforated pitched blades and side wall scrapers, and center shaft with perforated pitched blades that intermesh with counter rotating wide sweep agitator blades.
• 3/60/230/460 volt motor Vessel discharges into a horizontal DISHO homogenizing mill, multi chamber, driven by a 51 KW 3/60/230/460 volt motor. Complete skid mounted system with approx. 5 HP water seal vacuum pump, controls and stainless steel enclosure for pump and mill drive.

Bowl Diameter: 1,118 mm (44 in). Bowl Depth: 1,829 mm (72 in). Blade Type: wide sweep & pitched perforated blade w/ side wall scraper. Pressure: 2.5 bar (36.3 psi). Temperature: 180 °C (356 °F). Bowl Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 180 °C (356 °F). Vacuum: Yes. Controls: Yes.

Type: Mixer-Intensive

Manufacturer: Jaygo

Model: DISHO-V-120-85

Condition: Unused

Material: Stainless Steel 304

Capacity (Design): 120 L (31.7 gallons)

Motor Power: 0.746 kW (1 HP)

• Jaygo vacuum dispersion and homogenizing mixer system.
• Mixing chamber rated 20 psi and full vacuum @ 350 degree F to -20 degree F minimum.
• All fittings sanitary.
• Unit measures 20" diameter x 20" straight side x 8" cone bottom clamped dished top. Gate design agitator with Teflon scraper blades 5 rpm minimum, 34 rpm maximum.
• Drive has automatic hydraulic lift mechanism with 24" lift capacity.
• System includes: (1) 3 HP Nash brass vacuum pump, Model #AT34.
• (1) 1 HP Moyno pump, Model #IFF4SSV, driven by 1 HP Reeves varidrive.
• (1) approx. 5 HP inline disperser.
• Includes all controls and power box, temperature probes and capacitance probes.

Bowl Diameter: 508 mm (20 in). Bowl Depth: 711 mm (28 in). Bowl Speed (RPM): 1,725. Blade Type: teflon scrapers in gate blade design. Pressure: 1.38 bar (20 psi). Temperature: 177 °C (350 °F). Bowl Jacket: Yes. Jacket Pressure: 3.45 bar (50 psi). Jacket Temperature: 177 °C (350 °F). Vacuum: Yes. Controls: Yes.

Type: Mixer-Intensive

Manufacturer: Silverson

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 36 L (9.51 gallons)

Motor Power: 7.5 kW (10.1 HP)

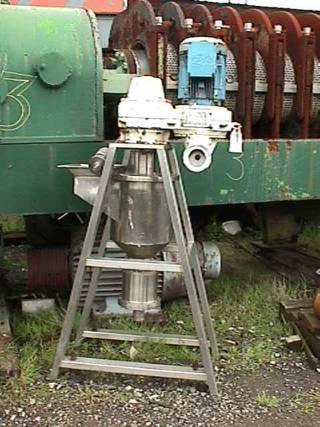

Top: Bolt flat top
Bottom: Weld cone bottom
Agitator: 316SS worm type
Shaft thickness: 3/4" (19mm)
Worm diameter: 4 1/4" (107mm)
varispeed gearbox.
W/spare agit.
Openings: top 1-12" (304mm) x 10 1/2" (266mm) feed chute; btm 1-2" (50mm) discharge.

Bowl Diameter: 355 mm (14 in). Bowl Depth: 355 mm (14 in). Blade Type: 107mm dia 316SS worm type agitator.

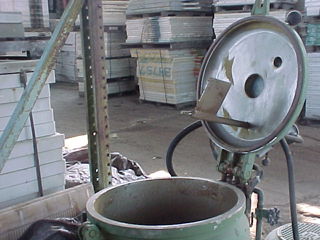

Type: Mixer-Intensive

Manufacturer: Gunther Papenmeier

Model: TGAHK

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 37.9 L (10 gallons)

Motor Power: 22.4 kW (30 HP)

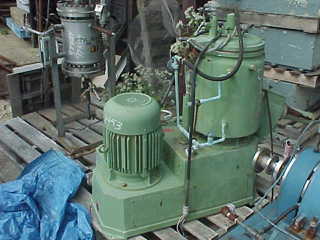

high intensity mixer

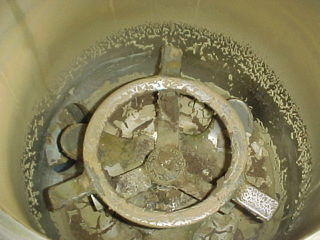

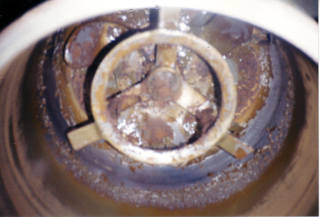

Has 3-blade propellor type mixer.
Vert mixing chamber 14" dia x 16" deep.
Has manual plow.
Manual plow valve on 4" outlet.
variable speed motor
530 rpm min
W/controls and timers.

Bowl Diameter: 356 mm (14 in). Bowl Depth: 406 mm (16 in). Blade Type: 3 blade propellor. Bowl Jacket: Yes. Jacket Material: Carbon Steel. Controls: Yes.
