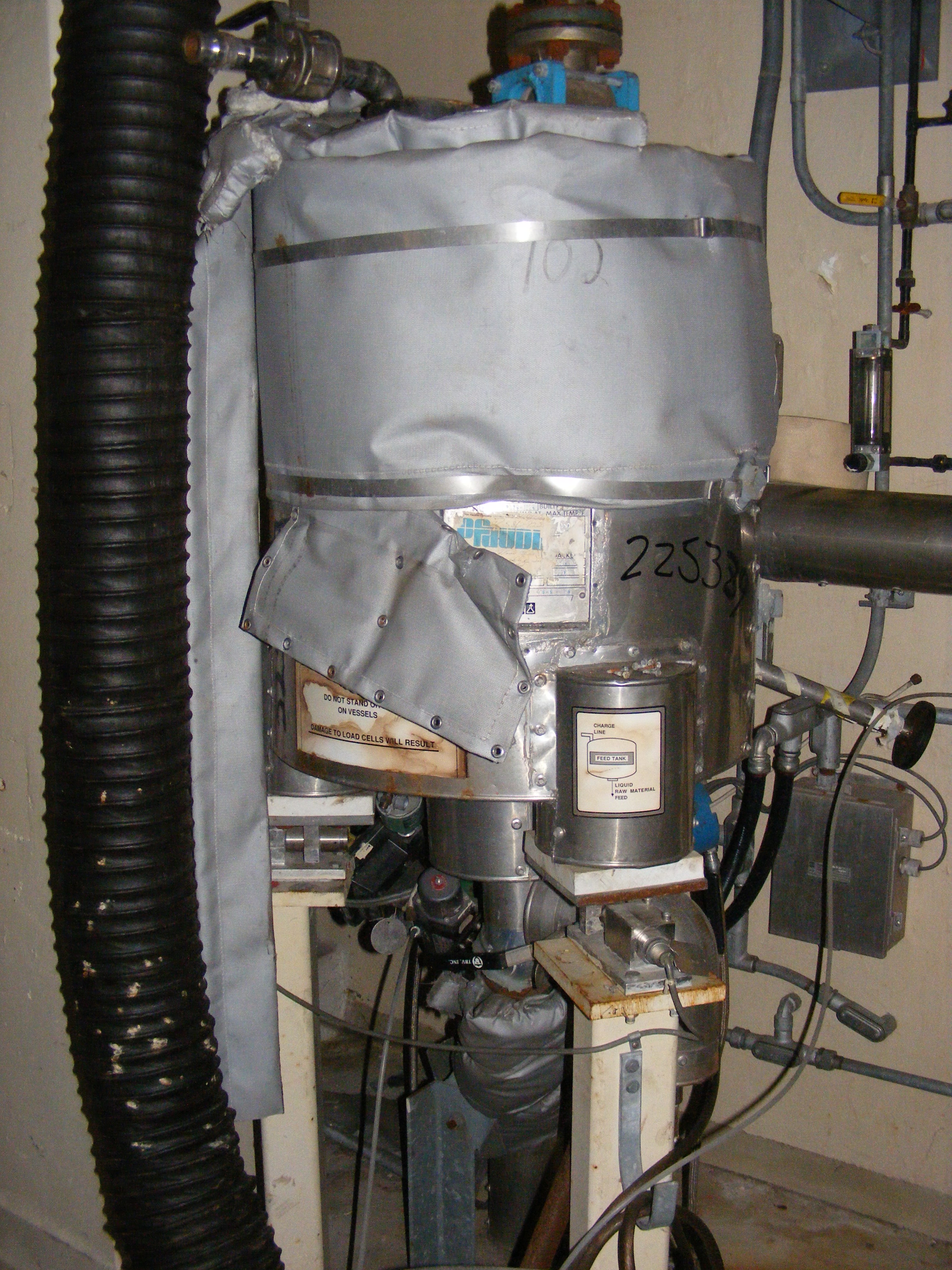

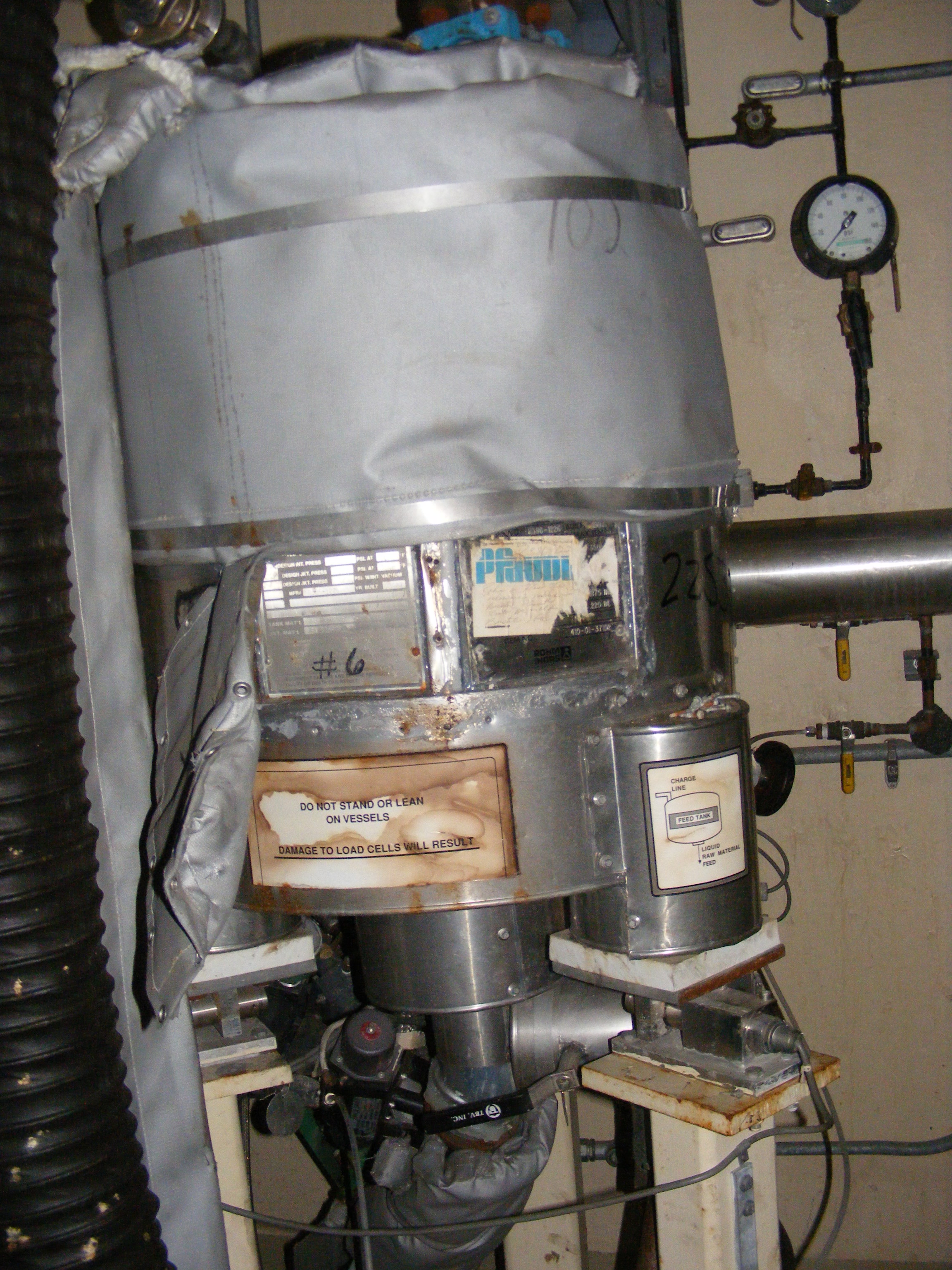

Hastelloy - C276 Pfaudler JOWCT Tank - IPP# 225339

Type: Tank

Manufacturer: Pfaudler

Condition: Used

Material: Hastelloy - C276

Capacity (Design): 75.7 L (20 gallons)

Diameter: 508 mm (20 in)

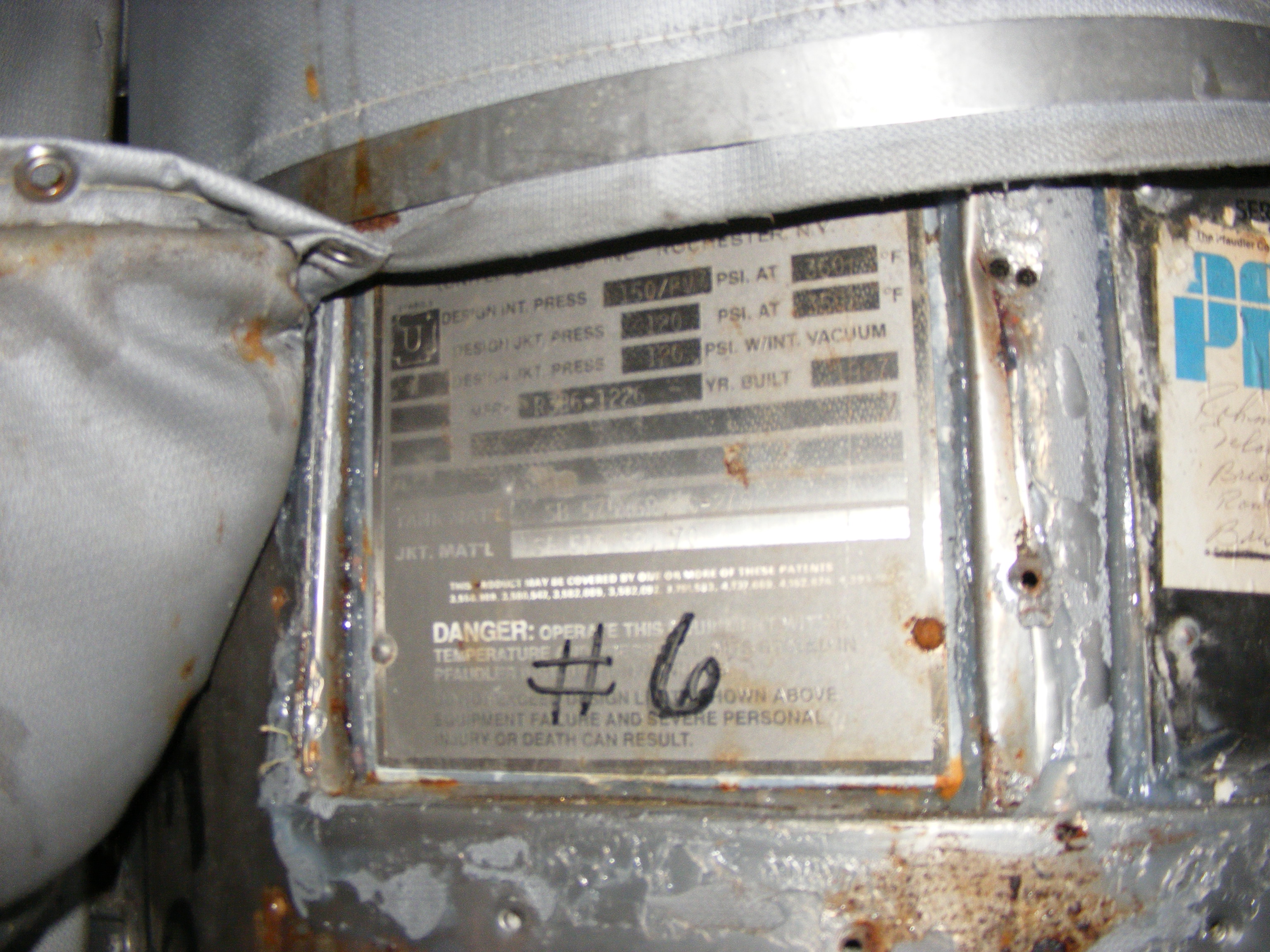

• Top Head has its own nameplate for same pressures.

Straight-side Length: 336.6 mm (13.3 in). Internal Pressure: 10.3 bar (150 psi). Internal Temperature: 248.9 °C (480 °F). Jacket Type: Standard. Jacket Material: Carbon Steel. Jacket Pressure: 8.3 bar (120 psi). Jacket Temperature: 248.9 °C (480 °F). Vacuum: Yes. Support: Lugs.

Type: Tank

Manufacturer: Pfaudler

Model: VR-100

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 378.5 L (100 gallons)

Orientation: Vertical

• Open top storage tank

Diameter: 762 mm (30 in). Straight-side Length: 914 mm (36 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 176.7 °C (350 °F). Support: Lugs.

Type: Tank

Manufacturer: Pfaudler

Model: VR-100

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 378.5 L (100 gallons)

Orientation: Vertical

Diameter: 762 mm (30 in). Straight-side Length: 914 mm (36 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 176.7 °C (350 °F). Vacuum: Yes. Support: Lugs.

Type: Tank

Manufacturer: Pfaudler

Condition: Used

Material: Glasslined

Capacity (Design): 189.3 L (50 gallons)

Orientation: Vertical

Diameter: 610 mm (24 in). Straight-side Length: 711 mm (28 in). Internal Pressure: 1.72 bar (25 psi). Support: Legs.
