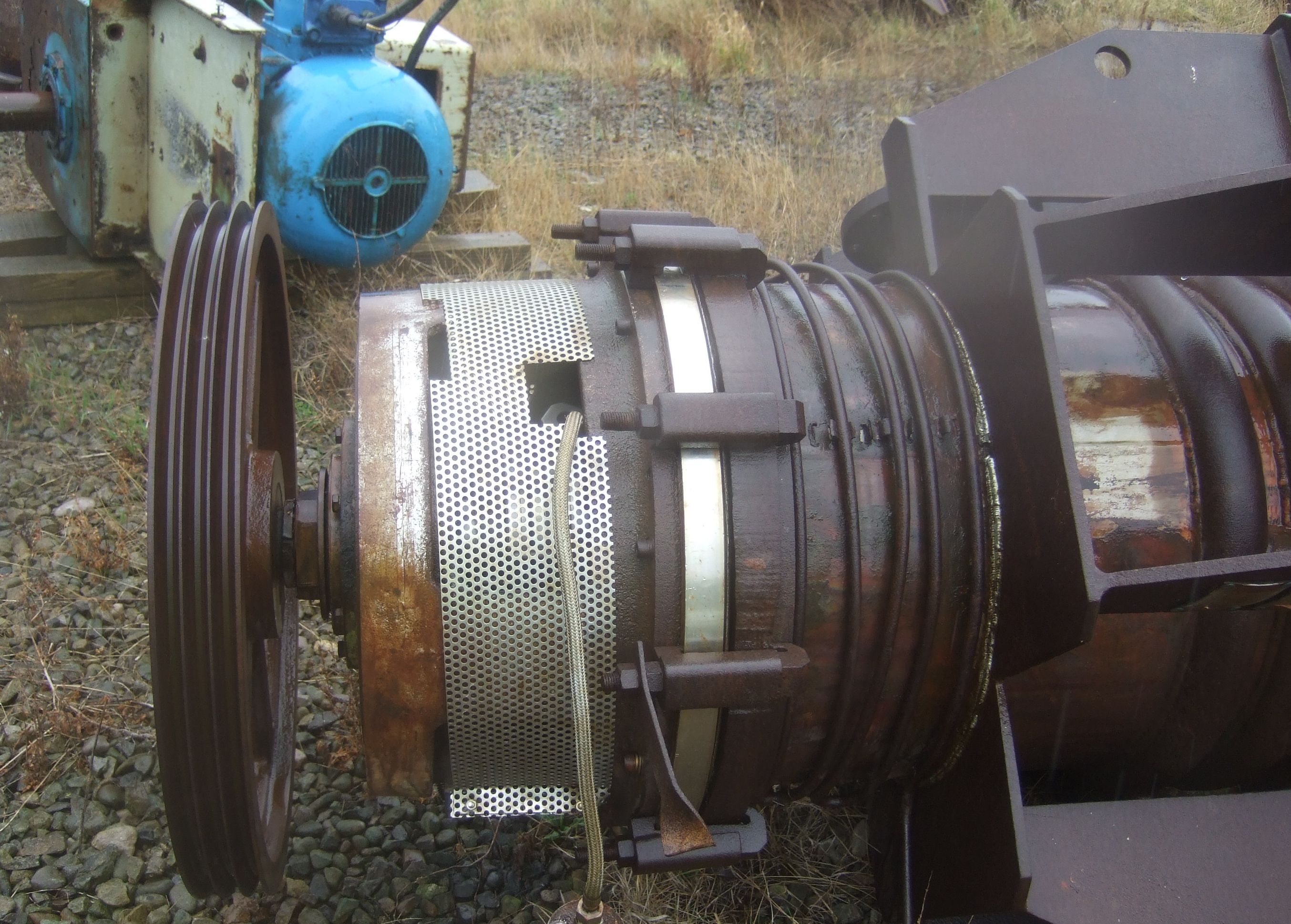

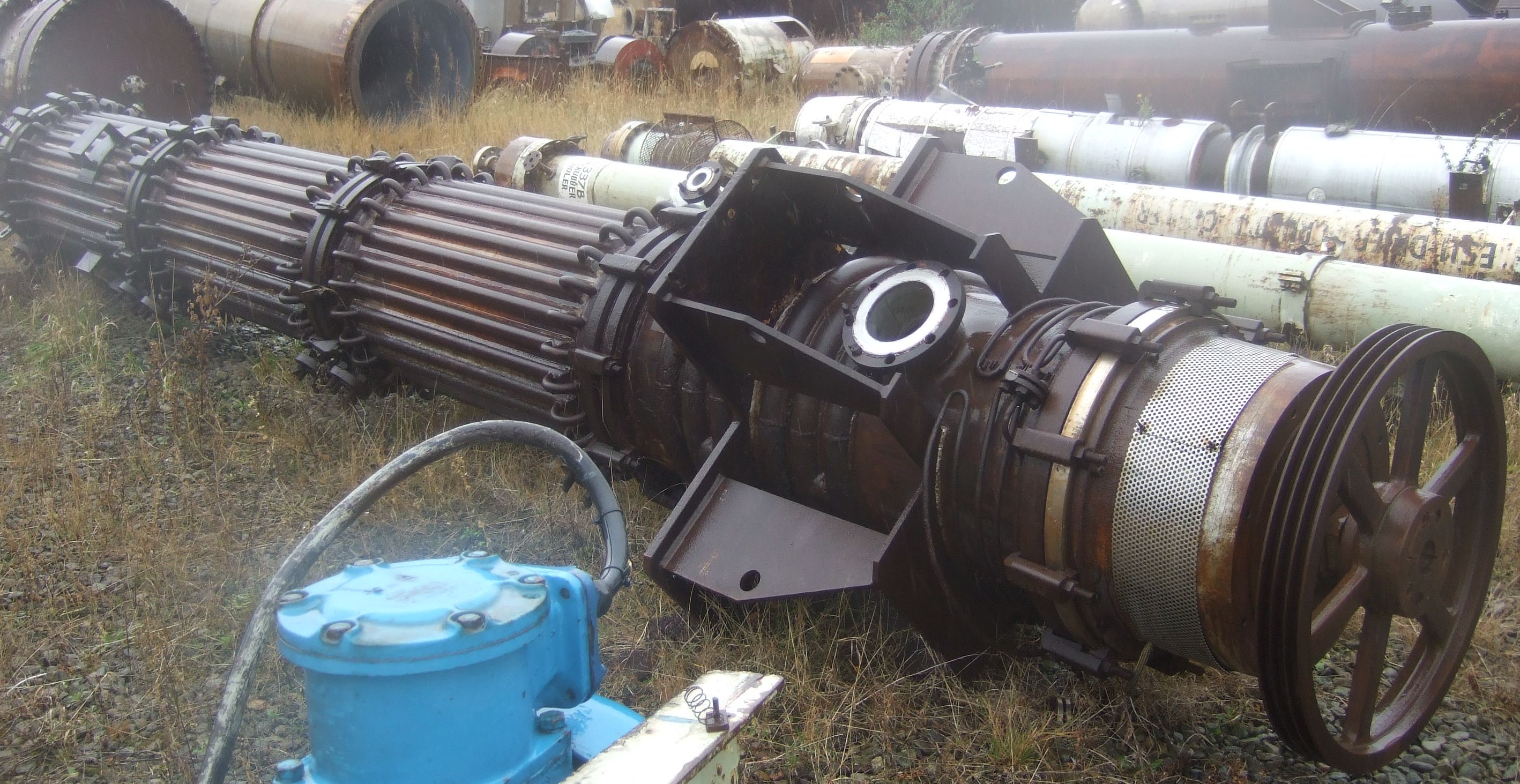

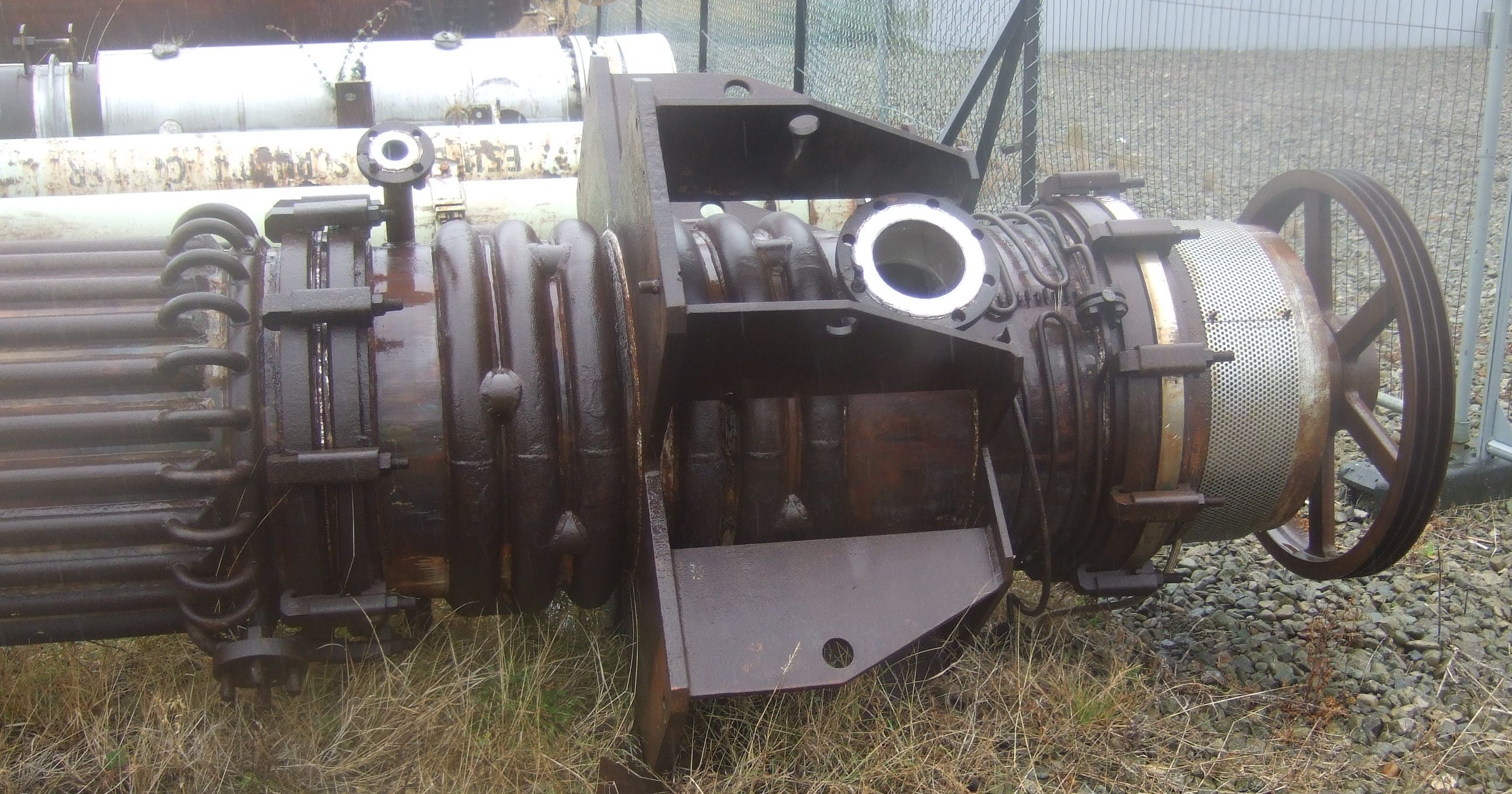

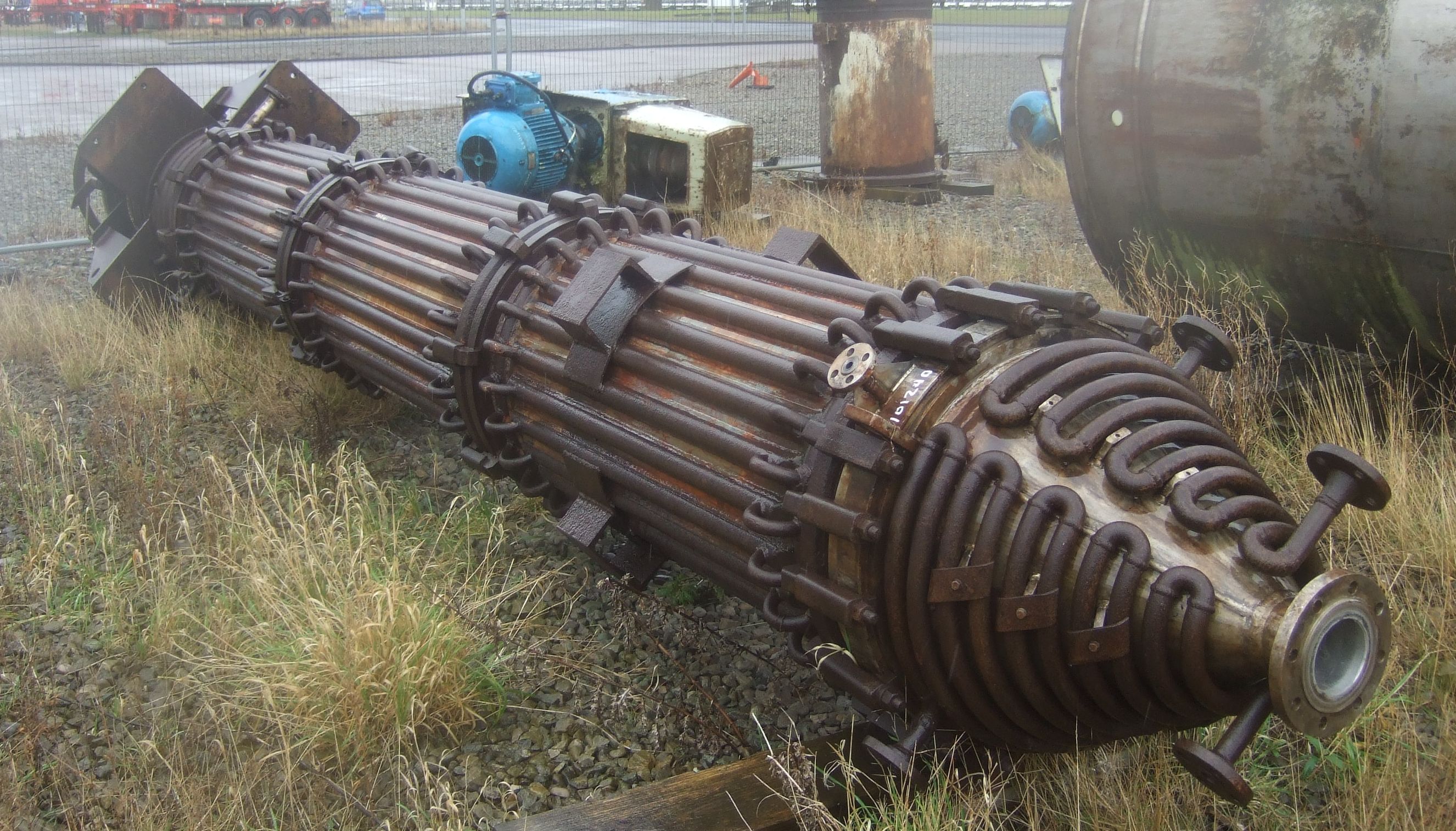

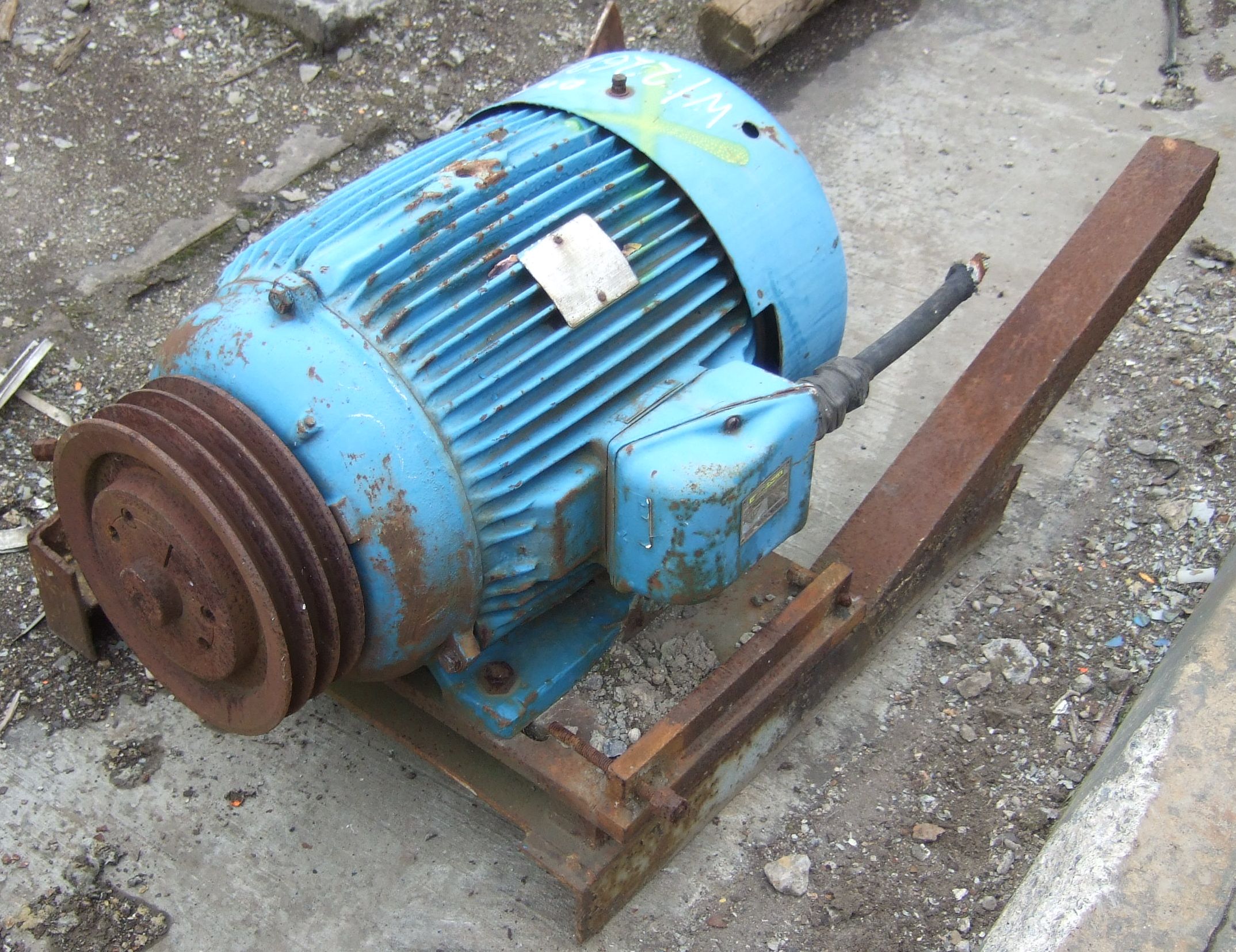

jacketed wiped film evapaorator jacket 2.76 bar @ 250 deg C, 4- sections of carbon steel limpet coils on body and bottom cone,Rotor with 4-fixed blades (unused Hastelloy C276 spare rotor available) rotor belt driven by 18.5 kw, 3/50/415 volt, 975 rpm Ex motor chamber 600mm diameter x 5m staright side
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: L-425
Condition: Used
Material: Stainless Steel Austenitic
Total Heat Transfer Surface Area: 3.2 m² (34.4 ft²)
Orientation: Vertical
wiped film evaporator Shell 22" dia x 87" long Expansion joint on shell. Jkt rated 25 ATM @ 230 deg C Jkt 25 ATV @ 250 deg C. 3" btm discharge.
Diameter: 558.8 mm (22 in). Height: 2,210 mm (87 in). Temperature: 230 °C (446 °F). Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: HM-1200
Condition: Used
Material: Stainless Steel 316L
Evaporation Rate: 279 kg/h (615 lb/h)
Total Heat Transfer Surface Area: 115 m² (1,238 ft²)

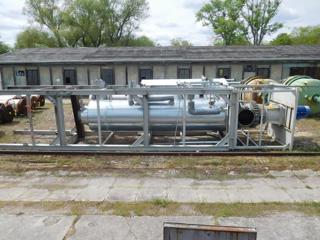

jacketed thin ‘filmtruder’ evaporator system, internal pressure -1/3.2 bar @ 200 degrees C (3900 liter), top jacket 7 bar @ 200 degrees C (11 liter), straight side jackets 7 bar @ 200 degrees C (3 x 65 liter), bottom cone jacket 7 bar @ 200 degrees C (9 liter), built to TUV, (3) 316L stainless steel jackets on straights side, coned bottom with 316L stainless steel jacket, 750mm diameter x 4850mm long 316Ti stainless steel (1.4571) rotor, rotor driven by a 45/54kw, 3/50/60/380-420/440-480 volt, 1475/1765 rpm motor via a reduction gearbox, mechanical seal, approx 850mm internal diameter, clamped flat top, bottom outlet with a pneumatic operated ball valve, evaporator mounted on carbon steel lugs and in a carbon steel structure, system includes: (1) 8.52 square meter 316L stainless steel (1.4404/1.4435) tube, head and shell vertical condenser, manufactured by Luwa SMS, fabrik #4826102, pressure tube side vacuum @ 55 degrees C (100 liter), shell 6 bar @ 90 degrees C (224 liter), (16) 44.5mm diameter x 2 x 4m long 316L stainless steel tubes, single pass, 324mm diameter 316L stainless steel shell, 4751mm overall length, 316L stainless steel tubesheets, (2) 316L stainless steel dished heads, mounted on lugs, (1) vacuum pump, (1) liquid separator
Orientation: Vertical. Diameter: 850 mm (33.5 in). Height: 4,850 mm (190.9 in). Pressure: 3.2 bar (46.4 psi). Temperature: 200 °C (392 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Loher ANGA-225ME-04M.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: D-850/4700/10
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 267.6 kg/h (590 lb/h)
Total Heat Transfer Surface Area: 11 m² (118.4 ft²)

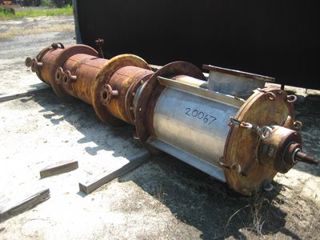

Jkt rated 13 bar @ 220 deg C Shell 850mm (34") dia x 4800mm (15.8') long, Rotor driven by 30 KW, 3/50/380 volt, 260 rpm output speed.
Orientation: Horizontal. Diameter: 850 mm (33.5 in). Height: 4,800 mm (189 in). Pressure: 0.5 bar (7.3 psi). Temperature: 220 °C (428 °F). Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 11.3 kg/h (25 lb/h)
Total Heat Transfer Surface Area: 0.5 m² (5.4 ft²)
wiped film evaporator/filmtruder body only.
jkt rated 227 psi @ 392 deg F.
Diameter: 152.4 mm (6 in). Height: 1,829 mm (72 in). Pressure: 6.9 bar (100 psi). Temperature: 350 °C (662 °F). Vacuum: Yes.
