• 300 GPM, Zero Discharge System brine evaporator/crystallizer system (ZLD)System includes a falling film evaporation system, with mechanical vapor recompression, and a forced circulation crystallizer.
• Previously used by a major utility company. This process has been maintained to an excellent standard. The overall system is designed to concentrate 300 GPM flow rate Reverse Osmosis reject stream to essentially dry, land fillable solids. Distillate produced in the evaporator / crystallizer is of high quality ( less than 10 mg/l TDS excluding volatiles) and suitable to recycle.There are two 150 GPM, MVR falling film Brine Evaporators followed by a 50 GPM feed flow rate, steam driven, forced circulation type Brine evaporative crystallizer. A centrifuge is integrated with the crystallizer to produce solids suitable for a landfill.
• All major and minor components are included including some but not all field instrumentation. The evaporator uses "seeding" crystals in the slurry in order to prevent scale up on the tubes. Major items are as follows: Two (2) 150 GPM falling film evaporators with titanium tubes, and flood box/sump constructed of AL6XN and 316 SS. Each evaporator has a MVR system with a mechanical compressor provided by Dresser-Rand, and a recirculation pump by ITT rated for 5000 gpm. ( IPP stock numbers 228146 & 228148) ; One 50 GPM crystallizer, previously had a rubber lined vessel, but was removed due to bad rubber. (vessel can be re fabricated from either SS or CS). Also with a 3,500 sq.ft. shell and tube heat exchanger, and a recirculation pump rated for 19,000 GPM. The heater has wetted parts of AL6XN, and the pump alloy is CD4MCu. ( IPP stock numbers 228100 through 228110) Dry product is discharged through a Bird centrifuge rated for 18,000 lbs./hr. (IPP stock number 228101)

• CS, with rubber lining, Vapor Body, with Alloy support accessories, forced circulation crystallizer, part of a Zero Discharge System (ZLD). The system's major equipment consists of a shell and tube evaporator heater, Vapor body, recirculation pump and centrifuge. Rated for 50 GPM flow10% moisture) and consumes 20 psi steam at 25,00 lbs./hr. Following is a short process description: The feed from Brine Evaporator enters the recirculation piping above the recirculation pump. The feed is mixed with recirculating brine slurry and pumped through the heater where it increases in temperature and is sent to the vapor body. The hot brine flashes down to the saturation pressure inside the vessel, producing vapor and the cycle is repeated. Crystals are formed continuously in crystallizer vapor body and have to be removed. Concentrated product is removed from the system, passed through a centrifuge to remove the solid crystals and is returned to the evaporator recirculation line. The crystals are sent to a landfill. Vapor from the crystallizer is sent to a small barometric condenser using cooling water to condense the vapors. Condensate is mixed with incoming cooling water and is discharged back to the cooling tower. Vent from the condenser is vented by a CS ejector, through a silencer, and out to the atmosphere. Prime condensate from the condensed plant stream is sent back to the primary feed heater to assist in heating incoming Brine Evaporator feed. The following are main components of the system: Stock #228100- crystallizer heater is 5,700 Ft2 of surface area, with 1040 straight tubes, 1.25”OD x 0.028” wall thickness x 12 Feet long, and are constructed of Titanium. The tube sheets are SS316 Ti clad. Heads are made of SS alloy AL6XN & Shell of SS316L. The Crystallizer stock # 228156 is 16’ Dia. x 30’ Overall Height with 60” cone bottom. It is made of rubber lined Carbon steel. (the crystallizer vessel was removed , we have a drawing so a new vapor body can be constructed.) The Crystallizer recirculation pump, stock #228104 is 19,000 GPM with 150 HP motor and fabricated from SS alloy. The centrifuge stock #228101 is Bird Bowl type, 24" diameter x 38" long, rated for 18,304 Lbs./hr. with SS316L contact parts, 30 HP Motor with SS alloy product contact parts.

• Falling film evaporator with mechanical vapor recompression, part of a Zero Discharge System (ZLD). The Evaporator includes the following major components: the evaporator, a circulation pump, a compressor, the deaereator, a distillate system, the feed heaters, and associated pumps. Each evaporator shares a common feed tank and seeding system.
• This evaporation system was previously used in a Zero Discharge System by a major Utility company. It was designed and engineered by Bechtel, and utilizes a seed-slurry process to maintain heat transfer tubes in a scale controlled manner. The process has been maintained in excellent shape.
• The main evaporator (Plant # BC-1/2) is a Model 130T designed by RCC and manufactured by Plant Maintenance Services, and has 13,000 square foot of surface area in the tube section. The construction Alloys are Titanium, AL6XN, and 316 SS. The design conditions for the condenser shell are 8 psig internal and 2 psig external at 250 degrees F. The condenser tubes are rated for full flooding and 8 psig external at 250 degrees F. The floor and sump are rated for full flooding and 2 psig at 250 degrees F. The evaporators dimensions are 88" OD at the condenser, 106" OD in the mid section and 134"OD at the sump/skirt. Overall height is 54' 11". The unit is skirt mounted. The tubes are 2" OD x 0.028" wall thickness x 24' long with a titanium top tube sheet and a AL6XN bottom tube sheet. The vessel includes two 30" manway for top and side access, and structural steel with stairs and platforms.*The recirculation pump(Plant # P-034-A/B) is an AC/ITT single stage, open impeller, horizontal centrifugal pump. It is a model # 150, size 14 x 12 x 21 PWO, with packing on the main shaft. It is rated for 5000 GPM at 40' TDH. The material of construction is Austenitic SS (CD4MCU). It is a base mounted direct coupled pump, driven by a 75 HP AC motor. The motor is rated for 60 Hz, 3 ph, TEFC with a 497 T frame.Mechanical Vapor recompression is provided by a Roots centrifugal blower( Plant # C-002-A/B), in a skid mounted package with an electrical driver. The blower is a Type 360IB, serial # HA3352. It is rated for 1233 lbs./minute, with an inlet volume of 30,003 ACFM, at 14.82 psi, with a specific gravity of 0.622. The inlet temperature is rated for 217 degrees F and the discharge pressure is 20.2 psi. It operates at 7309 RPM. It has a Lufkin gear increaser, and is driven by a Siemens 1000 HP ac motor. The motor is rated for 3/60 1460 volts. The skid mounted unit includes controls, oil system, and oil cooler.

Feed Heating: 316 SS plate & Frame Alfa Laval 27 Sq.Ft. & 51 Sq.Ft..

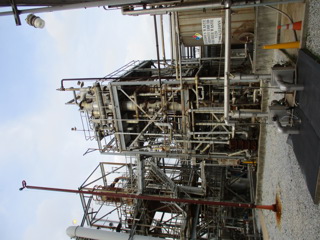

98.6% water evaporation4-effect falling film evaporator system Designed by Fritz Voltz sohn feed rate 3.4m3/hr, product 1.3 m3/hr Feed to 1st evaporator is 3.4 m3/hr @ 34.8% concentration and @ 104 deg C vacuum @ 4th evaporator 130 mbar Evaporator concentrations are: 1st = 42.1% @ 116 deg C2nd = 55.8% @ 107 deg C, 3rd = 91.3% @ 81 deg C, 4th = 98.6% @ 98 deg C System consists of:(3) 46 square meter 316 stainless steel tube, head and shell falling film evaporator (1st , 2nd, 3rd effects), manufactured by APV, design pressure tubeside 0.69 bar + full vacuum @ 130 degrees C, shell 3.10 bar + full vacuum @ 140 degrees C, working pressure tubeside 0.207 bar @ 120 degrees C, shell 2.07 bar @ 130 degrees C, (44) 50mm diameter x 18 SWG X 7m long 316 stainless steel tubes, 316 stainless steel tube sheets, 560mm diameter 316 stainless steel shell with expansion joint, (1) 316 stainless steel bonnet head, (1) bolt dished bottom head, mounted on a carbon steel skirt(1) 6 square meter 316 stainless steel tube, head and shell falling film evaporator (4th effect), manufactured by APV, design pressure tubeside 2.5 bar + full vacuum @ 150 degrees C, shell 2.5 bar + full vacuum @ 150 degrees C, (14) 44mm diameter x 16G x 3.5m long 316 stainless steel tubes, 323.9mm diameter 316 stainless steel shell with expansion joint, 4295mm overall height, (1) 316 stainless steel flat bonnet head, (1) weld coned bottom, effect attached on top of a 720 liter 316 stainless steel vertical pressure separator/tank, manufactured by APV, design pressure 2.5 bar + full vacuum @ 250 degrees C, 792mm diameter x 1.5m straight side, weld dished top and bottom, mounted on legs(3) approx 600 liter 316 stainless steel vertical separators, manufactured by APV, design pressure 10 psig + full vacuum @ 130 degrees C, 775mm diameter x 1219mm straight side, weld slight coned top, weld coned bottom,(1) 10.6 square meter 316 stainless steel tube and shell horizontal condenser (1st stage), manufactured by APV, design pressure tubeside 2.5 bar + full vacuum @ 150 degrees C, shell 2.5 bar + full vacuum @ 150 degrees C, (34) 25mm diameter x 16G x 4m long 316 stainless steel tubes, (2) 316 stainless steel flat heads, 406mm diameter 316 stainless steel shell, 4.5m overall length, mounted on saddles(1) 11 square meter 316 stainless steel tube and shell horizontal condenser (2nd stage), manufactured by APV, working pressure tubeside 2.07 bar @ 35 degrees C, shell -0.9 bar + full vacuum @ 50 degrees C, (76) ¾” x 18 swg x 4145mm long 316 stainless steel tubes, (2) 316 stainless steel flat heads, 300mm diameter 316 stainless steel shell, overall length 4523mm, mounted on saddles,(3) approx 132 liter 316 stainless steel vertical pressure tanks (flash vessel), manufactured by APV, design pressure 2.5 bar + full vacuum @ 150 degrees C, 400mm diameter x 750mm straight side, bolt dished bonnet head, weld dished bottom, mounted on legsProcess operationThe first 3 evaporators are falling film and tube (shell & tube) evaporators, where the product flows up and down through a series of tubes which are surrounded by a heating medium, steam @ 1.8 bar is used as the heating mediumThe hot liquid from each evaporator is fed to its associated “separator” in which the vapour separates from the liquid and is drawn off,The 4th evaporator uses a “once-through” falling film concentrator, the unit is similar to that of a shell & tube heat exchanger except that the product falls down the unit through a number of pipes which are surrounded by a heating medium, steam @ 1.8 bar is used as the heating medium, Vacuum @ 130mbar is applied to the 4th evaporator, which draws the vapour through the first 4 evaporators.After the 4th evaporator the product is fed through a heat exchanger, where it cools the product to between 50 deg C and 70 deg C, water is used as a cooling medium, from there the product goes to storage tanks (not available)

double effect evaporation system. See video of system operating at http://www.youtube.com/watch?v=Y6J52r-maPE. Capacity based on a brine stream at 24% to 50% strength. Feedstock of 32,000 lbs/hr(normal operating) or up to 50,000 lbs./hr. brine at ~ 20-25% NaBr is sent to the first effect, where it is strengthened to ~ 35% NaBr. The steam generated from this effect is used for heating on the second effect. Final target for brine leaving the second effect is 45-50% NaBr. The first effect (IPP Stock # 216077) (drum type)t is 2,000 gallon, and is manufactured by Paget. With a 400 sq.ft. "U" tube heater, this unit is operaing at 310 degrees F using 150# steam. The second effect is a modular, forced circulation system, designed by Swenson and manufactured by Four Corp. This effect is operating at atmospheric pressure and using the steam generated from the first effect to heat the second effect 838 sq. ft shell and tube heater(reboiler, IPP Stock # 216082). Overheads are condensed (IPP Stock # 216085). Product at ~ 50% NaBr is sent to storage. Circulation is acheived by a Goulds 6,000 gpm centrifugal pump. The first effect is a stand alone unit, the second effect is a modular system with all equipment mounted with in it's own framework. Instrumentation by Rosemount.

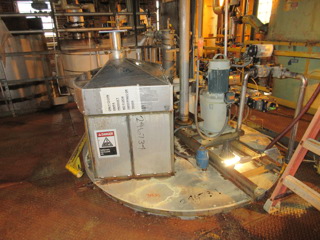

• Gouda Cooling Disc Crystallizer
• Internal plated for crystallizing the product, with wipers driven by the rotating shaft.
• Body OAL(no Motor or shaft) 118" long x 82" high x 60" wide.

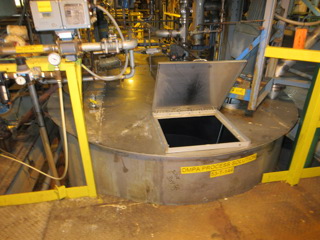

• 130 gal (500 liter), Open top, dish bottom. No bottom outlet.

single effect batch evaporator system with (2) reinforcing rings around straight side of vapor body With top center mounted veritcal SS condensor, manufactured by APV, approx 16" diameter x 8' straight side; ,Also with 304SS seperator tank,, National Board number 96, Serial Number 10312-3. rated FV/30 @ 297 degrees F, with 12" side tagential inlet connected to the vapor body, and a 12" top outlet connecting to a 2nd vertical condensor, 12" x 6' straight side, National Board number 99, Serial Number 10312-4, Rated 100 psi @ 150 degrees F shell side, FV/15 psi @ 175 degrees f tube side. System Includes interconnecting piping circulation pumps. Evaporator Drawing shows tubes as (38),

Mfd by Balfour/Sybron Order #48621 Lined w/glass #3115 CS jkt 98 psi @ 392 deg F Has glass covered int rotor w/graphite wipers. Retaining pins and rotor shaft are titanium. jkt body section, 48" dia x 9'10" str side; and clamp jkt cone btm.Has 3-sections: clamped dish entrainment section, 48" dia x 42" str side; jkt body section, 48" dia x 9'10" str side; and clamp jkt cone btm.

Drive is Pfaudler Type VS80-U21983, belt driven by approx 10 HP motor w/mech seal on shaft.

jkt rated 125 psi @ 350 deg F 2-zone CS jkt. 10' long evaporation section. 8-blade rotor, mech seal on shaft. Belt driven by 30 HP, 3/60/460 volt, 890 rpm TEFC motor.

Turbo-film evaporator CS jacket jacket rated 150 psi @ 400 degree F. with 16" cone bottom. Unit driven by 15 HP, 3/6/440 volt, 1760 rpm motor. Rotor speed 690 rpm. Includes:134 Sq Ft, 10" diameter x 8' long 304 SS tube side, CS shell side Pfaudler condenser. Serial #E363-0394. Tube side rated 100 psi @ 500 degree F, shell side rated 100 psi @ 500 degree F. (76) 3/4", 18BWG 304SS welded tubes.

"Adjust-o-film" evaporator. jkt rated 50 psi @ 350 deg F. Belt driven by 20 HP, 3/60/230/460 volt motor.

with 316 SS rotor, Jacket rated for 218 psi at 482 degrees F. Heating surface area 150.7 Sq. Ft., Serial numbers: Lower Body Serial Number 1400/56, National Board Number 717; Interm body Serial Number 1400/56, National Board Number 716; Upper Body Serial Number 1400/56, National Board Number 715; Lower cone Serial Number 1400/56, National Board Number 718. Body is 850 mm inside diameter x 6320 mm to bottom of cone. Rotor assembly is 4 blade 316 SS construction, bottom cone is solid Hastelloy, shell is Hastelloy Clad. Unit driven by a 25 hp, 3 phase, 60 cycle, 230/460 volt motor, with Class 1 Group D label, Rotor speed is 880 rpm.

thin film evaporator jacket -1/1.1 bar @ 350 deg C (110ltr) 316L s/steel (1,4404) chamber, c/steel jacket on straight side only, 316L s/steel rotor, Crane 109 double mechanical seal with lubricator, speed 191 rpm, belt driven by 22kw, 3/50/380 volt, 730 rpm motor

• Falling film evaporator with mechanical vapor recompression, part of a Zero Discharge System (ZLD). The Evaporator includes the following major components: the evaporator, a circulation pump, a compressor, the deaereator, a distillate system, the feed heaters, and associated pumps. Each evaporator shares a common feed tank and seeding system.
• This evaporation system was previously used in a Zero Discharge System by a major Utility company. It was designed and engineered by Bechtel, and utilizes a seed-slurry process to maintain heat transfer tubes in a scale controlled manner. The process has been maintained in excellent shape.
• The main evaporator (Plant # BC-1/2) is a Model 130T designed by RCC and manufactured by Plant Maintenance Services, and has 13,000 square foot of surface area in the tube section. The construction Alloys are Titanium, AL6XN, and 316 SS. The design conditions for the condenser shell are 8 psig internal and 2 psig external at 250 degrees F. The condenser tubes are rated for full flooding and 8 psig external at 250 degrees F. The floor and sump are rated for full flooding and 2 psig at 250 degrees F. The evaporators dimensions are 88" OD at the condenser, 106" OD in the mid section and 134"OD at the sump/skirt. Overall height is 54' 11". The unit is skirt mounted. The tubes are 2" OD x 0.028" wall thickness x 24' long with a titanium top tube sheet and a AL6XN bottom tube sheet. The vessel includes two 30" manway for top and side access, and structural steel with stairs and platforms.*The recirculation pump(Plant # P-034-A/B) is an AC/ITT single stage, open impeller, horizontal centrifugal pump. It is a model # 150, size 14 x 12 x 21 PWO, with packing on the main shaft. It is rated for 5000 GPM at 40' TDH. The material of construction is Austenitic SS (CD4MCU). It is a base mounted direct coupled pump, driven by a 75 HP AC motor. The motor is rated for 60 Hz, 3 ph, TEFC with a 497 T frame.Mechanical Vapor recompression is provided by a Roots centrifugal blower( Plant # C-002-A/B), in a skid mounted package with an electrical driver. The blower is a Type 360IB, serial # HA3352. It is rated for 1233 lbs./minute, with an inlet volume of 30,003 ACFM, at 14.82 psi, with a specific gravity of 0.622. The inlet temperature is rated for 217 degrees F and the discharge pressure is 20.2 psi. It operates at 7309 RPM. It has a Lufkin gear increaser, and is driven by a Siemens 1000 HP ac motor. The motor is rated for 3/60 1460 volts. The skid mounted unit includes controls, oil system, and oil cooler.

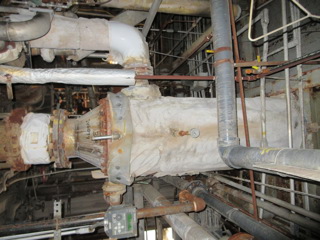

72" OD x 111 straight side 2000 gallon capacity "U" tube heater Size 35-42 Channel head is CS Vessel includes Koch style 931 6" thick denmister. Bundle is 36" x 5', Channel head is CS. Channel head is CS.

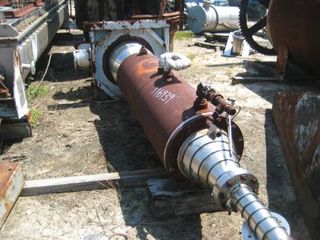

wiped film evaporator/filmtruder body only.

jkt rated 227 psi @ 392 deg F.

wiped film evaporator/crystalliser jacket 6 bar @ 100 degrees C (130 liter), 316Ti (1.4571) stainless steel wetted parts, 323.9mm ID x 8450mm long x 7mm thick shell carbon steel jacket 368mm diameter x 8410mm long x 4mm thick with continuous internal flow spiral 200mm pitch, jacket with expansion bellows, 316Ti (1.4571) stainless steel 88.9mm OD internal scraper rotor, rotor shaft is in 2 pieces which join togeter via a key way, each shaft is fitted with welded lugs to carry scrapers attached to stainless steel springs, the scrappers are made from 25mm x 7mm 'Hartgewebe F24' 546mm long and are arranged with 4 scrapers at 90 degrees and 8 on each shaft, giving a total of 32 per shaft, packed gland on shaft, rotor with teflon bushes, shaft driven by 17.5 kw, 3/50/415 volt, 1420 rpm motor via gearbox, shaft speed 55 rpm

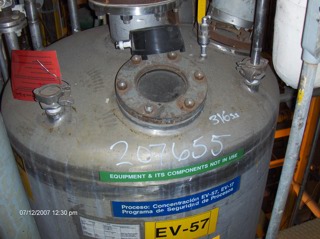

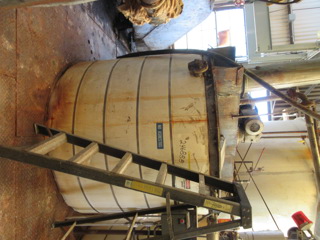

• With immersion heater in tank interior.

Rated vac int. Upper jkt rated 257 psi (17.5 Kg/cm2) @ 208 deg C, lower jkt rated 205 psi (14 Kg/cm2) @ 298 deg C. 10" btm cone, 8" dia x 24" long entrainment section No motor, unit is setup for belt drive No stand.

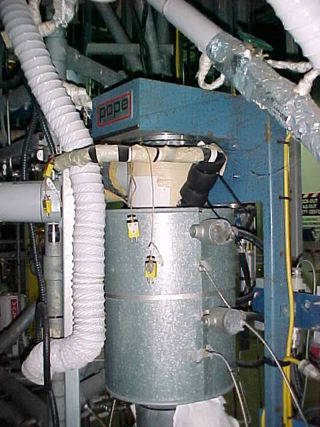

Wiped-Film Molecular (Short-Path) Still 2 to 50 liters/hour. Electrically heated with slotted glass filled Teflon wipers on rotor.  Mechanical seal on shaft.  With high vacuum pump.

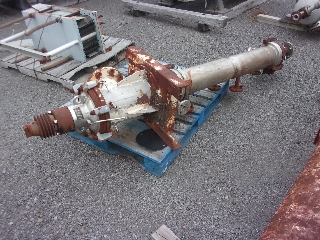

wiped film evaporator/filmtruder body only. Jkt rated 16 psi. 6" dia x 5'6" long.

• Built to ASME code
• Drive Type: Electric.

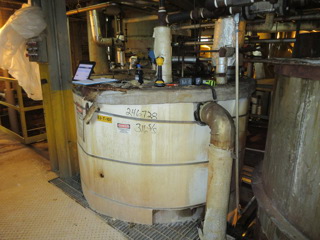

• Tank with internal coil: 12 turns of 1.5" coil.
