double stage design, 0.098 barg (45mm vacuum), 16kW absorbed power, John Crane double mechanical seal

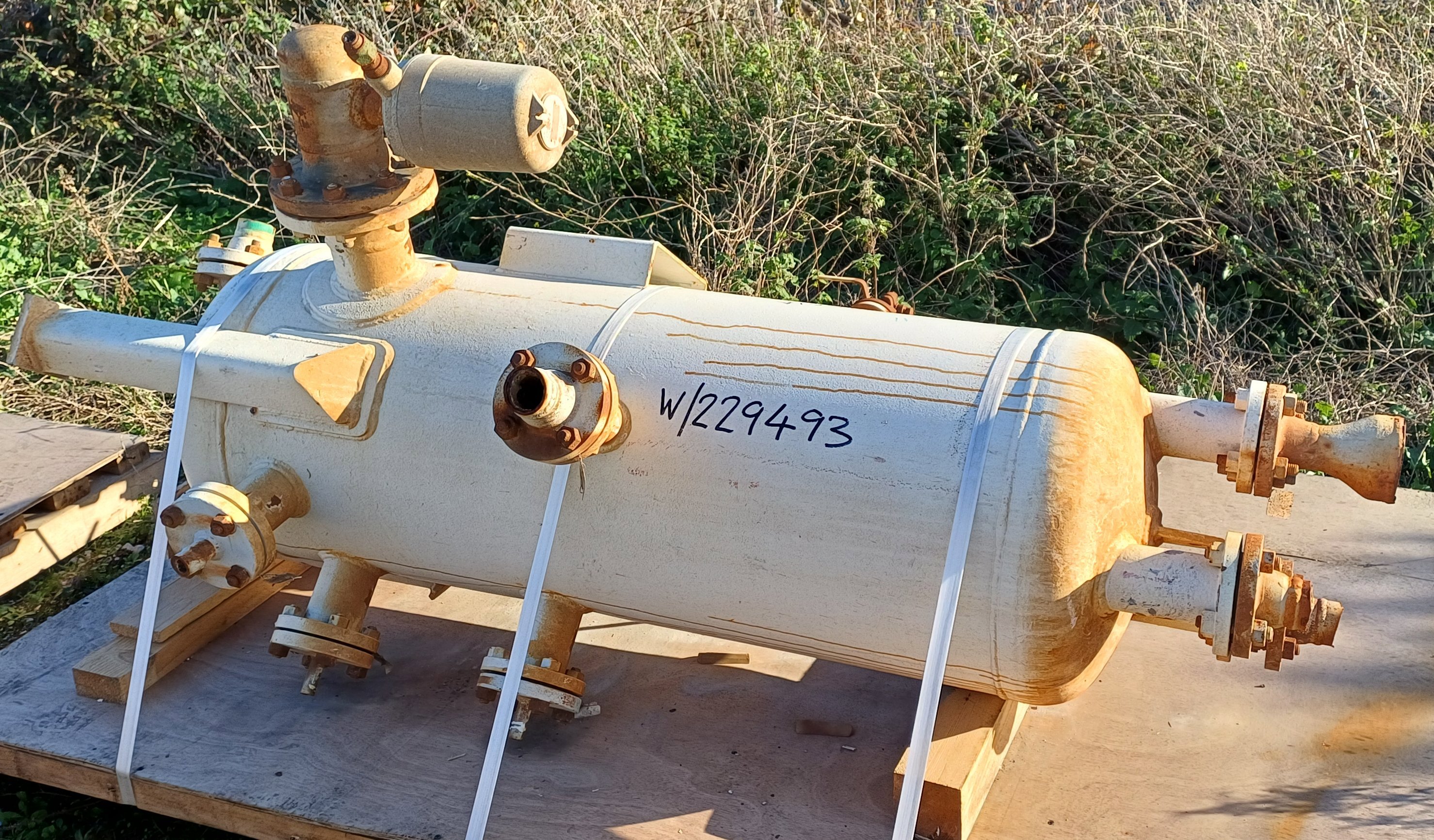

With (1) 240 liter carbon steel vertical separator tank, manufactured by , pressure 5 bar + full vacuum @ -13/150 degrees C, 500mm diameter x 1.2m straight side, weld dished top and bottom, mounted on legs,
(1) 3.92 square meter carbon steel tube, head and shell heat exchanger (seal water cooler), manufactured by , design pressure tube side 5 bar @ 80 degrees C, shell 6.5 bar @ 80 degrees C, (26) 16mm diameter x 1.5mm x 3m long carbon steel tubes, 4 pass tubeside, 1 pass shell side, 150mm diameter carbon steel shell, 3464mm overall length, (1) carbon steel bonnet head, (1) carbon steel channel head with flat end plate, mounted on fixed saddles
(1) 3.8m3/hr @ 20m head carbon steel centrifugal seal water pump, manufactured by Worthington Simpson, type 1 HNN 111, mechanical seal, mounted on a baseplate
(1) 3.92 square meter carbon steel tube, head and shell heat exchanger (pre-condenser), manufactured by , design pressure tube side 6 bar @ 70 degrees C, shell 5 bar @ 120 degrees C, (69) 19.05mm diameter x 1.5mm x 2300mm long carbon steel tubes, 4 pass tubeside, 1 pass shell side, 250mm diameter carbon steel shell, mounted on fixed saddles

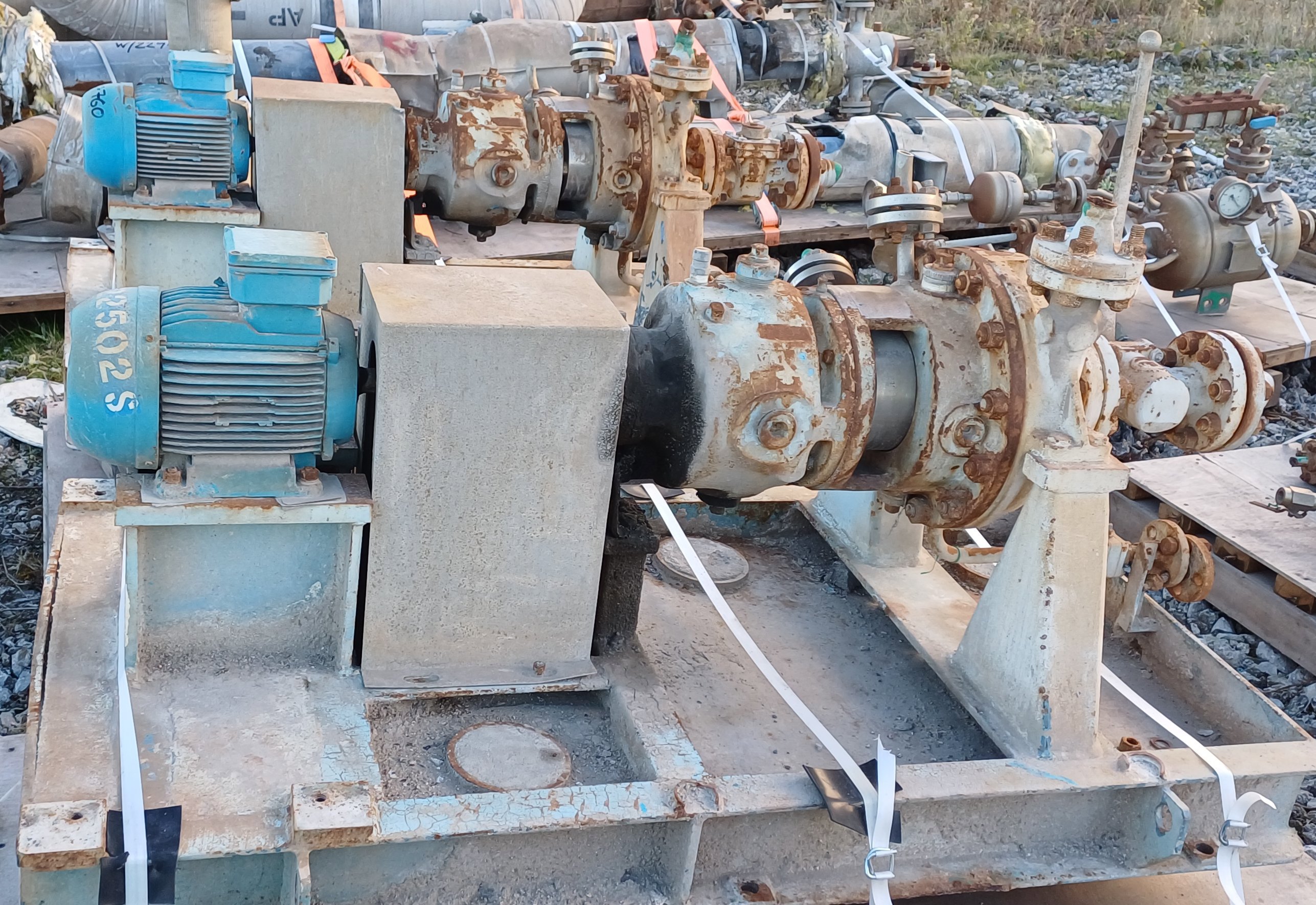

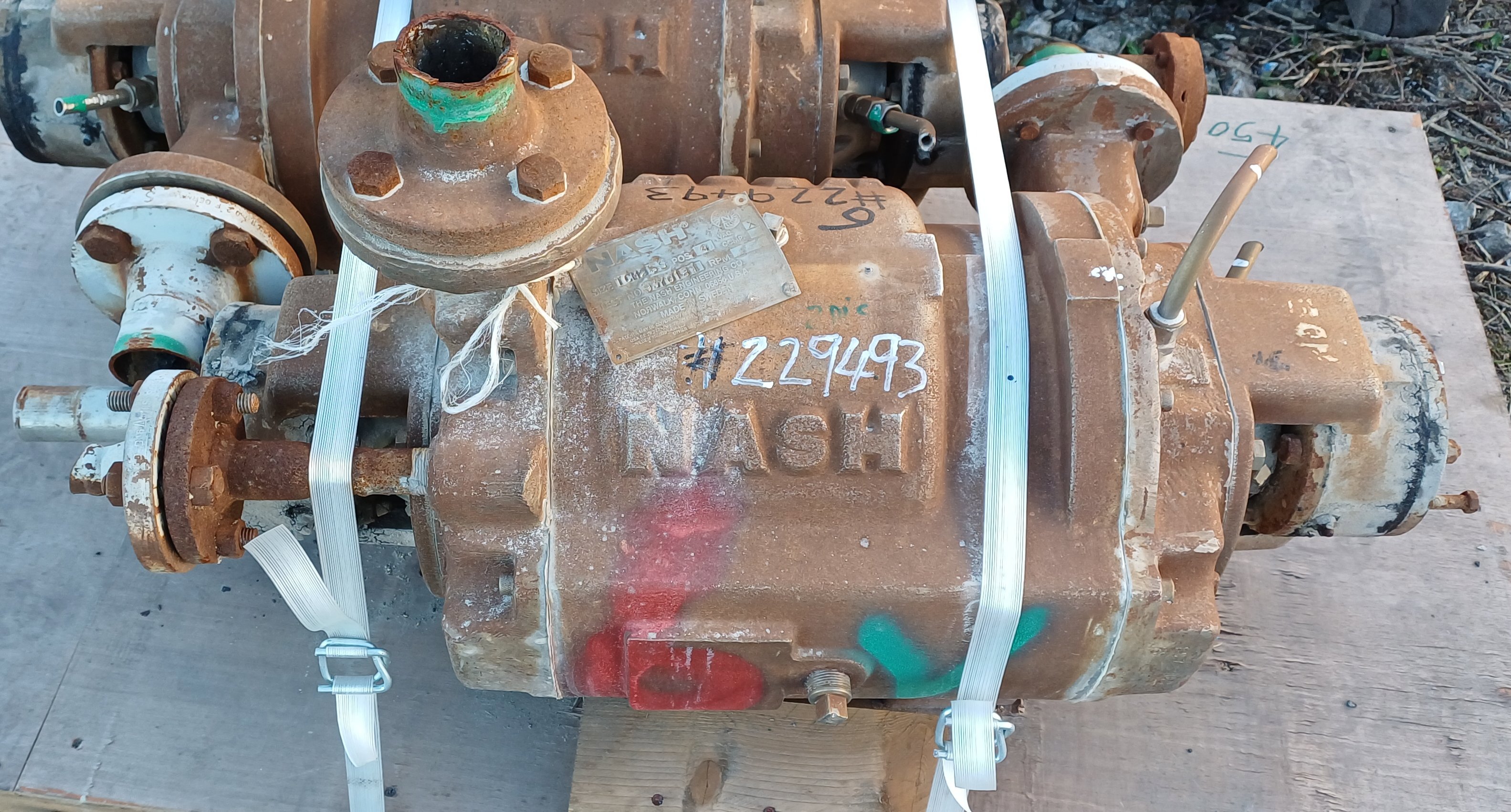

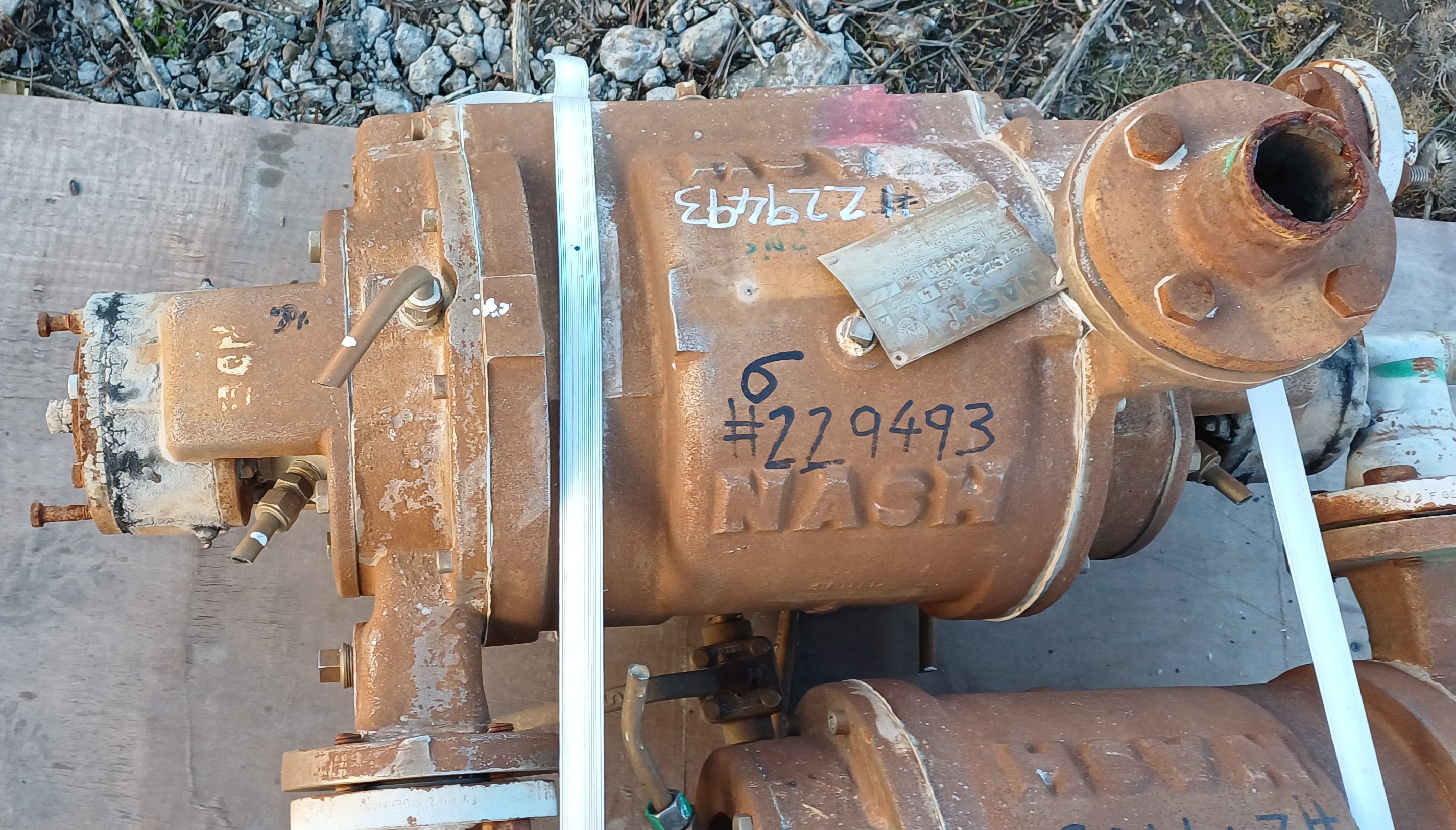

Type: Pump-Vacuum
Manufacturer: Nash
Model: TCM-2
Condition: Used
Material: Stainless Steel 316L
Air Flow: 380 m3/h (223.7 CFM)
Discharge Pressure: 0.1 bar (1.45 psi)
double stage design, 0.098 barg (45mm vacuum), 16kW absorbed power, John Crane double mechanical seal
With (1) 240 liter carbon steel vertical separator tank, manufactured by , pressure 5 bar + full vacuum @ -13/150 degrees C, 500mm diameter x 1.2m straight side, weld dished top and bottom, mounted on legs,
(1) 3.8m3/hr @ 20m head carbon steel centrifugal seal water pump, manufactured by Worthington Simpson, type 1 HNN 111, mechanical seal, mounted on a baseplate
Orientation: Horizontal. Inlet Diameter: 50 mm (1.97 in). Outlet Diameter: 50 mm (1.97 in). Seal Type: Liquid Ring. Temperature: 50 °C (122 °F). Cooling or Seal Water: Yes. Cooling or Seal Water Flow: 6,000 L/h (26.4 GPM).
Type: Pump-Vacuum
Manufacturer: Nash
Model: L6
Condition: Used
Material: Carbon Steel
Air Flow: 850 m3/h (500 CFM)
Discharge Pressure: 0.62 bar (9 psi)
Hg: 19" Test numbers: AD3316, AD7217, 577755, AD11007, AD2096, AD6163, AD6162, AD5141, AD7218.
Orientation: Horizontal.
Type: Pump-Vacuum
Manufacturer: Nash
Model: SH6
Condition: Used
Material: Stainless Steel 316
Air Flow: 663 m3/h (390 CFM)
Discharge Pressure: 0.85 bar (12.3 psi)
Vacuum level: 25"Hg
Orientation: Horizontal. Seal Type: Liquid Ring.
Type: Pump-Vacuum
Manufacturer: Nash
Model: SH6
Condition: Used
Material: Stainless Steel Other
Air Flow: 663 m3/h (390 CFM)
Discharge Pressure: 0.85 bar (12.3 psi)
Orientation: Horizontal. Seal Type: Liquid Ring.
