single stage, suction pressure atmospheric to 0.068 barg, absorbed power 26kw, John Crane mechanical seal,

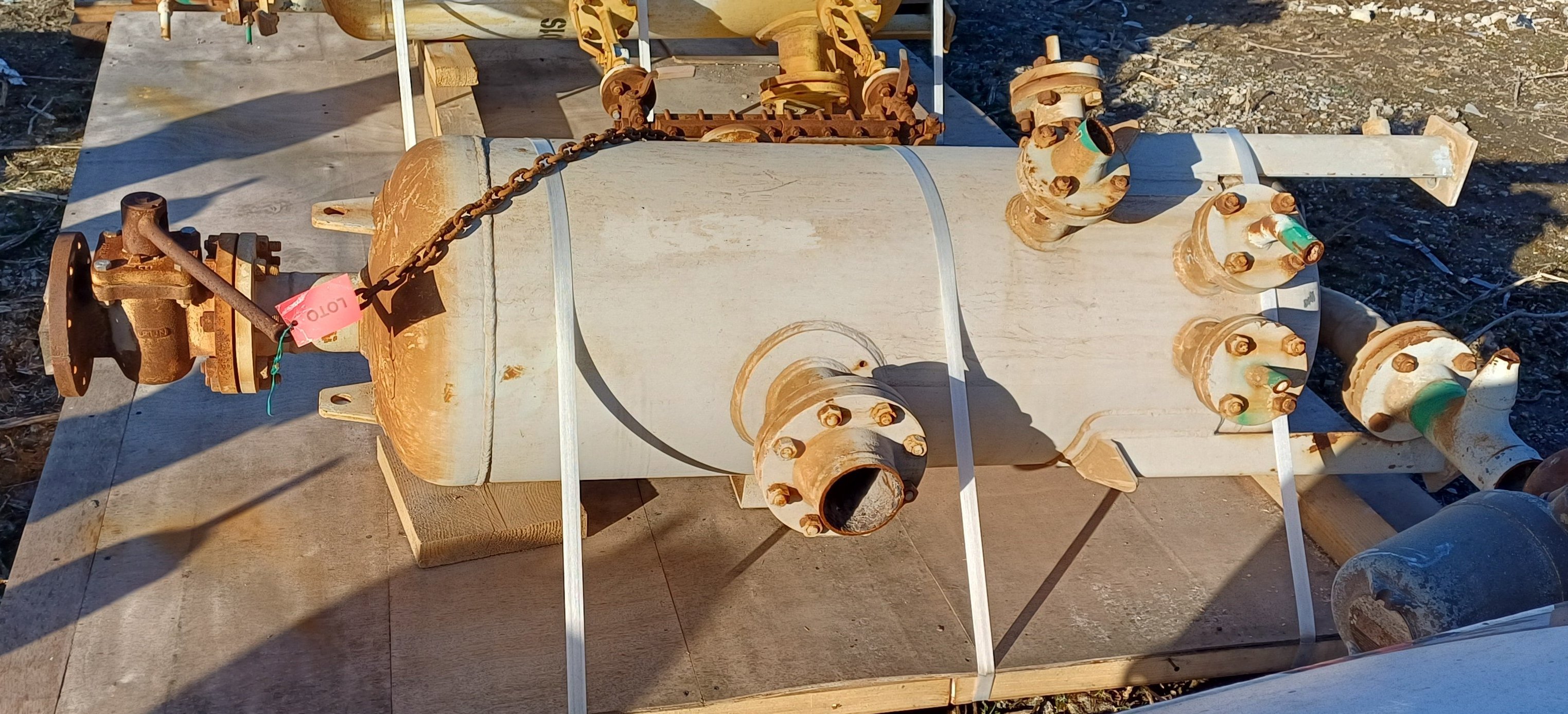

with (1) 240 liter carbon steel vertical separator tank, manufactured by , pressure atmospheric @ 80 degrees C, 500mm diameter x 1.2m straight side, weld dished top and bottom, mounted on legs,
(1) 4.52 square meter carbon steel tube, head and shell heat exchanger (seal water cooler), manufactured by , design pressure tube side 7 bar @ 80 degrees C, shell 5.25 bar @ 80 degrees C, (30) 16mm diameter x 1.5mm x 3m long carbon steel tubes, 2 pass tubeside, 1 pass shell side, 150mm diameter carbon steel shell, 3464mm overall length, (1) carbon steel bonnet head, (1) carbon steel channel head with flat end plate, mounted on fixed saddles

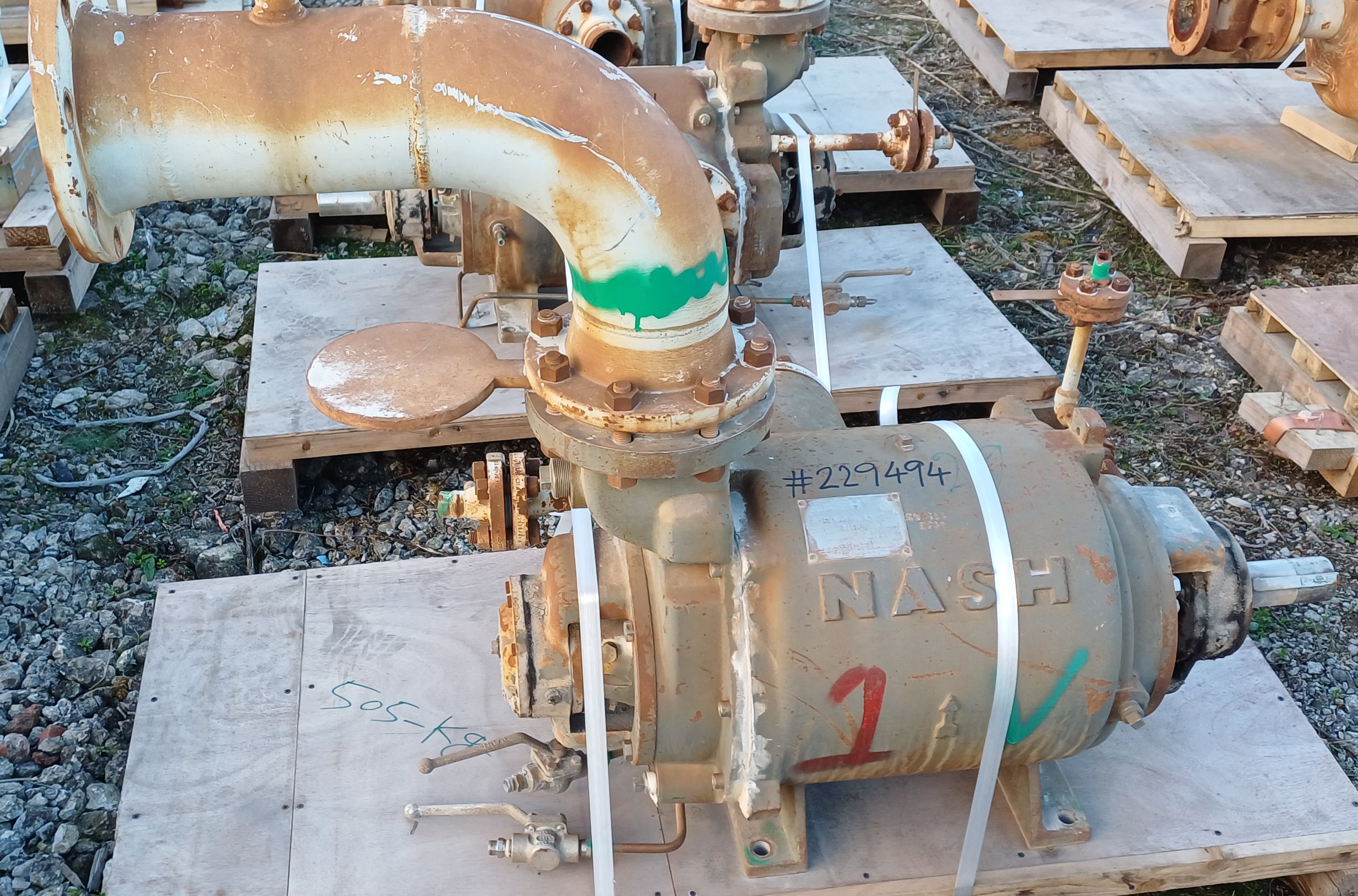

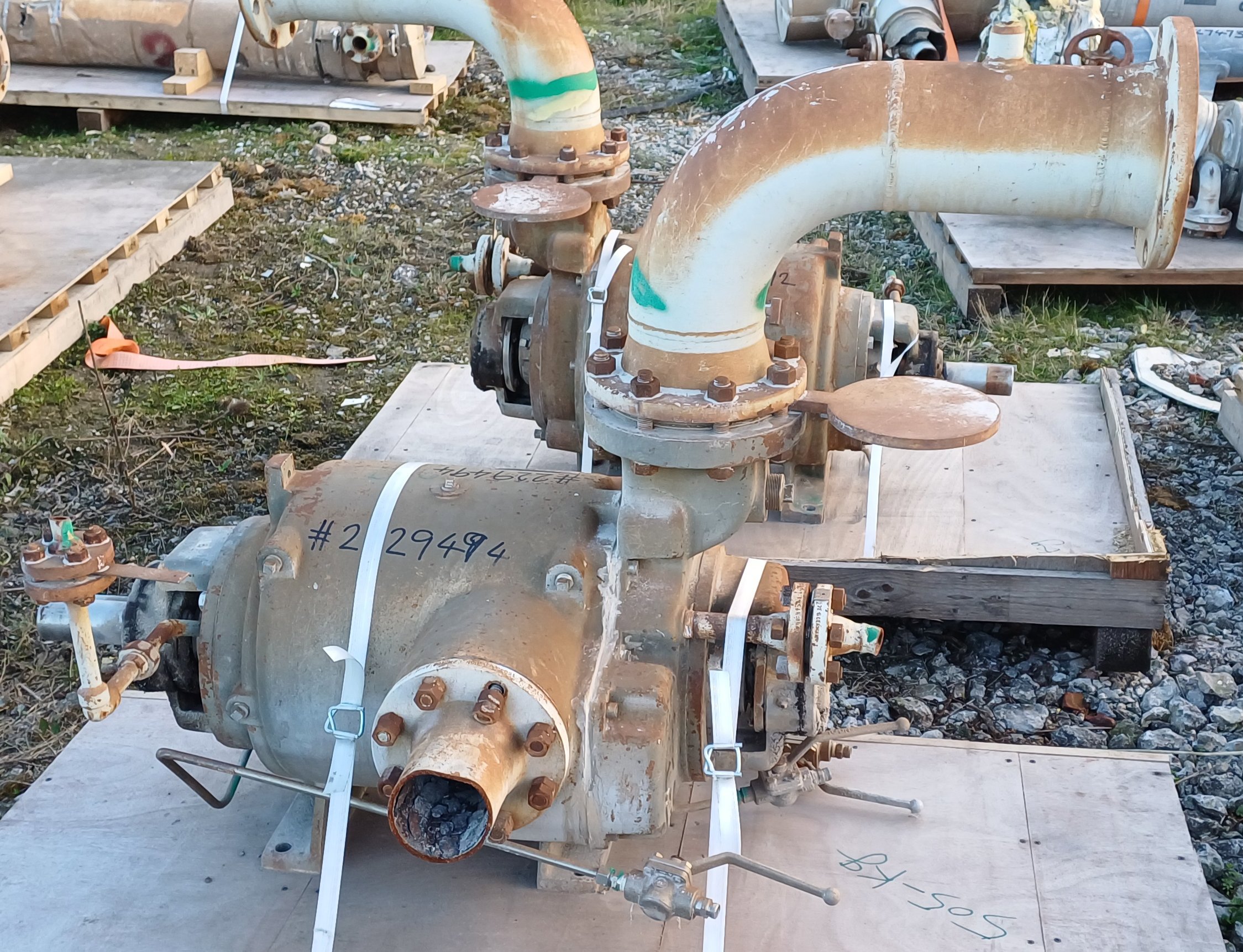

Type: Pump-Vacuum
Manufacturer: Nash
Model: SC-6-SS
Condition: Used
Material: Stainless Steel 304
Air Flow: 550 m3/h (323.7 CFM)
Discharge Pressure: 0.012 bar (0.17 psi)
single stage, suction pressure atmospheric to 0.068 barg, absorbed power 26kw, John Crane mechanical seal,
with (1) 240 liter carbon steel vertical separator tank, manufactured by , pressure atmospheric @ 80 degrees C, 500mm diameter x 1.2m straight side, weld dished top and bottom, mounted on legs,
(1) 4.52 square meter carbon steel tube, head and shell heat exchanger (seal water cooler), manufactured by , design pressure tube side 7 bar @ 80 degrees C, shell 5.25 bar @ 80 degrees C, (30) 16mm diameter x 1.5mm x 3m long carbon steel tubes, 2 pass tubeside, 1 pass shell side, 150mm diameter carbon steel shell, 3464mm overall length, (1) carbon steel bonnet head, (1) carbon steel channel head with flat end plate, mounted on fixed saddles
Orientation: Horizontal. Inlet Diameter: 150 mm (5.9 in). Outlet Diameter: 100 mm (3.9 in). Seal Type: Liquid Ring. Temperature: 30 °C (86 °F). Cooling or Seal Water: Yes. Cooling or Seal Water Flow: 8,000 L/h (35.2 GPM).
Type: Pump-Vacuum
Manufacturer: Nash
Model: SC-6-SS
Condition: Used
Material: Stainless Steel 304
Air Flow: 850 m3/h (500 CFM)
Discharge Pressure: 1.5 bar (21.8 psi)
single stage design, suction pressure atmospheric to 0.147 barg, absorbed power 43kw,1150 rpm pump speed, John Crane mechanical seal,
with (1) 1300 liter carbon steel vertical separator tank, manufactured by , pressure 5 bar + full vacuum @ -13/150 degrees C, 1m diameter x 1.6m straight side, weld dished top and bottom, mounted on legs,
(1) 10.5 square meter carbon steel tube, head and shell horizontal heat exchanger (seal water cooler), manufactured by , design pressure tube side 7 bar @ 80 degrees C, shell 7 bar @ 80 degrees C, (52) 16mm diameter x 1.5mm x 4m long carbon steel tubes, 4 pass tubeside, 1 pass shell side, 200mm diameter carbon steel shell, 4568mm overall length, (1) carbon steel bonnet head, (1) carbon steel channel head with flat end plate, mounted on fixed saddles
(1) 10m3/hr @ 20m head carbon steel centrifugal pump, manufactured by Worthington, type I HNN 111, discharge pressure 3 bar, mechanical seal, mounted on a baseplate
Orientation: Horizontal. Inlet Diameter: 150 mm (5.9 in). Outlet Diameter: 100 mm (3.9 in). Seal Type: Liquid Ring. Temperature: 20 °C (68 °F). Cooling or Seal Water: Yes. Cooling or Seal Water Flow: 15,000 L/h (66 GPM).
Type: Pump-Vacuum
Manufacturer: Nash
Model: SC-6-SS
Condition: Used
Material: Stainless Steel 304
Air Flow: 850 m3/h (500 CFM)
Discharge Pressure: 1.5 bar (21.8 psi)
single stage design, suction pressure atmospheric to 0.147 barg, absorbed power 43kw,1150 rpm pump speed, John Crane mechanical seal,
with (1) 1300 liter carbon steel vertical separator tank, manufactured by , pressure 5 bar + full vacuum @ -13/150 degrees C, 1m diameter x 1.6m straight side, weld dished top and bottom, mounted on legs,
(1) 10.5 square meter carbon steel tube, head and shell horizontal heat exchanger (seal water cooler), manufactured by , design pressure tube side 7 bar @ 80 degrees C, shell 7 bar @ 80 degrees C, (52) 16mm diameter x 1.5mm x 4m long carbon steel tubes, 4 pass tubeside, 1 pass shell side, 200mm diameter carbon steel shell, 4568mm overall length, (1) carbon steel bonnet head, (1) carbon steel channel head with flat end plate, mounted on fixed saddles
(1) 10m3/hr @ 20m head carbon steel centrifugal pump, manufactured by Worthington, type I HNN 111, discharge pressure 3 bar, mechanical seal, mounted on a baseplate
Orientation: Horizontal. Inlet Diameter: 150 mm (5.9 in). Outlet Diameter: 100 mm (3.9 in). Seal Type: Liquid Ring. Temperature: 20 °C (68 °F). Cooling or Seal Water: Yes. Cooling or Seal Water Flow: 15,000 L/h (66 GPM).
Type: Pump-Vacuum
Manufacturer: Nash
Model: L6
Condition: Used
Material: Carbon Steel
Air Flow: 850 m3/h (500 CFM)
Discharge Pressure: 0.62 bar (9 psi)
Hg: 19" Test numbers: AD3316, AD7217, 577755, AD11007, AD2096, AD6163, AD6162, AD5141, AD7218.
Orientation: Horizontal.
