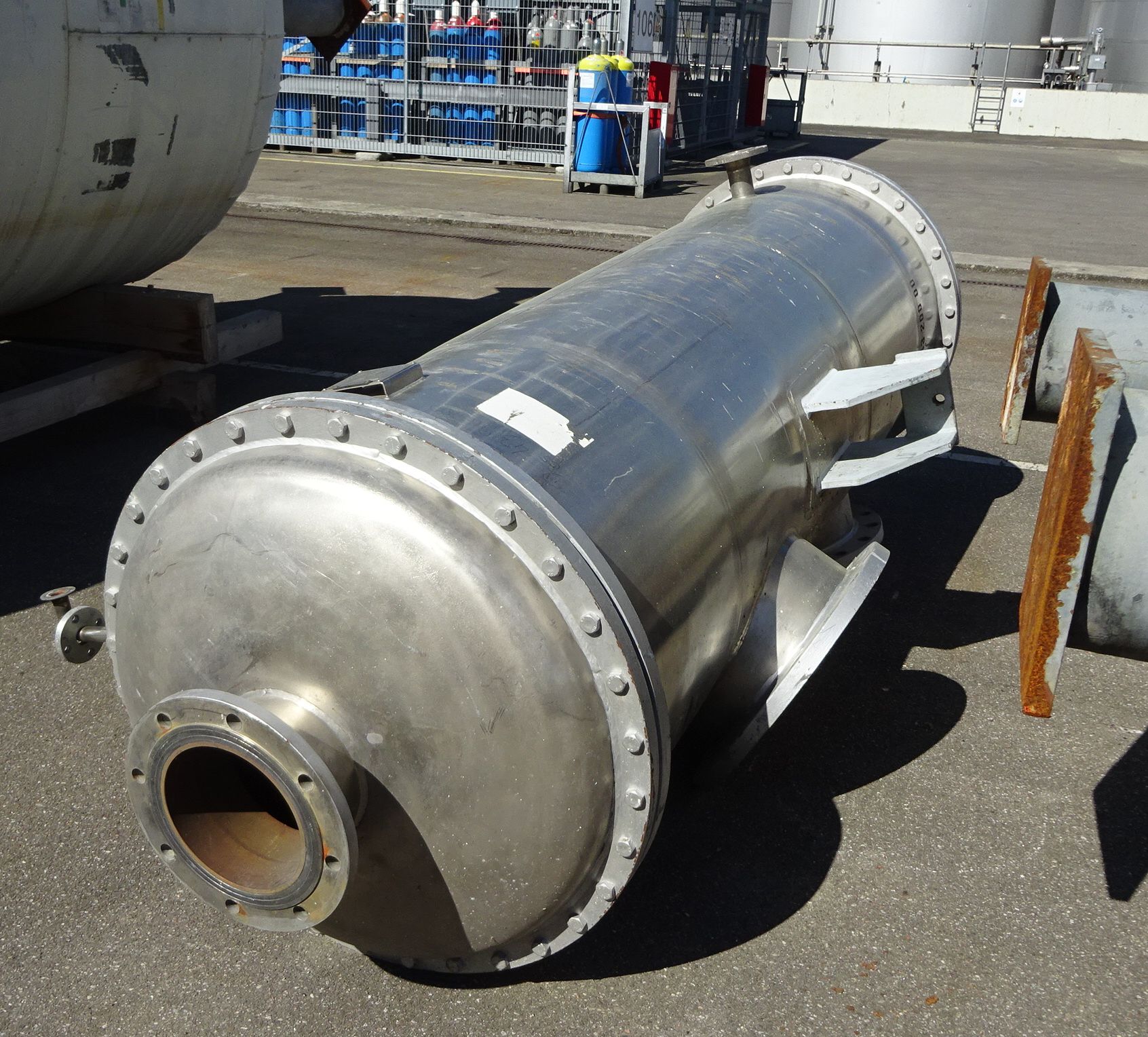

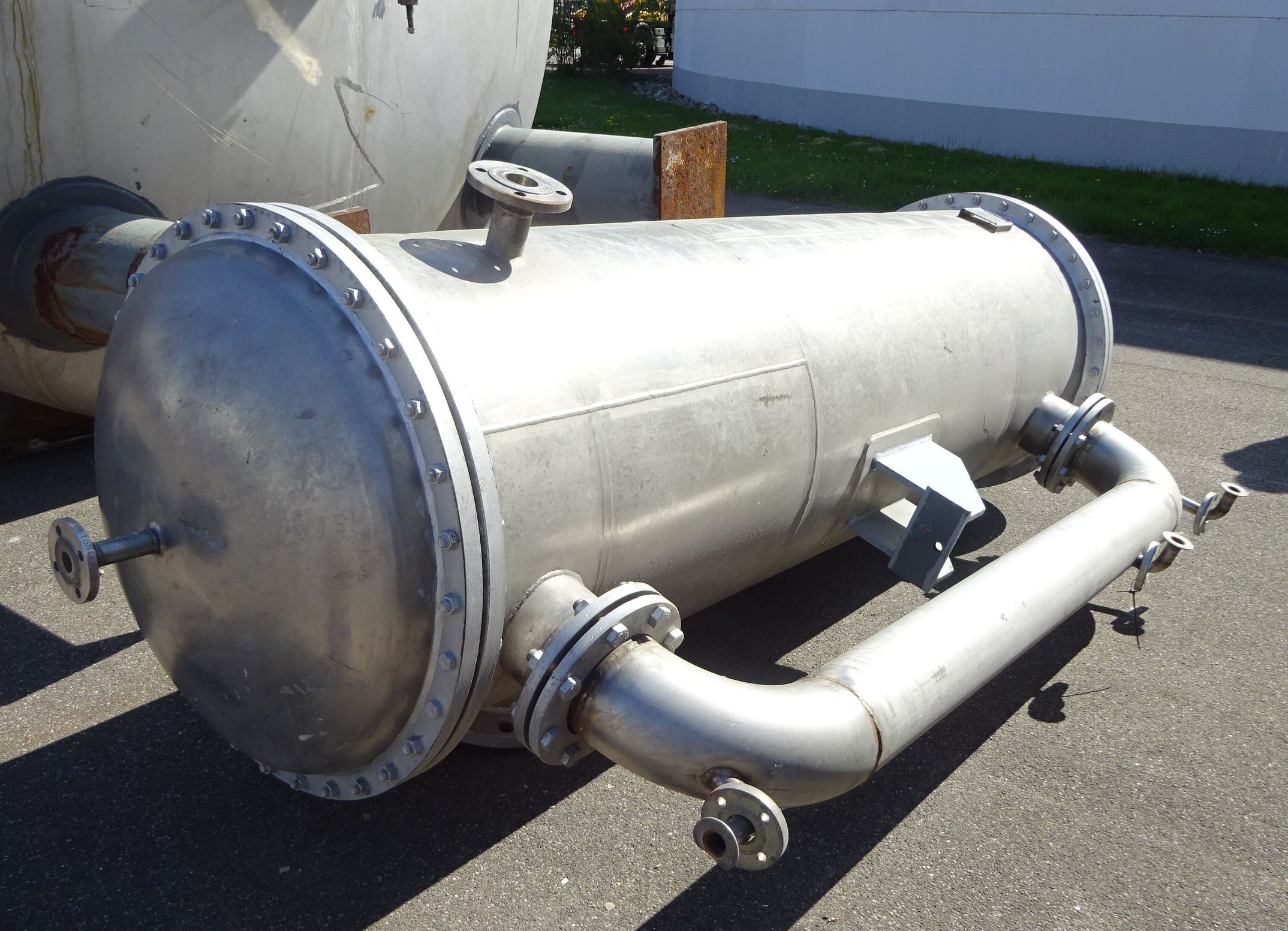

Shell and Tube Heat Exchanger 25 m² (269.1 ft²) Stainless Steel 316 For Sale - IPP# 230181

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 20 m² (215.3 ft²)

Orientation: Vertical

pressure tubeside 9 bar @ 180 degrees C (318 liter) shell -1/1 bar @ 180 degrees C (555 liter) 5mm thick 316Ti (1.4571) stainless steel shell (2) 316Ti stainless steel dished heads

Shell Pressure: 1 bar (14.5 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 9 bar (130.5 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 690 mm (27.2 in). Head Material: Stainless Steel Austenitic. Length: 2,900 mm (114.9 in). Tube-side Passes: 1. Tube Number: 76. Tube Diameter: 54 mm (2.1 in). Tube Length: 1,600 mm (63 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings tube side:1-head with 1-300mm, 1-head with 1-150mm, shell: 2-125mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 30 m² (322.9 ft²)

Orientation: Horizontal

Certification: TUV (22) internal baffle plates (2) 316L (1.4571) stainless steel flat channel heads, (2) 316L (1.4571) stainless steel tube sheets, can be mounted vertical or horizontal

Shell Pressure: 6 bar (87 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 449 mm (17.7 in). Head Material: Stainless Steel Austenitic. Length: 3,750 mm (147.2 in). Tube-side Passes: 1. Tube Number: 136. Tube Diameter: 25 mm (0.98 in). Tube Length: 3,000 mm (118.1 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: - Openings: - Tube side: (1) end with 1-100mm, (1) end with 2-80mm - Shell side: 2-100mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 16 m² (172.2 ft²)

Orientation: Vertical

pressure tube side 0 bar (519 Liter ) Shell 9 bar @ 180 degrees (316 liter) (2) 316Ti stainless steel dished heads

Shell Pressure: 9 bar (130.5 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel Austenitic. Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel Austenitic. Shell Diameter: 650 mm (25.6 in). Head Material: Stainless Steel Austenitic. Length: 2,800 mm (110.9 in). Tube-side Passes: 1. Tube Number: 61. Tube Diameter: 54 mm (2.1 in). Tube Length: 1,600 mm (63 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: penings tubeside: 1- head with 1-300mm, 1-head with 1-150mm, 1-25mm, shell side: 1-125mm, 1-40mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Bramah Process Plant Ltd

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 25.8 m² (277.7 ft²)

Orientation: Horizontal

Tube side: 10.55 kg/cm2 @ 299 deg C Shell side: 10.55 kg/cm2 @ 399 deg C (2) c/steel flat heads

Shell Pressure: 10.3 bar (150.1 psi). Shell Temperature: 399 °C (750 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150.1 psi). Tube Temperature: 299 °C (570 °F). Tube Material: Stainless Steel 316. Shell Diameter: 350 mm (13.8 in). Head Material: Carbon Steel. Length: 6,050 mm (238.6 in). Tube-side Passes: 4. Tube Number: 72. Tube Diameter: 19 mm (0.75 in). Tube Length: 6,050 mm (238.6 in).
