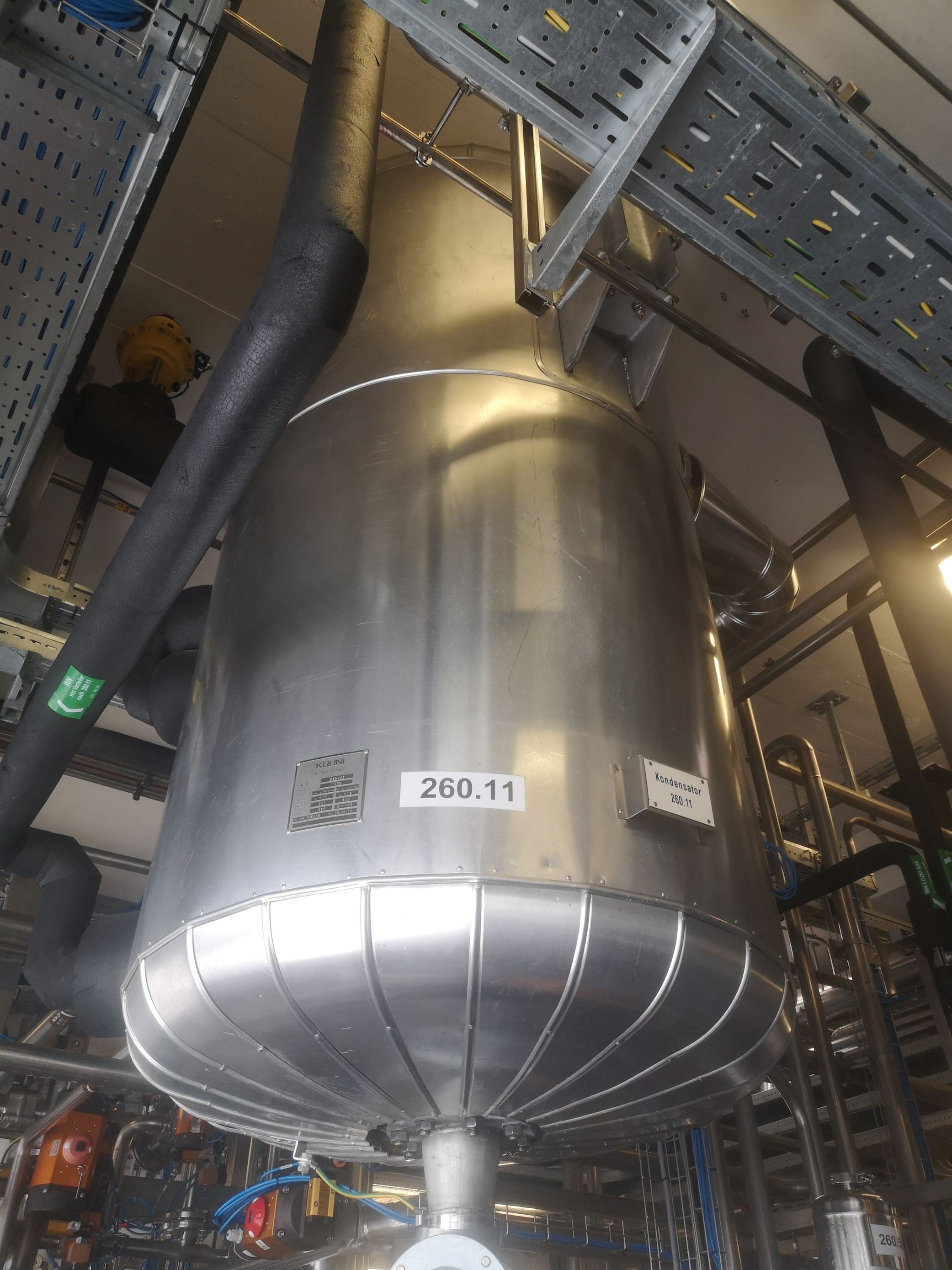

Shell and Tube Heat Exchanger 30 m² (322.9 ft²) Stainless Steel Austenitic For Sale - IPP# 236122

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 20 m² (215.3 ft²)

Orientation: Vertical

pressure tubeside 9 bar @ 180 degrees C (318 liter) shell -1/1 bar @ 180 degrees C (555 liter) 5mm thick 316Ti (1.4571) stainless steel shell (2) 316Ti stainless steel dished heads

Shell Pressure: 1 bar (14.5 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 9 bar (130.5 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 690 mm (27.2 in). Head Material: Stainless Steel Austenitic. Length: 2,900 mm (114.9 in). Tube-side Passes: 1. Tube Number: 76. Tube Diameter: 54 mm (2.1 in). Tube Length: 1,600 mm (63 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings tube side:1-head with 1-300mm, 1-head with 1-150mm, shell: 2-125mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 16 m² (172.2 ft²)

Orientation: Vertical

pressure tube side 0 bar (519 Liter ) Shell 9 bar @ 180 degrees (316 liter) (2) 316Ti stainless steel dished heads

Shell Pressure: 9 bar (130.5 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel Austenitic. Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel Austenitic. Shell Diameter: 650 mm (25.6 in). Head Material: Stainless Steel Austenitic. Length: 2,800 mm (110.9 in). Tube-side Passes: 1. Tube Number: 61. Tube Diameter: 54 mm (2.1 in). Tube Length: 1,600 mm (63 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: penings tubeside: 1- head with 1-300mm, 1-head with 1-150mm, 1-25mm, shell side: 1-125mm, 1-40mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 25 m² (269.1 ft²)

Orientation: Vertical

pressure tubeside -1/3.2 bar @ 165 degrees C (855 liter), shell -1/6 bar @ 165 degrees C (540 liter), Connections include; shell side 2 - 400mm, tube side 1 - 200mm, 2 - 150mm, 1 - 25mm,

Shell Pressure: 6 bar (87 psi). Shell Temperature: 165 °C (329 °F). Shell Material: Stainless Steel 316. Tube Pressure: 3.2 bar (46.4 psi). Tube Temperature: 165 °C (329 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 800 mm (31.5 in). Head Material: Stainless Steel 316. Length: 3,050 mm (120.2 in). Tube-side Passes: 1. Tube Number: 97. Tube Diameter: 54 mm (2.1 in). Tube Length: 1,600 mm (63 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Connections include; shell side 2 - 400mm, tube side 1 - 200mm, 2 - 150mm, 1 - 25mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: K.Ley

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 32 m² (344.4 ft²)

Orientation: Vertical

• Heads: Without heads
• Pressure (tube side): -1/6 bar @ -10/300 deg C
• Volume (tube side): 145 liter
• Pressure (shell side): -1/6 bar @ -10/300 deg C
• Volume (shell side): 275 liter

Shell Pressure: 6 bar (87 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Tube Number: 164. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings shell: 3-50mm.
