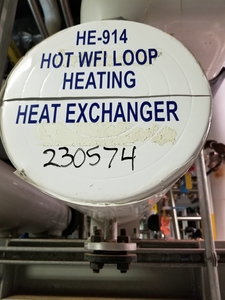

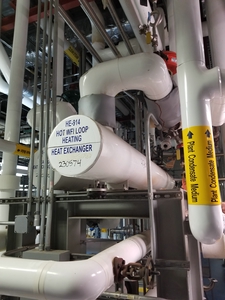

Stainless Steel 316 Allegheny Bradford Corp. Shell and Tube Heat Exchanger - IPP# 230574

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Allegheny Bradford Corp.

Condition: Unused

Material: Stainless Steel 316

Heat Transfer Surface Area: 14.6 m² (157 ft²)

Orientation: Horizontal

Internals are 25 Ra electropolished. External as welded and passivated Inner and outer tube sheets are removable hell inlet and outlets are 8" RFSO flange, Tube inlet/outlet are 3" WE. Two 3/4" couplings for the vents & drain.

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 12.7 mm (0.5 in). Head Material: Stainless Steel 316L. Length: 2,250 mm (88 in). Shell-side Passes: 4. Tube-side Passes: 4. Tube Type: U-Tube. Tube Number: 172. Tube Diameter: 12.7 mm (0.5 in). Tube Length: 2,150 mm (84 in). Tube Thickness: 1.02 mm (0.04 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Allegheny Bradford Corp.

Model: BEU

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 3.1 m² (33 ft²)

Orientation: Horizontal

sanitary, horizontal "U" tube heat exchanger Heat transfer: 1,620,000 BTU/Hr Bundle: Removable, sanitary design, completely drainable Shell side nozzles: Two 3" 150# Tube side nozzles: 3" Tri Clover

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel 316. Length: 1,450 mm (58 in). Tube Type: U-Tube. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,450 mm (57.6 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Shell side nozzles two 3" 150#, Tube side nozzles 3" Tri Clover..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Allegheny Bradford Corp.

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 8 m² (86 ft²)

Orientation: Horizontal

Shell side nozzles: 4" 150# Tube side nozzles: 3" Tri-Cl Gaskets: O ring, EPDM BTU/hr rating: 1,080,000

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 8,900 mm (350 in). Head Material: Stainless Steel 316. Length: 1,900 mm (74 in). Tube Type: U-Tube. Tube Diameter: 12.7 mm (0.5 in). Tube Length: 1,850 mm (72 in). Tube Thickness: 1.27 mm (0.05 in). Nozzle Schedule: Shell side nozzles: 4" 150# - Tube side nozzles: 3" Tri-Cl.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Allegheny Bradford Corp.

Model: HE496600

Condition: Used

Orientation: Vertical

Shell Pressure: 10.3 bar (150 psi)

Shell Temperature: 176.7 °C (350 °F). Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F).
