Stainless Steel 316L Pfaudler Wiped/Thin Film Evaporator - IPP# 233717

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Pfaudler

Condition: Re-glassed

Material: Glasslined

Evaporation Rate: 242.7 kg/h (535 lb/h)

Total Heat Transfer Surface Area: 10 m² (107.6 ft²)

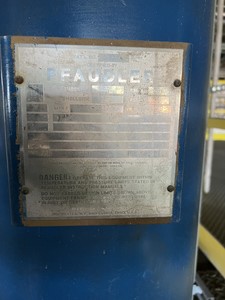

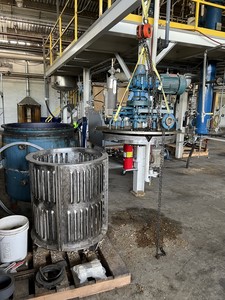

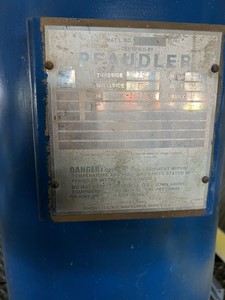

Mfd by Balfour/Sybron Order #48621 Lined w/glass #3115 CS jkt 98 psi @ 392 deg F Has glass covered int rotor w/graphite wipers. Retaining pins and rotor shaft are titanium. jkt body section, 48" dia x 9'10" str side; and clamp jkt cone btm.Has 3-sections: clamped dish entrainment section, 48" dia x 42" str side; jkt body section, 48" dia x 9'10" str side; and clamp jkt cone btm.

Drive is Pfaudler Type VS80-U21983, belt driven by approx 10 HP motor w/mech seal on shaft.

Orientation: Vertical. Diameter: 1,219 mm (48 in). Height: 1,067 mm (42 in). Temperature: 200 °C (392 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Pfaudler VS80-U21983.

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Pfaudler

Model: 103.4-36V-274

Condition: Unused

Material: Stainless Steel 304

Evaporation Rate: 226.8 kg/h (500 lb/h)

Total Heat Transfer Surface Area: 9.5 m² (102 ft²)

Orientation: Vertical. Diameter: 889 mm (35 in). Height: 4,648 mm (183 in). Pressure: 5.9 bar (85 psi). Temperature: 300 °C (572 °F). Internal Condenser: Yes. Internal Condenser size: 2.4 m² (25.4 ft²). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: CGL.

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Luwa SMS

Model: HM-1200

Condition: Used

Material: Stainless Steel 316L

Evaporation Rate: 279 kg/h (615 lb/h)

Total Heat Transfer Surface Area: 115 m² (1,238 ft²)

jacketed thin ‘filmtruder’ evaporator system, internal pressure -1/3.2 bar @ 200 degrees C (3900 liter), top jacket 7 bar @ 200 degrees C (11 liter), straight side jackets 7 bar @ 200 degrees C (3 x 65 liter), bottom cone jacket 7 bar @ 200 degrees C (9 liter), built to TUV, (3) 316L stainless steel jackets on straights side, coned bottom with 316L stainless steel jacket, 750mm diameter x 4850mm long 316Ti stainless steel (1.4571) rotor, rotor driven by a 45/54kw, 3/50/60/380-420/440-480 volt, 1475/1765 rpm motor via a reduction gearbox, mechanical seal, approx 850mm internal diameter, clamped flat top, bottom outlet with a pneumatic operated ball valve, evaporator mounted on carbon steel lugs and in a carbon steel structure, system includes: (1) 8.52 square meter 316L stainless steel (1.4404/1.4435) tube, head and shell vertical condenser, manufactured by Luwa SMS, fabrik #4826102, pressure tube side vacuum @ 55 degrees C (100 liter), shell 6 bar @ 90 degrees C (224 liter), (16) 44.5mm diameter x 2 x 4m long 316L stainless steel tubes, single pass, 324mm diameter 316L stainless steel shell, 4751mm overall length, 316L stainless steel tubesheets, (2) 316L stainless steel dished heads, mounted on lugs, (1) vacuum pump, (1) liquid separator

Orientation: Vertical. Diameter: 850 mm (33.5 in). Height: 4,850 mm (190.9 in). Pressure: 3.2 bar (46.4 psi). Temperature: 200 °C (392 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Loher ANGA-225ME-04M.

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: CARL GANZLER

Model: 900/6,0-K10

Condition: Used

Material: Stainless Steel 316L

Evaporation Rate: 145.1 kg/h (320 lb/h)

Total Heat Transfer Surface Area: 6 m² (64.6 ft²)

Short Path wiped film evaporator system with internal condensor Includes 2.9m² SS cold trap Rated 2000 liter 95 liter in the jacket Top mounted rotor drive with a 3.7 kw, 50 Hz gear motor with mechanical seal on rotor Evaporator has a side bottom discharge for product Vessel weight empty 2600 kg; motor and rotor 800 kg.

Orientation: Vertical. Diameter: 900 mm (35.4 in). Height: 4,715 mm (185.6 in). Temperature: 250 °C (482 °F). Internal Condenser: Yes. Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Eberhard Bauer DF 2A45HZ/309.
