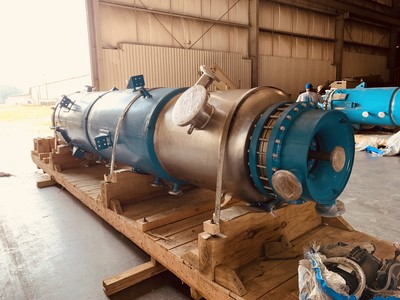

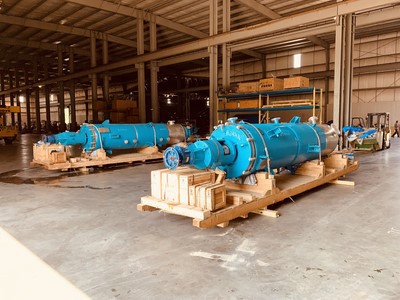

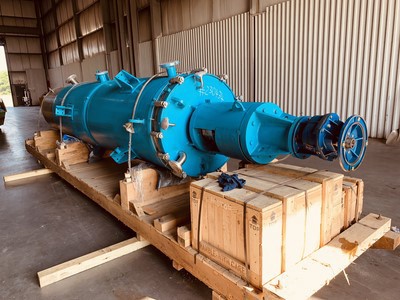

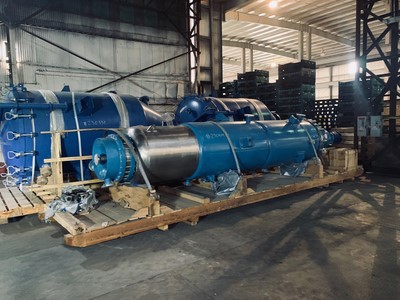

Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Pfaudler
Condition: Re-glassed
Material: Glasslined
Evaporation Rate: 242.7 kg/h (535 lb/h)
Total Heat Transfer Surface Area: 10 m² (107.6 ft²)

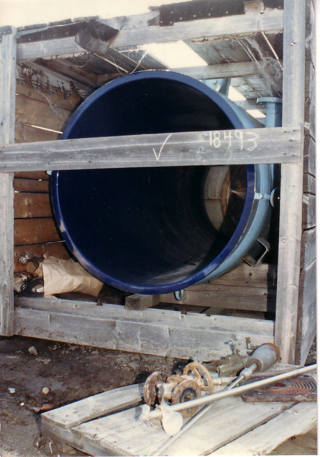

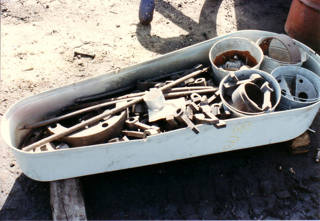

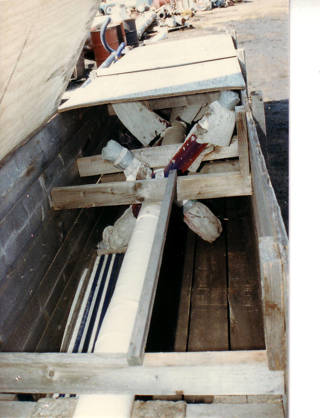

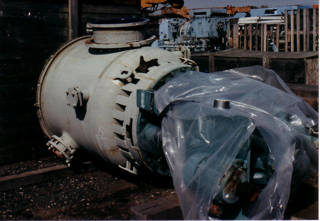

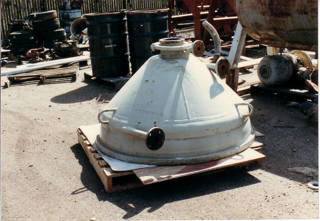

Mfd by Balfour/Sybron Order #48621 Lined w/glass #3115 CS jkt 98 psi @ 392 deg F Has glass covered int rotor w/graphite wipers. Retaining pins and rotor shaft are titanium. jkt body section, 48" dia x 9'10" str side; and clamp jkt cone btm.Has 3-sections: clamped dish entrainment section, 48" dia x 42" str side; jkt body section, 48" dia x 9'10" str side; and clamp jkt cone btm.
Drive is Pfaudler Type VS80-U21983, belt driven by approx 10 HP motor w/mech seal on shaft.
Orientation: Vertical. Diameter: 1,219 mm (48 in). Height: 1,067 mm (42 in). Temperature: 200 °C (392 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Pfaudler VS80-U21983.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Pfaudler
Condition: Used
Material: Stainless Steel 316L
Evaporation Rate: 79.4 kg/h (175 lb/h)
Total Heat Transfer Surface Area: 3.3 m² (35 ft²)

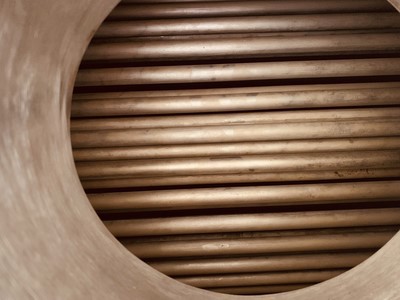

wiped film evaporator system. Jacket rated for 160 psi at 650 degrees F. Drive system by Pfaudler, 3 DTW With 158 Sq.Ft. external condenser, 316 SS tubes 316 SS tube sheet 316 SS heads CS shell NB # 43399 Shell side rated for 75 psi at 350 degrees F tube side rated for 75 psi at 350 degrees F. Serial # R384-1817. TEMA type BEU
Orientation: Vertical. Diameter: 914.4 mm (36 in). Height: 1,118 mm (44 in). Pressure: 1.03 bar (15 psi). Temperature: 343.3 °C (650 °F). Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Buflovak/Blaw Knox
Model: Roto-Vak Mdl
Condition: Used
Material: Stainless Steel 304
Clad: Yes
Evaporation Rate: 626 kg/h (1,380 lb/h)
Total Heat Transfer Surface Area: 4.6 m² (50 ft²)
304 ELC SS 40% clad on Carbon steel (for product contact), thin film evaporator system 165 psi @ 400 deg F jkt NB stamped 5932. Rotor was under driven by 20 HP, 3/60/220/440 volt mtr w/UL label, 480 rpm rotor speed Unit has external upper & lower bearings, mech seals on shaft. Unit has 3" feed port and 10" x 24" discharge into centrifugal vapor/liquid separator. 36" deep cone btm W/system is 565 sq ft, 304LSS shell side, CS head, horiz condenser with 3/4" OD x 18 bwg, 304LSS tubes, 143" long. 6 pass tube side. 18" dia 304ELC SS shell 161" overall length. CS channels. Unit designed for 30 psi & full vac @ 400 deg F shell side; 100 psig @ 400 deg F tube side. Openings: shell 1-10", 1-3"; channels 2-4" one head, (2) 3/4" other head. Mfd by Patterson Kelly. Also w/unit is an 81 sq ft aftercondenser. Mfd by Graham, 304SS shell side, CS tube side. Unit rated 50 psig/full vac @ 150 deg F shell side; 75 psig @ 150 deg F tube side. Asme code constructed. 8" dia shell, 8' long tubes, 9'11" overall length.
Diameter: 1,016 mm (40 in). Height: 1,727 mm (68 in). Pressure: 1.03 bar (15 psi). Temperature: 204.4 °C (400 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Buflovak/Blaw Knox
Model: Roto-Vak Mdl
Condition: Used
Material: Stainless Steel 304
Clad: Yes
Evaporation Rate: 626 kg/h (1,380 lb/h)
Total Heat Transfer Surface Area: 4.6 m² (50 ft²)
304 ELC SS 40% clad on Carbon steel (for product contact), thin film evaporator system Mfd by Buflovak 165 psi @ 400 deg F jkt. NB stamped 5931. Rotor was under driven by 20 HP, 3/60/220/440 volt mtr w/UL label, 480 rpm rotor speed. (motor for drive not available). Unit has external upper & lower bearings, mech seals on shaft. Unit has 3" feed port and 10" x 24" discharge into centrifugal vapor/liquid separator. 36" deep cone btm. W/system is 565 sq ft, 304LSS shell side, CS head, horiz condenser with 3/4" OD x 18 bwg, 304LSS tubes, 143" long. 6 pass tube side. 18" dia 304ELC SS shell 161" overall length. CS channels. Unit designed for 30 psi & full vac @ 400 deg F shell side; 100 psig @ 400 deg F tube side. Openings: shell 1-10", 1-3"; channels 2-4" one head, (2) 3/4" other head. Mfd by Patterson Kelly. Also w/unit is an 81 sq ft aftercondenser. Mfd by Graham, 304SS shell side, CS tube side. Unit rated 50 psig/full vac @ 150 deg F shell side; 75 psig @ 150 deg F tube side. Asme code constructed. 8" dia shell, 8' long tubes, 9'11" overall length.
Diameter: 1,016 mm (40 in). Height: 1,727 mm (68 in). Pressure: 1.03 bar (15 psi). Temperature: 204.4 °C (400 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes.
