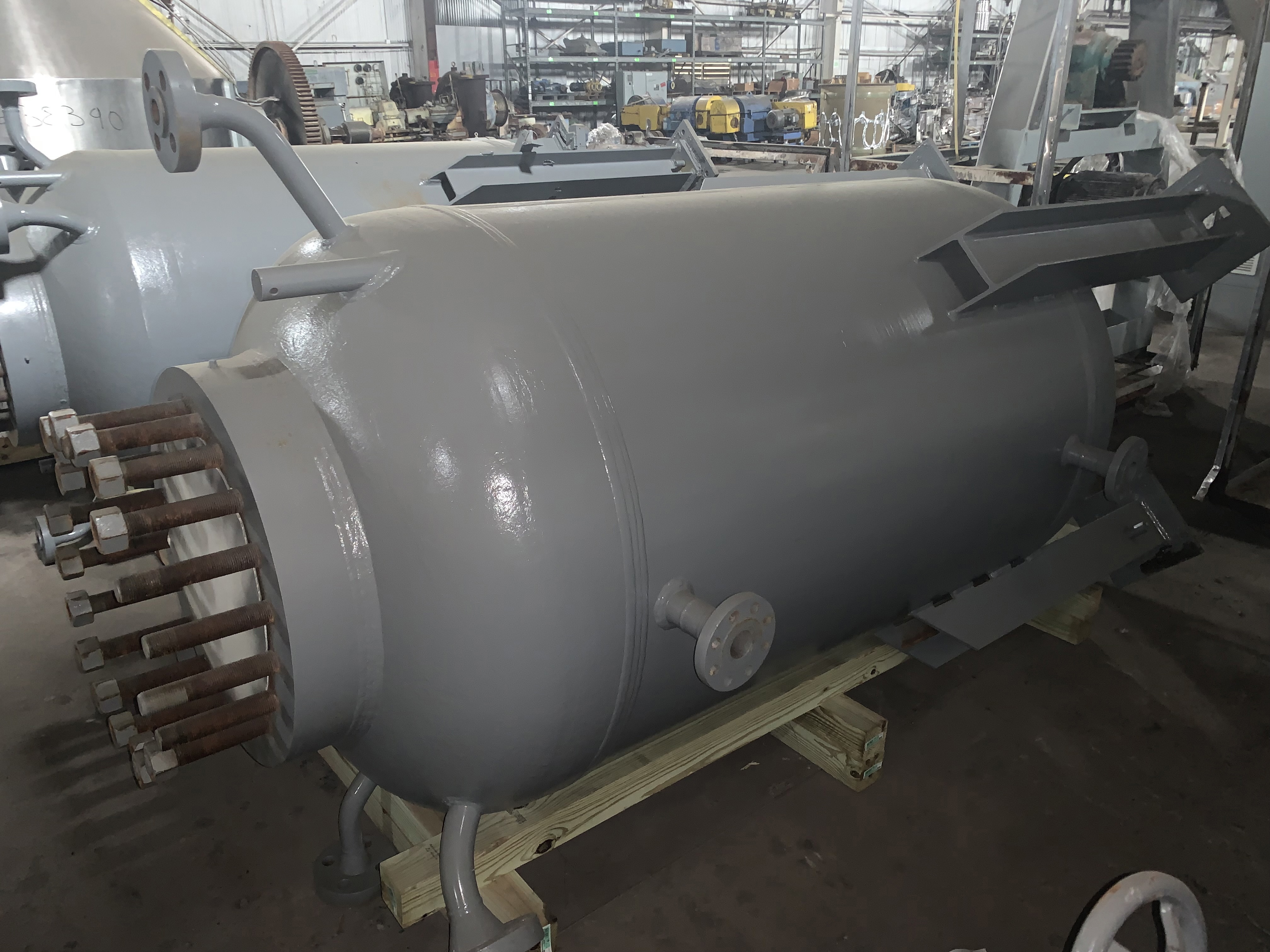

Stainless Steel 321 Clad Struthers Wells Batch-Type Agitated Reactor - IPP# 235922

  • Stainless Steel 321 Clad Struthers Wells Batch-Type Agitated Reactor - IPP# 235922 Stainless Steel 321 Clad Struthers Wells Batch-Type Agitated Reactor - IPP# 235922
  • Stainless Steel 321 Clad Struthers Wells Batch-Type Agitated Reactor - IPP# 235922
Overview
Reactor
Batch-Type Agitated
Struthers Wells Inc.
Used
Stainless Steel 321
Yes
1,900 L (500 gallons)
Mill 2B
Pressure Vessel
86.2 bar (1,250 psi)
343.3 °C (650 °F)
Jacket/Internal Coil
20.7 bar (300 psi)
398.9 °C (750 °F)
Internal Pipe Coil
Yes
Dimensions
Vertical
1,100 mm (44 in)
1,650 mm (65 in)
Agitation System
Yes
Radial Type
Seal Less Magnetic Drive
Agitator is driven by a Toshiba 5 HP motor, 230/460 v 60 Hz, 3 ph, rated for 1740 RPM. The mixer drive system has a belt driven MagneDrive II series seal less magnetic drive, manufactured by Parker/Autoclave Engineers
3.7 kW (5 HP)
Sidewall Mounted Straight Baffle
The vessel is equipped with three side wall baffles, 4" wide x 65" long
Heads
Elliptical
Clad
Elliptical
Clad
Other Specifications
Yes
Legs
Inlets & Outlets
Top openings are one 18" man way, one 2" inlet, one 1.5 vapor relief, one 3/4" for a thermocouple, one 2" dip pipe. One 2" outlet and two 2" coils inlet/outlet.
Additional Information
  • Internal coil, of 321 SS seamless pipe, is 2 & 3/8" diameter x 0.218 wall thickness. It has 13 turns with a 36" mean diameter on a 4" pitch.
  • Mixing is by a 16" diameter radial type impeller rotating at 258 rpm. The mixer drive system has a belt driven MagneDrive II series seal less magnetic drive, manufactured by Parker/Autoclave Engineers. This drive arrangement features Contamination free mixing, and zero atmospheric leakage.
