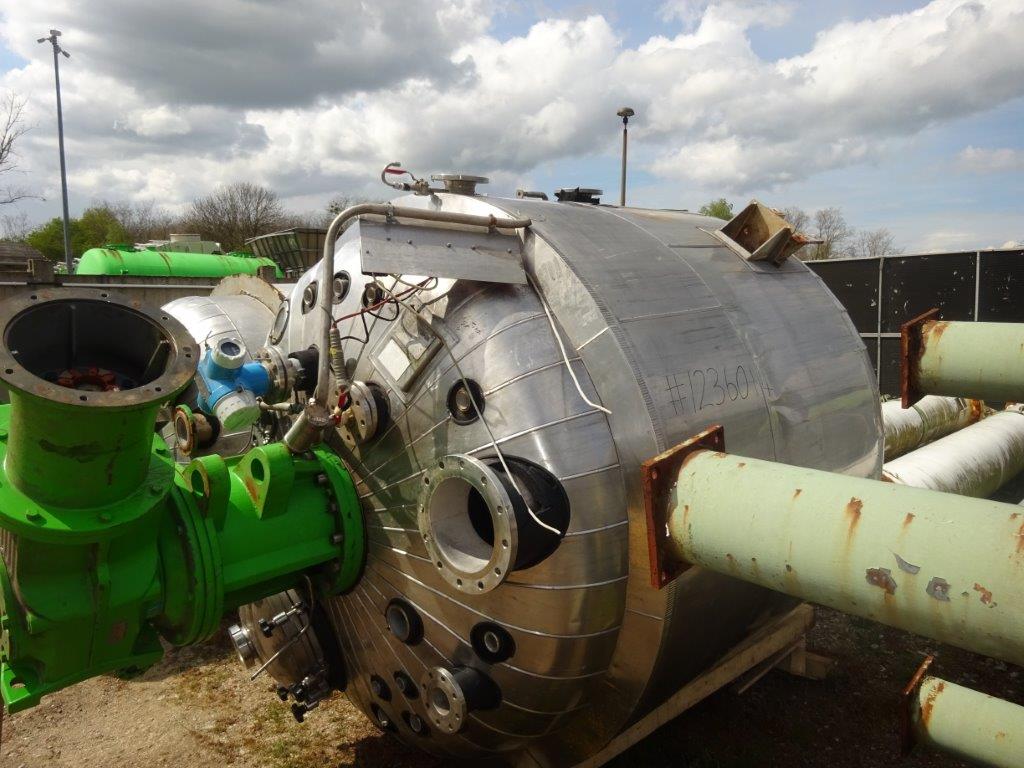

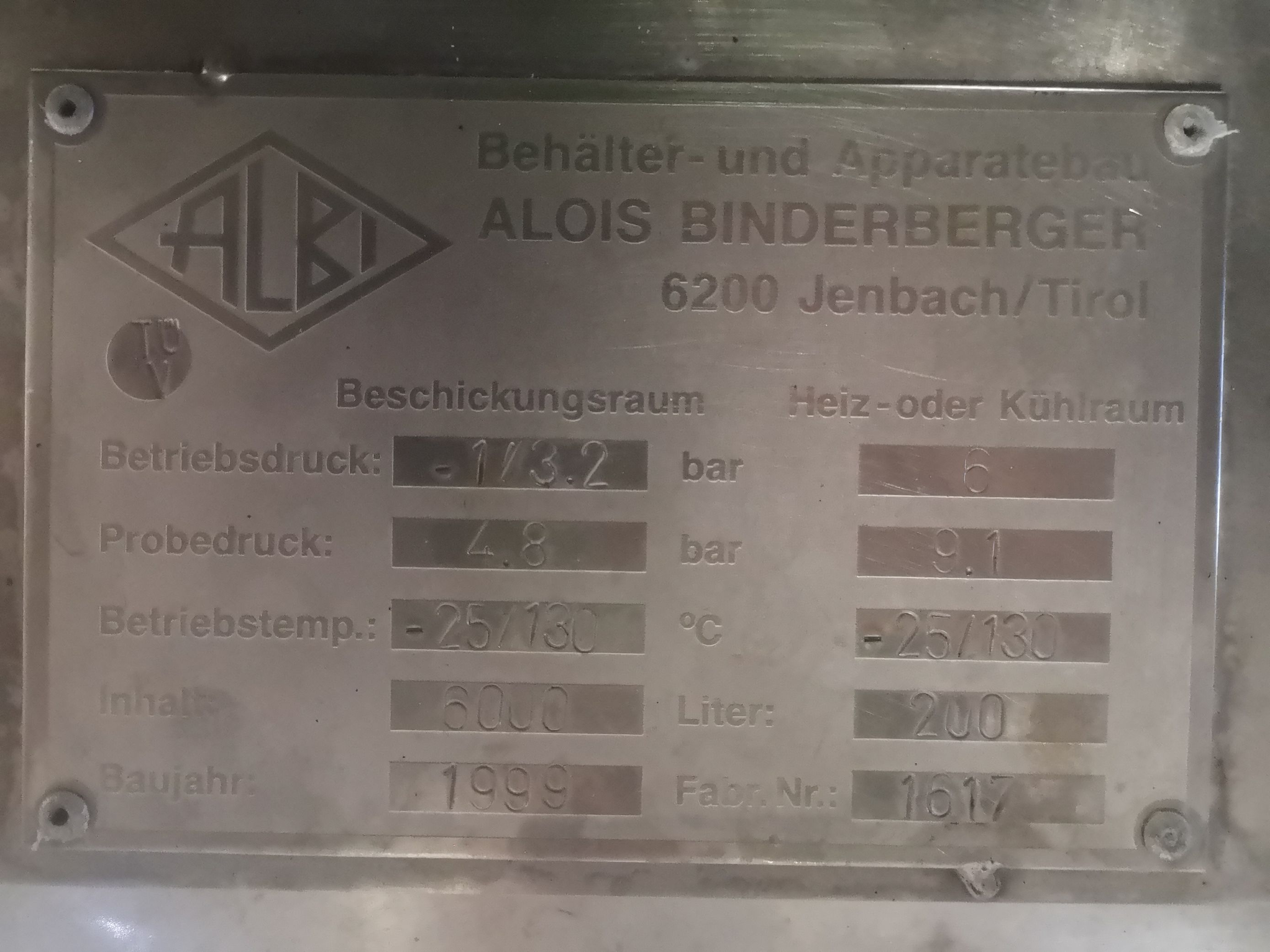

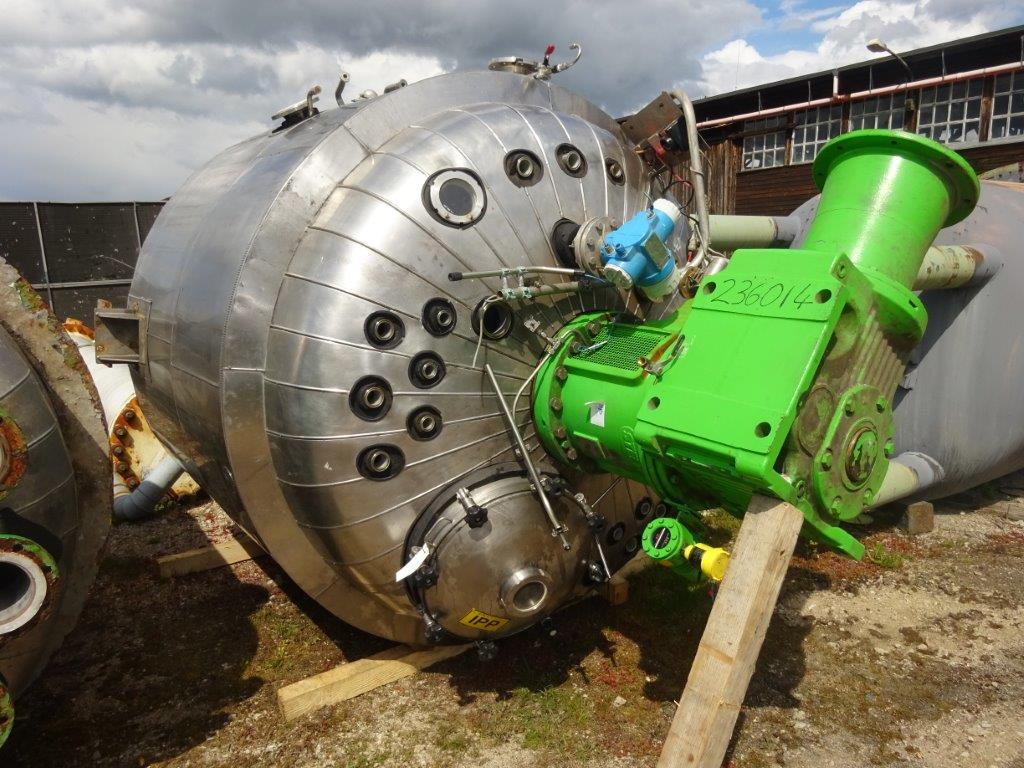

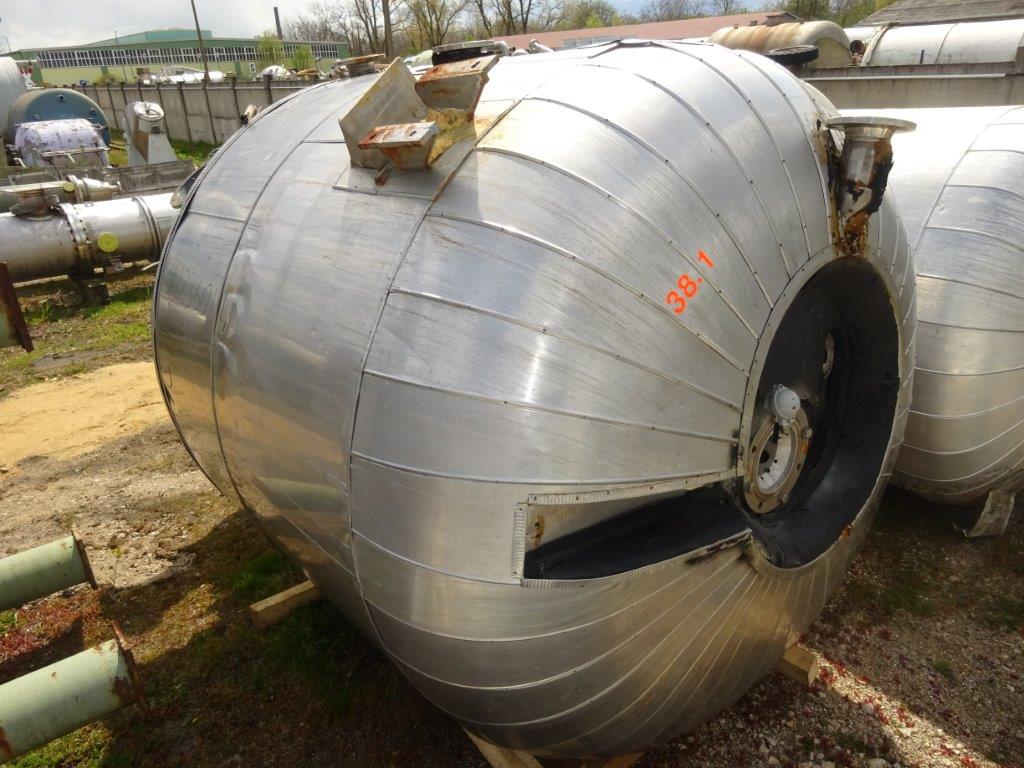

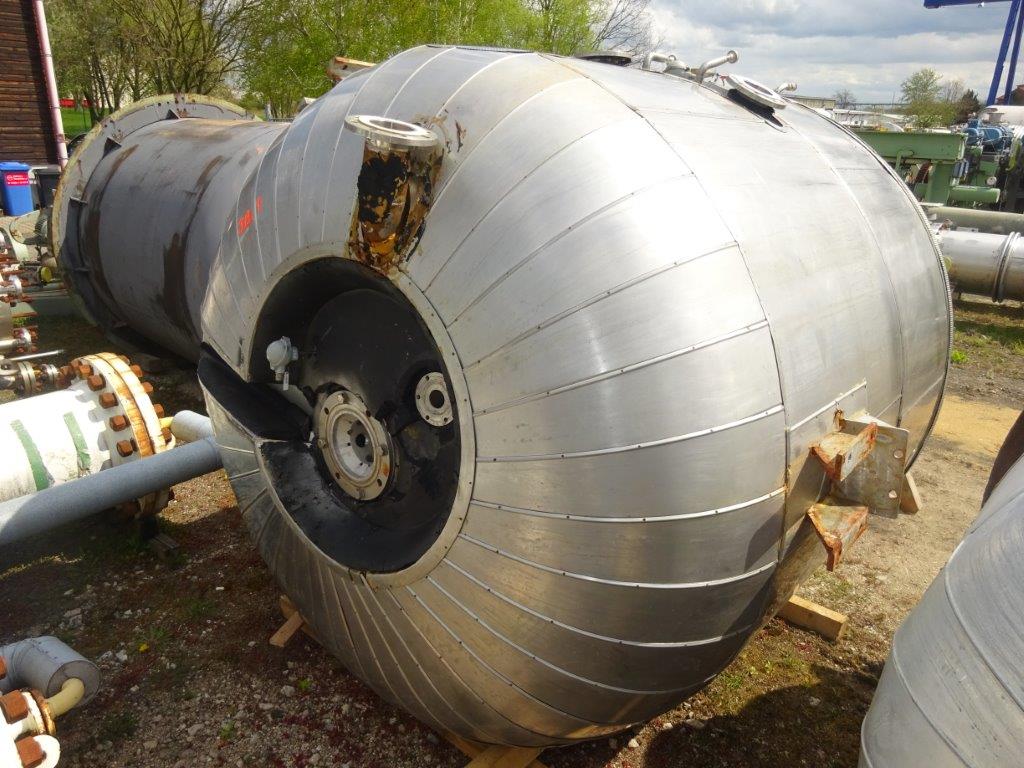

TUV internal pressure -1/3.2 bar @ -25/130 degrees C (6000 liter), jacket 6 bar @ -25/130 degrees C (200 liter) Motor phase : 3 400/690 volt (3) sets of intermig agitators on shaft internal baffles on sidewall Openings types: Mixture of standard flat flange fittings and Tri-clamp fittings Insulation: Fully insulated and cladded
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: GIG
Model: TUV
Condition: Used
Material: Stainless Steel Austenitic
Capacity (Design): 2,650 L (697 gallons)
Internal Full Vacuum: Yes
2000 liter TUV internal pressure vacuum @ 150 degrees C (2640 liter), jacket 12 bar @ 220 degrees C (85 liter) Ekato agitator drive
Internal Temperature: 150 °C (302 °F). Jacket Pressure: 12 bar (174 psi). Jacket Temperature: 220 °C (428 °F). Agitation: Yes. Support Type: Lugs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Enco
Model: TUV
Condition: Used
Material: Stainless Steel Austenitic
Capacity (Design): 3,650 L (959 gallons)
Internal Pressure: 2 bar (29 psi)
3200 liter TUV internal pressure -1/2 bar @ 110 degrees C (3630 liter), jacket 8 bar @ 220 degrees C (140 liter) Motor: 3 phase interrupted ribbon type agitator mechanical seal with lubricator pot 316Ti stainless steel (1.4571) half pipe coil jacket on straight side, 316Ti stainless steel (1.4571) standard jacket on bottom dish
Internal Temperature: 110 °C (230 °F). Jacket Pressure: 8 bar (116 psi). Jacket Temperature: 220 °C (428 °F). Jacket Material of Construction: Stainless Steel Austenitic. Agitation: Yes. Diameter: 1,600 mm (63 in). Straight Side Length: 1,300 mm (52 in). Support Type: Lugs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: HINKE
Model: TUV
Condition: Used
Material: Stainless Steel Austenitic
Capacity (Design): 12,800 L (3,400 gallons)
Internal Pressure: 3 bar (43.5 psi)
Internal Full Vacuum: Yes. Internal Temperature: 130 °C (266 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 120 °C (248 °F). Jacket Material of Construction: [1. Stainless Steel] Stainless Steel 316L. Orientation: Vertical. Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 3,350 mm (131.9 in). Support Type: Lugs.
Type: Reactor
Subtype: Batch-Type Agitated
Condition: Used
Material: Stainless Steel 316
Capacity (Design): 227 L (60 gallons)
Agitation: Yes
motor 3/50/400 volt
Diameter: 600 mm (23.6 in). Straight Side Length: 710 mm (28 in). Support Type: Lugs.
