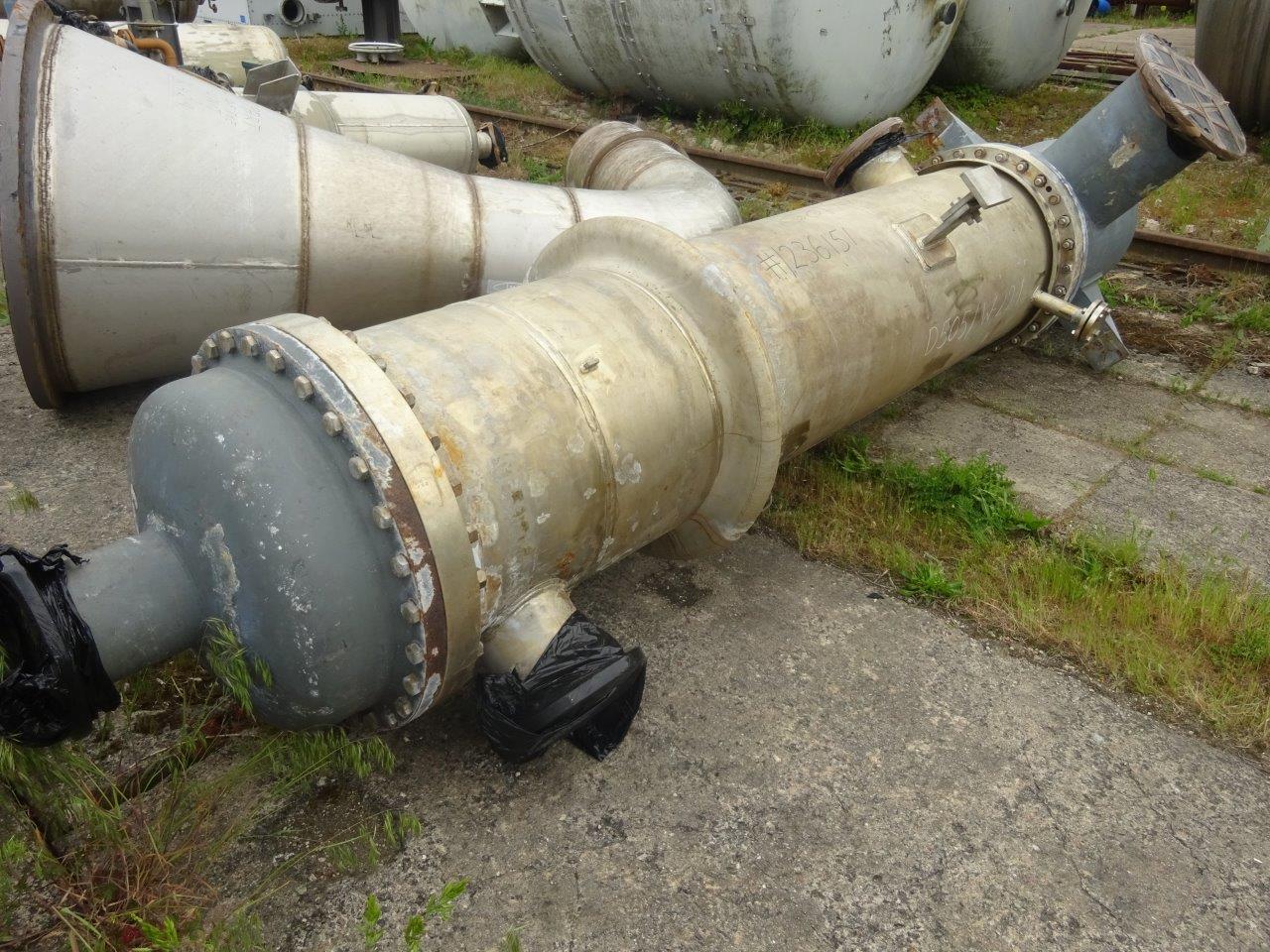

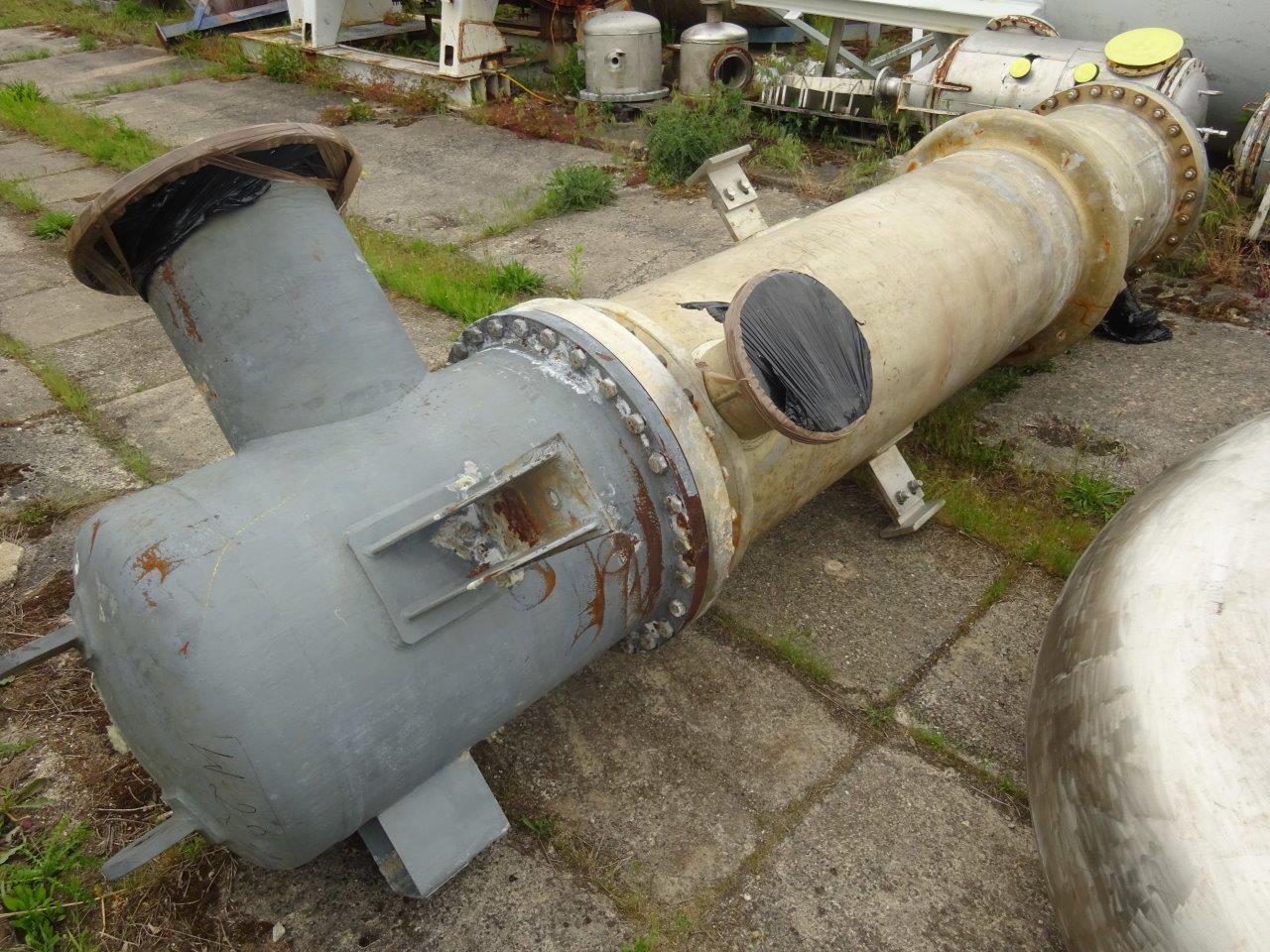

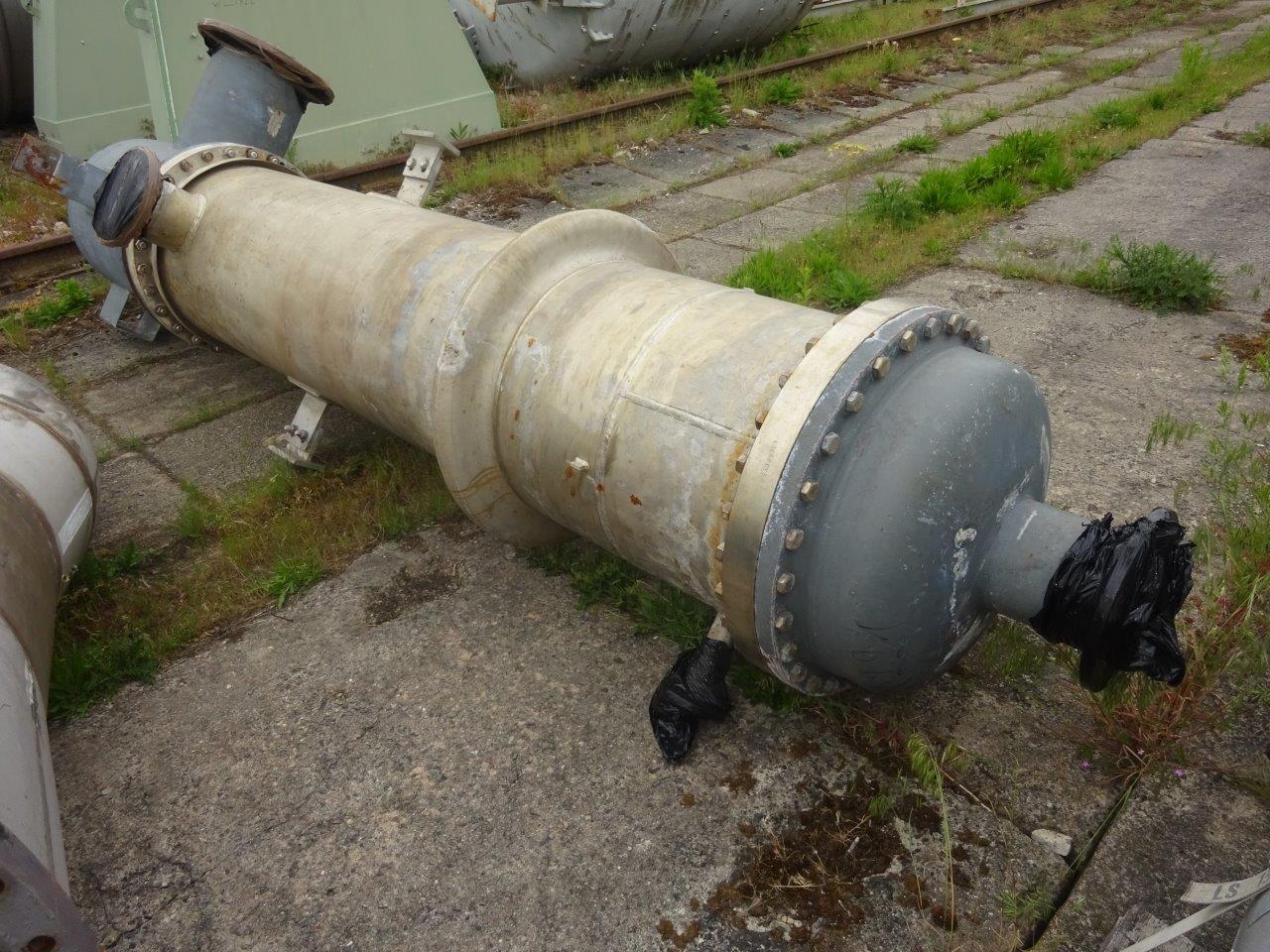

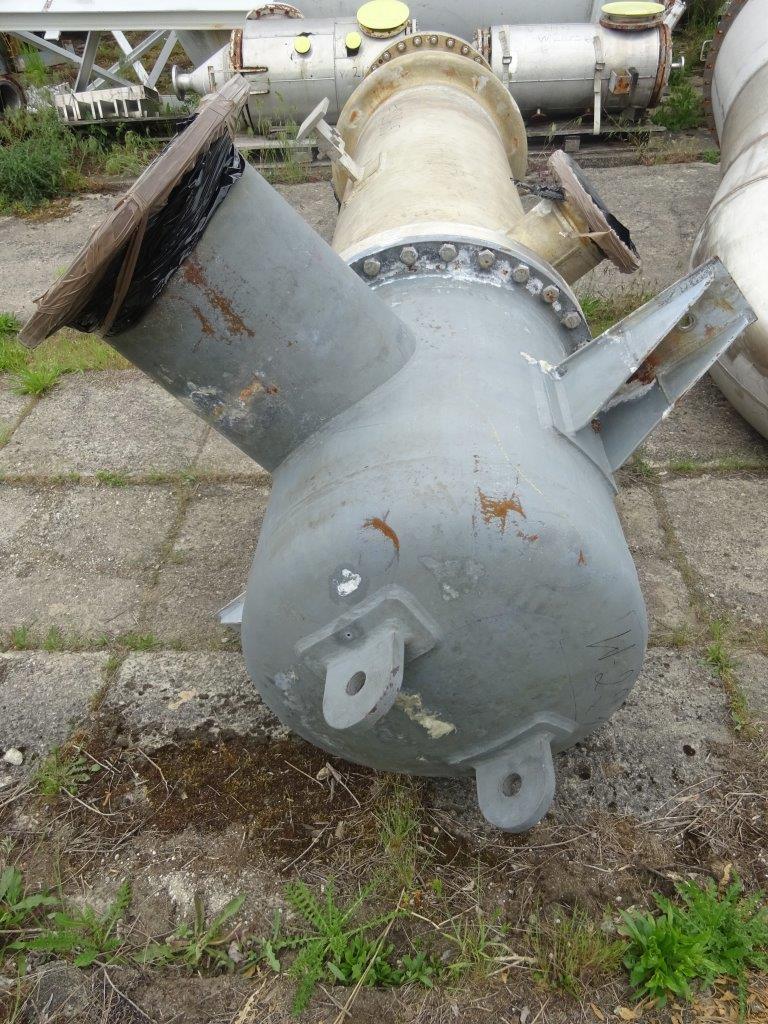

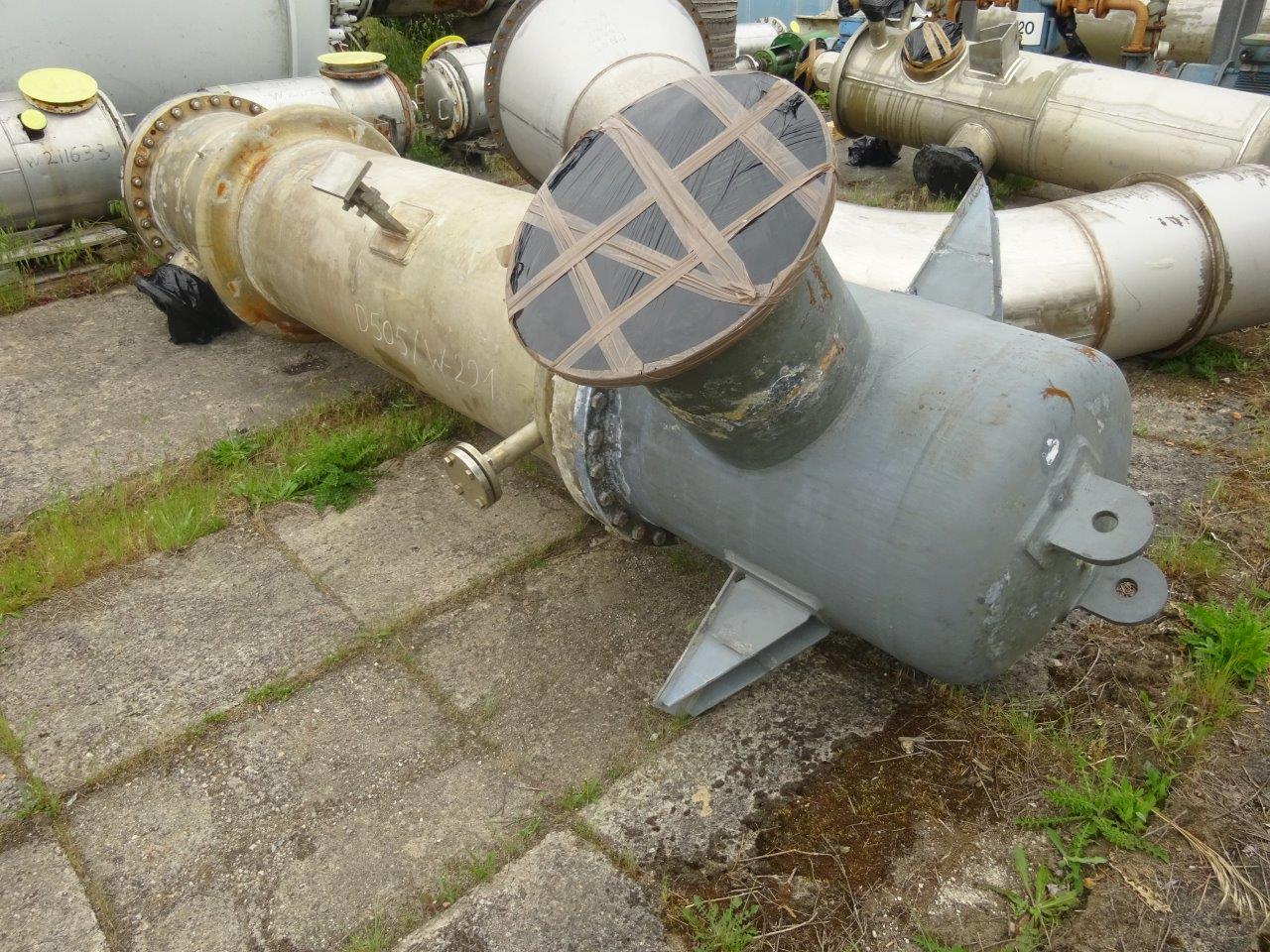

Stainless Steel 321 Landruf Shell and Tube Heat Exchanger - IPP# 236151

Type: Heat Exchanger

Subtype: Shell and Tube

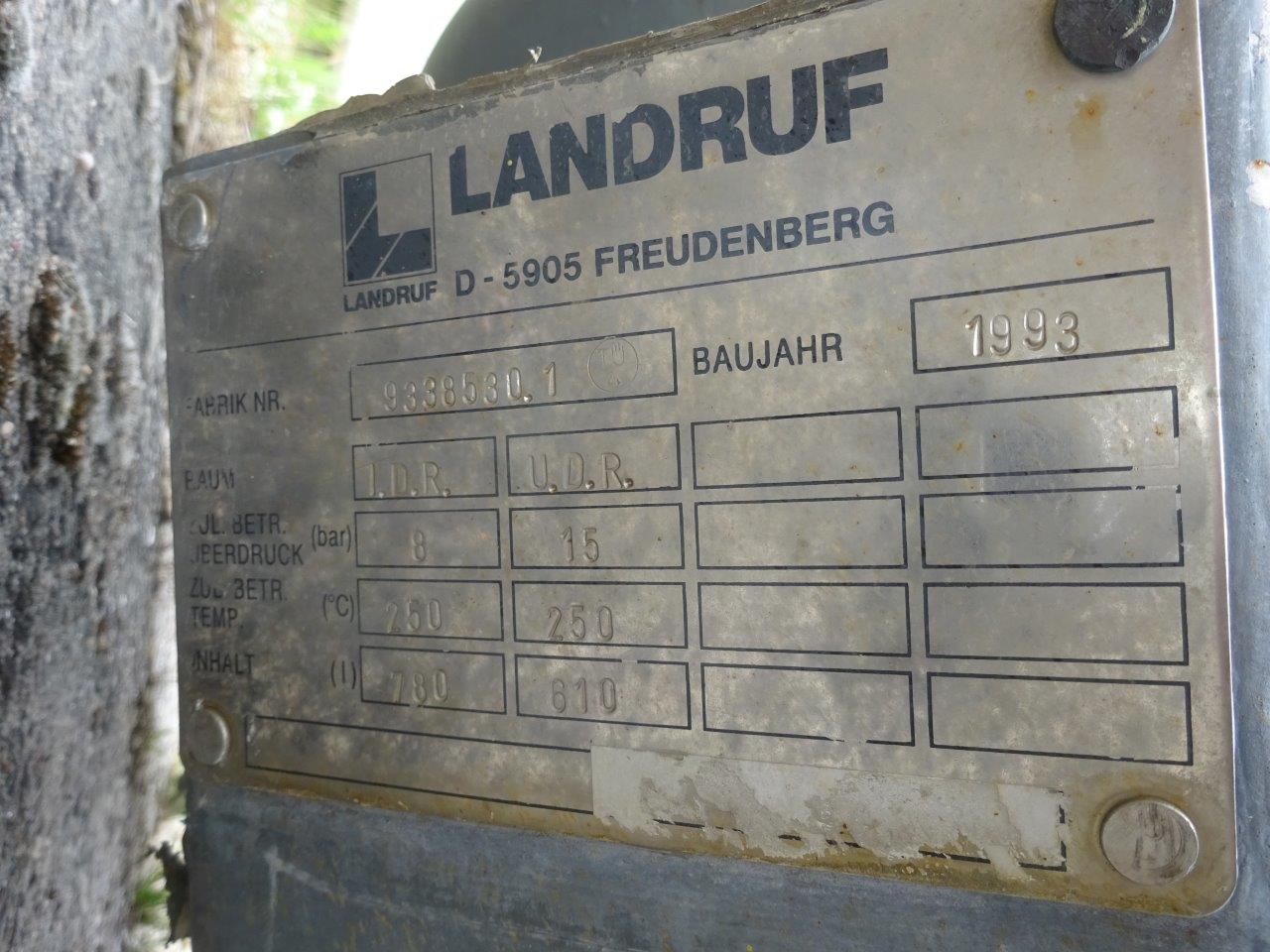

Manufacturer: LANDRUF Rohrtechnik GmbH

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 12.8 m² (138 ft²)

Orientation: Horizontal

• 316 s/steel (1.4571/1.4401)
• Orientation: Vertical or horizontal
  pressure tube side -1/20 bar @ 280 deg C
  volume 58 liter
  shell side -1/28 bar @ 280 deg C
  volume 115 liter

Shell Pressure: 28 bar (406 psi). Shell Temperature: 280 °C (536 °F). Shell Material: Stainless Steel 316. Tube Pressure: 20 bar (290 psi). Tube Temperature: 280 °C (536 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 300 mm (11.8 in). Tube Number: 60. Tube Diameter: 25 mm (0.984 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.0787 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Paul Schwingel GmbH

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 20 m² (215 ft²)

Orientation: Vertical

pressure tube side -1/6,2 bar @ 250 deg C, volume 330 liter
shell side -1/6,2 bar @ 250 deg C, volume 218 liter
(1) bonnet head, (1) dished head

Shell Pressure: 6.2 bar (89.9 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 321. Tube Pressure: 6.2 bar (89.9 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 500 mm (19.7 in). Head Material: Stainless Steel 321. Tube Number: 110. Tube Diameter: 30 mm (1.18 in). Tube Length: 2,505 mm (98.6 in). Tube Thickness: 2.5 mm (0.0984 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Buhler AG

Model: OTW-500-A-32280

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 38 m² (409 ft²)

Shell Material: Stainless Steel 321

tube chamber 1760mm wide x 1224mm long x 360mm deep
with welded on top and bottom cone section

Tube Pressure: 23 bar (334 psi). Tube Temperature: 400 °C (752 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Tube Number: 540. Tube Diameter: 14 mm (0.551 in). Tube Length: 1,652 mm (65 in). Nozzle Schedule: - Tube openings: 2-25mm, 1-15mm, 1 x cone with 1-700mm, 1 x cone with 1-700mm. Capacity: 123 L (32.5 gallons).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Buhler AG

Model: OTW-500-A-32280

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 38 m² (409 ft²)

Shell Material: Stainless Steel 321

tube chamber 1760mm wide x 1224mm long x 360mm deep
with welded on top and bottom cone section

Tube Pressure: 23 bar (334 psi). Tube Temperature: 400 °C (752 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Tube Number: 540. Tube Diameter: 14 mm (0.551 in). Tube Length: 1,652 mm (65 in). Nozzle Schedule: - Tubeside openings: 2-25mm, 1-15mm, 1 x cone with 1-700mm, 1 x cone with 1-700mm. Capacity: 123 L (32.5 gallons).
