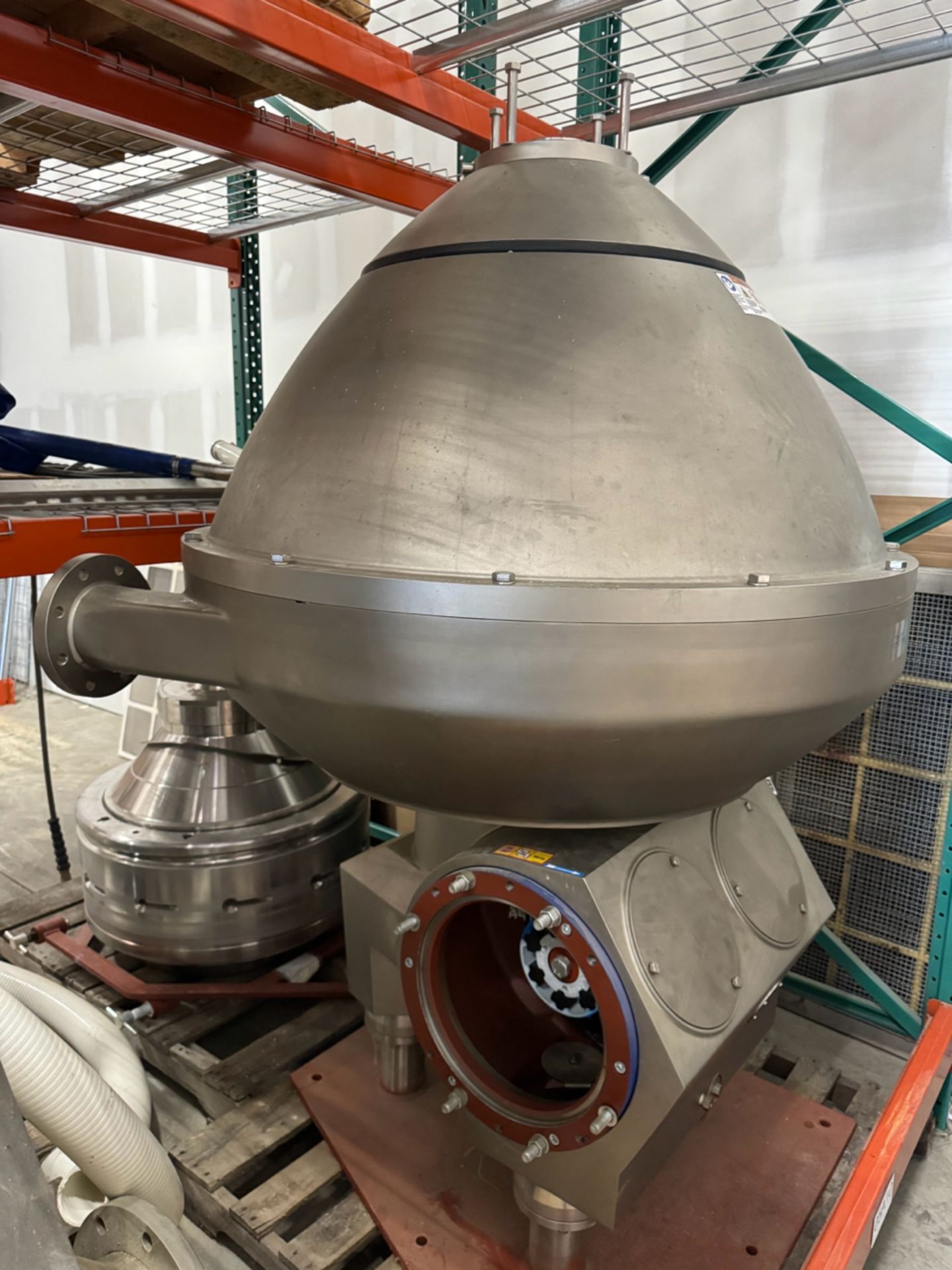

Unused Stainless Steel Austenitic Centrifuge-Disc Bowl - IPP# 238461

Type: Centrifuge-Disc Bowl

Manufacturer: Alfa Laval

Model: CLARA 701H HSS

Condition: Used

Material: Stainless Steel Austenitic

Motor Horsepower: 37 kW (49.6 HP)

Inlet Diameter: 220 mm (8.7 in)

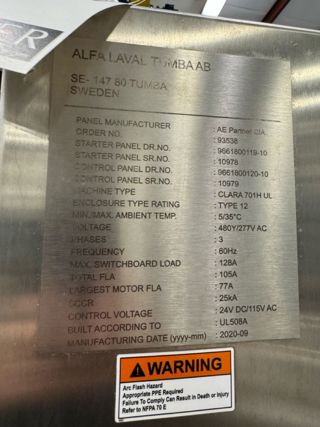

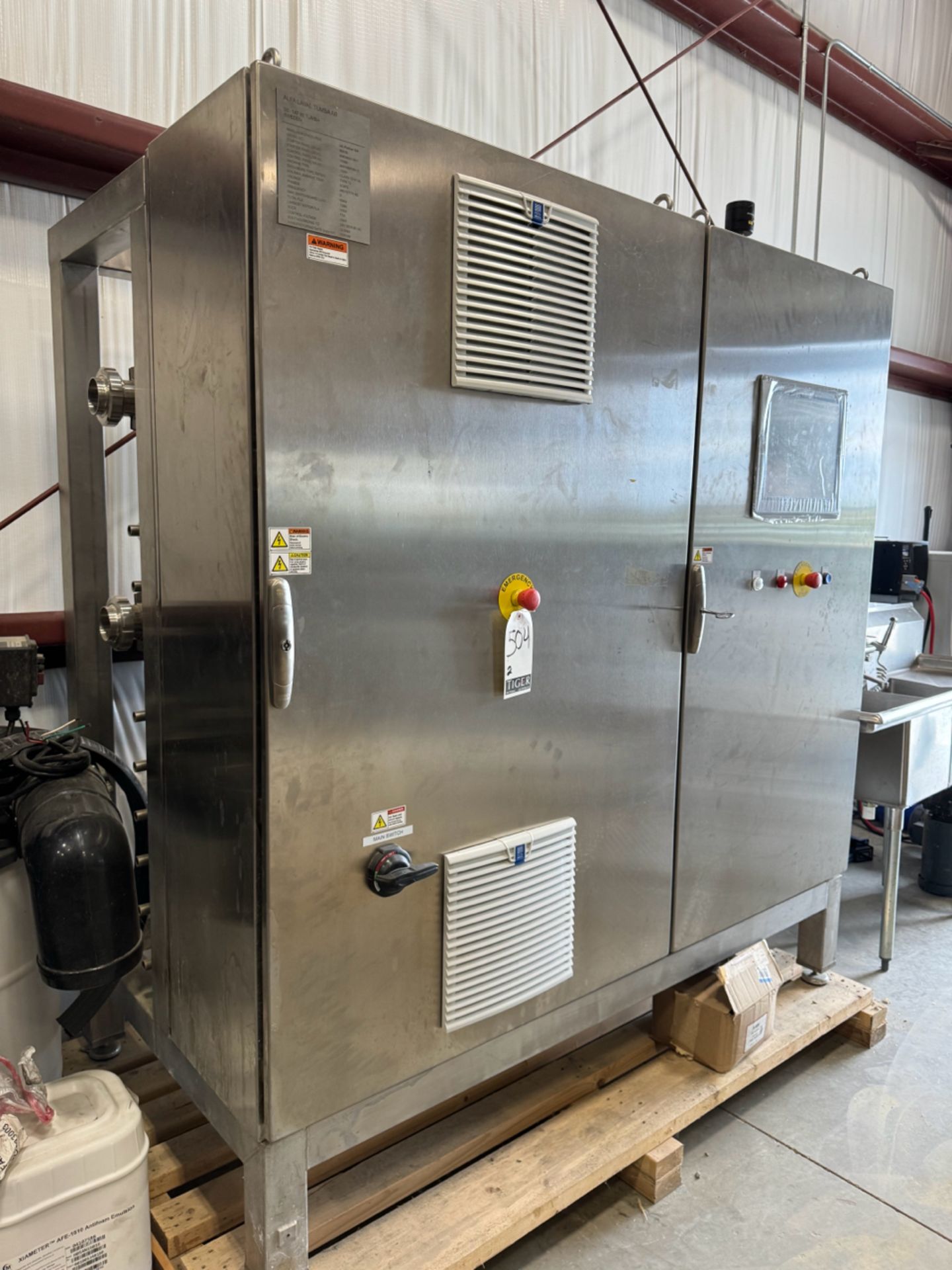

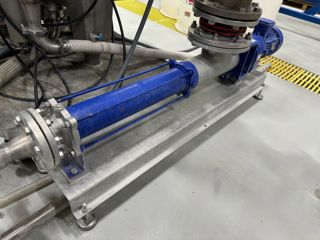

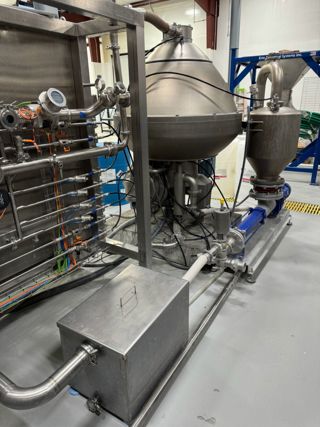

S1657 with control system With Clean In Place with an Ra0.8 finish Variable discharge system with water cooled jacket Maximum feed density 1100 kg/m3, maximum sediment density 1400 kg/m3. Feed temperature 0-100 degrees C. With NEMA style Stainless steel control panel with Allen Bradly Panel View Plus HMI and Powerflex 753- VFD for drive motor With solids receiving screw pump, manufactured by Netzsch Screw Press. Type NEMO-model NM053BY02512B, Rated for 3-5 m3/H, 6-8 bar, with a 4kw drive.

Bowl Volume: 66 L (17.4 gallons). Clean In Place: Yes. Controls: Yes. RPM Maximum: 4,800.

Type: Centrifuge-Disc Bowl

Manufacturer: Alfa Laval

Model: ABE-216E-95-CEFKP-21-60

Condition: Used

Material: Stainless Steel 316

Motor Horsepower: 22.4 kW (30 HP)

Worm gear 1700-1800 rpm TEFC motor thru gyrol fluid drive

Type: Centrifuge-Disc Bowl

Manufacturer: Alfa Laval

Model: HMBRPX-309-34S-50

Condition: Used

Material: Stainless Steel 316

Motor Horsepower: 11 kW (14.8 HP)

Number of Phases: 2

Hermetic design Paring disc discharge of clarified liquid

RPM Maximum: 1,500.

Type: Centrifuge-Disc Bowl

Manufacturer: Alfa Laval

Model: LAPX 202-BGT-24

Condition: Used

Material: Stainless Steel 316

Motor Horsepower: 1.5 kW (2 HP)

Inlet Diameter: 12.7 mm (0.5 in)

laboratory separator disc centrifuge. Speed 3500 - 10000 rpm Throughput 200-600 ltr/hr Openings: liquid/solids outlet 3-1"; feed (process) 1-1/2"; operating liquid 3-1/2"

Bowl Volume: 0.35 L (0.09 gallons). Number of Phases: 3. RPM Maximum: 10,000.
