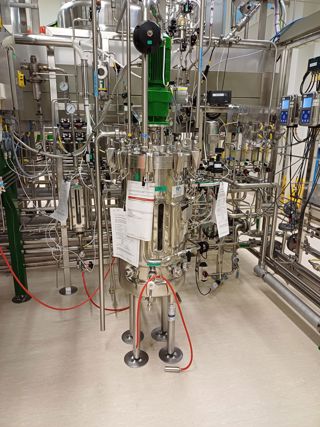

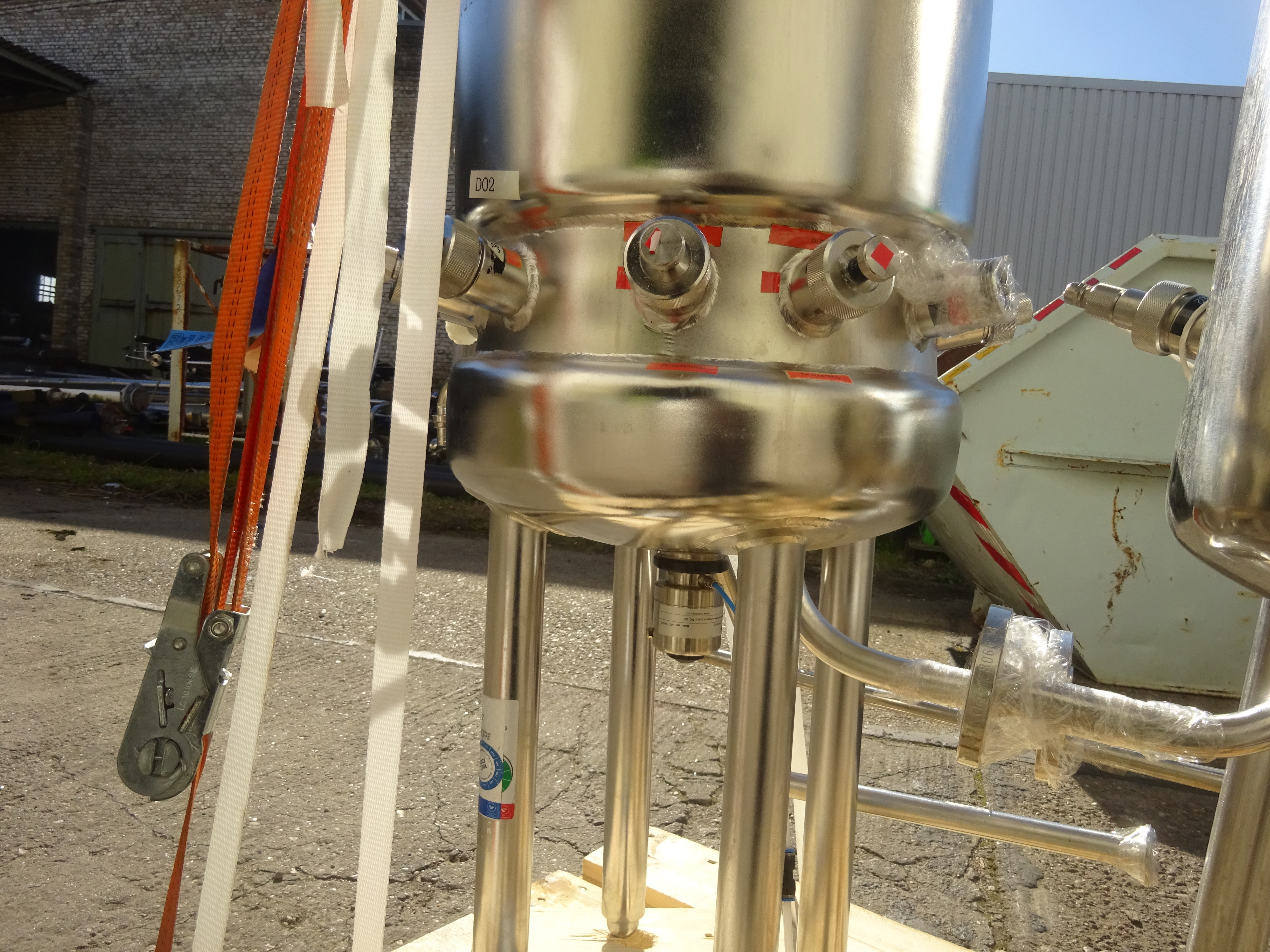

Stainless Steel 316L Mirror Polished B Braun+Diessel Biotech GmbH 75 DS Batch-Type Agitated Reactor - IPP# 239306

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: B Braun+Diessel Biotech GmbH

Model: 75 DS

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 76 L (20.1 gallons)

Internal Pressure: 3 bar (43.5 psi)

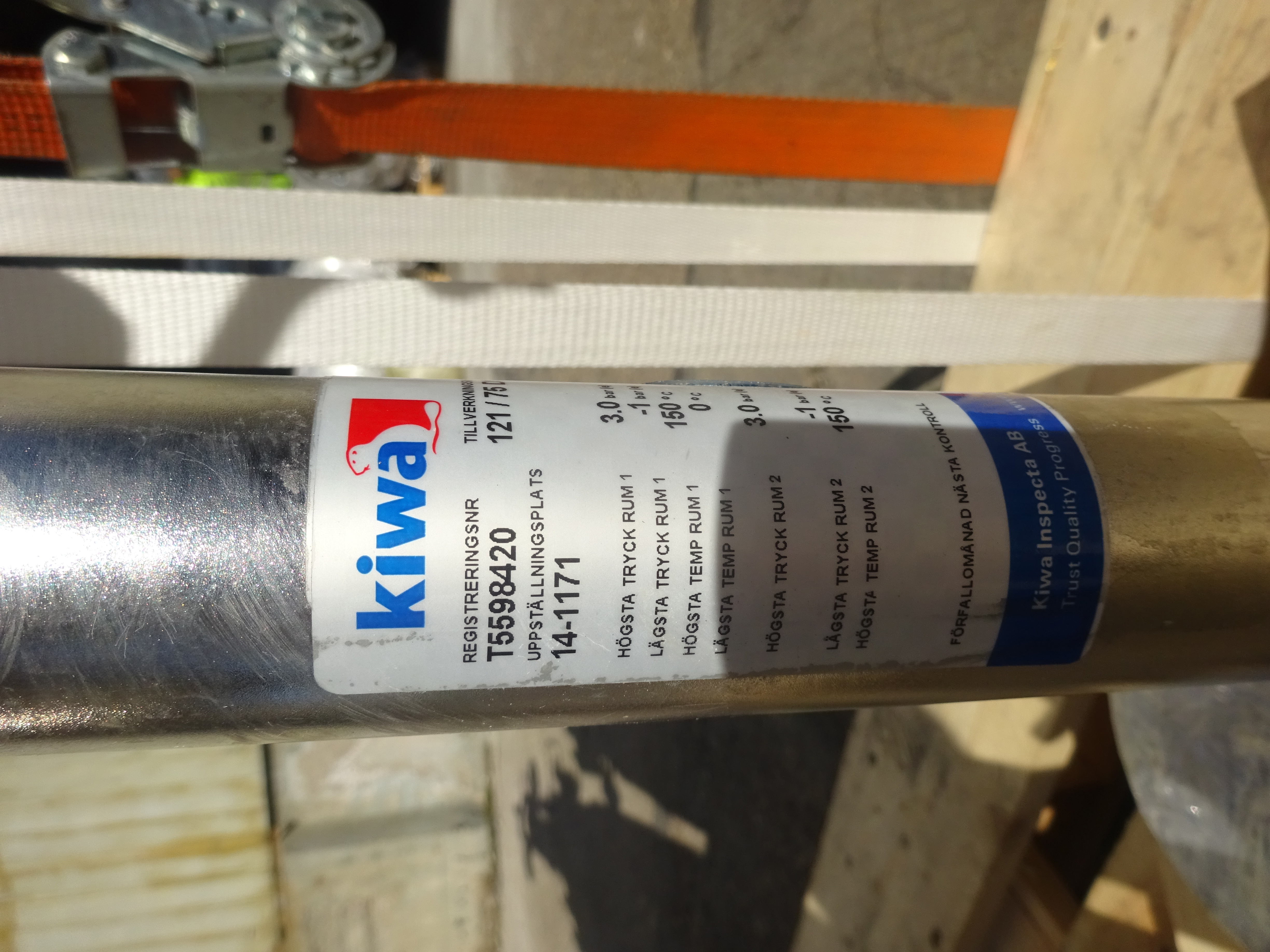

• Mirror polished Bio Reactor with conventional jacket. Vessel rated for -1 to +3 bar at 150 degrees C., Jacket rated for -1 to +3 bar at 150 degrees C. TUV stamped Motor CE certified Jacket volume is 10 liter.
• With six bottom side nozzles for electrodes. Equipped with Spray ball(s) for Clean in Place (CIP).
• Repolished 2009

Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Sanitary Construction: Yes. Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 150 °C (302 °F). Jacket Material of Construction: Stainless Steel 316. Orientation: Vertical. Agitation: Yes. Diameter: 460 mm (18.1 in). Straight Side Length: 700 mm (27.6 in). CIP: Yes. Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Dynamite Nobel

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 6,900 L (1,800 gallons)

Internal Pressure: 6 bar (87 psi)

• 6000 liter working volume
• EExde IIB T4 motor
• mechanical seal with lubricator
• TUV certified

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 8.5 bar (123.3 psi). Jacket Temperature: 300 °C (572 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,800 mm (70.9 in). Straight Side Length: 2,200 mm (85.8 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Dynamite Nobel

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 3,100 L (819 gallons)

Internal Pressure: 8 bar (116 psi)

• design pressure internal 8 bar + Vacuum @ 200 degrees C,
• jacket 8 bar @ 250 degrees C (300ltr),
• mechanical seal with lubricator,
• top and bottom dish 16mm thick, straight side 14mm thick,
• jacket straight side 16mm thick, bottom dish 12mm thick,
• TUV certified

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 8 bar (116 psi). Jacket Temperature: 250 °C (482 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,600 mm (63 in). Straight Side Length: 930 mm (36.6 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Buss AG

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 4,150 L (1,100 gallons)

Internal Pressure: 80 bar (1,150 psi)

internal pressure 80 bar @ 230 deg C (4174ltr), jacket 20 bar @ 230 deg C (147ltr), 40mm thick straight side, 28mm thick top and bottom

(1) 167ltr 316L s/steel (1.4571) reactor, manufactured by Weigand & Wisser, fabrik #65, internal pressure 6 bar @ 120 deg C, jacket 8 bar @ 120 deg C, bolt dished top, weld dished bottom, 500mm diameter x 570mm straight side, 304 s/steel (1.4301) half pipe coil jacket, Ekato type PM-242 agitator drive, driven by 0.55 kw, 1390 rpm motor, openings top: 1-100mm, 1-80mm, 3-25mm, straight side: 1-25mm, 1-25mm (jacket), bottom: 1-25mm, 1-25mm (jacket), mounted on (2) lugs.

(1) 8.7 sqm c/steel tube, and shell vertical heat exchanger, manufactured by Weigand & Wisser, fabrik #67, pressure tube side 20 bar @ 300 deg C (62ltr), shell 20 bar @ 300 deg C (125ltr), (31) 30mm diameter x 2.5mm x 4m long c/steel tubes, shell 273mm diameter x 4245mm overall length, expansion bellows, (no heads), openings shell side 1-80mm, 1-50mm, mounted on (2) lugs.

(1) 60 sqm 316L s/steel tube, shell and head vertical heat exchanger, manufactured by Huls, fabrik #1201, pressure tube side: 83 bar @ 230 deg C (365ltr), shell 20 bar @ 230 deg C (538ltr), (139) 25mm diameter x 2.5mm x 6642mm long 316L s/steel tubes, 316L s/steel shell 457mm diameter x 7430mm overall length, expansion bellows, (2) 316L s/steel coned heads, (15) internal 316L s/steel baffle plates, openings tubeside: top head with 1-250mm, bottom head with 1-200mm, shell: 2-200mm, mounted on (2) lugs.

(1) 117 sqm c/steel tube shell and head vertical heat exchanger, manufactured by Weigand & Wisser, fabrik #68, pressure tube side 4 bar @ 100 deg C (570ltr), shell 20 bar @ 300 deg C (750ltr), (196) 25mm diameter x 2.5mm x 7.5m long tubes, shell 500mm diameter x 8235mm overall length, expansion bellows, (1) bonnet head, (1) dished head, openings tubeside bonnet head with 2-200mm, dished head with no openings, shell 1-200mm, 1-150m, mounted on lugs.

(1) 495ltr 316L s/steel (1.4571) vertical pressurel tank, manufactured by Metatec Gmbh, fabrik #8828/2, pressure -1/8 bar @ 100/20 deg C, weld dished top and bottom, 700mm diameter x 1124mm straight side, mounted on legs.

(1) 351 m3/hr @ 30 m hd 316L s/steel centrifugal pump, manufactured by Bieri Pumpenbau AG, fabrik #73/1146/9, type BM340/200/1, mechanical seal, driven by 55 kw, 3/50/500 volt, 1475 rpm Exd3nG4 motor, mounted on baseplate.

(1) 199.8 m3/hr @ 28 m hd c/steel centrifugal pump, manufactured by Bieri Pumpenbau AG, fabrik #73/121000002, type BM340/150/1, mechanical seal, driven by 37 kw, 3/50/500 volt, 1465 rpm Exd 3nG4 motor, mounted on baseplate.

(1) centrifugal pump, (1) Lewa diaphragm pump,(1) 1500ltr c/steel horizontal pressure tank, manufactured by Weigand & Wisser, fabrik #69, pressure 20 bar @ 300 deg C, 1m diameter x 1480mm straight side, weld dished ends, openings top: 1-500mm manway, 1-50mm, 2-25mm, 1-end with 2-25mm, 1-end with no openings, bottom: 1-250mm, 1-200mm, mounted on (4) lugs with legs.All parts TUV certified

Internal Temperature: 230 °C (446 °F). Jacket Pressure: 20 bar (290.1 psi). Jacket Temperature: 230 °C (446 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight Side Length: 4,750 mm (187.8 in). Support Type: Lugs.
