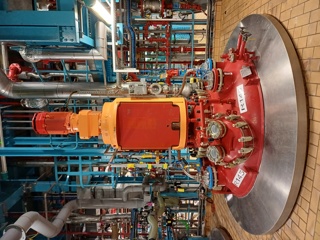

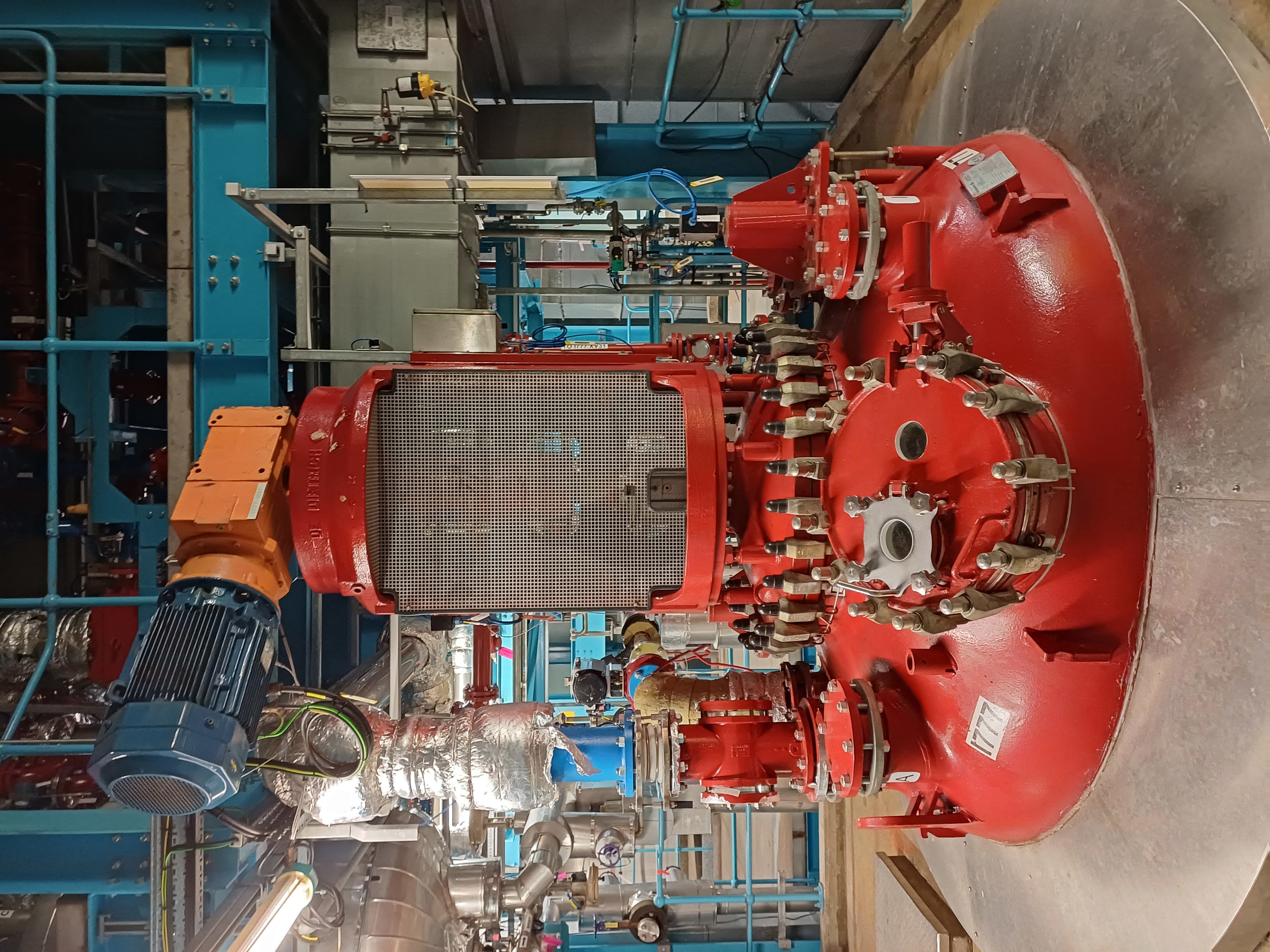

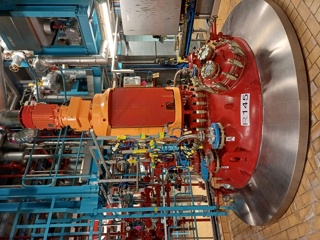

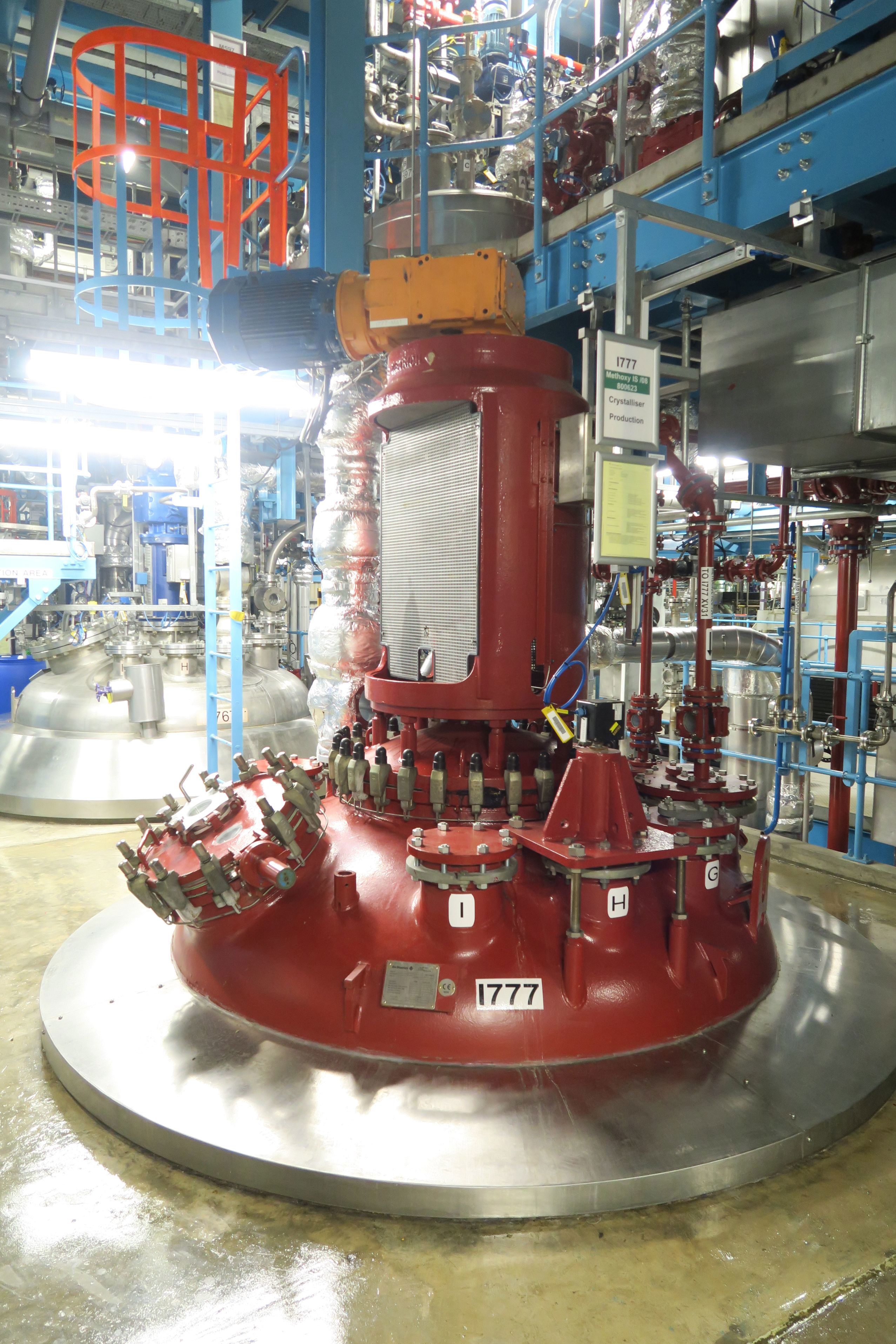

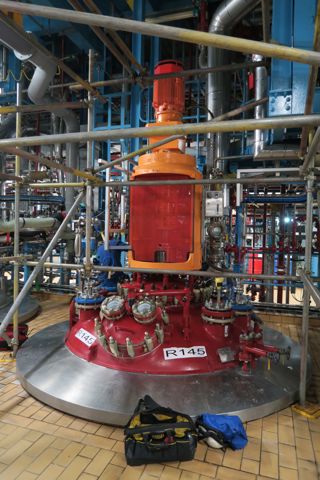

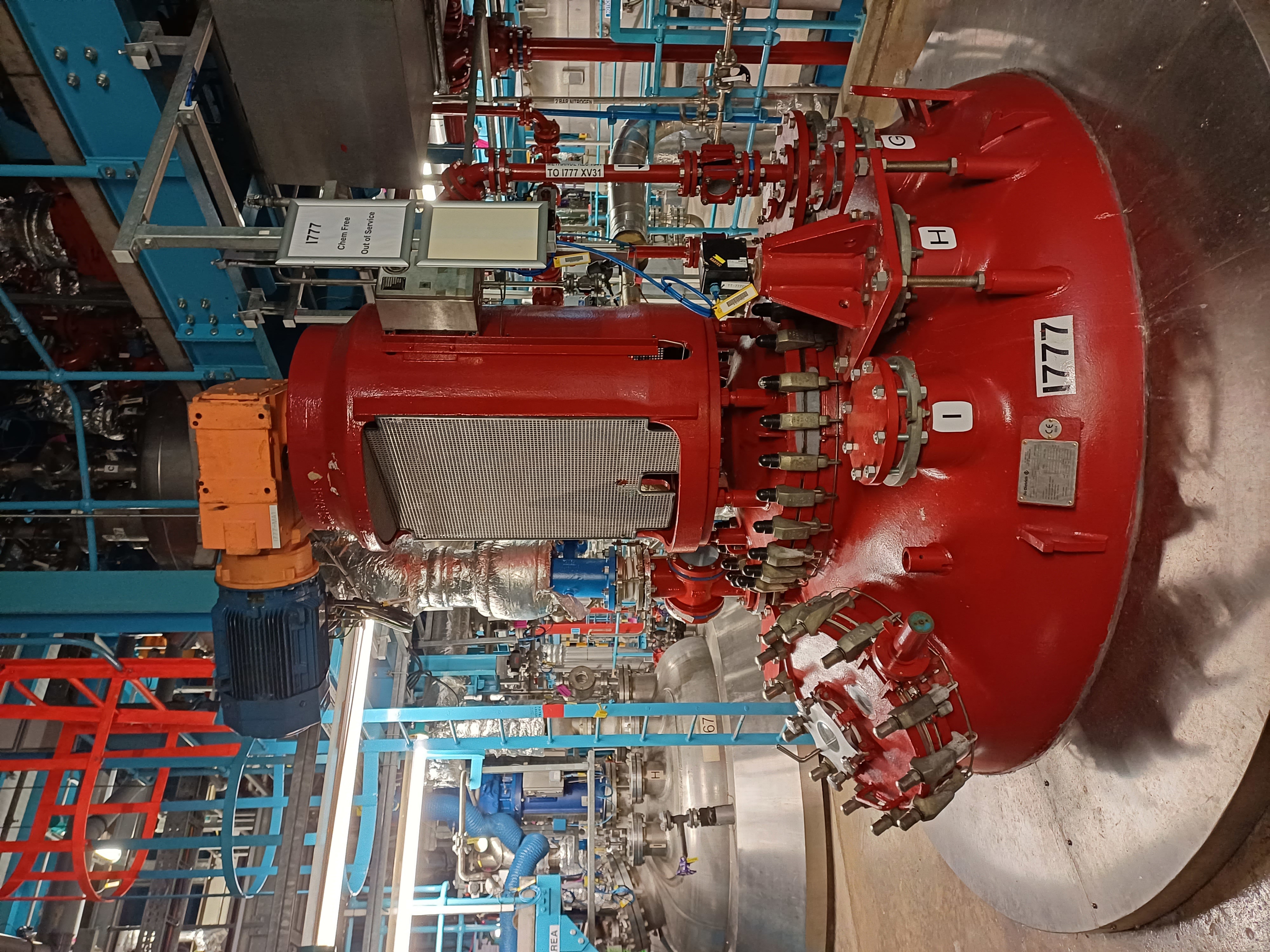

Glasslined DeDietrich CE Batch-Type Agitated Reactor - IPP# 242496

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: CE10000

Condition: Used

Material: Glasslined

Capacity (Design): 11,750 L (3,100 gallons)

Internal Pressure: 6 bar (87 psi)

• design pressure internal -1/6 bar @ -25/150 degrees C (11749 liter),
• jacket -1/10 bar @ -29/160 degrees C (92.92/92.92 liter),
• glass type 3009-U,
• CE 0034,
• Ex II 2 GD classification,
• driven by approx 18.5kw 3/50/400/690 volt 1500 rpm EEx de IIB T4 IP65 motor via 16.12:1 ratio gearbox,
• 3-sets of 3-blade glass lock pitched paddles,
• gas type Burgmann double mechanical seal,
• half pipe coil jacket on straight side and bottom dish,
• design code: AD-M 2000,

Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 160 °C (320 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,400 mm (94.5 in). Straight Side Length: 1,950 mm (76.3 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: AE

Condition: Used

Material: Glasslined

Capacity (Design): 127 L (33.5 gallons)

Internal Pressure: 6 bar (87 psi)

100 liter

• CE number: 401379
• Glass type: 3009 internal design pressure -1/6 bar @ -25/200 degrees C (127 liter) jacket -1/6 bar @ -25/200 degrees C (38 liter)
• 3-finger retreat curved agitator (white glass)
• Motor: 3 phase
• vari-speed drive
• 260/460 volt
• Body and top cover: Blue glass
• Certification: CE certified

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Orientation: Vertical. Agitation: Yes. Diameter: 508 mm (20 in). Straight Side Length: 495 mm (19.5 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: AE-630

Condition: Used

Material: Glasslined

Capacity (Design): 847 L (223.8 gallons)

Internal Pressure: 6 bar (87 psi)

630 liter

• CE number: 401381
• Glass type: 3009-internal design pressure -1/6 bar @ -25/200 degrees C (847 liter)jacket -1/6 bar @ -25/200 degrees C (152 liter)
• 3-finger retreat curved agitator (white glass)
• vari-speed drive
• Motor: 3 phase
• 260/460 volt-- shaft speed 29/166 rpm
• mechanical seal with lubricator
• Body and top cover: Blue glass 1-50mm (jacket)
• Certification: CE certified

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Diameter: 1,000 mm (39.4 in). Straight Side Length: 799 mm (31.5 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: STU

Condition: Refurbished/Rebuilt

Material: Glasslined

Capacity (Design): 4,400 L (1,150 gallons)

Internal Pressure: 4.4 bar (63.8 psi)

• Enamel number: 3008
• Jacket: 3-50mm, 3-25mm, 2-38mm
• Total capacity: 4400 liters.

Internal Temperature: 200 °C (392 °F). Jacket Pressure: 4.4 bar (63.8 psi). Jacket Temperature: 200 °C (392 °F). Diameter: 1,800 mm (70.9 in). Straight Side Length: 2,100 mm (82.7 in). Support Type: Lugs.
