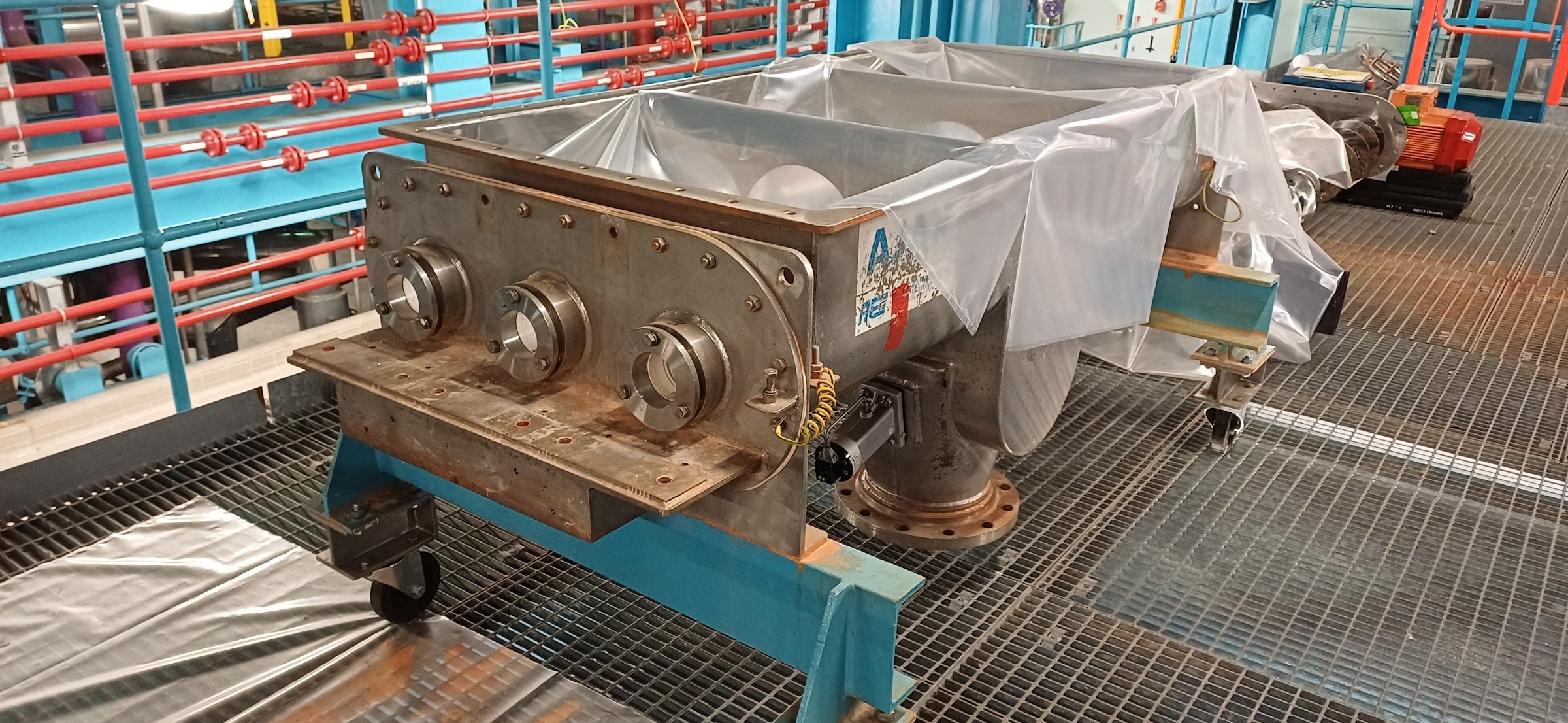

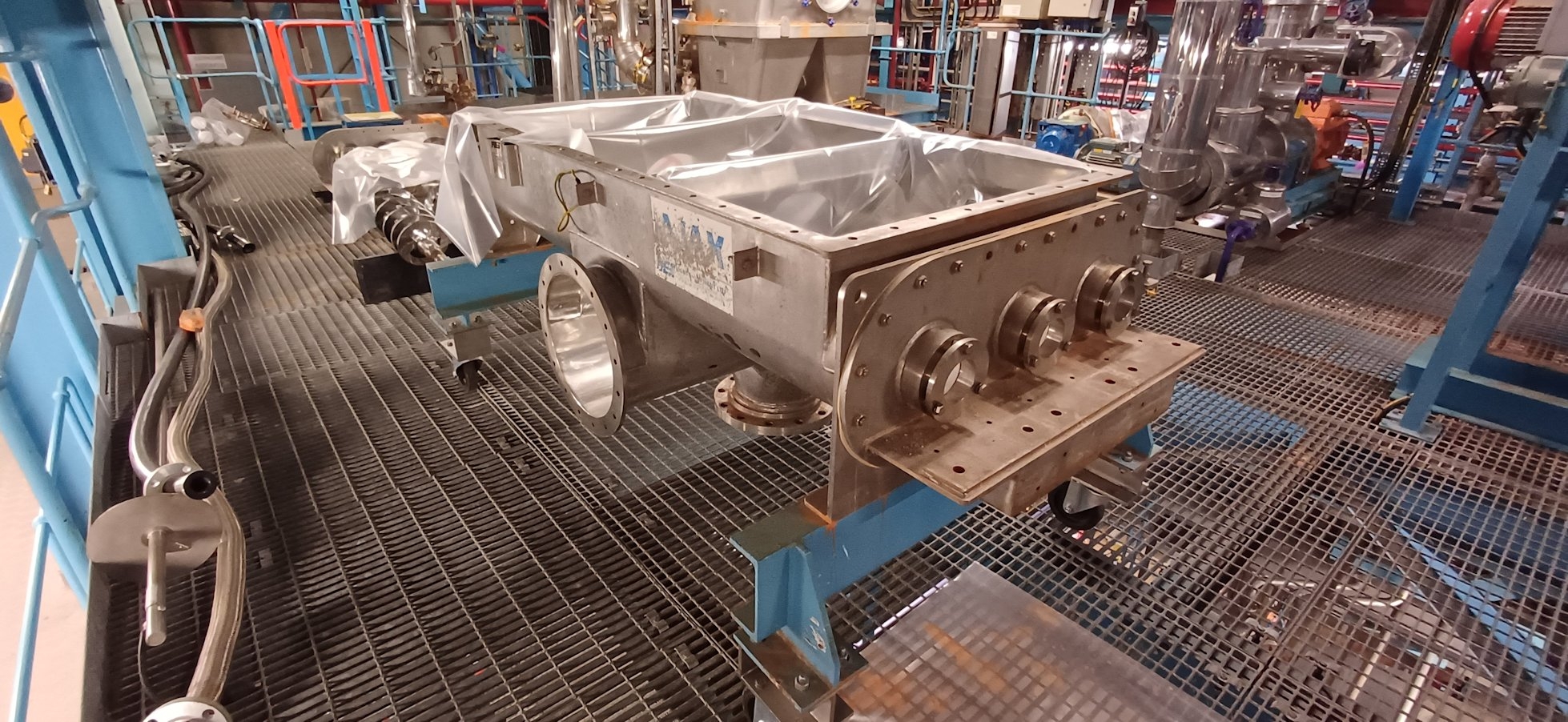

Name: Stainless Steel 316 Highly Polished Ajax Equipment Bolton Ltd Triple Screw Feeder
Brand: Ajax Equipment Bolton Ltd
SKU: 242512

Overview

Type:

Feeder

Subtype:

Screw

Manufacturer:

Ajax Equipment Bolton Ltd

Condition:

Used

Material:

Stainless Steel 316

Other Specifications

Hopper:

Yes

Inlet Size:

450 mm (17.7 in)

Outlet Discharge Diameter:

250 mm (9.8 in)

Electric

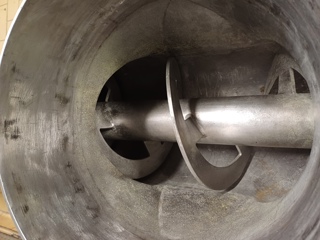

Screw Diameter:

250 mm (9.8 in)

Screw Length:

1,700 mm (66.9 in)

Cover:

Yes

Hopper Capacity:

2,500 L (88.3 ft3)

Hopper Height:

1,500 mm (59.9 in)

Hopper Length:

1,600 mm (63.8 in)

Hopper Width:

800 mm (31.5 in)

Power Transmission:

Direct Coupled

Motor

Motor Make:

ABB Motors

Dimensions

Orientation:

Horizontal

Additional Info:

Highly Polished contact parts
design pressure 0.1 barg @ 70 degrees C,
design code: Sound Engineering Practice

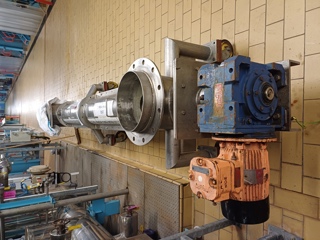

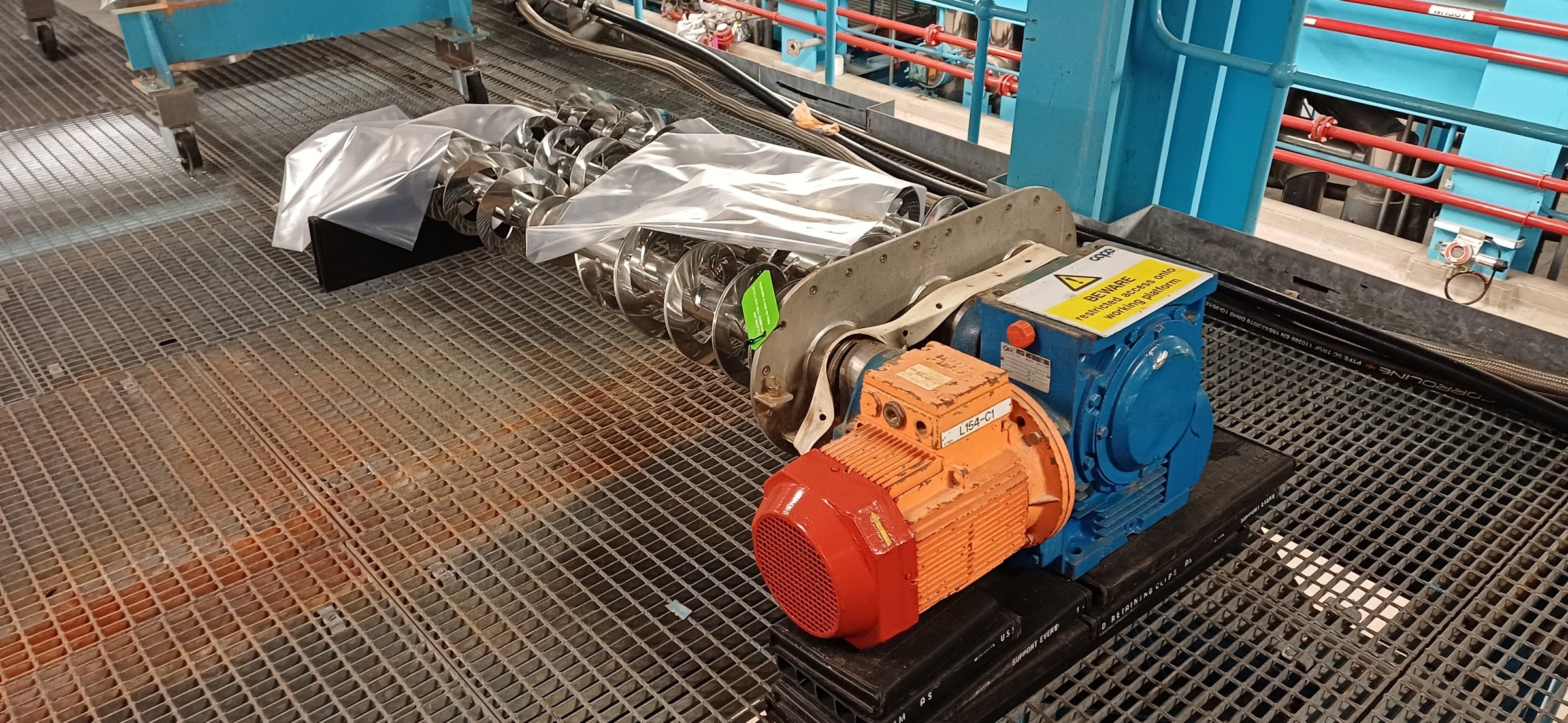

triple screws driven by 5.5/6.4kW, 3/50-60/660-690/380-415/440-480 volt, 1450/1750 rpm EEx dII BT4 B5 ATEX motor via a 12.8:1 ratio gearbox
packed glands on shafts

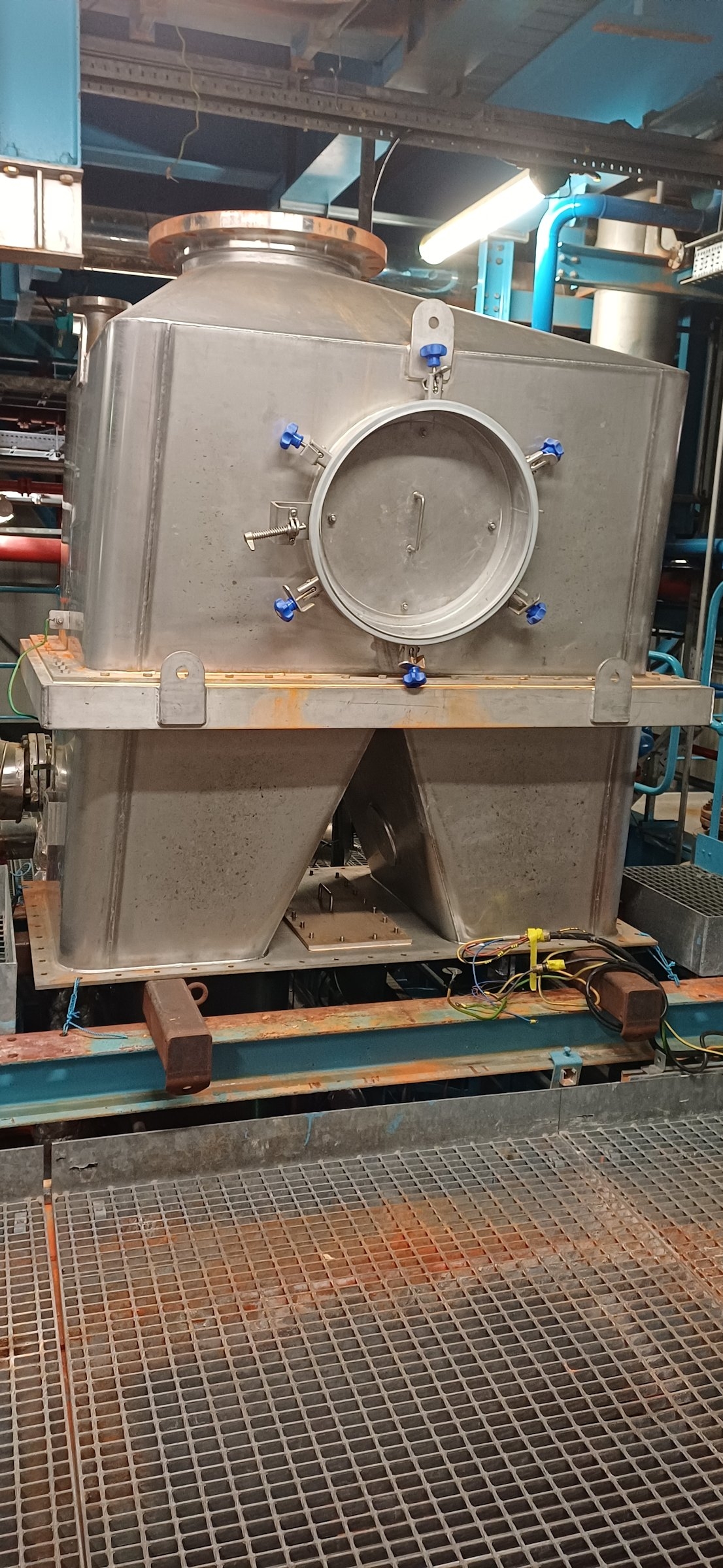

Stainless steel hopper, weld sloped top,

Stainless Steel 316L Ajax Equipment Bolton Ltd Screw Feeder

Type: Feeder

Subtype: Screw

Manufacturer: Ajax Equipment Bolton Ltd

Condition: Used

Material: Stainless Steel 316L

Inlet Size: 310 mm (12.2 in)

Outlet Discharge Diameter: 310 mm (12.2 in)

EEx de IIB T4 IP55 motor, mounted on wheels,

Powered By: Electric. Screw Diameter: 250 mm (9.8 in). Screw Length: 3,000 mm (118.1 in). Length: 3,000 mm (118.1 in). Orientation: Horizontal.

Stainless Steel 316 Highly Polished Ajax Equipment Bolton Ltd Triple Screw Feeder - IPP# 242512
