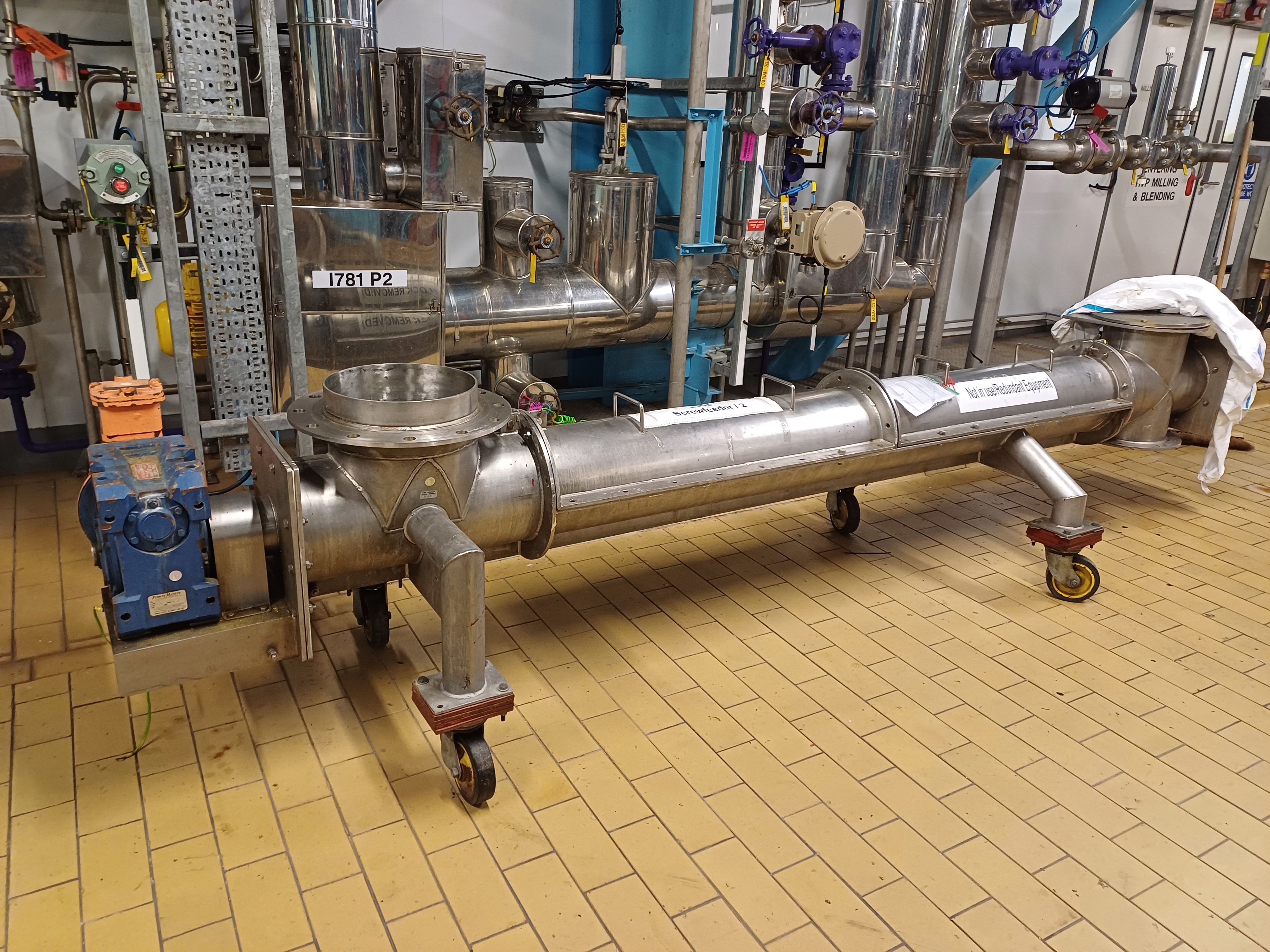

Stainless Steel 316L Ajax Equipment Bolton Ltd Screw Feeder - IPP# 242528

Type: Feeder

Subtype: Screw

Manufacturer: Ajax Equipment Bolton Ltd

Condition: Used

Material: Stainless Steel 316

Hopper: Yes

Inlet Size: 450 mm (17.7 in)

• Highly Polished contact parts
• design pressure 0.1 barg @ 70 degrees C,
• design code: Sound Engineering Practice

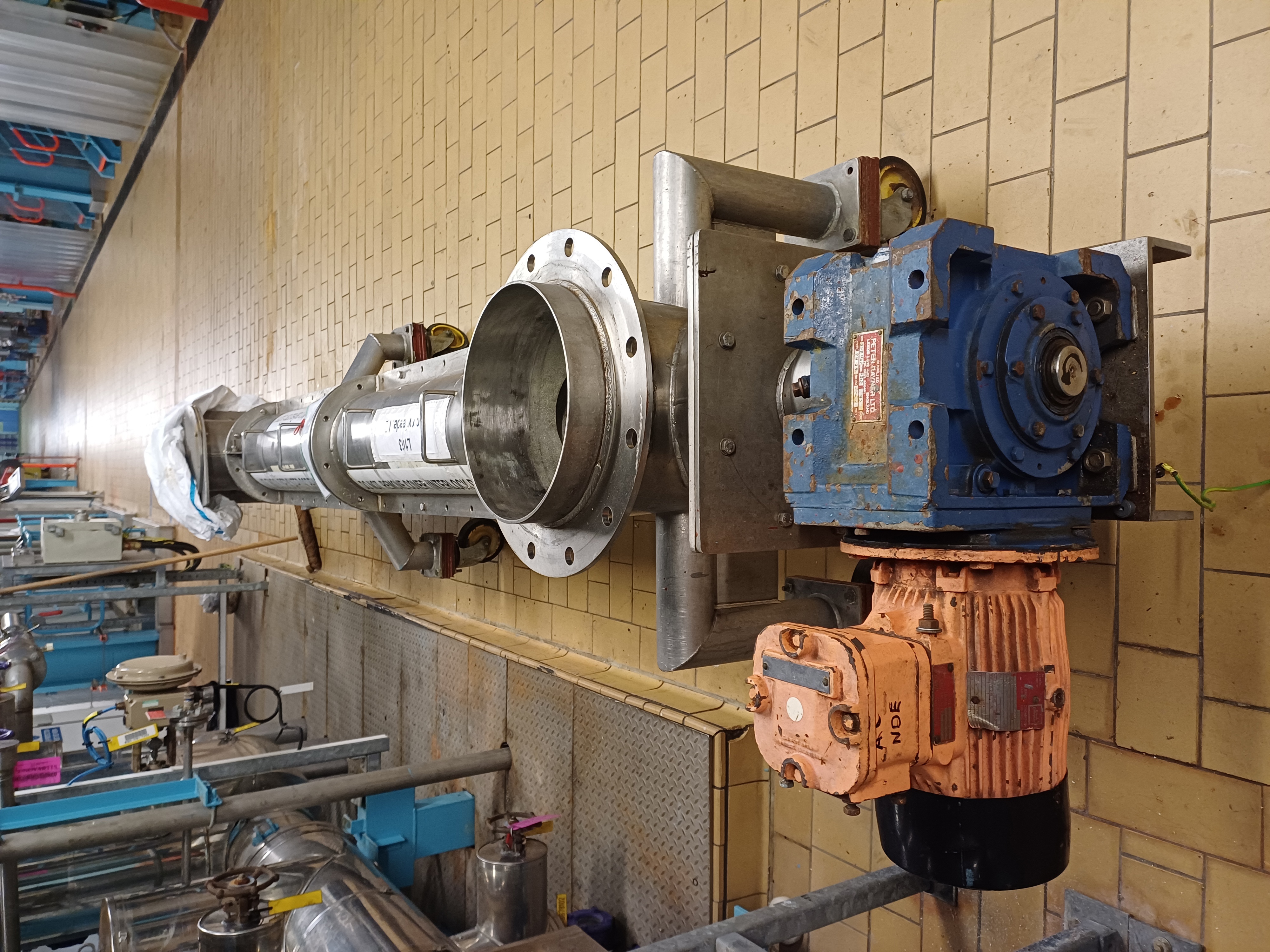

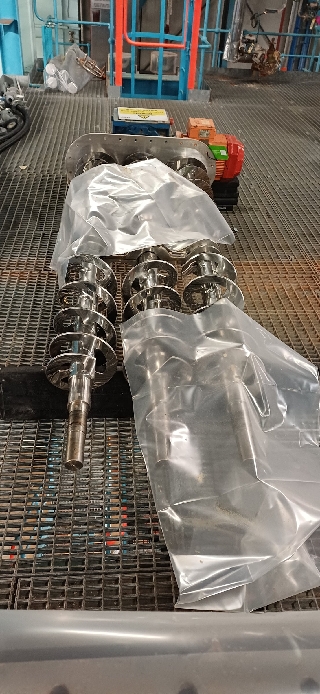

• triple screws driven by 5.5/6.4kW, 3/50-60/660-690/380-415/440-480 volt, 1450/1750 rpm EEx dII BT4 B5 ATEX motor via a 12.8:1 ratio gearbox
• packed glands on shafts
• Stainless steel hopper, weld sloped top,

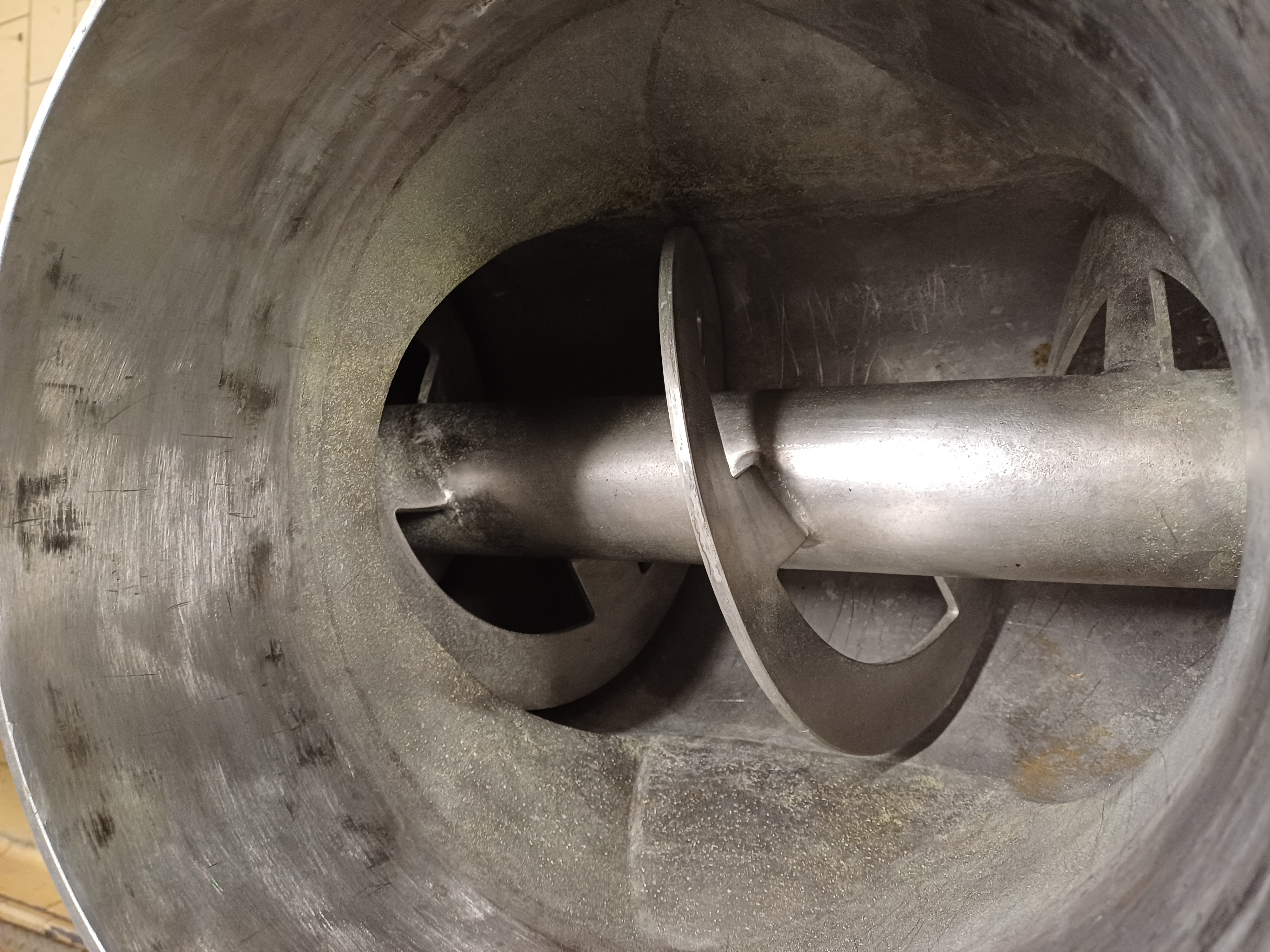

Outlet Discharge Diameter: 250 mm (9.8 in). Powered By: Electric. Screw Diameter: 250 mm (9.8 in). Screw Length: 1,700 mm (66.9 in). Orientation: Horizontal.

Type: Feeder

Subtype: Screw

Manufacturer: AJAX Engineering Ltd

Condition: Used

Material: Stainless Steel 316L

Hopper: Yes

Inlet Size: 200 mm (7.9 in)

screw feeder with hopper,

design pressure -50 mbarg @ 50 degrees C,

bolt flat top, weld coned bottom

Outlet Discharge Diameter: 200 mm (7.9 in). Powered By: Electric. Screw Diameter: 200 mm (7.9 in). Screw Length: 1,950 mm (76.8 in). Orientation: Horizontal.
