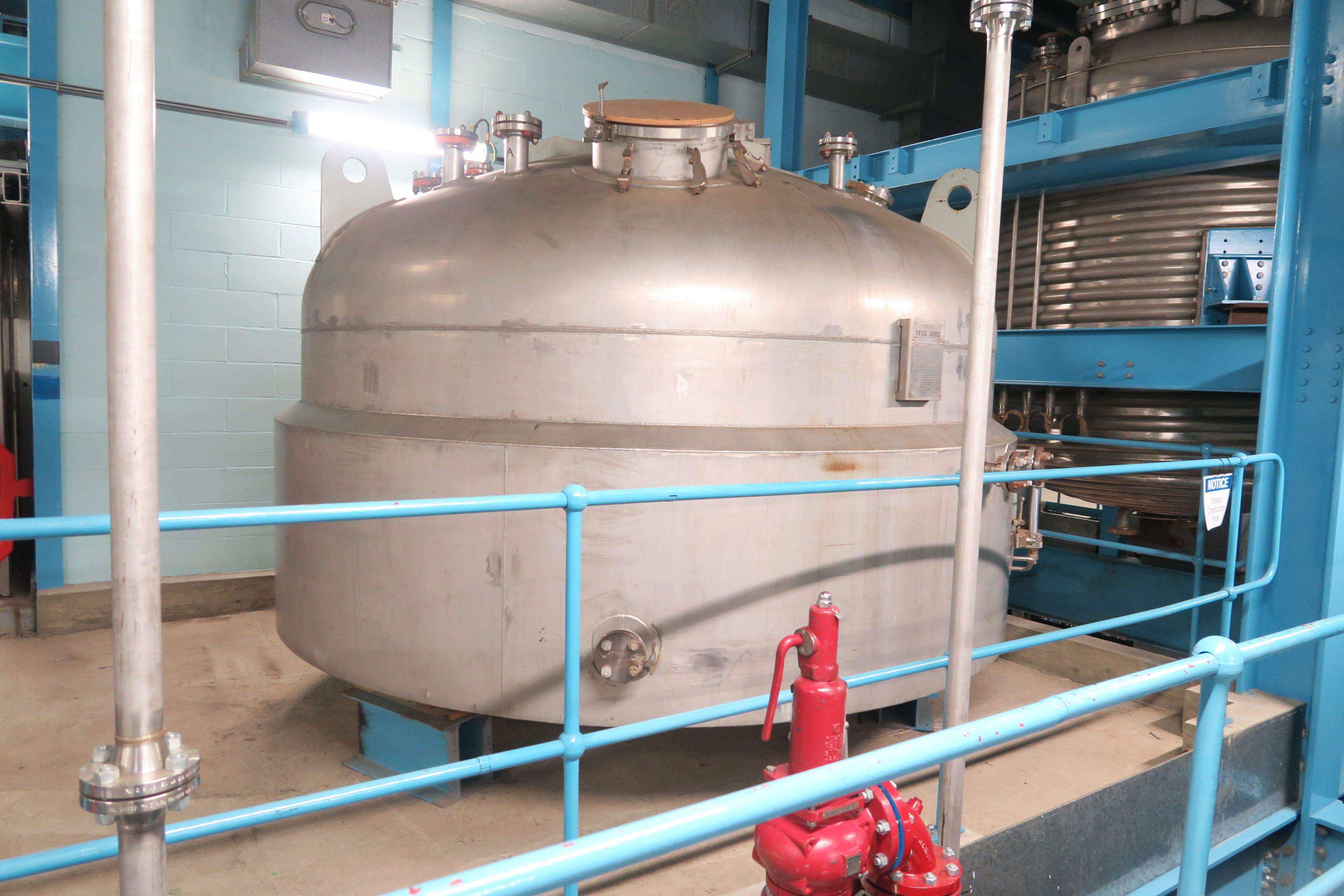

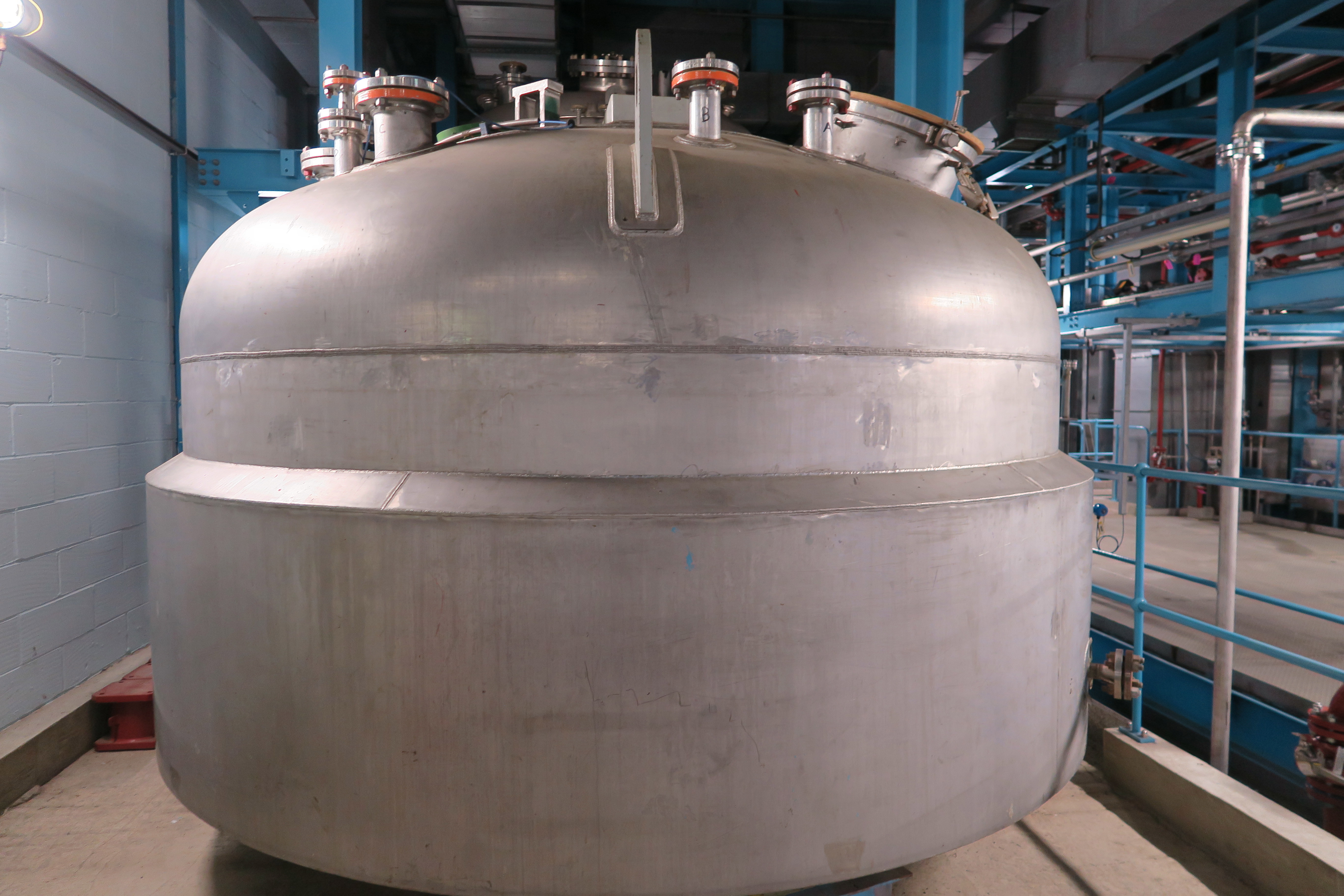

Unused Hastelloy C22 Cogeim Filtro 800 FPP FF Nutsche Filter/Dryer - IPP# 242513

Type: Filter

Subtype: Nutsche

Manufacturer: Cogeim

Model: Filtro FPP-800-FF

Condition: Used

Material: Stainless Steel 316

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,200 mm (126 in)

• design pressure internal 4 bar + full vacuum @ -29/185 degrees C (12800 liter),
• jacket 10 bar + full vacuum @ -29/185 degrees C (150 liter),

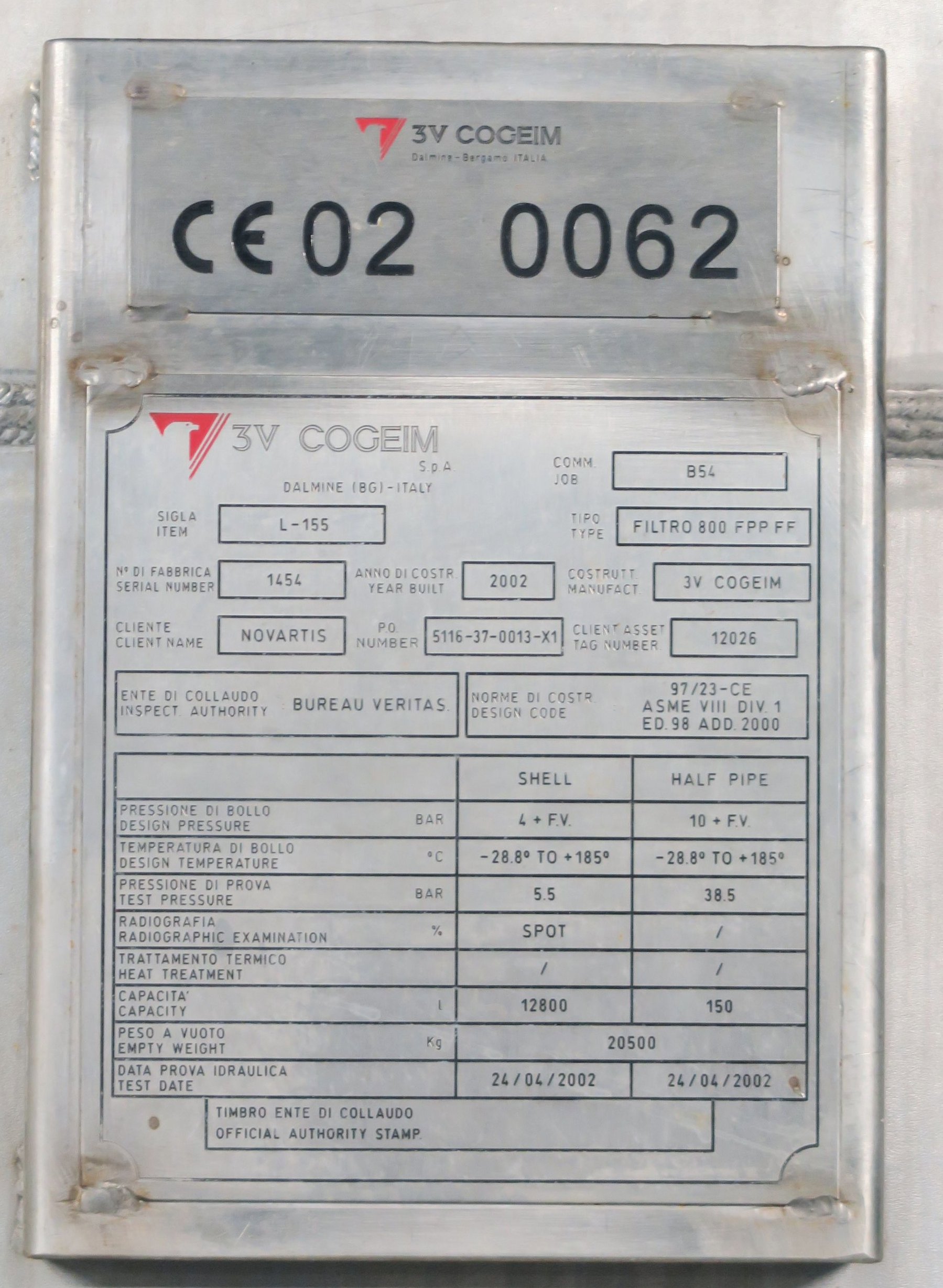

• classification: ATEX Ex II 2GD II B c Tx, II 2G IIB c Tx, CE 13700575,
• fixed bed design,
• shaft with bellows,
• shaft speed 3.5-7.1 rpm,
• driven by 27/16kw, 3/50/400 volt ATEX II 2G/D EEx de IIB T4 motor,
• Flowserve gas type mechanical seal,
• shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack,
• side discharge with hydraulic valve,
• internal spray bar with nozzles,
• side inspection manway with cover and davit,
• slurry discharge with SCHUF pneumatic double acting actuated valve,
• design code: ASME VIII DIV 1 97/23/CE,

(1) 15 m3/hr @ 8.4m head 316 stainless steel centrifugal pump, manufactured by CP Pumpen Ag, serial #07-00784/55975, type MKP 65-40-160, pressure 16 bar @ -40/205 degrees C, differential pressure 0.6 bar, NPSH 1.1m, driven by 1.5kW, 3/50/400 volt 1450 rpm IP55 EEx de II BT4 ATEX motor, magnetic drive, openings suction 62mm, discharge 32mm, mounted on a baseplate

Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 185 °C (365 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 304. Jacket Temperature: 185 °C (365 °F).

Type: Filter

Subtype: Nutsche

Manufacturer: Cogeim

Model: FPP 800 FF

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,200 mm (126 in)

• design pressure internal 4 bar + full vacuum @ -28.8/185 degrees C (12800 liter),
• jacket 10 bar + full vacuum @ -28.8/185 degrees C (140 liter),
• internals mirror polished to 0.4um Ra,
• fixed bed design,
• 3.2m diameter x 1.2m straight side,
• bottom discharges,
• shaft with internal bellows,
• shaft driven by 30kw 3/50/400 volt IP55 EExd IIB T4 motor via a 210:1 ratio reduction gearbox,
• shaft speed 1.43-10.7 rpm,
• mechanical seal with lubricator,
• shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 7.5kw 3/50/400 volt IP55 EExd IIB T4 motor,
• jacket on straight side and bottom filter bed,
• internal wash ring/spray bar,
• side inspection manway with cover and davit,
• design code: 97/23/CE (supported by ASME VIII DIV 1 Ed 2000),
• Note: Side Discharge Valve Not Included

(1) centrifugal pump, driven by 11/12.5kW 3/50-60/690-400/660-380/415-440 volt, 2936/2929/2942/3526 rpm EEx de IIB T4 B3 ATEX motor,

Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 185 °C (365 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 185 °C (365 °F).

Type: Filter

Subtype: Nutsche

Manufacturer: Cogeim

Model: Filtro 600 FPP FF

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 6 m² (64.6 ft²)

Diameter: 2,800 mm (110.2 in)

• design pressure internal 4 bar + full vacuum @ -28.8/185 degrees C (10000 liter),
• jacket 10 bar + full vacuum @ -28.8/185 degrees C (125 liter),
• CE02 0062,
• internals polished to 0.4um Ra,
• half pipe coil jacket on straight side and bottom,
• filter bed with filter clothe,
• fixed bed design,
• driven by 20/11kw 3/50/400 volt 1470/730 rpm IP55 EEx de IIB T4 motor via 185: 1 ratio gearbox,
• shaft speed 4-8 rpm,
• reversing agitator,
• Flowserve mechanical seal with lubricator pot
• shaft with bellows,
• shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 7.5kw, 3/50/400 volt IP55 EEx d IIB T4 motor, bottom discharge,
• internal wash ring/spray bar,
• side inspection manway with cover and davit,
• mounted on feet with load cells,
• design code: 97/23/CE ASME VIII DIV 1 ED 98 ADD 2000,

(1) 66m3/hr @ 19.74m head 316L stainless steel centrifugal pump, manufactured by HMD Sealless Pumps, type GSI 100x80x160H EA6, serial #PU822864, 180mm diameter impellor, driven by 11/12.5kw, 3/50-60/690-400/660-380/415-440 volt 2936/2929/2942/3526 rpm Eex d IIB T4 ATEX motor, mounted on a baseplate,

Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 185 °C (365 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 185 °C (365 °F). Cake Volume: 10,000 m3 (353,150 ft3).

Type: Filter

Subtype: Nutsche

Manufacturer: Cogeim

Model: FFP 800 FF-S

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,200 mm (126 in)

• design pressure internal 4 bar + full vacuum @ -29/185 degrees C (12500 liter),
• jacket 10 bar + full vacuum @ -29/185 degrees C (225 liter),
• 5.8-11.8 rpm shaft speed,
• shaft driven by 18/9.9 kw, 3/50/415 volt, 1500/750 rpm, EExd IIB T4 motor via a 125:1 ratio reduction gearbox,
• reversing agitator for discharging,
• packed gland,
• shaft with Hydraulic raise/lower mechanism driven by an hydraulic power pack, powerpack driven by 4kw, 3/50/415 volt, 1500 rpm EExd IIB T4 motor,
• 304L stainless steel half pipe coil jacket on straight side,
• carbon steel half pipe coil jacket on bottom filter bed,
• fixed bed design,
• side bottom discharge with a 100/80mm SCHUF valve,
• internal wash ring/spray bar,
• side inspection manway with cover and davit,
• designed code ASME VIII DIV 1 ED 89 & 90,
• Note: Does not include side discharge valve

(1) 60m3/hr @ 13.6m head 316 stainless steel centrifugal pump, manufactured by Girdlestone, type 12CSD2G, serial #53452, size 80-50-175, driven by 7.5kW, 3/50/415 volt 2890 rpm EEx de IIB T4 motor, mounted on a baseplate,

Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 185 °C (365 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 304L. Jacket Temperature: 185 °C (365 °F).
