Filters - Used and Surplus Inventory | IPP

Used filters for sale: industrial solid-liquid separation for consistent, high-purity output

Active Filters
Searching equipment…

Top Filters in stock

Highest-ranked available inventory for this selection.

Select a Filter type

Choose a subtype for a more focused set of listings.

Narrow these listings

Specifications

Available Filters

Showing 25 of 318 matching Filters.

Stock Number: #247050
Filtration Area: 1.08 ft²
Diameter: 13.8 in
Pressure: 145 psi
Temperature: 302 °F
Vacuum: Yes
Agitation Seal Type: Double Mechanical Seal
Jacket: Yes
Jacket Pressure: 87 psi
Jacket Type: Standard
Jacket MOC: Stainless Steel 316L
Jacket Temperature: 302 °F
Agitator Cored for Heating/Cooling: Yes
Additional Information:
  • mobile laboratory filter/dryer with tilting mechanism,
  • design pressure internal 1 bar + full vacuum @ -20/150 degrees C, jacket: 6 bar + full vacuum @ -20/150 degrees C,
  • all wetted parts are Hastelloy C22,
  • 50 liter slurry capacity,
  • 20 liter cake capacity,
  • 350mm diameter x 680mm straight side,
  • 6-30rpm shaft speed,
  • agitator driven by 1.5kW, 3/50/230/400 volt, 1420 rpm CE ATEX EExd IIB T4 IP55 motor,
  • hydraulic driven agitator raise/lower mechanism with powerpack,
  • alloy 22 bellows on shaft,
  • flat bottom filter plate with mesh filter and can be rotated for cleaning,
  • manual vessel tilt mechanism,
  • strip sight glass on side for measuring cake depth,
  • approx 100mm side discharge which is fully contained in a glovebox,
  • all mounted on stainless steel frame with wheels for full mobility,
  • design code ASME VIII DIV 1 (1998) + A '00'
  • Can be used with 248331 APOVAC system for vacuum at an additional cost.
More Details ⟶
Stock Number: #242548
Filtration Area: 441.3 ft²
Pressure: 3 bar
Cake Volume: 72.6 ft3
Filter Press Plate Type: Membrane Plates
Number of Plates: 34
Plate MOC: Polypropylene
Skeleton MOC: carbon steel
Plate Diameter or Width: 1,200 mm
Plate Height: 1,200 mm
Plate Shifter: Yes
Plate Shifter Automatic: Yes
Plates Gasketed: Yes
Additional Information:
  • fully automatic operation,
  • plates supported on an overhead beam,
  • 33 Lenser membrane plates and 2-end plates
  • caulked and gasketed clothe
  • cake thickness 50mm,
  • drainage via internal 4-corner port,
  • plate shifter hydraulic driven by a powerpack with a 1.1kw motor,
  • powerpack for pressure mechanism with a 4kw 3/50/415 volt, 1430 rpm EEx d IIB T4 motor Plates Recessed: Yes. Plates Shifted By: Automatic.
More Details ⟶
Stock Number: #242501
Filtration Area: 6 m²
Diameter: 2,800 mm
Orientation: Vertical
Pressure: 4 bar
Temperature: 185 °C
Vacuum: Yes
Jacket: Yes
Jacket Pressure: 10 bar
Jacket Type: Half Pipe/Limpet
Jacket MOC: Stainless Steel 304L
Jacket Temperature: 185 °C
Additional Information:
  • design pressure internal 4 bar + full vacuum @ -29/185 degrees C (9100 liter),
  • jacket 10 bar + full vacuum @ -29/185 degrees C (165 liter),
  • fixed bed design,
  • 6.5-13 rpm shaft speed,
  • driven by 10/6.6kw 3/50/415 volt, 1500/750 rpm EExd IIB T4 motor via a reduction gearbox,
  • reversing agitator for discharging,
  • packed gland,
  • shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 4kw, 3/50/415 volt 1500 rpm EExd IIB T4 motor,
  • side discharge with hydraulic valve,
  • 304L stainless steel half pipe coil jacket on straight side,
  • carbon steel half pipe coil jacket on filter base,
  • slurry outlet with a 100/80mm SCHUF valve,
  • weld dished top, weld flat bottom,
  • 2.8m diameter x 1050mm straight side,
  • internal wash ring/spray bar,
  • side inspection manway with cover and davit,
  • mounted on feet with load cells,
  • design code: ASME VIII DIV I ED 89 + ADD 90,

system includes

  • (1) 340 Nm3/hr 316L stainless steel Apovac PMZK 3817 D3x6 vacuum pump skid, manufactured by Sulzer, skid includes (1) 340 Nm3/hr 316L stainless steel PMZK 3817 D3x6 vacuum pump, manufactured by Sulzer Burkhardt, serial #52771, (1) 6.7 square meter 316L stainless steel tube and shell heat exchanger (liquid ring cooler), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 10 square meter 316L stainless steel tube and shell heat exchanger (exhaust gas cooler), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 5 square meter 316L stainless steel heat exchanger (N2 Heater), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 190 liter 316L stainless steel pressure tank (condensate receiver), manufactured by Kasag, pressure -1/4 barg @ 50 degrees C,
  • (1) 60m3/hr @ 13.6m head 316 stainless steel centrifugal pump (P1), manufactured by Girdlestone, type 12CSD2G, serial #53451, size 80-50-175, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB T4 motor, sealless type, mounted on a baseplate,
  • (1) 10m3/hr @ 26m head PFA lined centrifugal pump (P2), manufactured by Richter, type PCK/F 32-160, serial #917493/3/3, 2900 rpm, 147mm diameter impellor, driven by 5.5kW, 3/50/415 volt, 2900 rpm EEx de IIB T4 motor, mechanical seal, mounted on a baseplate
More Details ⟶

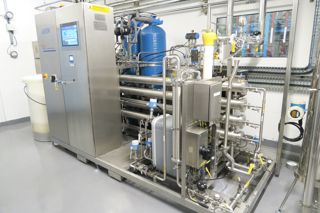

Stock Number: #242759
Additional Information:
  • 2000 kg/hr reverse Osmosis water purification system
  • feed water pressure 4-6 barg,
  • pneumatic pressure 5-6 barg,
  • electric 400 volt, 3phase+E, 50Hz, 38 Amp,
  • system includes

(4) 316L stainless steel/EPDM reverse osmosis cells, manufactured by Sommer + Strassburger, fabrik #222802.10.1, pressure 40 bar @ 80 degrees C (19 liter), (1) 5m3/hr @ 248.1/355.8m head 316L stainless steel inline centrifugal pump, manufactured by Grundfos, type CRNE3-23EX-P-G1-E-HQQE, serial #A98105920P11603, 6kW, 4500 rpm, 50/120 bar pressure, driven by 6kW, 3/50-60/380/480 volt, IP55 motor, (1) electric heater,

(1) UV filter,

(2) water softeners,

(1) 450 liter (total) 316L stainless steel vertical receiver, manufactured by Robert Sanderson & Sons Ltd, serial #10532, design pressure 3 barg + full vacuum @ 200 degrees C, asset #11476, weld dished top and bottom, 762mm diameter, openings top: 1-150mm, 4-50mm, 1-40mm, straight side: 1-80mm, bottom: 1-50mm,

built on control panel

More Details ⟶
Stock Number: #242529
Filtration Area: 8 m²
Diameter: 3,200 mm
Orientation: Vertical
Pressure: 4 bar
Temperature: 185 °C
Vacuum: Yes
Jacket: Yes
Jacket Pressure: 10 bar
Jacket Type: Half Pipe/Limpet
Jacket MOC: Stainless Steel 316
Jacket Temperature: 185 °C
Additional Information:
  • design pressure internal 4 bar + full vacuum @ -28.8/185 degrees C (12800 liter),
  • jacket 10 bar + full vacuum @ -28.8/185 degrees C (140 liter),
  • internals mirror polished to 0.4um Ra,
  • fixed bed design,
  • 3.2m diameter x 1.2m straight side,
  • bottom discharges,
  • shaft with internal bellows,
  • shaft driven by 30kw 3/50/400 volt IP55 EExd IIB T4 motor via a 210:1 ratio reduction gearbox,
  • shaft speed 1.43-10.7 rpm,
  • mechanical seal with lubricator,
  • shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 7.5kw 3/50/400 volt IP55 EExd IIB T4 motor,
  • jacket on straight side and bottom filter bed,
  • internal wash ring/spray bar,
  • side inspection manway with cover and davit,
  • design code: 97/23/CE (supported by ASME VIII DIV 1 Ed 2000),
  • Note: Side Discharge Valve Not Included

(1) centrifugal pump, driven by 11/12.5kW 3/50-60/690-400/660-380/415-440 volt, 2936/2929/2942/3526 rpm EEx de IIB T4 B3 ATEX motor,

More Details ⟶
Stock Number: #225365
Filtration Area: 398.3 ft²
Pressure: 100 psi
Temperature: 70 °F
Cake Volume: 16.3 ft3
Filter Press Plate Type: Plate and Frame
Number of Frames: 44
Number of Plates: 90
Plate MOC: Polypropylene
Skeleton MOC: 316 SS with a 20Ra finish
Plate Diameter or Width: 800 mm
Plate Height: 800 mm
Plates Shifted By: Manual
Additional Information:
  • Plates are FDA approved- Non Gasketed.
  • Polypropylene plates and frames and all Stainless Steel skeleton.
  • 44 chambers.4 eye closed delivery,1" inlet and outlet.
  • Manual closure with Hydraulic Assist manufactured by SPX.
More Details ⟶
Stock Number: #225367
Filtration Area: 33 m²
Pressure: 100 psi
Temperature: 70 °F
Cake Volume: 0.46 m3
Filter Press Plate Type: Plate and Frame
Number of Frames: 38
Number of Plates: 80
Plate MOC: Polypropylene
Skeleton MOC: 316 SS with a 20 Ra polish
Plate Diameter or Width: 800 mm
Plate Height: 800 mm
Plates Shifted By: Manual
Additional Information:
  • Plates are FDA approved and non gasketed.
  • Polypropylene plates and frames and all Stainless Steel skeleton.
  • Approximately 38 chambers.
  • 4 eye closed delivery, 1" inlet and outlets.
  • Manual closure with Hydraulic Assist manufactured by SPX.
More Details ⟶
Stock Number: #225366
Filtration Area: 37 m²
Pressure: 100 psi
Temperature: 70 °F
Cake Volume: 462 m3
Filter Press Plate Type: Plate and Frame
Number of Frames: 44
Number of Plates: 95
Plate MOC: Polypropylene
Skeleton MOC: 316 SS with a 20 Ra finish
Plate Diameter or Width: 800 mm
Plate Height: 800 mm
Plates Shifted By: Manual
Additional Information:
  • Plates are FDA approved, non Gasketed.
  • Polypropylene plates and frames and all Stainless Steel skeleton.
  • 95 plates with 44 chambers.
  • 4 eye closed delivery, 1" inlet and outlet.
  • Manual closure with Hydraulic Assist manufactured by SPX.
More Details ⟶
Stock Number: #245495
Filtration Area: 1 m²
Diameter: 47.2 in
Pressure: 6.9 bar
Temperature: 177 °C
Vacuum: Yes
Internal Finish: Ra 0.5
Agitation Seal Type: Mechanical
Jacket: Yes
Jacket Pressure: 10.4 bar
Jacket Type: Half Pipe/Limpet
Jacket MOC: Stainless Steel 316
Jacket Temperature: 177 °C
Additional Information:
  • Side bottom discharge with automatic valve Agitator Cored for Heating/Cooling: Yes. Vessel Liquid Capacity: 400 gallons.
More Details ⟶
Stock Number: #241000
Filtration Area: 4.2 m²
Diameter: 90.6 in
Pressure: 88.5 psi
Temperature: 392 °F
Internal Finish: #4 Ra50
Agitation Seal Type: Mechanical
Jacket: Yes
Jacket Pressure: 152 psi
Jacket Type: Half Pipe/Limpet
Jacket MOC: Stainless Steel 316
Jacket Temperature: 392 °F
Agitator Cored for Heating/Cooling: Yes
Additional Information:

Alloy C22

Internal finish is a sanitary polish. 304SS sheathing. 304 stainless steel

18.35" Side discharge with discharge valve, 132 gallon Hastelloy C 22 side discharge valve. National Board # 287. rated FV/88 @392 degrees F.

Dryer Dimensions: 90" diameter x 76" length

hydraulic skid. Includes: integral Stock # 241013- Hastelloy C22 pulse jet Dust collector. 8.6" handhole, 4.33" site glass.

More Details ⟶
Stock Number: #218646
Filtration Area: 1,300 ft²
Pressure: 100 psi
Cake Volume: 75 ft3
Filter Press Plate Type: Un-Gasketed Recessed
Number of Plates: 42
Plate MOC: Polypropylene
Skeleton MOC: Carbon Steel
Plate Diameter or Width: 1,200 mm
Plate Height: 1,200 mm
Plate Thickness: 2.5 in
Plates Recessed: Yes
Additional Information:
  • With Lenser polypropylene non-gasketed recessed plates type KCE (51) chambers.
  • 40mm cake thickness ,corner feed with 3 eye closed delivery
  • 3" top corner feed, 2" 3 corner discharge.
  • 3300 psi hydraulic closing pressure.
  • With US Filter/Siemens air over oil hydraulic pump with a 15 gallon oil reservoir requires 80 scfm @ 100 psi air supply.
More Details ⟶
Stock Number: #242504
Filtration Area: 8 m²
Diameter: 3,200 mm
Orientation: Vertical
Pressure: 4 bar
Temperature: 185 °C
Vacuum: Yes
Jacket: Yes
Jacket Pressure: 10 bar
Jacket Type: Half Pipe/Limpet
Jacket MOC: Stainless Steel 304L
Jacket Temperature: 185 °C
Additional Information:
  • design pressure internal 4 bar + full vacuum @ -29/185 degrees C,
  • jacket 10 bar + full vacuum @ -29/185 degrees C,
  • fixed bed design,
  • 5.8-11.8 rpm shaft speed,
  • driven by 18/9.9kw 3/50/415 volt 1500-750 rpm EEx de IIB T4 motor via a reduction gearbox,
  • reversing agitator for discharging,
  • packed gland,
  • shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 4kw, 3/50/415 volt 1500 rpm EExd IIB T4 motor,
  • 304L stainless steel half pipe coil jacket on straight side,
  • carbon steel half pipe coil jacket on filter base,
  • side discharge with hydraulic valve,
  • slurry outlet with a 100/80mm SCHUF valve,
  • internal wash ring/spray bar,
  • weld dished top, weld flat bottom,
  • 3.2m diameter x 1060mm straight side,
  • side inspection manway with cover and davit,
  • design code: ASME VIII DIV 1 ED.89 + ADD 90,

system includes

  • (1) 340 Nm3/hr 316L stainless steel Apovac PMZK 3817 D3x6 vacuum pump skid, manufactured by Sulzer, skid includes: (1) 340 Nm3/hr 316L stainless steel vacuum pump, manufactured by Sulzer, driven by 37kW, 3/50/415 volt, 975 rpm EEx de IIB T4 motor, (1) 6.7 square meter 316L stainless steel tube and shell heat exchanger (liquid ring cooler), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 10 square meter 316L stainless steel tube and shell heat exchanger (exhaust gas cooler), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 5 square meter 316L stainless steel tube and shell heat exchanger (N2 Heater), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 190 liter 316L stainless steel pressure tank (condensate receiver), manufactured by Kasag, pressure -1/4 barg @ 50 degrees C,
  • (2) 316L stainless steel centrifugal pumps, manufactured by Girdlestone, type 12CABC2G, 16 bar @ 20 degrees C, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB T4 motor,
More Details ⟶
Stock Number: #703583
Filtration Area: 12.8 m²
Temperature: 32 °F
Cake Volume: 2,400 m3
Filter Press Plate Type: Plate and Frame
Number of Frames: 32
Number of Plates: 33
Plate MOC: Aluminum
Skeleton MOC: Carbon Steel
Plate Diameter or Width: 600 mm
Plate Height: 600 mm
Plate Thickness: 12 mm
Plates Shifted By: Manual
Additional Information:
  • Manual screw closure.
  • 4-eye closed delivery. Openings: 4-2".
More Details ⟶
Stock Number: #202194
Diameter: 42 in
Pressure: 136 psi
Temperature: 600 °F
Jacket: Yes
Jacket Pressure: 250 psi
Jacket Type: Half Pipe/Limpet
Jacket MOC: Stainless Steel 304
Jacket Temperature: 600 °F
Additional Information:

500 Gallon Manufactured by Alloy Fab for Dartco Shell is .250" thick Top head is .312" thick Cone is .312/.437" thick jacket is .109" thick6.5 turns half pipe on top head18 turns half pipe on straight side5 turns half pipe bottom head All half pipe jacket is 2"

More Details ⟶
Stock Number: #231224
Filtration Area: 17.5 m²
Cake Volume: 2 m3
Filter Press Plate Type: Plate and Frame
Number of Frames: 28
Number of Plates: 27
Plate MOC: Stainless Steel 316
Skeleton MOC: 316 SS
Plate Diameter or Width: 600 mm
Plate Height: 600 mm
Plate Thickness: 50 mm
Plates Recessed: Yes
Plates Shifted By: Manual
Additional Information:
  • Stainless steel recessed plate and polypropylene frame filter press.
  • (2) eye top and bottom feed/discharge.
  • Stainless steel skeleton.
  • Hydraulic press mechanism with built on power pack and manual controls
More Details ⟶
Stock Number: #230398
Filtration Area: 118 ft²
Pressure: 100 psi
Temperature: 180 °F
Cake Volume: 94.3 ft3
Filter Press Plate Type: Un-Gasketed Recessed
Number of Plates: 25
Plate MOC: Stainless Steel 304
Skeleton MOC: Carbon Steel
Plate Diameter or Width: 18.5 in
Plate Height: 18.5 in
Plates Recessed: Yes
Plates Shifted By: Manual
Additional Information:
  • Single pneumatic hydraulic ram closure mechanism. (completely pneumatic operation, no electric, good for hazardous environments).
  • Recessed plate filter press, complete with (25) chambers(1) head plate,5 eye, closed delivery.
  • 32mm cake thickness.
More Details ⟶
Stock Number: #89349
Filtration Area: 10 m²
Diameter: 900 mm
Pressure: 5 bar
Temperature: 100 °C
Additional Information:

Funda filter with centrifugal discharge Shell 900mm diameter x 960mm from flanged top to bottom discharge (22) 800mm diameter filter elements @ 30mm spacing Requires 15 PS motor Wet cake discharge

More Details ⟶
Stock Number: #92529
Filtration Area: 77 ft²
Diameter: 36 in
Orientation: Vertical
Pressure: 75 psi
Temperature: 300 °F
Jacket Pressure: 15 psi
Jacket MOC: Carbon Steel
Jacket Temperature: 250 °F
Additional Information:

Manufactured by Durco Enzinger Vertical tank horizontal Plate design, with wet cake discharge, with Slucing bar SS bolt on plate coil jacket on bottom head with bolted dished bottom with swing bolts Mounted on top is a faractioanl HP drive that turns the slucing bar that rund down the middel of the plate stack 6" diameter bottom cake discharge

More Details ⟶
Stock Number: #236127
Filtration Area: 147.8 ft²
Pressure: 5 bar
Temperature: 85 °C
Cake Volume: 6.9 ft3
Filter Press Plate Type: Plate and Frame
Number of Frames: 17
Number of Plates: 16
Plate MOC: Plastic
Skeleton MOC: 316 SS
Plate Diameter or Width: 615 mm
Plate Height: 720 mm
Plate Thickness: 26 mm
Additional Information:
  • Ex 11 2G c 1B T4(17) 615mm wide x 720mm high x 40mm thick plastic frames.
  • 495mm wide x 577mm high frame recess.
  • 0.194 cubic meter cake capacity.
  • (4) 35mm corner openings.
  • 316 stainless steel skeleton Plates Shifted By: Manual.
More Details ⟶
Stock Number: #236128
Filtration Area: 147.8 ft²
Pressure: 6 bar
Temperature: 140 °C
Cake Volume: 0.19 m3
Filter Press Plate Type: Plate and Frame
Number of Frames: 11
Number of Plates: 12
Plate MOC: Polypropylene
Plate Diameter or Width: 24.2 in
Plate Height: 28.3 in
Plate Thickness: 26 mm
Plates Shifted By: Manual
Additional Information:
  • EP plastic plate and frame filter press CE, Ex II 2G c IIB T4
  • (12) EP plastic plates, with (11) EP plastic frames with an internal 495mm wide x 577mm high opening.
  • (4) 35mm diameter corner openings.
  • Hydraulic driven press mechanism with built on power pack.
  • 316 stainless steel rip tray under plates/frames.
  • 316 stainless steel skeleton.
More Details ⟶
Stock Number: #211029
Filtration Area: 515 ft²
Cake Volume: 22 ft3
Filter Press Plate Type: Plate and Frame
Number of Frames: 33
Number of Plates: 35
Plate MOC: Lined
Skeleton MOC: Carbon Steel
Plate Diameter or Width: 36 in
Plate Height: 36 in
Plate Thickness: 1.5 in
Plates Shifted By: Manual
Additional Information:
  • Heresite coated plate and frame filter press
  • Size 36(4) eye corner feed closed delivery with (33) chambers1 & 3 button plates 1.5" thick with hydraulic pump
More Details ⟶
Stock Number: #703100
Filtration Area: 22 ft²
Orientation: Horizontal
Additional Information:

Vaccum belt filter Pneumatically operated hood 4-2", 2-1" inlets. 1-2" vacuum opening no belt with filter

More Details ⟶
Stock Number: #202024
Filtration Area: 26.5 ft²
Pressure: 15 bar
Cake Volume: 2.4 ft3
Filter Press Plate Type: Un-Gasketed Recessed
Number of Plates: 15
Plate MOC: Polypropylene
Skeleton MOC: Carbon Steel
Plate Diameter or Width: 470 mm
Plate Height: 470 mm
Plate Thickness: 75 mm
Plates Recessed: Yes
Plates Shifted By: Manual
Additional Information:
  • Operating pressure 7/15 bar. 4 eye.
  • With red and blue button plates for washing.
More Details ⟶
Stock Number: #207029
Filtration Area: 10 ft²
Pressure: 150 psi
Temperature: 350 °F
Additional Information:

Trinity filter housing Trin-Cor serial #60795, Part # 4HD 4886-1778 Pressure drop 4 psi @ 500 GPM Inlet & outlet connections are 2.5 " weld neck flanges. Filter has four 1" weld neck flanges for draining and venting.

More Details ⟶
Stock Number: #207030
Filtration Area: 10 ft²
Pressure: 150 psi
Temperature: 350 °F
Additional Information:

Trinity filter housing Trin-Cor serial #60702, Part # 4HD 4886-1778. Pressure drop 4 psi @ 500 GPM Inlet & outlet connections are 2.5 " weld neck flanges. Filter has four 1" weld neck flanges for draining and venting.

More Details ⟶

Shop used, secondhand and surplus filters from IPP – in stock and engineered for chemical, pharmaceutical, and food-grade applications

Streamline your process with IPP’s ready-to-ship filters designed to reduce waste, recover product, and meet regulatory standards

Used filters are essential components in countless process operations where solids must be separated from liquids. Whether you’re removing fine particulates, clarifying solutions, or recovering valuable materials, industrial filters play a critical role in improving product quality, protecting downstream equipment, and maintaining compliance. With more than 47 years of experience, IPP supplies used, secondhand, and surplus filters from 20 global plant sites and maintains an extensive inventory of 15,000+ process systems.

IPP stocks a wide range of filter types—pressure leaf, plate and frame, cartridge, vacuum drum, nutsche, and candle filters—from leading brands like Sparkler, Pall, Funda, and Millipore.

Primary uses across industries

  • In chemical processing, for separating solids from liquids in catalyst recovery, resin filtration, and acid clarification
  • In pharmaceuticals, for sterile filtration of intermediates, APIs, and final formulations
  • In food and beverage, for wine clarification, edible oil filtration, and sugar refining
  • In environmental and wastewater, for sludge dewatering and contaminant removal

Types of materials processed

  • Slurries, suspensions, and solutions with fine particulates
  • Heat-sensitive or viscous liquids requiring gentle handling
  • Solvent-based, aqueous, or corrosive mixtures

Common materials of construction

Industrial filters are built to resist corrosion, handle pressure, and maintain hygiene:

  • Stainless steel for sanitary, pharma and food-grade use
  • Carbon steel for robust chemical and utility processes
  • Hastelloy, titanium or lined steel for aggressive media or high-purity applications

Key features of process filters

  • Multiple filter formats to match flow rate and solids content
  • Jacketed options for temperature-sensitive operations
  • ASME code-rated vessels available for pressure applications
  • Options for automated cake discharge or backflushing
  • Compact, modular systems designed for integration and easy maintenance

Learn more about industrial filtration technologies and applications from Chemical Processing.

Find your industrial filter at IPP

Search the IPP inventory or contact IPP’s filter experts to locate the right used, surplus, or secondhand filter for your process. With trusted manufacturers, quality systems, and rapid delivery, IPP helps you reduce downtime and improve filtration efficiency.

Filter FAQ

Have questions about Filters or our services? Learn more about our products and why customers choose IPP.

What’s the difference between pressure leaf and plate and frame filters?
Pressure leaf filters offer continuous, enclosed operation ideal for fine filtration, while plate and frame units are great for batch operations and easier cake discharge.
Are used filters suitable for pharmaceutical or food processing?
Yes – many are built to sanitary standards and can be revalidated or retrofitted with new filter media and gaskets.
What factors should I consider when selecting a filter?
Key factors include particle size, solids concentration, flow rate, operating pressure, temperature, and chemical compatibility.
What are the benefits of buying used or secondhand process equipment from IPP?
IPP offers significant savings, reduced lead times, and global support based on more than 47 years of equipment expertise.
